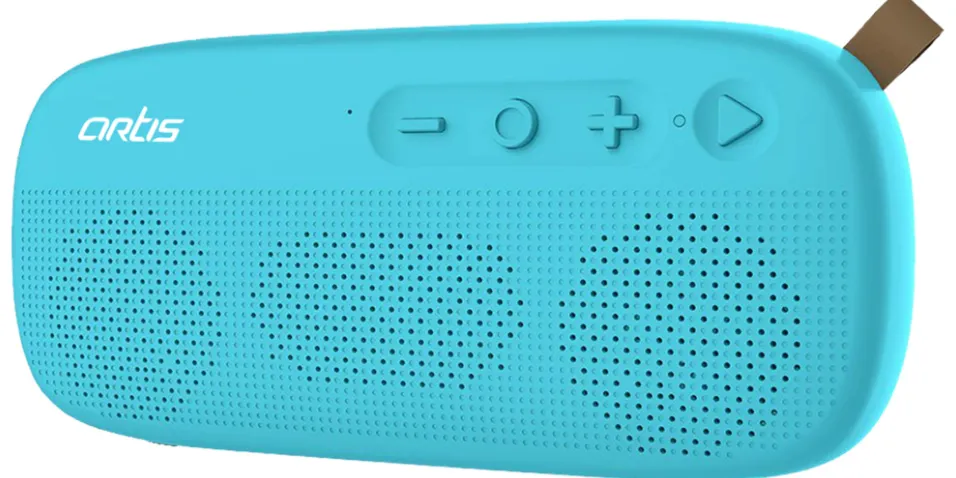

Introducing the Artis BT72 Portable Wireless BT Speaker

Experience high-quality sound on the go with the Portable Wireless BT Speaker. This compact and stylish speaker is perfect for anyone who wants to enjoy their music, podcasts, or audiobooks wherever they go. With a long-lasting battery life and easy Bluetooth pairing, the Artis BT72 is a must-have accessory for any music lover. The estimated price for the Artis BT72 is $79.99, and it is now available for purchase.

Product Specifications

Specification	Detail
BT Version	4.2 + EDR
Output	10W RMS
Dimensions	21.9 x 9.57 x 5.35 cm
Weight	420g
Input modes	BT/USB/TF/AUX/FM
TWS Connectivity	Yes
Handsfree Calling	Yes
Charging time	2 hours max
Playback time	5 Hours max (Depending on volume level)
Input	1A
Battery Capacity	800mah
Memory Card / USB	32 GB max

Product Details of Artis BT72 Portable Wireless BT Speaker

The Artis BT72 Portable Wireless BT Speaker is a lightweight and portable Bluetooth speaker that delivers clear and crisp sound. It has a sleek and modern design that fits in perfectly with any decor. The speaker is compatible with all Bluetooth-enabled devices, including smartphones, tablets, and laptops. The Artis BT72 also has a built-in microphone, allowing you to make hands-free calls with ease.

Description of Parts


Short Press: Previous song ; Long Press: Volume low
On/Off Switch ; Mode Key: BT / FM/ USB / TF Card / Aux in
Short Press: Next Song ; Long Press: Volume high
Short Press: Pause / Play / Pick up Call ; Double Press: TWS Connection mode
LED Light indicator
mic.
USB pendrive slot
Aux input
Charging port
Micro Sd Card / TF Card Slot

Instructions for Use

Charging the speaker

The speaker has a built in Re chargeable battery
Use the provided Micro USB charging cable to charge the speaker Plug in the charging cable in the micro usb port on the speaker Plug the other end in the usb port of a usb charger or a computer The Red LED will illuminate while it charges Once fully charged the LED will go off.
Important Reminders

Please do not disassemble the speaker or try to open it for repairs
This product uses lithium ion batteries, Please discard accordingly.
Do not expose the product to rain , humidity or direct sun light
In FM mode please connect the Micro USB Charging cable to act as a antenna for reception

BT mode

Please insure that the input device is paired with the speaker to steam music wirelessly
Once paired, you can stream music / play music from your device

Setup Guide of Artis BT72

Setting up the Artis BT72 is simple and straightforward. To turn on the speaker, press and hold the power button until the LED light turns on. Then, go to your Bluetooth settings on your device and select "Artis BT72" to pair. Once paired, you can adjust the volume and control the music directly from your device or the speaker. To turn off the speaker, press and hold the power button until the LED light turns off.

Music Mode	Function	Operation buttons
Playing music	Increase Volume	Long press+ key
Playing music	Decrease Volume	Long press- key
Playing music	Pause	Short press key
Pause	Play	Short press key
Playing music	Previous track	Short press- key
Playing music	Next track	Short press+ key

Hands-free calling

Please insure your phone is paired with the speaker via BT mode

Handsfree Mode	Function	Operation buttons
Incoming Call	Answer incoming call	Short press key
Incoming Call	Reject incoming call	Long presskey 3 Sec.
Incoming Call	End the call	Short press key
ON theline	Increase Volume	Long press + key
ON theline	Decrease Volume	Long press - key
Standby mode & Connected to a device	Redial last number	Short pressKey 2 times

TWS Connection

( True wireless stereo – connecting 2 same speakers to 1 input device)

Turn on both speakers
Double press the play / pause / call pick up button on any one of the 3 speakers and you will hear a “ding dong” sound.
Both the speakers will then be connected to each other
Search for Artis BT72 on your input device under BT connections
Pair your input device by selecting the Speaker model no Artis BT72
Now you can enjoy your music output through 2 speakers

TF Card input / USB pen Drive input

Turn on the speaker
Insert the Memory card or the USB pen drive
A voice prompt will be heard
Speaker will automatically start playing the songs/tracks

NOTE: all files need to be in the root folder of the input pen drive or memory card

FM Radio

Turn on the speaker
Insert the micro usb charging cable in to the charging port
This cable serves as an antenna for the speaker
Short press the mode button till you are in FM mode
To auto scan radio stations short press the play / pause button once
It will take few moments to search all stations .
Once scanned, all available stations will get stored automatically in the speakers memory
Press – or + to skip the selected station
Long press – or + to increase or decrease the volume

Aux Mode

Turn on the speaker
Use the aux cable to connect the input device and the speaker
Select your songs on the source input device and play directly
Long press – or + to increase or decrease the volume
NOTE: In aux mode media is controlled through the source device and not speaker controls

Safety instructions

Keep away from Sunlight on Hot objects
Keep away from Humidity and Wet sources
Keep in a dry location
Keep away from children
This is not a toy

Troubleshooting

Problem	Possible cause	Solution
No sound output when power on	1: No input sound source	1: Connect a Line signal
	2: Volume knob in the lowest position	2: Adjust volume
	3: USB/SD no plug	3: Insert a USB/SD Card
Distortion of sound	1: Volume too loud	1: Turn volume lower
	2: Audio file error	2: Check and change the audio file
		3: Adjust Bass/Treble by "MENU"
		and "Main volume"
No sound from the Microphone	1: Microphone socket not fully plugged in	1: Completely plug in the microphone socket
	2: Microphone switch is not on	2: Power on microphone
	3: Microphone volume in lowest	3: Adjust microphone volume
No sound from the USB/SD card	1: Incompatible song format	1: Songs format should be MP3/WMA
	2: Illegal operation causes failures	2: Power off, then power on
	3: USB/SD Card not inserted properly	3: Insert USB/SD card properly
Speaker has big noise	1: Wired Microphone too close to the speaker	1: Do not let the wired microphones
	2: Wired Microphone is switched on but not in use	head point at the speaker
	3: Microphone volume too loud	2: Turn off wired microphone
	4: Mobile phone too close to the speaker	if not in use
	5: Too close to the equipment which	3: Reduce the microphone volume
	interferes with the speaker	4: Keep mobile away from the
		speaker during calls
		5: Keep the speaker away from
		other sources of interference
Blue-connect Failure	1: Blue-connect Disconnected	1: Find the right device Name or press
	2: Blue-connect Connected but no voice	"MENU" Button to restore factory settings.
	3: Blue-connect effective distance too short	2: Confirm if you are connected to the
		right device Name
		3: Try to keep away from barriers,
		such as walls, glasses...etc

Remarks: If the problem persists, please contact your dealer.
Electric products must not be put into household waste. Please bring them to a recycling center. Ask your local authorities or your dealer about the way to proceed.

Pros & Cons of Portable Wireless BT Speaker

Pros

Compact and portable design
Long-lasting battery life
Easy Bluetooth pairing
Built-in microphone for hands-free calls
Clear and crisp sound quality

Cons

May not be loud enough for large gatherings
No option for wired connection

Customer Reviews of Artis BT72

"I love my Artis BT72! It's the perfect size to take with me on the go, and the sound quality is amazing. I've used it at the beach, by the pool, and even in the shower, and it always delivers. Highly recommend!" - Sarah L.

"I was hesitant to spend the money on a Bluetooth speaker, but the Artis BT72 was worth every penny. It's easy to use, has great battery life, and the sound is fantastic. I've even used it to take calls, and the other person said it sounded like I was in the same room as them. Definitely a great investment." - Michael T.

"The Artis BT72 is a great little speaker. I've had it for a few months now, and it still works perfectly. The sound is clear and crisp, and it's easy to pair with my phone. I've taken it on a few camping trips and it's held up great. Would definitely recommend." - Emily K.

The most common complaint about the Artis BT72 is that it may not be loud enough for large gatherings or outdoor events. However, for personal use or small gatherings, it delivers great sound quality and is a reliable and convenient accessory to have.
