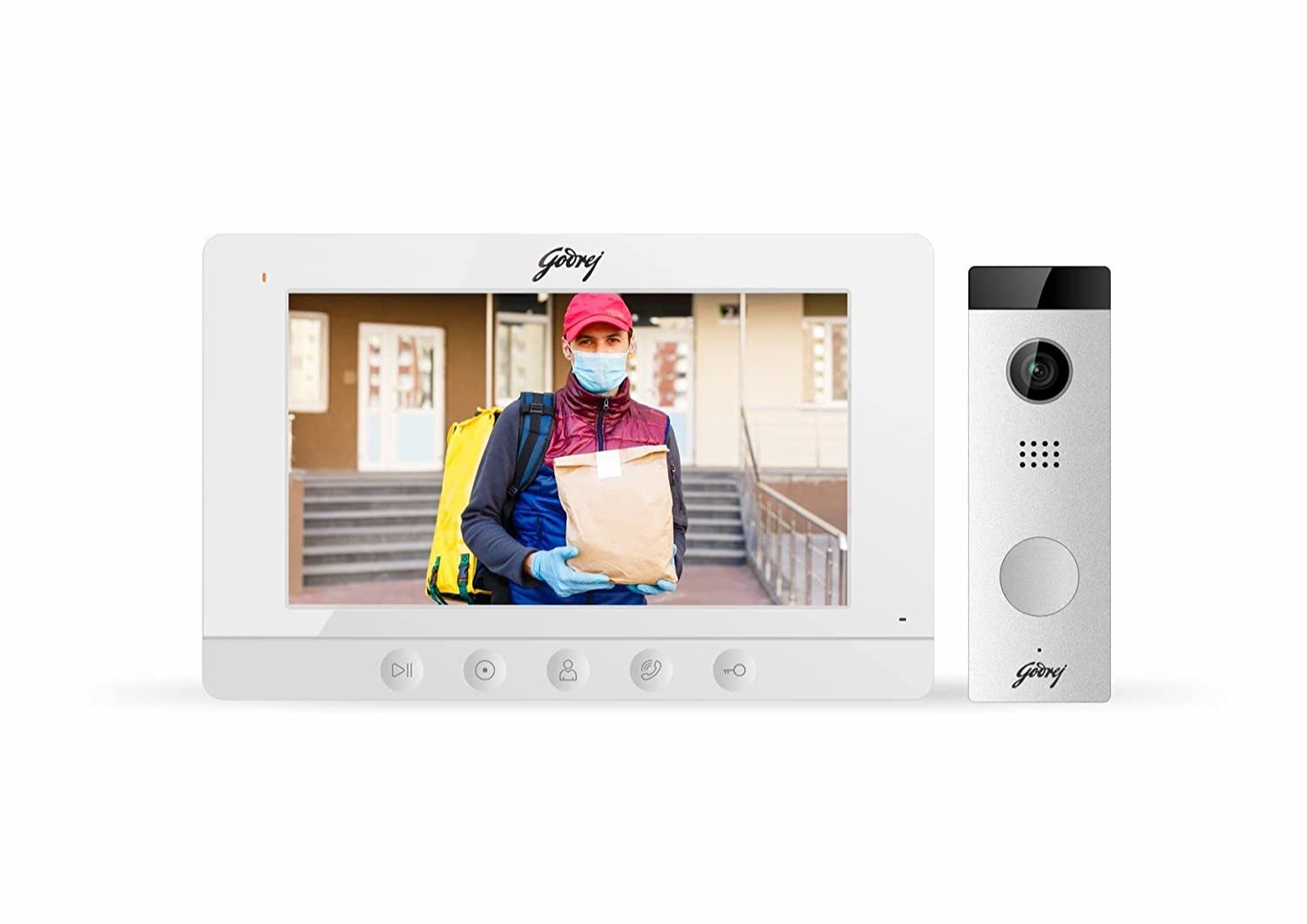

Godrej Security Solus 7 Video Door Phone

Introducing the Godrej Security Solus 7 Video Door Phone is an innovative home security system that improves the protection of your front door. With a 7-inch touchscreen display, high-definition video, two-way voice communication, and night vision, you can view and engage with visitors in real time. The Solus 7 is simple to install and use, providing a dependable and convenient option for modern home security.

Packing Contents

Name and Functions of Each Part

Front Part

Rear Part

Features

• 7” TFT-touch screen, 800×480 Resolution
• Support 2 door stations, 4 CCTV cameras, 1 master monitor + 3 extension monitors, 1 audio phone, and 1 CCTV output
• Built-in flash memory: 100 pictures
• Support telephone function and call forwarding
• TF card: 1024 images and 128 videos
• 16 melodies for different door stations
• Support motion detection
• Leaving voice messages for family & visitors
• Point-to-point intercom and broadcast
• Support digital photo frame

Main Functions

• Monitoring and talking with a visitor
• Door lock release
• Support AC/DC power input
• Support multi-language
• Do-not-disturb function
• Date and time display
• Surface mount

Installation

Installation Location

Monitor installation location

Standard monitor installation height is about 1,500mm where screen center is at eye level; in this case, wall-hanging metal center is 1,450mm above ground level.

Wire & Monitor Installation

1. Push down the button with a screwdriver.
2. Put the wire into the hole from the bottom.
3. Release the screwdriver.
4. Check the fastness of the wire.
5. Remove wall-hanger bracket behind the monitor.
6. Install wall-hanger bracket.
7. Connect wires to the back terminal of the monitor, referring to the connection diagram.
8. Hang monitor on wall-hanging, and fix monitor on wall-hanger bracket.
9. Plug monitor’s power plug into the power socket.

Operation Description

Main Screen

It will show corresponding functions when pressing each icon on the main screen.

Icon Definition

In [Leaving] mode, when the door station calls in, the monitor will play the voicemail to the visitor if the voice message is recorded and has been set in the [Setting] page. In [Do not Disturb] mode, when the door station calls in, the monitor will be mute.

Remark: To set the voicemail.

Visitor Call

When the door station calls in, the visitor’s image will be shown on the monitor screen (on-screen duration 90 seconds).

Icon Definition

• When a door station calls in, press [Talk] to start to talk; press [Talk] again to terminate the talk.



• During the talk
  • Press [Change] to switch to other door stations or CCTV, and the current talk will be terminated.
  • Press [Record] to record a video clip or capture a picture from the calling door station, depending on the system setting.

  • Press [Setting] to adjust the sound volume, brightness, color, and contrast.



  • Press [Transfer] to transfer the current call to other extension monitors.
  • Press [Open] to release the door.
  • Press [Exit] or [Home] to end the talk.

Monitor Function

When you press the [Camera1] / [Camera2] or [CCTV1] / [CCTV2] / [CCTV3] / [CCTV4] icon on the main screen, the system will enter monitor mode, and will show the image from the corresponding door station / CCTV.

Remark: The [Transfer] buttons will be in disable status under monitor mode.

Godrej Security Solus 7 Video Door Phone Multimedia

Image & Video Storage

If you insert a TF card, the monitor can record images and videos. If you do not insert a TF card, the monitor can only record images.

• Maximum Capacity
  • TF card: 1024 images and 128 videos.
  • Built-in flash memory: 100 images.
• When full, the newest image/video will automatically overwrite the oldest image/video.

Image & Video Review

• Press [Image] or [Video] on the main screen to review the image/video.

• There are 6 images/videos on one page. The image/video with white borderlines means that the image is selected.



Icon Definition

• You can press the  icon on the top left corner to switch [Image] / [Video] review mode.



Voicemail Function

Audio Message Record

• Press [Voicemail] on the main screen to record an audio message.



Icon Definition

• Press [For Guest] / [For Family], enter the recording page to record a voice message. The monitor supports up to 30s for each message.

Review Audio Record

• Press to review records.



Icon Definition

• For Family/ For Guests: Switch between the family message list and guest message list.

Remarks

• Up to 32 messages for family and 2 messages for guests. When full, the newest message will automatically overwrite the oldest message.
• This function can be supported with a TF card only.

Photo Frame Function

• Press [Photo Frame] on the main screen, the monitor will play the image one by one automatically.



Icon Definition

• Remark: Only photos with specific format can be shown in the photo frame. To convert the photo, please see Appendix I.

Intercom Function

• Press the [Intercom] icon on the main screen, choose the monitor you want to call, and then press [Call], and then you can talk with the corresponding monitor.



Icon Definition

• [Inner Call] calls the audio phone.
• [Ext. 1] calls extension monitor 1.
• [Ext. 2] calls extension monitor 2.
• [Ext. 3] calls extension monitor 3.
• [Master] calls master monitor.
• [Broadcast] calls all monitors.

Mue, + , - : In the [Intercom] page, you can enable/disable [Mute] function, and adjust the volume. To set the intercom address: please see [Setting] → [Intercom].

Telephone

• The Monitor can support telephone functions:
  • Make and receive a telephone call.

  • Transfer the call from the door station to a specific mobile phone or fixed phone and control the door station via telephone.



Icon Definition

Call Forwarding Function

To use the call forwarding function, you need to set a forwarding telephone number, please take the following steps:

1. Press [Telephone] icon on the main screen, enter [Telephone] page.
2. Set a telephone number you want to forward:
   • 1 → Phone Number # OK
   • Remark: The tel. number should be within 20 numbers.
3. Check the telephone number:
   • 2 → # → OK
4. Set ring time before call forwarding:
   • 5 → Ring Time → # → OK

   • Remark: The ring time range = [1s ~ 30s], and you must input 2 figures. For example: 01 for 1 second, 30 for 30 seconds.



Control the Door Station by Telephone

When no one answers the call from the door station, the call will be transferred to your telephone. During the talk, input 2 + '#' to open the door.

Setting page

Press [Setting] icon to set up the system.

Icon Definition

Camera

In this page, you can:

• Turn [Motion Detect] on or off.
• Set one camera as default for monitoring.
• Set the default camera for motion detection.
• Set detection start & end time.
• Set door open timeout.

Remark: Once a moving object is detected, the camera will automatically capture a video of 15s. When monitoring the door station or CCTV, motion detection will pause until the monitoring ends.

Monitor Record

In this page, you can:

• Turn [Auto Record] on or off. If [Auto Record] is on, the monitor will capture pictures or videos automatically, when the door station calls in.
• Select picture or video record mode. To set video recording timeout, enter into drop-down option list: 15 s/30 s/60 s.
• Copy/delete pictures and videos.
• Format TF card and flash memory.

Voicemail

In this page, you can select one voicemail for a guest as the message to play under [Leaving] mode.

Remark: The Voicemail message is stored on the TF card. This configuration will be invalid if there is no valid TF card inserted. To record a message for a guest.

Intercom

In this page, you can:

• Turn [Intercom Receive Enable] on or off.
• Set up intercom address. The main monitor should be set up as "Master", extension monitors should be set up as "Ext.1", "Ext.2", "Ext.3" successively.

General

In this page, you can:

• Set up date & time.
• Select a language.
• Select CCTV mode. The default option - CCTV mode 1.

Remark: The CCTV mode of every monitor should be the same. With the CCTV mode of the master monitor changing, the extensions' CCTV mode will change automatically. Note that you should set the master and extension properly.

Melody

In this page, you can

• Turn [Touch Tone] on or off.
• Select ring melody for door station 1, door station 2, and intercom. 16 melodies for you to choose.
• Set ring timeout: 10 s/20 s/30 s.

Factory Reset

In this page, you can restore the system to factory settings (except date & time, intercom address).

Specifications

Description

The Godrej Security Solus 7 Video Door Phone is a top-of-the-line security device that allows you to see and speak with visitors at your door from the convenience of your smartphone or tablet. The high-definition camera provides clear, detailed images, even in low light conditions. The two-way audio feature allows you to communicate with visitors, and the device can be hardwired or wireless for easy installation.

Setup Guide

To set up your Godrej Security Solus 7 Video Door Phone, follow these steps:

1. Choose a location for your door phone and install the mounting bracket.
2. Connect the door phone to power and attach it to the mounting bracket.
3. Download the Godrej Security app on your smartphone or tablet and create an account.
4. Follow the in-app instructions to connect your door phone to your network and complete the setup process.

Troubleshooting

If you are having trouble with your Godrej Security Solus 7 Video Door Phone, try the following solutions:

• Check that the door phone is properly connected to power and the mounting bracket.
• Make sure that the door phone is within range of your network and that the network is functioning properly.
• Restart the door phone and try the setup process again.
• If the problem persists, contact Godrej Security customer support for further assistance.

Pros & Cons

Pros

• High-definition camera for clear images
• Two-way audio for communicating with visitors
• Hardwired or wireless installation options
• Modern, sleek design

Cons

• Higher price point compared to some other door phones
• May require professional installation for hardwired option

Customer Reviews

"I love my GGodrej oorej Security Solus 7 Video Door Phone! The high-definition camera is a game changer and the two-way audio is so convenient. I would highly recommend this door phone to anyone looking to upgrade their security." - John D.

"I had some trouble setting up my door phone, but the customer support team at Godrej Security was so helpful and walked me through the process step by step. I'm so happy with my new door phone and the added security it provides." - Sarah K.

"The only complaint I have is that the price is a bit high, but it's worth it for the high-quality features and added security. I would definitely recommend this door phone to others." - Michael P.
