Introduction

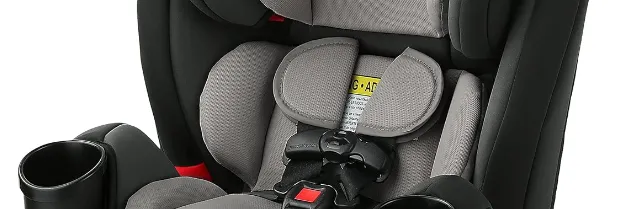

The Graco TriRide 3-in-1 Convertible Car Seat is designed to grow with your child, providing safety and comfort from infancy through childhood. It features three modes of use: rear-facing for infants (5-40 lbs), forward-facing for toddlers (22-65 lbs), and a highback booster for older children (40-100 lbs). The TriRide is priced at approximately $199.99. With a steel-reinforced frame, energy-absorbing foam, and a no-rethread harness system, it ensures secure and easy adjustments.

Graco TriRide 3 in 1 Convertible Car Seat Accessories

Harness Covers

• Make sure that harness covers do not interfere with placement of the chest clip at the armpit level.

• To remove, undo the fastening strips and remove.



Infant Body Support

• Use only in the rear-facing mode.
• Infant body support must be used if shoulders are below the lowest harness setting.

• Never allow infant body support to bunch or fold behind child.



Infant Head Support

• Use only in the rear-facing mode. To adjust the support, pull up until desired height. Do not use without the infant body support.
• To install, thread the infant head support straps through the headrest and use the fastening strips to connect the straps together.

• To remove, undo the fastening strips and pull the straps out of the headrest.



Convertible Car Seat Specifications

• Rear-facing mode: Supports children from 5-40 lbs and up to 40 inches tall
• Forward-facing mode: Supports children from 22-65 lbs and up to 49 inches tall
• Booster mode: Supports children from 40-100 lbs and up to 57 inches tall
• Infinite Slide Harness System for easy adjustments
• Steel-reinforced frame for added durability and strength
• EPS foam for impact absorption
• Machine washable seat pad and removable cup holder
• 10-position adjustable headrest and harness

Features

1. Headrest/Harness Height
   Adjustment Lever
2. Headrest
3. Booster Shoulder Belt Guide
4. Chest Clip
5. Harness Straps
6. Buckle Strap
7. Harness Adjustment Strap
8. Seat Base
9. Infant Head Support
10. Harness Covers
11. Infant Body Support
12. Buckle
13. Cup Holders
14. Harness Adjustment Lever (under seat pad)
15. Recline Handle

16. Harness Storage Compartment



Side View

• Level Indicator
• Tether Strap
• Forward-Facing Belt Path D Cup Holder
• Lower Anchor Attachment F Booster Lap Belt Path
• Rear-Facing Belt Path
• Seat Base
• Recline Position Indicator

Back View

• Level Indicator
• Tether Storage Bar
• Tether Hook
• Tether Strap
• Lower Anchor Connector Storage
• Lower Anchor Strap
• Lower Anchor Adjuster
• Instruction Manual Storage

Description

The Graco TriRide 3 in 1 Convertible Car Seat is engineered with safety and convenience in mind. The seat features a steel-reinforced frame and EPS foam for enhanced protection during impacts. The Infinite Slide Harness System allows parents to easily adjust the harness and headrest in one motion, ensuring a proper fit as the child grows. The car seat also includes a machine washable seat pad and a removable cup holder, making maintenance and cleaning straightforward.

The design of the TriRide 3 in 1 is user-friendly, allowing parents to transition between the different modes without significant hassle. This versatility makes it an excellent choice for families who need a car seat that can adapt to their child's changing needs over time.

Securing Child 5-point Harness

1. Loosen Harness Straps
   Push down on the harness adjustment lever while pulling out on the harness straps at the chest clip.
   Unbuckle the chest clip and the crotch buckle. Place harness straps off to the sides.



2. Place Your Child in the Seat
   Make sure their back is flat against the car seat back.
   Avoid bulky or heavy clothing. Doing so will prevent the harness straps from being tightened properly. You may place a blanket over the child after you have secured the child.



3. Place Harness Straps Over Child’s Shoulders and Buckle
   You will hear a “CLICK” when buckle tongues are securely attached. Pull up on each buckle tongue to make sure it is securely attached.

4. Be sure the Harness Straps Are at the Proper Height
   Rear-Facing: Harness straps should be at or just below the child’s shoulders. Top of head must be at least 1” (2.5 cm) below the headrest adjustment lever.
   Forward-Facing: Harness straps should be at or just above the child’s shoulders. Top of child’s ears below top of headrest.



5. To Raise or Lower Headrest/ Harness Height
   Squeeze the adjustment handle and move headrest for the proper harness height.

6. Adjust the Seat Pad
   For smaller babies, shorten headrest by placing the bottom of the flap under the support as shown.



7. Check the Buckle Position
   The correct slot is the one that is closest to your child without being underneath them.

8. To Adjust the Buckle Position
   Recline the car seat and locate the metal retainer under the car seat shell.



9. Rotate Metal Retainer and Insert
   It Up Through the Shell and Pad From the top of the car seat, pull the crotch buckle out.

10. Insert Metal Retainer in the New Crotch Buckle Slot
    Reach underneath the car seat and pull the metal retainer through.



11. Pull Up on Crotch Strap to Make Sure it is Secured

12. Rear-Facing With Lower Anchor
    Attachment: Make sure the lower anchor strap is (A) in front of the buckle strap when the buckle is in the inner-most position, and (B) behind when in the outermost position and that it is flat and is not twisted.



13. Buckle the Chest Clip
    You will hear a “CLICK” when the chest clip is securely buckled.

14. Pull All the Slack Out From Around the Waist
    Pull up on the harness strap while pushing the chest clip down. Do this to both sides.



15. Tighten the Harness by Pulling the Harness Adjustment Strap
    When you are not able to pinch any of the harness webbing at your child’s shoulder, the harness is tight enough.
    A snug harness should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position.



16. Raise the Chest Clip to Child’s Armpit Level

17. Check Tightness Again, Tighten More if Needed



Setup Guide

To set up the Graco TriRide 3 in 1 Convertible Car Seat,

• Start by reading the user manual thoroughly. For rear-facing mode, ensure the seat is installed at the correct angle using the built-in level indicator.
• Secure the seat using either the vehicle's seatbelt or the LATCH system.
• For forward-facing mode, adjust the headrest and harness to fit your child properly, then secure the seat using either the seatbelt or LATCH system. In booster mode, place the seat on the vehicle's seat and use the vehicle's seatbelt to secure your child.

Always follow the manufacturer's instructions and ensure that all parts are securely fastened before use.

Cleaning Seat Pad

1. Head Support Cover
   Raise the headrest to the highest position.

2. Lift the headrest pad flap up out of the way and undo the two snaps below the head support.



3. Undo elastic loops behind head support.
4. Undo elastic loops inside each shoulder belt guide.
   Peel cover off head support.

5. Machine wash pad in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.
   To put the head support cover back on, reverse preceding steps.



Seat Pad

1. Undo the two snaps.

2. Pull the seat pad forward and undo the 2 snaps at the front of the seat.



3. Continue to pull the seat pad forward and undo the 2 elastic loops at the front of the seat.

4. Undo the fabric below each cup holder and remove the seat pad from the shell.
   Machine wash pad in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.
   To put the seat pad back on, reverse preceding steps.



Side Pad

• On each side of the seat, undo the snap near the forward-facing belt path and the snap at the front of the seat (A).
• Undo the armrest fabric behind each cup holder (B).

• Undo the fabric below each lap belt guide (C).



• Undo elastic loops on the back of the seat.
• Remove the side pad from the shell.
• Machine wash pad in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.

• To put the seat pad back on, reverse preceding steps.



Cleaning Crotch Buckle

• Recline the car seat and locate the metal retainer. Rotate the metal retainer up through the shell and pad. From the front, pull the crotch buckle out.
• To clean buckle, place in a cup of warm water and gently agitate the buckle. Press the red button several times while in the water.
  • DO NOT SUBMERGE THE BUCKLE STRAP.
  • DO NOT USE SOAPS, HOUSEHOLD DETERGENTS or LUBRICANTS.

• Shake out excess water and allow to air dry. Repeat steps as needed until it fastens with a click. Re-insert the buckle into the same slot it was removed. Pull up on crotch buckle to make sure it is secured.



WARNING! Inspect and clean buckle from time to time to remove any objects or debris that could prevent latching.

Cleaning Harness, Lower Anchor Attachment and Tether

Surface wash only with mild soap and damp cloth. DO NOT IMMERSE THE HARNESS STRAPS, LOWER ANCHOR STRAP or TETHER STRAP IN WATER Doing so may weaken the straps. If harness straps, lower anchor strap or tether strap are frayed or heavily soiled.

Troubleshooting

If you encounter any issues with your Graco TriRide 3 in 1 Convertible Car Seat, here are some common problems and solutions:

• Issue: The harness not adjusting properly. Solution: Check if the harness is tangled or if the Infinite Slide Harness System is locked. Refer to the user manual for correct adjustment procedures.
• Issue: Seat not fitting snugly in the vehicle. Solution: Ensure that the LATCH connectors or seatbelt are correctly secured and tightened according to the user manual.
• Issue: Cup holder not staying in place. Solution: Check if the cup holder is correctly attached to its designated slot on the car seat.

Always refer to the user manual for detailed troubleshooting instructions and safety warnings.

Graco TriRide 3 in 1 Convertible Car Seat Pros & Cons

Pros:

• Convertible design allows for long-term use across different stages of a child's growth
• Easy to adjust harness and headrest with the Infinite Slide Harness System
• Steel-reinforced frame and EPS foam for enhanced safety
• Machine washable seat pad and removable cup holder for easy maintenance
• 10-position adjustable headrest and harness for customizable fit

Cons:

• May be heavier than some other convertible car seats due to its robust construction
• Installation can be more complex compared to simpler car seats
• Some users have reported difficulty in cleaning certain parts of the seat

Customer Reviews

Customers have generally praised the Graco TriRide 3 in 1 Convertible Car Seat for its durability, ease of use, and versatility. Many parents appreciate the ability to transition between different modes without needing to purchase multiple car seats. However, some users have noted that installation can be tricky and that some parts may be challenging to clean.

Common complaints include issues with harness adjustments and occasional difficulties with LATCH system installation. Despite these minor drawbacks, most reviewers recommend this car seat for its overall performance and value.
