Hamilton Beach Air Smart Air Purifier

Introduction

The Hamilton Beach Air Smart Air Purifier is a compact and efficient solution designed to improve indoor air quality by capturing airborne particles as small as 0.3 microns. Utilizing TrueAir® EverLasting™ reusable filters combining HEPA-grade filtration with odor-absorbing carbon layers, this purifier effectively reduces dust, pollen, pet dander, smoke, and common allergens. Its intuitive touchscreen controls offer easy operation with three fan speeds and timer settings, providing customizable air purification for any living space.

This air purifier is particularly suited for individuals seeking cleaner air in bedrooms, offices, and small to medium rooms up to approximately 172 square feet. Its quiet operation mode, running as low as 24 decibels, allows for undisturbed sleep or focused work, making it ideal for allergy sufferers, pet owners, and those sensitive to airborne irritants. The permanent reusable filters eliminate the hassle and cost of frequent replacements, offering long-term savings and sustainability.

Typically priced around $70 to $100, the Hamilton Beach Air Smart Air Purifier is widely available through major retailers and online platforms. Its balance of affordability, performance, and ease of use positions it as an attractive choice for consumers who want reliable air purification without extensive maintenance.

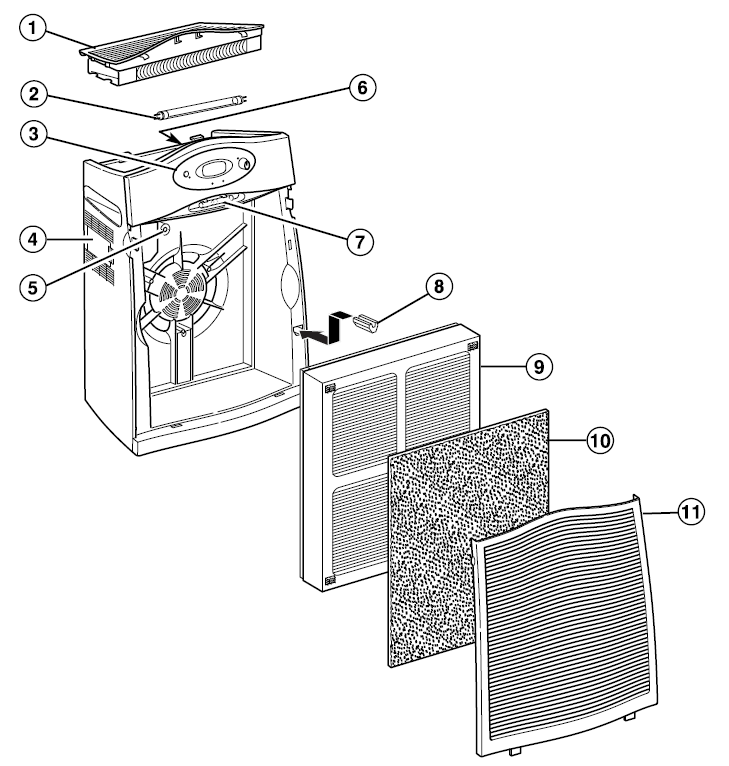

Parts and Features

1. Outlet Grille
2. Ultraviolet (UV) Bulb
3. Control Panel
4. AirSmart™ Sensor
5. UV Starter
6. UV Bulb Check Window (not shown – see page 8 for location)
7. Filter Check Gauge
8. Air Sensor Cleaner
9. HEPA Filter
10. Carbon Pre-Filter
11. Intake Grille

IMPORTANT SAFEGUARDS

READ AND SAVE THESE INSTRUCTIONS.
In order to prevent the risk of fire, electric shock, personal injury, or property damage, follow these instructions carefully. When using electric appliances, basic safety precautions should be followed, including the following:

1. Read all instructions before using this air purifier. Save these instructions for reference.
2. Direct ultraviolet light exposure to the eyes can cause temporary or chronic adverse effects on your eyesight.
3. Do not immerse this product in water or splash water on it. An electrical short may result in shock or fire.
4. Do not handle the plug with wet hands; electrical shock may occur, resulting in injury or death.
5. Never attempt to disassemble or alter the product in any way not instructed in this manual. Shock, fire, or bodily injury may occur. Contact Hamilton Beach at 1-800-851-8900 for assistance.
6. Do not place your face directly on the outlet grille or look into the ultraviolet light.
7. Do not operate this product in any greasy environment, such as in the kitchen. This product is not intended to filter oil or grease from the air.
8. Do not operate this product near an open fire. It may ignite and cause fire, resulting in bodily injury or property damage.
9. Do not operate this product in a garage or other area with oil or chemicals such as solvents or insecticides.
10. Always unplug the power cord from the receptacle when the air purifier is not in use, before cleaning, replacing parts, or before moving to another location.
11. Do not insert foreign objects into the product for any reason. Bodily injury or property damage may occur.
12. Do not use this product outdoors. It is intended for indoor use only.
13. Do not operate this appliance without the outlet grille in place or if the outlet grille is broken or damaged.
14. This air purifier is equipped with safety interlock switches that turn the unit off if the intake or outlet grilles are removed. DO NOT attempt to defeat or override this safety feature.
15. WARNING: To reduce the risk of fire or electric shock, do not use this purifier with any solid-state speed control device.

Consumer Safety Information

This appliance is intended for household use only.
This appliance is equipped with a polarized plug. This type of plug has one blade wider than the other. The plug will fit into an electrical outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, try reversing the plug. If the plug should still fails to fit, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.

If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the air purifier. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop,, where it can be pulled on by children or accidentally tripped over. Route the electrical or extension cord clear of furniture to prevent damage from pinching.

About Your Air Purifier

The air purifier functions as an air cleaner by helping to disinfect airborne bacteria and removing particulates from the air.
The air is cleaned in three stages:

1. A fan draws air through the intake grille on the front of the air purifier. Then it passes through the carbon pre-filter, which traps large dust particles and reduces odors.
2. The white HEPA filter then removes particles as small as 0.3 microns from the air at 99.97% effectiveness.
3. The clean air is then exposed to germicidal-grade ultraviolet light to reduce the level of airborne bacteria, molds, and viruses. The purified air is then released through the outlet grille on the top of the unit.

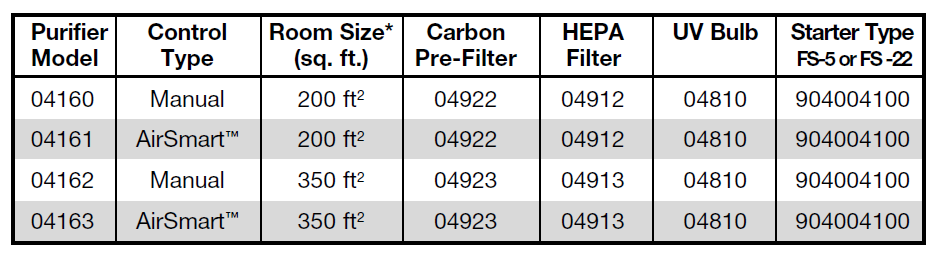

To Order Replacement Parts

Replacement bulbs may be available where the air purifier was purchased or can be obtained directly from Hamilton Beach.

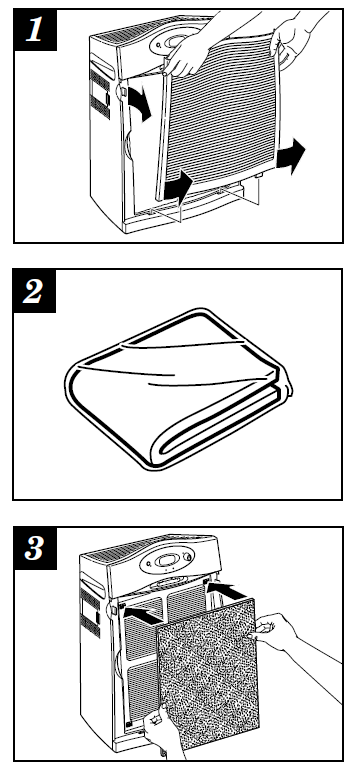

Installing the Carbon Pre-Filter

• NOTE: The carbon pre-filter should be replaced approximately every three months.
• Remove the intake grille by carefully pulling the upper two side tabs away from the body of the air purifier and lifting up.
• Locate the black carbon pre-filter.
• It will be folded inside a plastic bag. Remove and discard the plastic bag.

• Unfold and flatten out the black carbon pre-filter. Attach the four corners of the carbon pre-filter o the four hook fasteners on the HEPA filter.

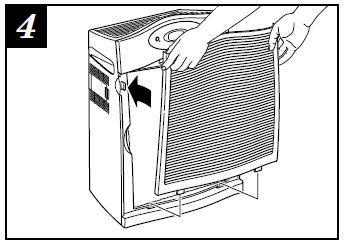

• Insert the two tabs on the bottom of the intake grille into the holes on the bottom ledge of the air purifier.
• Pivot the intake grille into place and lightly press on the upper corners of the grille to snap it into place.

• NOTE: The air purifier has a safety switch that prevents operation if the intake grille is not properly installed. DO NOT attempt to override or disable this safety switch.

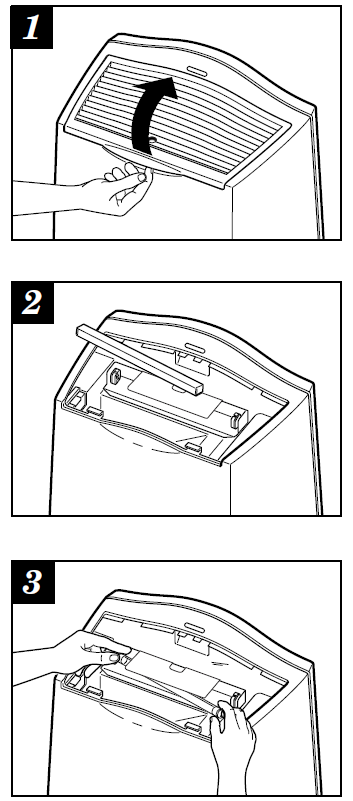

Installing the UV Bulb

• Open and remove the outlet grille by pulling up on the handle on the upper back of the air purifier.
• Remove the packaged UV bulb from inside the air purifier. Be careful not to touch the glass part of the bulb. Handle by metal ends only. Oil from fingertips on the glass bulb will shorten the life of the bulb. Carefully unpack the bulb and discard the packaging.
• NOTE: Make sure no loose packing material remains inside the air purifier.
• Make sure the unit is unplugged. Starting with one end of the bulb, then the other, gently insert the metal pins on the bulb into the white slotted socket one pin at a time.

• NOTE: Only one pin will fit in the socket at a time. DO NOT force the pins into the socket—you could break the bulb.



• Once the ends of the bulb are completely inserted into the socket, rotate the bulb a quarter turn until it locks into place.
• Insert the two center tabs on the front of the outlet grille into the middle slots on the front of the opening. Pivot the grille down toward the back of the air purifier.
• Press lightly down on the back corners of the outlet grille to snap it into place.
• NOTE: The air purifier has a safety switch that prevents operation when the top outlet grille is not properly installed. DO NOT attempt to override or disable this safety switch. See the Germicidal Light Hazard Warning on page 3.

Plugging in the Air Purifier

WARNING: To reduce the risk of electrical shock, never plug in the air purifier while your hands are wet. Always unplug the air purifier before moving or servicing the unit.

NOTE: The polarized plug will only fit in one direction—DO NOT try to force the plug. If you are unable to insert the plug into the outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician to replace the obsolete outlet.

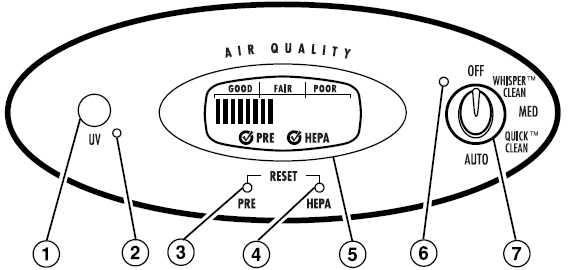

Setting the Controls – AirSmart™ Models

1. Germicidal UV Button – Turns on the germicidal UV lamp to reduce harmful bacteria from the filtered air. When this button is on, a bluish glow should be visible through the viewing window on the top of the unit. NOTE: The light will not come on if the fan is turned off.
2. UV “On” Indicator – Lights when the germicidal UV lamp is on.
3. Pre-Filter Timer Reset Button
4. HEPA Filter Timer Reset Button

5. AirSmart™ Display – When the air purifier is first turned on, the AirSmart™ sensor will analyze the air to determine the current air quality. A bar will move back and forth across the display panel until the air quality is determined. This will take about one minute. The sensor will then continue to monitor and show the air quality (poor, fair, or good) in a bar graph in the display. If the fan is set to Auto, the sensor automatically justs the fan speed for the most effective air purification.



6. Power On Indicator – Lights when unitthe on.
7. Fan Speed Knob – Turn the fan speed knob to the desired setting. There are five settings:
   • Off
   • WhisperClean™ – Use for quiet, nighttime operation or for constant low-speed filtration.
   • Medium – Provides a higher fan speed; used to quickly filter dust, pollen, smoke, etc., from a room.
   • QuickClean™ – Provides cleaning during acute needs.

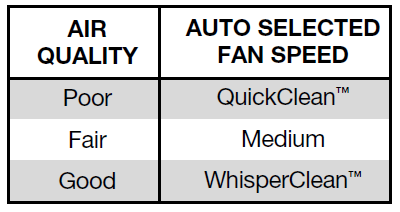

   • Auto – Functions with the AirSmart™ sensor and automatically selects the fan speed depending on the air quality detected. This is the normal setting for continuous use.

Troubleshooting Guide

The following section provides the solutions to many common problems and questions. If your air purifier is not working correctly, review these solutions first. If your problem is still not solved after reviewing this guide, call our toll-free customer service number, listed on the front cover of this manual, for assistance.
The Air Purifier Will Not Turn On

• Are the intake grille and the outlet grille installed and locked into place?
• Is the air purifier plugged into a powered outlet?
• Is the fan speed knob turned on?

The Air Purifier Changes Speed

• AirSmart™ models are designed to sense the level of contaminants in the air and adjust the fan speed to provide the most effective air purification possible. If the AirSmart™ control is set to Auto, it will automatically change fan speeds to adjust for changing air quality.

Reduced Air Flow or Poor Filtering

• The intake or outlet grille may be blocked. Make sure nothing is in front of or on top of the air purifier.
• The carbon pre-filter or the HEPA filter may be clogged. Check the filters with the filter gauge and replace them, if necessary.

Germicidal UV Bulb Does Not Light

• Is the UV switch turned on?
• Is the fan running? The UV bulb will not work unless the fan is on.
• The bulb may be burned out. See “Replacing the UV Bulb” for replacement instructions.
• The UV starter may need replacement. See “Replacing the UV Starter” for replacement instructions.

Pros & Cons of the Hamilton Beach Air Smart Air Purifier

Advantages

• Reusable Filters: TrueAir EverLasting filters can be vacuumed and reused, minimizing replacement costs and environmental waste.
• Effective Filtration: Captures 99.9% of particles down to 0.3 microns, including dust, pollen, smoke, and pet dander, enhancing overall air quality.
• Quiet Operation: Sleep mode reduces noise to 24 decibels, suitable for bedrooms and offices without disruption.
• Intuitive Controls: Touchscreen panel with 3 fan speeds and timer options (2 or 4 hours) makes it simple to operate and customize.
• Energy Efficient: Consumes around 33.9 watts on high, translating to roughly $3 per month in electricity costs when run continuously.

Disadvantages

• Limited Room Coverage: Best suited for rooms up to 172 sq. ft., not ideal for larger spaces or whole-house purification.
• Filter Maintenance Required: Though filters are reusable, they must be vacuumed regularly to maintain peak performance.
• Fan Noise on Low Speed: Some users report that the lowest fan speed can be louder than competing models, which may affect bedroom use.
• No Smart Features: Lacks app connectivity or remote control found in some alternative air purifiers.

Compared to alternatives like the Levoit Core 200S, the Hamilton Beach model is more cost-effective over time due to reusable filters, though it consumes slightly more power and offers fewer smart features. Overall, it provides excellent value for money for smaller spaces and users prioritizing maintenance savings.

Customer Reviews of Hamilton Beach Air Smart Air Purifier

Users generally praise the Hamilton Beach Air Smart Air Purifier for its effective filtration and quiet operation. Many reviewers highlight the convenience of reusable filters, noting significant savings on replacement costs compared to traditional HEPA filter purifiers. The purifier's compact size and modern touchscreen controls receive positive remarks for fitting into various room styles and easy usability.

Common complaints include occasional noise on the lower fan setting and the need for regular filter vacuuming to prevent loss of efficiency. Some users feel the purifier’s coverage area limits use to smaller rooms, which aligns with the product specifications. The overall star rating averages around 4.2 out of 5 stars, with recommendations for allergy relief and smoke odor removal frequently mentioned.

Most customers recommend the Hamilton Beach Air Smart Air Purifier for those needing affordable, reliable air cleansing in personal spaces. It is especially valued by pet owners and individuals with mild allergies looking for a low-maintenance purifier.
