Introduction

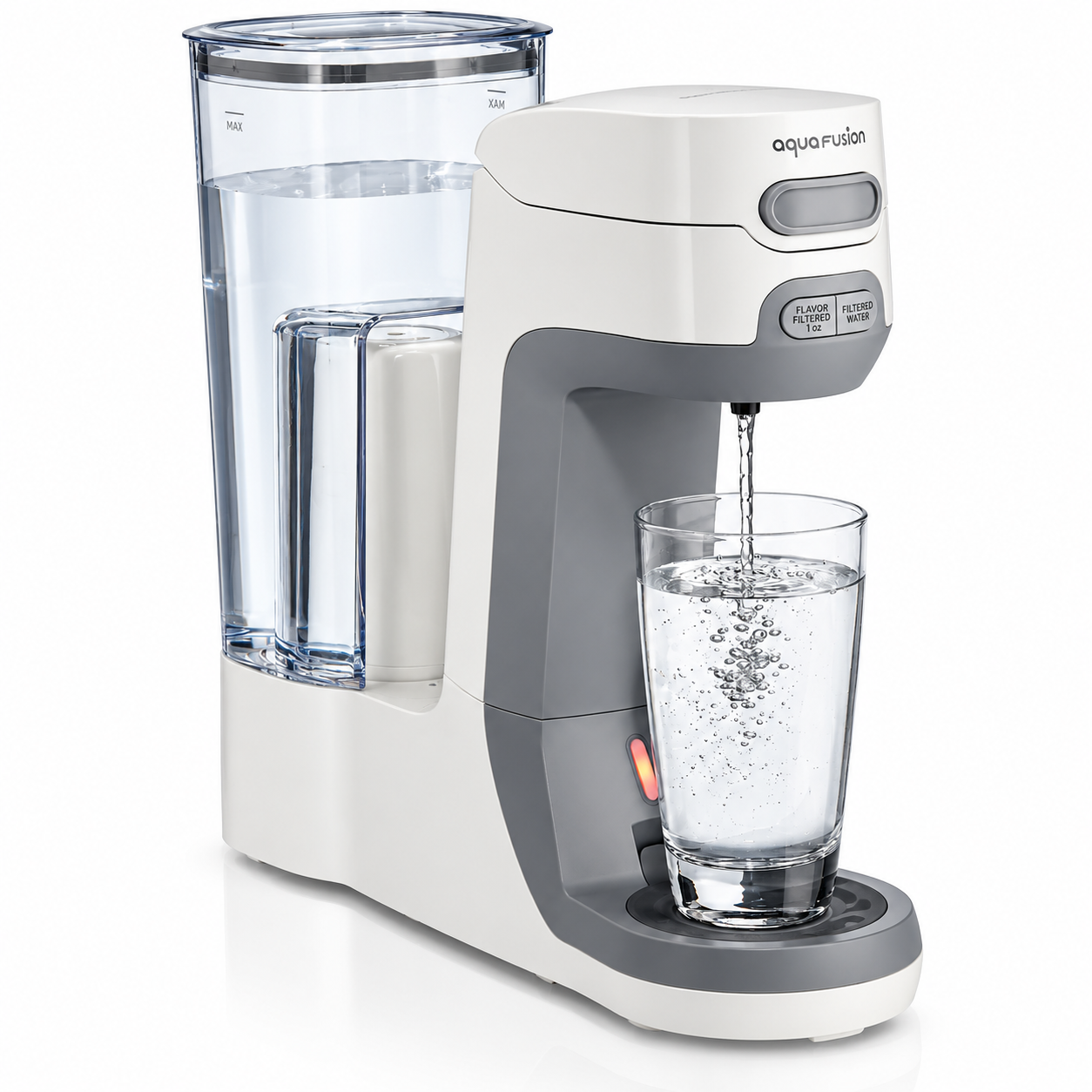

Introducing the Hamilton Beach Flavored Water Dispenser 87320, a game-changer in the world of hydration! This innovative product is designed to infuse your water with delicious natural flavors, making it easier than ever to drink the recommended daily amount of H2O. With an estimated price of $39.99 and a launch date in early 2021, this dispenser is perfect for anyone looking to stay hydrated and healthy in style.

Detailed Specifications

The Hamilton Beach Flavored Water Dispenser 87320 boasts an array of impressive features, including:

• A sleek and stylish design that fits perfectly on any countertop
• A large 2-gallon capacity that can serve a crowd
• A durable stainless steel ice chamber that keeps water cold for hours
• A removable flavor basket that allows for easy cleaning and customization
• A slim profile that saves space and fits easily in any refrigerator

Hamilton Beach Flavored Water Dispenser 87320 Technical Specifications

• Filter capacity: 100 gallons (378 liters)/up to 5 months
• Rated service flow: 0.15 Gal/min (0.57 L/min)
• Minimum temperature: 33°F (1°C)
• Maximum temperature: 100°F (38°C)

Parts and Features

Before first use: Wash Funnel, Flavor Capsule Holder, Needle Holder, Water Reservoir with Lid, and Cup Mat in hot, soapy water. Rinse and dry.

How to Install and Flush Water Filter

CAUTION: Cut Hazard. Removable needle holder has a sharp needle. Piercing needle on underside of lid is also sharp. Use caution when handling.

1. Unplug Aqua Fusion from outlet.

2. Lift Water Reservoir straight up to remove.



3. In Water Filter Well, align Water Filter arrow with arrow outside Water Filter Well. Turn clockwise to lock in place.



4. Remove Lid on Water Reservoir. Add only cold water to MAX Fill Line. Press Lid onto Water Reservoir.
5. Holding Water Reservoir with opening for Water Filter in front, lower Water Reservoir into place to secure.

6. Plug into outlet.



7. Insert Funnel into Funnel Holder Opening, aligning Funnel Tab with opening cutout. Place Removable Flavor Capsule Holder in Funnel.
   NOTE: Ensure Needle Holder is locked into place.



8. Place a large container on Cup Mat. Press and hold Filtered Water Button for three minutes to flush new Filter. Water dispensing will automatically stop after three minutes. Wait one minute; then press and hold Filtered Water Button again to drain all water from Water Reservoir. Discard filtered water and repeat process by filling Water Reservoir a second time.
   NOTES: If you start and stop the draining process, a three-minute automatic shutoff still occurs. Flushing filter is only needed before Water Filter’s first use.How to Dispense Filtered Water



How to Dispense Filtered Water

1. Plug into outlet.
   NOTE: Ensure Removable Funnel is installed and Needle Holder is locked into place.

2. Place a glass on Cup Mat.



3. Press and hold Filtered Water Button until desired amount of water has been dispensed.



How to Dispense Flavored Water

NOTES:

• Always insert Funnel before Hamilton Beach Flavored Water Dispenser 87320 Flavor Capsule Holder.
• Do not lift Lid while water is dispensing. Lifting Lid causes cycle to stop. Dispenser will dispense an additional 12 ounces if restarted.
• Use only cold water in Water Reservoir. Do not use hot water.
• Do not dispense water without Removable Needle Holder locked in place.

CAUTION: Cut Hazard. Removable needle holder has a sharp needle. Piercing needle on underside of lid is also sharp. Use caution when handling.

1. Plug into outlet.

2. Press Lid Button to open Lid.
   NOTE: Funnel and Flavor Capsule Holder need to be in place before dispensing. See step 7 in “How to Install and Flush Water Filter.”



3. Place a flavor capsule into Capsule Holder. Do not remove foil.

4. Close Lid and snap in place to pierce flavor capsule.



5. Place a minimum 14-ounce glass on Cup Mat.

6. Press Flavor + Filtered Button to dispense 12 ounces of flavored water.



NOTE: To stop dispensing, press Flavor + Filtered Button and press again within 5 minutes to restart. 9

Description Hamilton Beach Flavored Water Dispenser 87320

Say goodbye to plain and boring water, and hello to delicious and refreshing flavored water with the Hamilton Beach Flavored Water Dispenser 87320. This dispenser is perfect for anyone who wants to stay hydrated while enjoying their favorite flavors. With its large 2-gallon capacity, you can serve a crowd and keep everyone refreshed. The durable stainless steel ice chamber keeps water cold for hours, while the removable flavor basket allows for easy customization and cleaning. Plus, the slim profile fits easily in any refrigerator, making it a convenient addition to any kitchen.

How to Fix a Clogged Needle

1. Unplug.
2. Remove Removable Needle Holder in Lid by turning the arrow counterclockwise from locked icon unlocked icon (). Remove flavor capsule.
3. Bend a small paper clip. Insert tip of paper clip through hole of Piercing Needle in both Removable Flavor Capsule Holder and Removable Needle Holder and up into shaft of Piercing Needle to ensure sediment has been removed.
4. To replace gray Removable Needle Holder, insert tab between lock icon () and unlocked icon ().

5. Turn clockwise to lock.



How to Replace Water Filter

1. Lift Removable Water Reservoir straight up to remove.
2. Turn Filter counterclockwise to unlock and remove Filter.
3. Place new Filter in Water Filter Well and align Water Filter arrow with arrow outside Water Filter Well. Turn clockwise to lock in place.
4. Remove Lid on Water Reservoir. Add only cold water to MAX Fill Line. Press Lid onto Water Reservoir.
5. Holding Water Reservoir with opening for Water Filter in front, lower Water Reservoir into place. Add Lid and press down to secure.
6. Press and hold both Flavor + Filtered and Filtered Water buttons for at least 3 seconds. Indicator Light will flash when reset is complete and then will turn off.
7. After installing Water Filter, place a large container on Cup Mat. Press and hold Filtered Water Button to drain all water from Water Reservoir to flush new Filter. Discard filtered water and repeat process by filling Water Reservoir a second time.

Indicator Light

• Continuous orange during operation: Operation is normal and filter monitoring system is working.
• Flashes red 3 times and stops: Lid is not latched or Removable Funnel is not in place. Check Removable Funnel and make sure it is installed correctly. Close Lid and make sure it latches.
• Flashes red, then yellow continuously: Water Reservoir is empty. Fill Water Reservoir with cold water to MAX Fill Line.  Filter is not in place. Remove Water Reservoir and secure Water Filter in Water Filter Well.
• Continuous yellow during operation: Filter is close to end of life.
• Continuous red during operation: Filter is at end of life and needs to be replaced.

Hamilton Beach Flavored Water Dispenser 87320 Performance Data Sheet

The replacement filter model number is 87325.  The system conforms to NSF/ANSI 42, 53, and 401 for the specific performance claims verified and substantiated by test data. The compounds certified under NSF/ANSI 401 have been deemed as incidental contaminants/emerging compounds. Incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While testing was performed under standard laboratory conditions, actual performance may vary.  While occurring at only trace levels, these compounds can affect the public acceptance/perception of drinking water quality.

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• Systems that are certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
• System and installation shall comply with applicable state and local regulations.

NSF 401 Emerging Compounds/Incidental Contaminants

VOC (organic chemicals by surrogate testing using chloroform)

Troubleshooting

• Water remaining below Water Reservoir
  This is normal if Water Reservoir has been removed and water is remaining.
• Water on countertop
  Water Reservoir is not placed properly onto Base. Remove Water Reservoir and carefully slide down into place.
• Unit does not turn on when Flavor + Filtered Button or Filtered Water Button has been pressed.
  Make sure Removable Funnel is in place and Lid is latched.
• Unit is running and not dispensing or has reduced water flow and Indicator Light is not red.
  Unplug. Check Water Filter for correct placement. Check for clogged needle in Removable Needle Holder and Removable Flavor Capsule Holder. Follow cleaning instructions in “Care and Cleaning” for “How to  Fix a Clogged Needle.” If needles in Removable Needle Holder and Removable Flavor Capsule Holder have been cleaned, replace Water Filter. Follow instructions for “How to Replace Water Filter.”

• Cup is overflowing

  Use a cup with a capacity of at least 14 ounces. Lid opened and restarted without removing water from previous cycle. Do not lift Lid while water is dispensing. Lifting Lid causes cycle to stop. Dispenser will dispense 12 ounces if restarted.

• AquaFusion turns off after an extended operation
  This product is designed to turn off after 3 minutes of operation for Water Pump protection. Wait 1 minute before restarting.

Care and Cleaning Hamilton Beach Flavored Water Dispenser 87320

WARNING: Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in water or other liquid.

CAUTION: Cut Hazard. Removable needle holder has a sharp needle. Piercing needle on underside of lid is also sharp. Use caution when handling.

1. Removable Funnel, Cup Mat, Flavor Capsule Holder, and Removable Needle Holder are dishwasher safe in top rack only.
2. Wash Water Reservoir and Reservoir Lid in hot, soapy water. Rinse and dry.
3. Wipe outside with a damp cloth and dry.

Warranty

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable,   we will replace with a similar one of equal or greater value.

Hamilton Beach Flavored Water Dispenser 87320 Customer Reviews

Customers rave about the Hamilton Beach Flavored Water Dispenser 87320, with many praising its stylish design, easy-to-use features, and delicious flavored water. However, some customers have noted that the dispenser can be difficult to clean, and that the ice chamber can sometimes leak. Despite these minor complaints, most customers agree that the Hamilton Beach Flavored Water Dispenser 87320 is a great investment for anyone looking to stay hydrated and enjoy delicious flavored water.
