Introduction

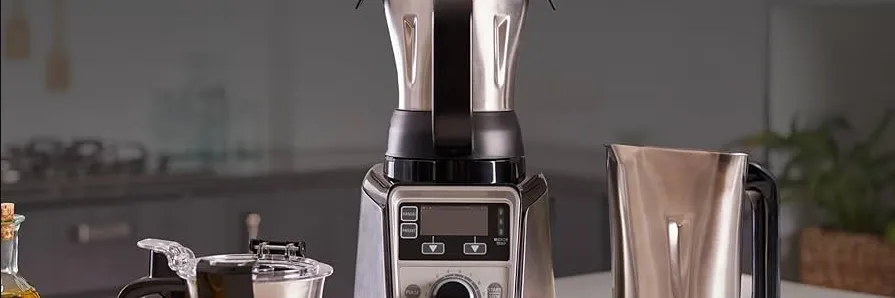

The Hamilton Beach Juicer Mixer Grinder 58770 is designed for superior performance in mixing and grinding, featuring a powerful 2.2 peak horsepower motor that effectively handles tough ingredients like turmeric and coconut. Its infinite speed control and intelligent speed sensor ensure precise operation, while 13 program settings cater to various cooking needs. The grinder comes with three stainless steel jars and is priced at approximately $199. A five-year warranty underscores its quality and durability.

Parts and Features

Before first use: After unpacking appliance, wash everything except Base in hot, soapy water. Dry thoroughly. Wipe Base with a damp cloth or sponge. DO NOT IMMERSE BASE IN WATER. Care should be taken when cleaning inside of Jar as the cutting blade assembly is very sharp.

Control Panel

Note: If yellow (or red) light comes on during a cycle, continue cycle, but wait until unit cools down to room temperature before starting another cycle.

Detailed Specifications

The Hamilton Beach Juicer Mixer Grinder 58770 boasts several key features that make it a standout in its category:

• Powerful Motor: Equipped with a robust motor that ensures efficient and smooth operation.
• Multi-Functional Design: Combines juicing, mixing, and grinding capabilities in one device.
• Large Capacity: Features a spacious juicer jug and mixing bowl to handle large quantities.
• Easy Cleaning: Detachable parts are dishwasher safe, making cleaning a breeze.
• Safety Features: Includes safety lock and non-slip feet for secure operation.
• Compact Design: Sleek and compact design saves kitchen counter space.

Description

The Hamilton Beach Juicer Mixer Grinder 58770 is built with durability and functionality in mind. The appliance features a robust motor that powers through tough tasks with ease. The juicer function extracts maximum juice from fruits and vegetables, while the mixer is perfect for blending batters and dough. The grinder attachment allows you to grind nuts, seeds, and other ingredients effortlessly.

The device comes with two speed settings, allowing you to adjust the speed according to the task at hand. The large capacity jug and mixing bowl ensure that you can prepare large batches of juice or batter without needing to pause and empty the container mid-process. The detachable parts are easy to clean and maintain, making this appliance a low-maintenance addition to your kitchen.

Using Your Juicer-Mixer-Grinder

Reference Table

Assembly

1. Plug into outlet.

2. Press ON/OFF (I/) Button. Button will illuminate blue.



3. Blender Base, Jar, and Lid will be on Control Panel; Jar and Lid will be flashing. Manual Button will illuminate blue and MOTOR TEMP indicator will show one green bar illuminated.

4. Place desired Jar on Base, aligning arrow on Base with unlock icon () on Jar. Turn clockwise to lock.



5. Align Lid Interlock to front of Jar. Push Lid straight down onto Jar and push down on Lid Clips to lock into place.
6. Place Filler Cap in opening of Lid and turn clockwise to lock.

7. Blender is ready to use.



Operation

MANUAL

1. If in PRESET operation, press MANUAL Button. MANUAL operation is the default setting when ON/OFF Button is pressed.

2. Press START/STOP Button to begin blending or press and pulse the PULSE Button.



3. Turn Speed Selection Dial to increase or decrease to desired speed.

4. Blender running time will count up to 3:00 minutes MAX and will automatically turn off. Or, press START/STOP Button at any time to stop Blender.



5. Press ON/OFF Button. Unplug from outlet.



PRESET

1. Press PRESET Button.

2. Press Process Selection Button until arrow reaches desired operation. Each operation has a set blending time.



3. Press Grind Selection Button until arrow reaches desired texture, or if opeartion is in Soup or Blend, select Partial or Full Blender Jar.

4. Press START/STOP Button to start blending.



5. Blender will count down to 0:00 and will automatically turn off.

6. Press ON/OFF (I/ ) Button to turn Blender off. Unplug from outlet.



Using the Tamper

1. Only use Tamper with 1.0 Liter Multi-Purpose Jar. Turn Filler Cap counterclockwise and pull up to remove.
2. Add Tamper through opening in Lid.

3. Turn Tamper in a circular motion to help move mixture.



Setup Guide

To set up and operate the Hamilton Beach Juicer Mixer Grinder 58770, follow these steps:

1. Unbox the appliance and wash all detachable parts before first use.
2. Assemble the juicer or mixer/grinder attachments according to your needs.
3. Place the appliance on a stable surface and ensure it is securely positioned with its non-slip feet.
4. Plug in the device and select the appropriate speed setting for your task.
5. Start with small batches to get familiar with the appliance's performance and adjust as needed.

Cleaning

1. Unplug from outlet.

2. Wash Multi-Purpose Jars, Lids, Filler Caps, Scraper, and Tamper in hot, soapy water. Rinse and dry.



3. Multi-Purpose Jars, Lids, Filler Caps, Scraper, and Tamper are dishwasher safe. DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product.

4. Wipe Base with a damp cloth and dry. If necessary, use a mild nonabrasive cleaner. Wipe with a damp cloth and dry.



IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Turn the appliance OFF ( ), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Normal operating cycle of blender/mill cycle is 2 minutes of on time. Allow 1 minute off period between each maximum cycle.
8. Avoid contact with moving parts.
9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
10. The use of attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause a risk of injury to persons.
11. Do not use outdoors.
12. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
13. Do not place on or near a hot gas or electric burner, or in a heated oven.
14. Keep hands and utensils, other than the tamper provided, out of container while blending to reduce the risk of severe injury to persons or damage to the blender. The cover must remain in place when using the tamper through the cover opening. A scraper may be used but must be used only when the blender is not running.
15. Blades are sharp; handle carefully—especially when assembling, disassembling, emptying or cleaning blender jar.
16. Do not use a broken, chipped, or cracked jar.
17. Do not use broken, cracked, or loose cutting blade assembly.
18. Always operate appliance with lid in place. Remove filler cap only for adding ingredients.
19. Do not run a soup cycle unless blender/mill has fully cooled to room temperature.
20. When blending hot liquids in the open top blender jar, remove center filler cap and close any edge lid opening intended for pouring. To prevent possible burns: Do not exceed the 2-cup (473-ml) level. Hot liquids may push off lid during blending; therefore, with the protection of an oven mitt or thick towel, place one hand on top of the lid, keep exposed skin away from the lid, and start blending at lowest speed.
21. Be careful if hot liquid is poured into the jar as it can be ejected out of the appliance due to sudden steaming.
22. Do not leave appliance unattended while it is operating.
23. Check that the appliance is OFF ( ) before plugging cord into wall outlet. To disconnect, turn the control to OFF ( ); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
24. Do not use appliance for other than intended purpose.
25. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-off, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

This appliance is intended for household use only.
 WARNING Electrical Shock Hazard: The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.
If the cutting blade assembly locks and will not move, it will damage the motor.

Do not use. Call the toll-free customer service number for information. Do not place blender jar in the freezer filled with food or liquid. This can result in damage to the cutting blade assembly, jar, blender, and possibly result in personal injury
NOTE: This machine is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow it to cool down for approximately 15 minutes. Plug machine back in to resume normal operation.

WARNING: Electrical Shock Hazard

• Disconnect power before cleaning blender base.
• Do not immerse cord, plug, or base in water or any other liquid.
• Failure to follow these instructions can result in death or electrical shock.

WARNING: Electrical Shock Hazard

• Plug into a grounded outlet.
• Do not remove ground.
• Do not use an adapter.
• Do not use an extension cord.
• Failure to follow these instructions can result in death, fire, or electrical shock.

WARNING: Cut Hazard

• The blending blade is sharp.
• Always place lid on container when blending.
• Do not put hands, spoons, or other utensils in container when blending.
• Failure to follow these instructions can result in broken bones, cuts, or other injuries.

Burn Hazard

• Always use caution when blending hot contents.
• Failure to follow these instructions can result in burns.

Troubleshooting

Display shows Error Codes E01.

• Blade is jammed with food. Remove Jar and Lid. Use Scraper to stir food. Repeat blending.
• If problem persists, call Customer Service.

Appliance fails to start or stops while it is running.

• Make sure that the Power Switch Button is ON (I) and that it is illuminated blue.
• Check to see if unit is securely plugged into an electrical outlet of the proper voltage and frequency.
• Check to see if the fuse for the electrical outlet has blown or if the Reset Button on the bottom rear of Base has switched to OFF ( ).
• This appliance is equipped with an interlock feature — the appliance will fail to start or will stop when either Lid or Jar are not locked properly in place.
• Press Reset Button on bottom of Base.

Red light on Motor Temperature Status Indicator starts to flash and appliance stops running.

• Motor overload protection has engaged. Unplug and let cool for 15 minutes. Press Reset button on bottom of Base and plug back in to restart blending.

Unit does not respond to button commands.

• Turn unit power off and back on using the Power Switch to reset the controls.
• If problem persists, the unit will need to be serviced.

Ingredients will not mix properly.

• Check to see if enough liquid has been added to the ingredients. Mixture should be fluid and free-flowing at all times.
• Solid pieces are too large.
• Container is too full. Do not fill past MAX marking.
• Cutter assembly blades are not sharp or are damaged.
• Select speed to create a fluid blend.

All three MOTOR TEMP lights are flashing.

• Call Customer Service.

Maintenance Icon is illuminated.

• Call Customer Service.

Pros & Cons

Pros

• Multi-Functional: Combines three functions in one appliance, saving space and money.
• Easy to Clean: Detachable parts are dishwasher safe, making maintenance easy.
• Durable Construction: Built with high-quality materials for long-lasting performance.
• Compact Design: Doesn't take up much counter space despite its multiple functions.

Cons

• Noisy Operation: Can be loud during use, especially when grinding or juicing tough ingredients.
• Only two speed settings may not be sufficient for some tasks.
• Replacement Parts Availability: Finding replacement parts can sometimes be challenging.

Customer Reviews

Customers have generally praised the Hamilton Beach Juicer Mixer Grinder 58770 for its versatility and ease of use. Many have appreciated its ability to handle multiple tasks without compromising on performance. However, some users have noted that it can be noisy during operation and that finding replacement parts can be difficult at times.

Warranty

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in the U.S. and Canada. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.
