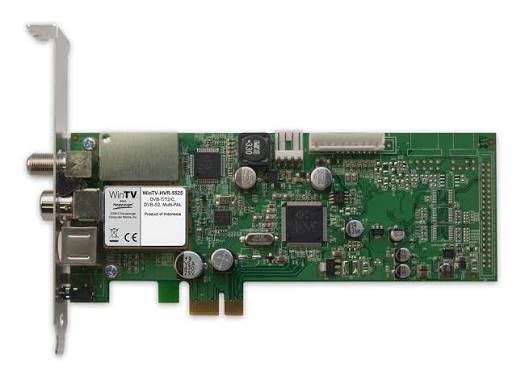

Introduction of Hauppauge WinTV-HVR-5525 HD Tuner Kit

The Hauppauge WinTV-HVR-5525 HD Tuner Kit is a powerful and versatile device that allows you to watch and record high definition TV shows directly on your computer. With its dual TV tuners, you can even watch one channel while recording another. The estimated price of this product is around $70 to $80, and it was launched in the market in 2010.

Detailed Specifications of WinTV-HVR-5525 HD Tuner Kit

The Hauppauge Tuner Kit comes with the following key features:

• Dual HD TV tuners for watching and recording two shows simultaneously
• Supports ATSC and QAM digital cable TV
• Included WinTV v8 application for watch and record TV
• Works with Windows Media Center in Windows 7 and Windows 8
• Included remote control
• Supports HDTV broadcasts up to 1080i
• FM radio with RDS
• Optical audio output

Description of Hauppauge WinTV-HVR-5525

The WinTV-HVR-5525 HD Tuner Kit is a great solution for anyone who wants to watch and record high definition TV shows on their computer. With its dual TV tuners, you can watch one channel while recording another, making it a perfect tool for recording your favorite shows. The kit includes the WinTV v8 application, which makes it easy to watch and record TV, as well as a remote control for convenience. The tuner also supports HDTV broadcasts up to 1080i and has an optical audio output, making it a great choice for those who want high-quality audio and video.

Package Contents of Hauppauge WinTV-HVR-5525

1. PCI-Express TV Tuner



2. Remote Control and two batteries (some models only)



3. Infrared Sensor



4. A/V Cable (some models only)



5. WinTV v8 Download Document with serial number - or - Installation CD ROM with serial number* on the sleeve



For the exact contents please refer to the packaging description on the box.
* Please keep the serial number in a safe place. It is required for future installations.

Setup Guide of WinTV-HVR-5525 HD

Setting up the WinTV-HVR-5525 HD Tuner Kit is easy. Simply connect the tuner to your computer via USB, install the WinTV v8 application, and follow the on-screen instructions. Once the setup is complete, you can start watching and recording TV shows. Be sure to connect the antenna or cable to the tuner for optimal reception. Also, make sure your computer meets the minimum system requirements for the WinTV v8 application.

Installing the WinTV Card

• Turn off the computer and unplug the power cord.
• Remove the case lid (refer to your computer instructions for information on how to do this).
• Locate a free PCI Express slot and remove any metal backing plate which may be ccovering the slot at the back of the PC (PCI Express x1 cards can be used in any PCI Express slot e.g. a x8 or x16 slot).
• Plug the WinTV card in the PCI Express slot and fasten it with a screw.
• Replace the case lid and reconnect the power cable.

Connecting the Inputs

With WinTV Starburst HD you can receive digital satellite television (DVB-S / DVB-S2). In addition to digital satellite TV, the WinTV-HVR-4400 HD supports digital terrestrial TV (DVB-T), analogue TV (PAL), and you can connect analogue video sources via the supplied A/V Cable. In addition to the above, the WinTV-HVR-5525 HD supports digi-tal cable TV (DVB-C) and DVB-T2.

Input Connectors

• SAT: F-type connection for a direct feed from your satellite dish
• TV IN: RF connection for your rooftop TV aerial or cable TV
• AV IN: Connection to external sources (video cameras etc) via supplied A/V cable
• IR: Connection for the Infrared Sensor cable

On WinTV-HVR-4400/5525 HD, the TV input connector is also used as FM radio input. For satellite reception connect the cable from your SAT system or SAT antenna (dish) directly to the 'SAT' input. If the LNB on your satellite dish requires more than 350 mA current, the Aux. LNB Power connector on the TV tuner card should be connected to a power plug (used to power a floppy disc drive, FDD) of your PC system. For digital terrestrial reception connect your DVB-T antenna to the 'TV IN' connector. For reception of analog TV or DVB-C from a cable TV feed, connect the ‘TV’ feed to the ‘TV IN’ connector on the TV Tuner Card. Connect the Infrared Sensor cable to the ‘IR’ input on the TV Tuner Card, and place the eye on the other end so that the infrared light from the Remote Control can reach it. An optional A/V bracket can be connected to the 12 pin OEM Header, which provides additional audio / video inputs (not included).

Software Installation

Please note

• This step requires that the WinTV card is installed into the computer.
• It is recommended to disable your antivirus software during installation.
• An Internet connection is required for software activation.
• If a CD ROM is included, run Setup from the CD ROM.
• If a CD ROM is not included, open your web browser and enter the download link from the WinTV v8 Download Document into the ad-dress bar. Or alternate, visit
  https://www.hauppauge.co.uk , click on “SUPPORT”, then “WinTV v8”.
• Download the WinTV8 Setup file to your computer.
• Then run the downloaded file, for ex-ample wintv8setup_34180.exe (the version number may vary).
• Select your language and click “Next”. Follow the instructions on your screen.
• First the device driver for the WinTV product will be installed.
• In the “Activation Required” window, click on the button “Enter Serial Number” and enter the serial num-ber from the WinTV v8 Download Document (or CD sleeve).
• After successful activation, the WinTV application will be installed. It is recommended to use the default directories for the program and data files.
• After the installation, you will find a ‘WinTV 8’ icon on your desktop and a “Hauppauge WinTV” folder in the Windows Start menu.

Run the WinTV Application and Scan for Channels

• To start the WinTV v8 application double-click on the WinTV 8 icon on your desktop. On the first start of the application, the Device Setup Wizard will appear.



• Set the checkmark for the type of TV signal that is connected to the WinTV tuner card.
• On digital terrestrial TV over antenna or digital cable TV select your Country and Region. If your region is not listed, choose the default selection of the region.
• When receiving Analog TV, select your Country and Cable or Antenna.
• If you have connected an external video source using the supplied A/V cable, select “External Inputs (Com-posite/S-Video)”.

• When you select Digital DVB- S/DVB-S2, you will need to specify which satellite your dish is aligned with. In European, English-speaking countries this is typically '28.2 Astra 2D'.



• Click Next to start the scanning process.
• Channels will be found and listed during the scan.
• Once this is complete, click Next to finish.

Using WinTV v8

WinTV v8 has many features, including live TV, recording and pausing live TV, a TV scheduler and a video player to play back recordings in a window or full screen.

Start Live TV
To start Live TV, click on the TV icon.

Ways to Change Channels

• Click on the arrow buttons and .
• Enter a preset number using keyboard or remote control.
• Using the keyboard, enter the starting letter of a channel’s name.
• Click on the Menu button and select “Find Channel” from the Context menu (pictured right).

Record TV Manually

• To start recording, click on the Record button.
• To finish the recording, click on the Record button again.

Recording Location
By default, recordings (and Snapshots) are placed into C:\Users\Public\Videos. You can change this in the WinTV settings on the ‘Capture’ tab.
Playing Back Recordings
To watch a recording, click on the Open File for Playback button and select the recording, or click the Menu button and select “Recordings” from the menu.
TV Guide
Many digital TV channels transmit Electronic Program Guide information (EPG). This information is collected and displayed in the TV Guide window. Click a program title with your mouse to see more details about the entry.
To record a program, click on Record in the details view. The scheduled recording is added to the Scheduler window. To rescan all frequencies for TV Guide information, click on Update EPG.

Manually Schedule a Recording
Click on the Menu button and select “Scheduler” from the menu. The Scheduler allows you to record a TV program at a certain date and time on a specified channel. It lists all scheduled recordings added by the TV Guide as well as any manual recordings that have been set.

From here you can Edit or Cancel (delete) existing schedule entries. To schedule a new recording, click on the Add button. You will need to select the channel, set the start time, duration etc. and confirm with a click on the Record button.

Note: The WinTV application for a scheduled recording to work, but your PC will need to be either turned on, in Standby or in Hibernate mode. All scheduled recordings are performed in the background by the task “WinTVRec.exe”. If a recording is started while you are watching live TV, WinTV will display the TV program being recorded.

WinTV Keyboard Commands

Infrared Remote Control

The Remote Control is compatible to WinTV 8 and Windows Media Center.

Preparations

1. Insert batteries in the Remote control.
2. Connect the IR cable to the IR port of the WinTV card.

Using the Remote Control in WinTV

The IR software (ir.exe) should start automatically when Windows starts (you should see a small black remote control icon in the Windows taskbar). Press the red color button on the remote control to start the WinTV application.

Using the Remote Control in Windows Media Center
For Windows Media Center, the IR software (ir.exe) is not required, but you need to configure the remote control for Windows Media Center use. For this, click on Hauppauge CIR Config Tool in the Windows Start menu in ‘All Programs’ - ‘Hauppauge WinTV’. Select your Media Center remote here. All the buttons will now function as any certified Media Center remote control.

Further Information on WinTV-HVR-5525 HD Tuner Kit

Checking the Device Driver
In the Control Panel click System and select Device Manager. In the category
“Sound, video and game controllers“ you should see a “Hauppauge WinTV-...” entry, and in “Human Interface Devices (HID)” you should see a “Hauppauge CIR Receiver“ entry without any exclamation mark.

How Can I Rerun the Channel Scan?
To scan for channels again, in the main WinTV window click on the gear icon , then select the “Devices” tab, click on the WinTV tuner entry and click on “Tuner Setup”.
Display Problems
If there are problems with the TV display, they can possibly be rectified by changing the video renderer options. Click on the Settings button in WinTV and select the "General" tab, then select a different video renderer (e.g. VMR9). Restart the WinTV application.

Troubleshooting of Tuner Kit

If you experience any issues with the Hauppauge WinTV-HVR-5525 HD Tuner Kit, try the following troubleshooting steps:

• Make sure the tuner is properly connected to your computer and the antenna or cable is connected to the tuner.
• Check that your computer meets the minimum system requirements for the WinTV v8 application.
• Try restarting your computer and the tuner.
• Make sure the WinTV v8 application is up to date.
• Check for any software or driver conflicts.

Pros & Cons of Hauppauge WinTV-HVR-5525 HD

Pros

• Dual TV tuners for watching and recording two shows simultaneously
• Supports ATSC and QAM digital cable TV
• Included WinTV v8 application for watch and record TV
• Works with Windows Media Center in Windows 7 and Windows 8
• Included remote control

Cons

• Does not work with Mac or Linux operating systems
• Some users have reported issues with reception
• The remote control can be finicky at times
• The tuner can get hot with prolonged use

Customer Reviews about WinTV-HVR-5525 HD Tuner Kit

Customers have given the Hauppauge Tuner Kit positive reviews, praising its dual TV tuners, easy setup, and high-quality video and audio. However, some users have reported issues with reception and the remote control. Overall, the kit is a great solution for anyone who wants to watch and record high-definition TV shows on their computer.

Most Common Complaints

The most common complaints about the WinTV-HVR-5525 HD Tuner Kit are related to reception issues and the remote control. Some users have reported that the reception is not as strong as they would like, while others have had issues with the remote control not working properly. Additionally, some users have reported that the tuner can get hot with prolonged use.
