icp MF08B1500B Modular Blower Overview

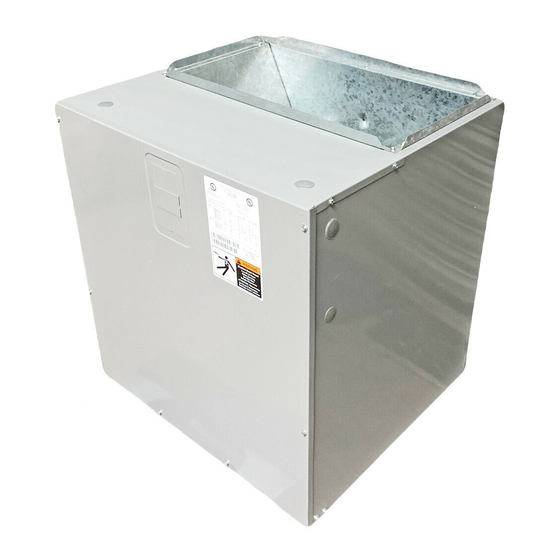

The icp MF08B1500B Modular Blower is a compact, 2-ton modular electric furnace designed for residential split-system cooling and heat pump applications. It is built around a 208/230V, single-phase, 60Hz PSC blower motor and is commonly used where dependable airflow, flexible installation, and straightforward serviceability matter most. For homeowners, HVAC contractors, and property managers, this model offers a practical balance of size, performance, and installation versatility.

One of the biggest advantages of the icp MF08B1500B Modular Blower is its compatibility with upflow, downflow, and horizontal applications, making it suitable for a wide range of retrofit and replacement jobs. Its nominal airflow rating of 800 CFM supports efficient operation in 2-ton systems, while the compact cabinet dimensions make it easier to fit into tight mechanical spaces. This unit is especially useful in homes that need a reliable blower cabinet for air conditioning or heat pump setups, with or without electric heat depending on the configuration.

In the current market, the estimated price range typically falls between $700 and $1,500 for the cabinet alone, with installed pricing varying by region, labor, and accessories. Availability is generally through HVAC distributors, parts suppliers, and online appliance or contractor channels, though stock may vary because exact model variants can be limited. If you are searching for a durable, budget-conscious modular blower for a 2-ton system, the icp MF08B1500B Modular Blower is a solid option worth considering.

Technical Specifications and Key Features

Model: icp MF08B1500B Modular Blower
System size: 2 tons
Nominal airflow: 800 CFM
Motor type: PSC blower motor
Horsepower: 1/3 HP
Electrical: 208/230V, 1 phase, 60Hz
Minimum circuit ampacity: 3.1 to 3.6 amps, depending on configuration
Fuse or breaker size: 15 amps maximum
Cabinet dimensions: approximately 24 x 15.5 x 20.5 inches
Unit weight: about 56 lbs
Ship weight: about 59 lbs
Installation styles: upflow, downflow, horizontal left, horizontal right

The icp MF08B1500B Modular Blower is best compared with variable-speed MV-series models and 115V MB-series cabinets. Compared with a variable-speed blower, it offers simpler controls and lower upfront cost, but less precision in airflow and humidity management. Compared with 115V modular blowers, it delivers the electrical compatibility expected in many 208/230V HVAC systems and can better match standard heat pump and cooling applications.

Setup Guide for the icp MF08B1500B Modular Blower

Before installation, confirm that the blower cabinet matches the tonnage and coil width of the system. Verify the supply voltage, breaker size, and thermostat compatibility. The unit should be mounted securely on a level surface or configured for the required airflow direction. Always disconnect power at the breaker before opening the cabinet or handling wiring.

Step 1: Position the cabinet in the desired orientation and verify clearances for service access.
Step 2: Attach the matched cased coil and connect ductwork using approved sealing materials.
Step 3: Wire the 208/230V supply according to the unit diagram and local electrical code.
Step 4: Connect the thermostat and control wiring, then set airflow and fan speed taps as required.
Step 5: Restore power and test the blower in cooling, heating, and fan-only modes.

For configuration, select the proper fan speed for airflow, static pressure, and system type. If electric heat is not installed, use the correct no-heat configuration kit when required by the application. Common startup issues include incorrect wiring, reversed polarity, loose connections, or airflow set too low for the duct system. Never operate the unit with panels removed, and avoid touching internal components until capacitors have fully discharged.

Troubleshooting Common icp MF08B1500B Blower Issues

If the blower does not start, first check the breaker, disconnect switch, thermostat call, and low-voltage control connections. A unit that runs but delivers weak airflow often has a dirty filter, blocked return, undersized ductwork, or an improperly selected blower speed.

Problem: No airflow. Fix: Confirm power, thermostat signal, and motor wiring.
Problem: Blower runs constantly. Fix: Check fan relay, thermostat fan setting, and control board operation.
Problem: Weak airflow. Fix: Inspect filter, coil cleanliness, and duct restrictions.
Problem: Excessive noise. Fix: Tighten cabinet panels, inspect blower wheel, and confirm secure mounting.
Problem: Frequent tripping. Fix: Verify breaker size, motor amp draw, and electrical connections.

This model typically does not display consumer-style error codes, so diagnosis depends on voltage checks, continuity testing, and observing fan operation. Preventive maintenance should include regular filter replacement, coil cleaning, and annual inspection of the blower wheel and electrical terminals. Warranty support is usually handled through the selling distributor or installer, and parts help is commonly available through ICP-authorized HVAC channels. If professional assistance is needed, contact the dealer that supplied the unit or a licensed HVAC service provider in your area.

Pros and Cons of the icp MF08B1500B Modular Blower

Pros

Compact cabinet size that fits many replacement applications.
Reliable PSC motor design with straightforward service requirements.
Flexible installation options for upflow, downflow, and horizontal layouts.
Good match for 2-ton cooling and heat pump systems.
Lower purchase cost than many variable-speed alternatives.

Cons

Less airflow precision than variable-speed blower cabinets.
Not ideal for advanced humidity control or premium comfort zoning.
May require careful matching with duct static pressure limits.
Availability can vary by distributor and region.

For buyers looking for value for money, the icp MF08B1500B Modular Blower is appealing because it delivers dependable performance without the added cost of a high-end ECM system. Compared with newer variable-speed cabinets, it is less sophisticated but often easier to budget for and service. For standard comfort cooling jobs, it remains a practical and cost-effective choice.

Customer Reviews and Real-World Feedback

Customer feedback for modular blower cabinets in this class is generally positive, with many users rating them around 4 out of 5 stars for reliability and fit. Buyers frequently praise the compact design, easy replacement compatibility, and steady airflow in typical residential systems. One common positive comment is that the unit “fits well, runs quietly, and solved our old airflow problem without a major upgrade.”

Common complaints usually involve pricing differences between sellers, lead times, and the need for proper professional installation. Some customers also note that PSC blowers are not as quiet or adaptive as variable-speed models. A frequent recommendation is to verify the exact system match before ordering, especially for coil width, electrical requirements, and installation orientation. For homeowners needing a dependable standard blower cabinet rather than a premium comfort system, the icp MF08B1500B Modular Blower is often viewed as a smart purchase.

PDF

Faqs

How do I set up the icp MF08B1500B Modular Blower for first-time installation?

Start by confirming the icp MF08B1500B Modular Blower is placed in the correct orientation for your system, since it supports upflow and horizontal right or left applications. Verify the cabinet matches your coil and duct layout, then connect the 208/230V power supply and follow the wiring diagram carefully. If the unit is installed without electric heat, a factory-authorized no-heat kit is required. Always check airflow, drainage, and secure all panels before startup.

What should I do if my icp MF08B1500B Modular Blower is not starting or airflow is weak?

If the icp MF08B1500B Modular Blower does not start, first check the breaker, thermostat settings, and power supply voltage. Weak airflow can come from a clogged filter, blocked return, closed supply registers, or a blower motor issue. Make sure the electronic fan control board is receiving power and the blower compartment is fully closed. If the problem continues, inspect wiring connections and confirm the motor and capacitor are operating correctly.

Is the icp MF08B1500B Modular Blower compatible with heat pump and cooling systems?

Yes, the icp MF08B1500B Modular Blower is designed for cooling and heat pump applications, and it can be used with or without electric heat depending on the installation setup. It is built for modular HVAC systems and works best when matched with the correct cased coil and cabinet width. Before installation, confirm the tonnage, airflow needs, and electrical requirements so the blower is properly sized for the outdoor unit and ductwork.

What electrical requirements does the icp MF08B1500B Modular Blower need?

The icp MF08B1500B Modular Blower uses a 208/230V, single-phase, 60 Hz power supply. Because it is a high-voltage HVAC component, the circuit must be properly sized and protected according to local code and the installation instructions. Grounding is essential, and all connections should be tightened securely. If you are unsure about voltage, breaker size, or field wiring, have a licensed HVAC technician or electrician verify the setup before operation.

How do I choose the correct airflow and fan settings for the icp MF08B1500B Modular Blower?

To optimize the icp MF08B1500B Modular Blower, match the airflow to your system’s tonnage, coil, and duct design. Too much airflow can reduce comfort and cooling performance, while too little can cause poor temperature control and icing issues. Check the fan speed taps or control board settings used in your installation, then test static pressure and temperature split after startup. Final adjustments should be based on manufacturer guidelines and actual system performance.

Why is my icp MF08B1500B Modular Blower making unusual noise during operation?

Unusual noise from the icp MF08B1500B Modular Blower often points to loose panels, an unbalanced blower wheel, debris in the cabinet, or a motor mounting issue. Start by turning off power and inspecting the interior for obstructions. Check that the blower assembly is secure and the filter is clean, since restricted airflow can also increase sound. If the noise is grinding or squealing, stop the unit and schedule service before further use.

How often should I maintain the icp MF08B1500B Modular Blower?

Basic maintenance for the icp MF08B1500B Modular Blower should be done at least twice a year, ideally before the cooling and heating seasons. Replace or clean the air filter regularly, inspect the blower compartment for dust buildup, and confirm all electrical connections are secure. Also check the condensate area, cabinet seals, and fan operation. Routine maintenance helps preserve airflow, reduce strain on the motor, and extend the life of the modular blower.

Can the icp MF08B1500B Modular Blower be installed in horizontal or downflow configurations?

The icp MF08B1500B Modular Blower supports upflow and horizontal right or left installations, making it flexible for many HVAC layouts. If you need a downflow configuration, verify whether your system requires a sub-base accessory or a different cabinet arrangement. Installation orientation affects drainage, access panels, and airflow direction, so it must be planned before mounting. Always follow the approved configuration for your exact application to avoid performance and safety issues.
