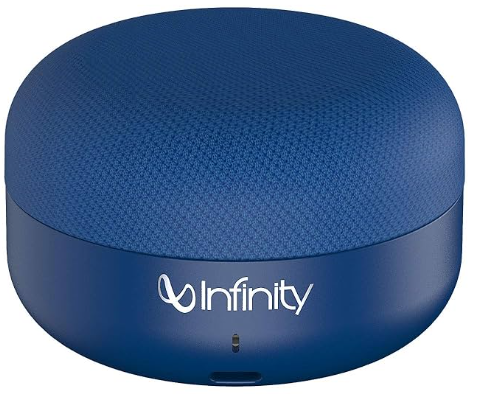

Infinity Fuze Pint Portable Speaker

Introduction

The Infinity Fuze Pint Portable Speaker is a compact and powerful audio device that allows you to enjoy high-quality sound on the go. With its sleek design and advanced features, this speaker is perfect for music lovers who want to experience immersive audio wherever they are.

Specifications

• Bluetooth version: 5.0
• Support: A2DP V1.3; GAVDP V1.3; AVRCP V1.6; HFP V1.7
• Transducer: 36mm
• Output power: 2.5W
• Frequency response: 180Hz - 20KHz
• Signal-to-noise ratio: >70dB
• Battery type: Lithium-ion polymer (3.7V, 480mAh)
• Battery charge time: 2.5 hours @ 5V/0.5A
• Music playing time: up to 5 hours (50% volume level )
• Bluetooth transmitter power: -6 ~ 4dBm
• Bluetooth transmitter frequency range: 2.402 — 2.480GHz
• Bluetooth transmitter modulation: GFSK, 1/4-DQPSK, 8DPSK
• Dimensions: Φ55*35 (mm)
• Weight: 65g

What’s in the box

Buttons

Connections

Power on / Power off

Turn on the Bluetooth speaker

Turn off the Bluetooth speaker

EQ switching

This speaker comes with dual EQ to cater to various personal preferences.  Too switch EQ, press the power button three times in the state of music is playing.

Bluetooth connection

1. The speaker will automatically enter into pairing mode when powered on and wait for the device to connect.
2. Connect to the Bluetooth device..
3. In the power off state, press the power button for 5 seconds to restore the factory settings.

Voice assistant

Bluetooth mode:: Double-press the button on the speaker to activate Siri or Google Now on your phone. Please make sure the Siri or Google Now is enabled on your phone.

LED Behavior

Instructions

1. Charge the speaker using the included USB cable.
2. Power on the speaker by pressing the power button.
3. Enable Bluetooth on your device and pair it with the speaker.
4. Once connected, play your favorite music or audio.
5. Adjust the volume and control playback using the buttons on the speaker.
6. To turn off the speaker, press and hold the power button.

WHO IS PROTECTED BY THE WARRANTY

This limited warranty (the “Limited Warranty”) protects only the original end-user (“you” or “your”),  and is not transferable and is applicable only in the country (excluding EEA member states a  the  Russian  Federation)  in which you originally purchased your INFINITY Product  (the “Product”). Any attempt to transfer this warranty shall immediately make this warranty void.

LIMITED WARRANTY
HARMAN  International  Industries,  Incorporated (“HARMAN”)  is the manufacturer and, through its local subsidiary, warrants to you that the Product (including components provided in/with the Product)  will be free from defects in workmanship and materials for a period of ONE year from the date of retail purchase by you (the “Warranty Period”). During the Warranty  Period, the  Product (including components), will e repaired or replaced at HARMAN’s option, without charge for either parts or labor O R at HARMAN’s sole option, the price of the Product may be refunded, subject to depreciation based on your purchase price for the Product prorated over the remaining balance of the Warranty Period. Any warranty service or replacement of parts will not extend the Warranty Period.

WHO PAYS FOR WHAT
This  Limited Warranty covers all expenses for labor and materials required for the repair OR  replacement of the  Product that is found to be defective, and a reasonable return shipping charge within the country of repair.  Please be sure to save the original shipping carton(s),  because a charge will be made for additional cartons/packaging. You will be charged for the cost of examining a unit that is not in need of repair (including resulting shipping costs), or for necessary repairs not covered by this Limited Warranty. We sincerely thank you for your expression of confidence i  INFINITY.   We i   u many years of listening pleasure.
