Introduction

Thank you for purchasing the JBL Bar 2.1. The JBL Bar 2.1 is designed to bring an extraordinary sound experience to your home entertainment system. This sound bar is perfect for movie buffs, music lovers, and gamers who want to enjoy high-quality audio without the clutter of multiple speakers. With a sleek and modern design, the JBL Sound Bar 2.1 is an attractive addition to any home theater setup. It is estimated to be priced around $250 to $300 and is now available in the market.

We urge you to take a few minutes to read through this manual, which describes the product and includes step-by-step instructions to help you set up and get started.

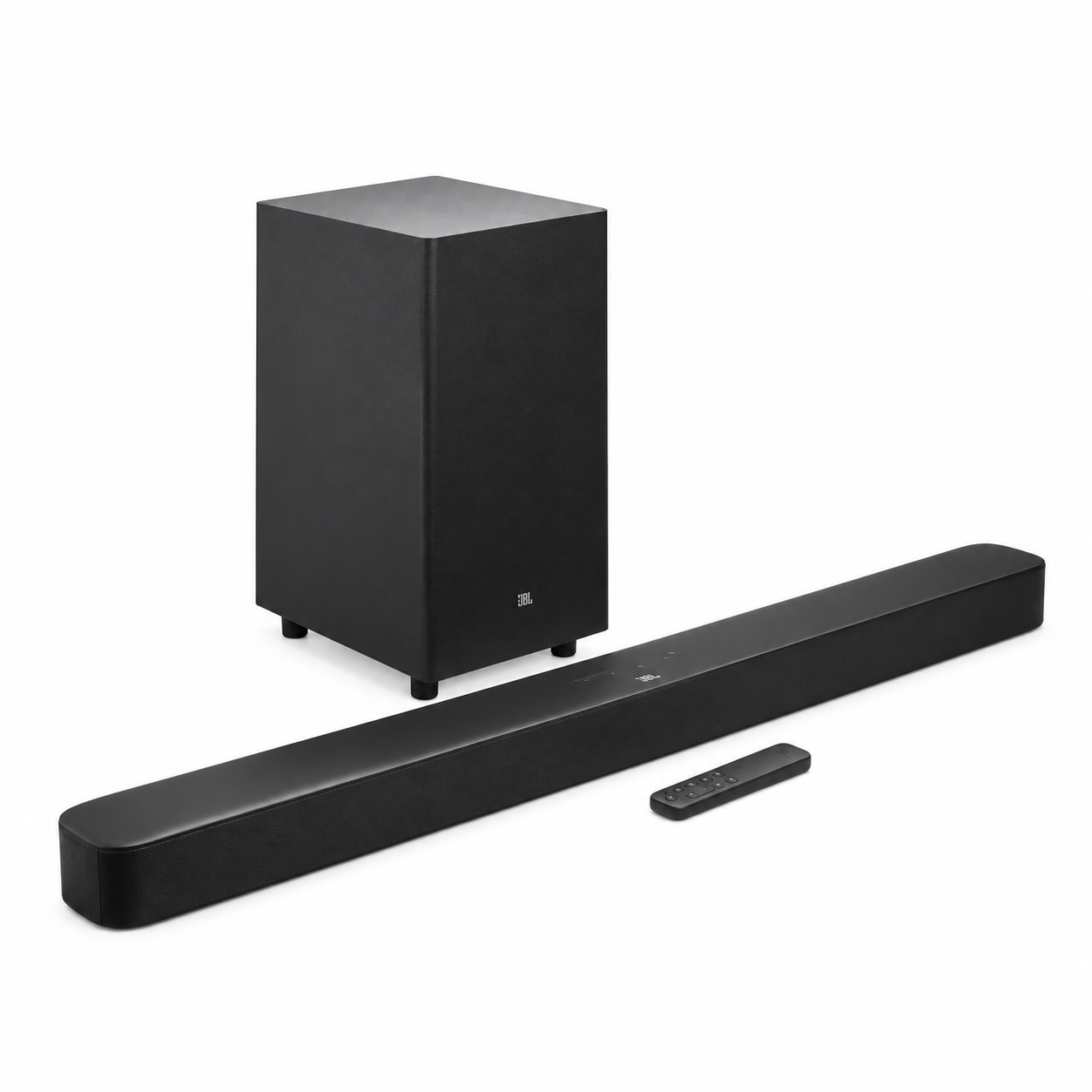

What's in the box JBL

JBL Sound Bar 2.1 Product Specifications

General

• Total Maximun Power : 300W
• Soundbar Maximum Power : 100W
• Soundbar Standby Power : <0.5W
• Subwoofer Maximum Power : 200W
• Subwoofer Standby Power : <0.5W
• Soundbar Transducer Size : 4 x 2.25" racetrack drivers 2 x 1.25” tweeter
• Subwoofer Transducer Size : 6.5"
• Max SPL : 99db
• Frequency Response : 40Hz to 20KHz
• Operating Temperature : 0°C - 45°C

Input and Output

• Audio Inputs : 1 Analog, 1 Optical, Bluetooth, USB
• HDMI Video Inputs : 1
• HDMI Video Output (with Audio Return Channel) : 1
• HDMI HDCP Version : 1.4

Bluetooth specification

• Bluetooth Version : 4.2
• Max Bluetooth Range : 32 ft (10m)
• Bluetooth Profile : A2DP V1.3/ AVRCP V1.6

USB specification

(USB) port: Type A
File Format Type Compatibility list:

Product dimension and weight

• Soundbar Dimensions (W x H x D) : 965 x 58 x 68(mm) \ 38" x 2.3" x 2.7"
• Soundbar Weight : 1.9kg \ 4.2 lbs
• Subwoofer Dimensions (W x H x D) : 225 x 370 x 225(mm) \ 8.9" x 14.6" x 8.9"
• Subwoofer Weight : 5.2kg \ 11.5 lbs
• Packaging Dimensions (W x H x D) : 1038 x 280 x 368mm \ 40.9" x 11" x 14.5"
• Packaging Weight (Gross) : 10.0kg \ 22 lbs Wireless transmitter/receiver section
• Bluetooth Frequency Range : 2402MHz-2480MHz
• Bluetooth Max Transmitting power : 9dBm (EIRP)
• Bluetooth Transmitter modulation : GFSK, π/4 DQPSK, 8DPSK
• 5.8G Wireless Frequency Range : 5740MHz-5840MHz
• 5.8G Max Transmitting power : 20dBm (EIRP)

Connect Your Soundbar with JBL Sound Bar 2.1

This section helps you connect your soundbar to a TV and other devices, and set up the whole system.

• Connect Soundbar to your TV: Connect your soundbar to a TV. You can listen to audio from TV programs through your soundbar.

• Connect to TV through HDMI (ARC): An HDMI connection supports digital audio and is the best option to connect to your soundbar. If your TV supports HDMI ARC, you can hear the TV audio through your soundbar by using a single HDMI cable.



Note: Do confirm if HDMI CEC function on your TV is turned on.

• Connect to TV through Optical: An Optical connection supports digital audio and is an alternative to an HDMI audio connection.



Note: Confirm to set your TV audio settings to support “external speakers” and disable the built-in TV speakers.

Connect Soundbar to other devices

1. Connect digital devices through HDMI




   Connect a digital device such as a set-top box, DVD/Blu-ray player, or games console to your soundbar through a single HDMI connection. When you connect the devices in this way and play a file or game, the

   • video is automatically displayed on your TV, and
   • audio is automatically played on your soundbar.
     • Using a High Speed HDMI cable, connect the HDMI OUT connector on your digital device to the HDMI IN on your soundbar. Connect your soundbar to TV through HDMI OUT (ARC).
     • Press repeatedly SOURCE button on the remote control until HDMI 1 is displayed on the display panel.
     • If the TV is not HDMI CEC compliant, select the correct video input on your TV.
     • On the connected device, turn on HDMI CEC operations.

2. Connect devices through analog audio cables



   • Using an analog cable, connect the AUX IN (3.5mm jack) on your soundbar to the AUX OUT / 3.5mm connectors on your portable devices.
   • Press repeatedly SOURCE button on the remote control until AUX is displayed on the display panel.

Power on your system JBL

Pair with the subwoofer

The wireless subwoofer automatically connects with the soundbar when both units are powered on. If the subwoofer is on and connected, the LED lights white continuously. If no audio from the wireless subwoofer can be heard, manually pair the subwoofer:

1. Turn on the soundbar and the subwoofer. If the connection is lost, the LED indicator on the subwoofer blinks slowly.
2. Press the CONNECT button on the subwoofer to enter pairing mode. The LED indicator on the subwoofer blinks quickly.
3. Press and hold DIM DISPLAY button on remote control for 5 seconds, followed by short press on BASS+, and BASS-button in sequence. Panel display will show “PAIRING”
   • If the pairing succeeds, the LED indicator on the subwoofer lights up and the soundbar display will show “DONE”.
   • If the pairing fails, the indicator on the subwoofer blinks slowly.
4. If the pairing fails, repeat the steps above.

PLACE YOUR SOUNDBAR

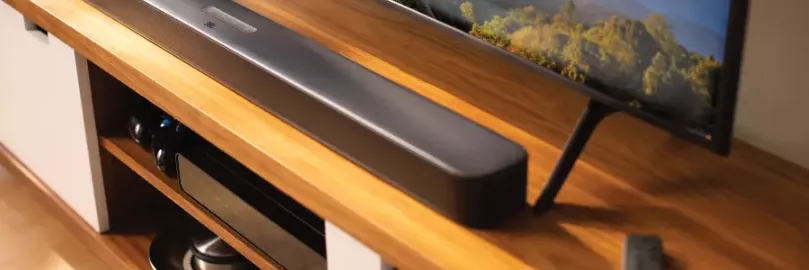

JBL Sound Bar 2.1 Place the Soundbar on the table

Wall mount the Soundbar

• Use tape to stick the wall-mounted paper guide on the wall, push a pen tip through the center of each mounting hole to mark the wall-mounted bracket location and remove the paper.



• Screw the wall mount brackets on the pen mark; screw the threaded mounting post into the back of the soundbar; then hook the soundbar on the wall.



USE YOUR SOUNDBAR SYSTEM

To Control

• Top panel



Remote Control

1. Power
2. Source*
3. Play / Pause
4. Volume +
5. Volume -
6. Previous
7. Next
8. Audio Sync +
9. Audio Sync -
10. Mute
11. Bass +
12. Bass -
13. Sound mode**
14. Soundshift On / off
15. Shuffle / Repeat***
16. Surround On / off
17. Night mode On / off
18. Dim display
19. Bluetooth

Switch between HDMI ARC/ HDMI 1/ Optical/ AUX/ Bluetooth/ USB. Switch between Standard/ music/voice/ movie/ sports sound mode or press and hold 5 seconds to reset default audio setting. For USB playback only; switch between shuffle/ repeat all/ repeat one/ off

To use Bluetooth with JBL Sound Bar 2.1

• Press Bluetooth (BT) button on your remote control to start Bluetooth pairing

• Select “JBL Bar 2.1” to connect



Remark: Press and hold Bluetooth (BT) button on your remote control for 3 seconds if you want to pair another mobile device.
NOTES

• If asked for a PIN code when connecting a Bluetooth device,
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 32.8 ft/ 10m.
• The Soundbar automatically turns off after 10 minutes in the Ready state.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

To use Soundshift

1. By default, Soundshift is OFF, Bluetooth music cannot break in your current source.



2. Press SOUNDSHIFT button on your remote control to enable Soundshift feature.

3. While Soundshift is on, play and pause your music source to enjoy auto-switch between your mobile devices - Bluetooth source (A) and TV - Previous source (B).



To use USB

Play music files located on USB storage devices through the soundbar.

1. Connect a 2.0 USB drive to your soundbar.
2. Press repeatedly SOURCE button on the remote control until USB is displayed on the display panel.
   • If USB is detected, display will show LOADING and music start playing automatically. Songs on your USB device is using the below logic to play music.
   • If there is no file in the folder, the folder will not appear.
   • Files are recognized by alphabetical and numerical order. Files in root will be first recognized, followed by files in folders. Thus, files will be played from file 1 to file 7 one by one.

Control USB playback

Use Play/ Pause/ Previous/ Next/ Shuffle to control music on your USB device.

Before you connect a USB device, be aware of the following:

• This soundbar can display file or folder names that contain numbers or English characters only. Other languages and symbol are not supported.
• If the file name of a file on a USB device exceeds 15 characters, it is not displayed on the Soundbar’s display.
• Do not remove the USB device while it is transferring files.
• DRM-protected music files (MP3, WMA) from commercial web sites cannot be played.

Compatible USB devices

• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB 2.0.
• Some USB devices may not be supported.

USB device requirement of JBL Sound Bar 2.1

• Devices which require additional program installation connected to a computer, are not supported.
• Do not extract the USB device while in operation.
• For a large capacity USB, it may take longer than a few minutes to be searched. The Soundbar does not support USB devices with 2000 files or more on it.
• The Soundbar USB Port cannot be connected to PC and it can not be used as a storage device.
• The exFAT and NTFS file system is not supported on this unit.(FAT16/FAT32 systems are available.)
• Depending on some devices, it may not available to recognize the followings on this unit.
  • External HDD
  • Card readers
  • Locked devices
  • Hard type USB devices
  • USB hub
  • Using USB extension cable
  • iPhone/iPod/iPad
  • Android device

Description

The JBL Sound Bar 2.1 is a 2.1 channel sound system that delivers clear and powerful audio. It features a wireless subwoofer that adds depth and impact to your listening experience. With a total output of 120W, the sound bar is capable of filling even large rooms with sound. The sound bar also supports various audio formats, including Dolby Digital, ensuring that you get the best possible audio quality. It can be easily connected to your TV or other audio sources via HDMI ARC, optical, or Bluetooth.

SOUND SETTING

This section helps you choose the ideal sound for your video or music.

Before you start

• Make the necessary connections described in the user manual.
• On the soundbar, switch to corresponding source for other devices.

Adjust the volume in JBL Sound Bar 2.1

• Press VOLUME +/- button to increase or decrease a volume level.
• To mute sound, press MUTE button.
• To restore the sound, press MUTE button again or press VOLUME +/- button

Choose sound effect

1. Surround sound mode
   • Experience an immersive audio experience with JBL surround sound mode.
   • Press SURROUND button to turn surround mode on or off.
   • On: Create a surround listening experience.
   • Off: Two-channel stereo sound. Ideal for listening to music.
2. Bass
   • Change low frequency (bass) settings of the soundbar.
   • Press BASS +/- to change the subwoofer volume level.
3. Sound mode
   Select predefined sound modes to suit your video or music.
   Press SOUND button to select a sound option from the display panel.
   Select the STANDARD mode if you want to enjoy the original sound.
   Select the MUSIC, MOVIE, VOICE, SPORTS mode depending on the content you want to listen to.
4. Night mode
   • For quiet listening, night mode decreases the volume of loud sounds when audio is played.
   • Night mode is only available for Dolby Digital soundtracks.
   • Press NIGHT MODE button to turn night mode on or off.
   • Press and hold 5 seconds SOUND button to reset default audio setting.
5. Synchronize video and sound
   • If the audio and video are not synchronized, delay the audio to match the video.
   • Press AUDIO SYNC +/- button to synchronize the audio with the video.

RESPOND TO YOUR TV REMOTE CONTROL

Use your own TV remote control to control your soundbar
For most Samsung, LG, Sony and Vizio TVs*
The soundbar responds to your TV remote control automatically. Controllable functions are volume up/down and mute. Press and hold SHUFFLE button on soundbar remote control if you want to disable this function.

• Make sure that the sound output of your TV is set to “External speaker”.
• Depending on the remote control, this function may not work well.
• This function does not operate on LG TV’s magic remote control.
• This function may not work well when HDMI CEC is ON.
• Some remote control may not operate if you press repeatedly the volume button.
• If your TV remote control is not supported, follow section 7b and do IR remote learning.

For other TVs, do IR remote learning

1. To program the soundbar to respond to your TV remote control, follow these steps. First, press and hold VOLUME+ and SOURCE button to enter learning mode.



2. Then, press POWER button on the soundbar and press POWER button on the TV remote control



3. Follow the same procedure for VOLUME - and VOLUME +. For mute, press bloth VOLUME + and VOLUME - button on soundbar and press MUTE button on TV remote control.
4. Press and hold VOLUME+ and SOURCE button on soundbar again and now your soundbar respond to your TV remote control.

SYSTEM

1. Auto standby
   This soundbar automatically switches to standby after 10 minutes of button inactivity and no audio/video play from a connected device.
2. Auto wake up
   The soundbar is powered on whenever a sound signal is received. This is most useful when connecting to the TV using the optical cable, as most HDMI™ ARC connections enable this feature by default.
3. Set display brightness
   Press DIM button on remote control repeatedly to select a different brightness level of the display panel on this product
4. Apply factory settings
   Reset this soundbar to the default settings programmed at the factory.
   In any source mode, press and hold VOLUME -, VOLUME+ and SOURCE button on soundbar top panel until text display shows RESET.
   When the factory settings restore is complete, the product automatically switches off and restarts.
5. Check Software version
   Press and hold DIM DISPLAY button for 5 seconds in any source, Hold and press DIM DISPLAY button for 5 seconds, followed by SOUND MODE and NIGHT MODE button.
   To check subwoofer software version, pls connect subwoofer to soundbar via a 3.5mm AUX in cable and follow the above procedure.
6. Software Update
   JBL may offer updates for soundbar’s system firmware in the future. If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your soundbar.

Troubleshooting of JBL Sound Bar 2.1

If you have problems using this product, check the following points before you request service.

• System
  • The unit will not turn on
    • Check if power cord is plugged into the outlet and the soundbar Sound
  • No sound from Soundbar
    • Make sure that the soundbar is not muted.
    • On the remote control, select the correct audio input source
    • Connect the audio cable from your soundbar to your TV or other devices.
    • However, you do not need a separate audio connection when:
      • the soundbar and TV are connected through HDMI ARC connection, or
      • a device is connected to the HDMI IN connector on your soundbar.
    • Reset your soundbar to its factory settings via press and hold VOLUME -, VOLUME+ and SOURCE button on soundbar top panel Sound is strange after sound setting adjustment
    • Reset audio setting by press and hold SOUND button on remote control for 5 seconds
  • No sound from the wireless subwoofer
    • Check if the Subwoofer LED is in solid white colour. If white LED is blinking, connection is lost. Manually pair the Subwoofer to soundbar (see ‘Pair with the subwoofer’ on page 4).
  • Distorted sound or echo
    • If you play audio from the TV through the soundbar, make sure that the TV is muted.
  • Audio and video are not synchronized
    • Press AUDIO SYNC +/- to synchronize the audio with the video.
  • Error message is displayed on the display panel
    • When “ERROR” is displayed, it indicates that an input audio format is not supported.
    • When “ERROR” is displayed in USB source, it indicates that the connected USB device or Audio file is not supported
• Video
  • If there is no picture on the TV Screen
  • Check that the soundbar power is ON, the intended source is ON, and the input is set correctly on the soundbar.
• Bluetooth
  • A device cannot connect with the Soundbar.
  • You have not enabled the Bluetooth function of the device. See the user manual of the device on how to enable the function.
  • The soundbar is already connected with another Bluetooth device. Press and hold BT button on your remote control to disconnect the connected device, then try again.
  • Turn off and turn off your Bluetooth device and try to connect again.
  • The device is not correctly connected. Connect the device correctly.
  • Quality of audio play from a connected Bluetooth device is poor.
    • The Bluetooth reception is poor. Move the device closer to the soundbar, or remove any obstacle between the device and the soundbar.
    • The connected Bluetooth device connects and disconnects constantly.
    • The Bluetooth reception is poor. Move your Bluetooth device closer to the soundbar, or remove any obstacle between the device and the soundbar.
    • For some Bluetooth device, the Bluetooth connection can be deactivated automatically to save power. This does not indicate any malfunction of the soundbar.
• Remote Control
  • The remote control does not work.
  • Check if the batteries are drained and replace with new batteries.
  • If the distance between the remote control and the main unit is too far, move it closer to the unit.

Pros & Cons

Pros

• Powerful and immersive sound
• Wireless subwoofer for added bass
• Multiple connectivity options
• Sleek and modern design
• Easy to set up and use

Cons

• No support for Dolby Atmos
• No built-in voice assistant
• May not be powerful enough for very large rooms
• No Ethernet port for wired network connection

Customer Reviews about JBL Sound Bar 2.1

Customers have praised the JBL Sound Bar 2.1 for its excellent sound quality and easy setup. Many have noted that the wireless subwoofer adds significant bass and depth to their listening experience. However, some have criticized the lack of Dolby Atmos support and the absence of a built-in voice assistant. The most common complaint is that the sound bar may not be powerful enough for very large rooms.
