Introduction

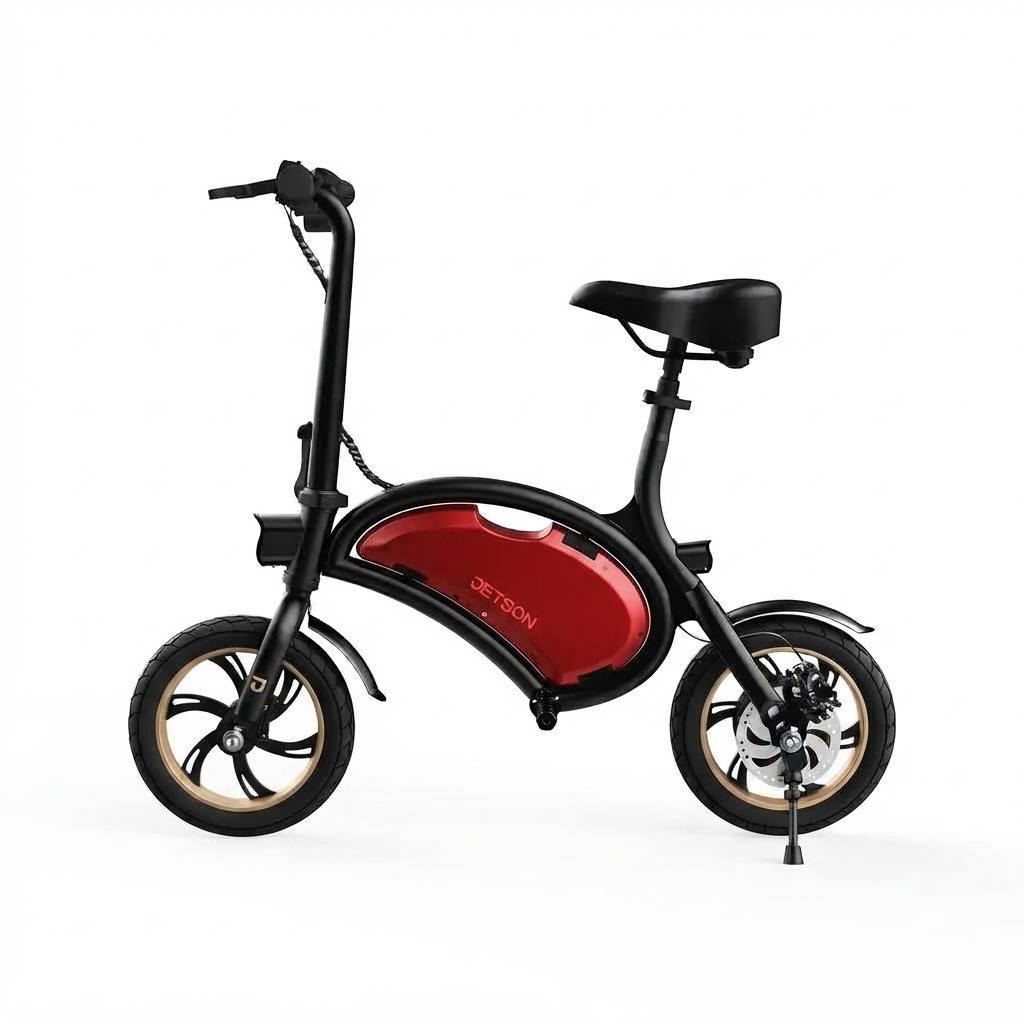

The Jetson Bolt Folding Electric Ride-On Bike JBOLT-BLK is a compact and stylish electric bike designed for easy commuting and leisure rides. Featuring a powerful 250-watt motor, it can reach speeds of up to 15.5 mph and offers a maximum range of 15 miles on a single charge. The bike's lightweight frame and easy-folding design make it convenient for storage and transport. Priced at approximately $479.68, it combines functionality with modern design for urban riders.

What’s in the Box

1. Front Tire
2. Headlight
3. Stem Quick Release
4. Handlebar
5. Carrying Handle
6. Seat
7. Seat Clamp
8. Taillight
9. Rear Fender
10. Rear Tire
11. Kickstand
12. Foot Rest
13. Front Fender
14. Charging Cable
15. Charger

Tools needed but not included: Screw Driver, Ratchet + Socket
CAUTION: Before operating the Bolt please tighten all screws, nuts, and bolts.

Specs & Features

• Product Dimensions: 40 in × 20 in × 37 in
• Weight Limit: 250 lb
• Product Weight: 40 lb
• Recommended Age: 12+
• Tire Size: 12 in
• Max Speed: Up to 16 mph
• Max Range: Up to 15 miles
• Battery: 36V, 6.0Ah Lithium-Ion
• Motor: 250W Hub Motor
• •    Charger: 100-240V
• •    Charge Time: Up To 5 Hours
• •    Climbing Angle: Up To 15°

Description

The Jetson Bolt JBOLT-BLK is designed with both functionality and style in mind. Its sleek black frame is lightweight yet durable, making it easy to maneuver and fold for storage. The electric motor provides smooth acceleration, while the pneumatic tires ensure a comfortable ride over various terrains. The bike also comes equipped with essential safety features like LED lights for visibility and reliable brakes for secure stopping. Whether you're commuting through city streets or enjoying a recreational ride, the Jetson Bolt offers a seamless and enjoyable experience.

Get Started of Jetson Bolt Folding

Attaching the Seat

Open the Seat Clamp. Slide Seat into Stem Tube.

Turn the Knob clockwise to tighten the Seat Clamp. Close the Seat Clamp.

Attaching the Foot Rests

Install Foot Rests to Axle. Turn Foot Rests clockwise to tighten.

Attaching the Bell

Attach the Bell using the included screw and nut.

Attaching the Fenders

Remove the Bolt and Nut from the frame. Run the Bolt through the Fender and frame, and secure using the Nut.

Stay Charged

Charging the Battery

A few must-dos:

• Only use the included charger
• Plug the charger into the wall before the Charging Port
• Don’t turn on the Bolt while it’s charging
• Charge the battery until it is fully charged - up to 5 hours
• Replace the cover over the Charging Port when done
• Charging Indicator On The Charger:
  • Red Light: Battery is charging

  • Green Light: Charging is complete



Make Moves

Unfolding the Handlebar

Electric Ride-On Bike Operating the Bolt

• Power Button: Turns the Bolt on and off.
• Light Switch: Turns the headlight and taillight on and off.
• Cruise Control Button: Press when you have reached the speed you would like to maintain. Apply the brake to turn off Cruise Control.

Battery Levels

• 4 Lights: 76-100% Power
• 3 Lights: 51-75% Power
• 2 Lights: 26-50% Power
• 1 Light: 1-25% Power (Please charge the Bolt immediately!)

Riding the Bolt

• Before each ride, check that the Handlebar and Seat are secure, the tire pressure is sufficient, and the brake system works correctly.
• Keep your feet on the Foot Rests. Do not ride with your feet dangling over the sides and always stay seated while riding.

Connecting to Bluetooth

Your Jetson Bolt is Bluetooth 4.0 enabled, so you can pair it with the Ride Jetson app on your personal Bluetooth enabled device. The Ride Jetson app is available for download from the App Store and the Google Play Store.

1. Turn on the Bolt.
2. Open the Ride Jetson app on your handheld device.
3. Tap the Bluetooth symbol in the top left corner of the app.
4. Select your Bolt.
5. The default Bluetooth password is 000000. The default Lock password is 123456. Customize the passwords in the Settings of the app.

If you are having issues connecting to Bluetooth, follow these steps…

1. Try restarting the Bolt by turning it off and then on.
2. Click the Scan button to refresh.
3. Restart the Ride Jetson app.
4. Contact Jetson Customer Support for assistance.

Care & Maintenance

Riding Range
The maximum range is 24.1 km / 15 miles. However, a lot of factors will affect how far you can go per charge:

• Driving Surface: A smooth, flat surface will increase driving distance.
• Weight: More weight means less distance.
• Temperature: Ride and store the Bolt above 10°C / 50°F.
• Maintenance: Timely battery charging will increase driving distance.
• Speed and Driving Style: Frequent starting and stopping will reduce driving distance.

Cleaning The Bolt

To clean the Bolt, carefully wipe with a damp cloth, then dry with a dry cloth. Do not use water to clean the Bolt, as the electrical and electronic systems may get wet, resulting in personal injury or malfunction of the Bolt.
Battery

• Keep the Bolt away from fire and excessive heat.
• Do not subject the Bolt to intense physical shock, severe vibration, or impact.
• Protect from water or moisture.
• Do not disassemble the Bolt or its battery.
• If there are any issues with the battery, please contact Jetson Customer Support. We’d love to help!

Storage

• Fully charge the battery before storing.
• The battery should be fully charged once a month after this.
• To protect against dust, cover the Bolt.
• Store the Bolt indoors, in a dry place and at a suitable temperature.
• You should bring the Bolt into a warm (above 10°C / 50°F) environment for charging.

Setup Guide

Setting up the Jetson Bolt Folding Electric Ride-On Bike is straightforward.

1. Upon unboxing, ensure all parts are included: the main frame, front wheel, rear wheel, handlebar, seatpost, and battery pack. Begin by attaching the front wheel to the fork using the provided nuts.
2. Next, secure the rear wheel to the hub motor.
3. Attach the handlebar to the stem and adjust it to your preferred height. Install the seatpost and tighten it firmly.
4. Finally, connect the battery pack to the motor and display unit. Refer to the user manual for detailed instructions on pairing and configuring your bike.

Safety Warnings

• Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use.
• Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition; That the braking system is functioning properly; That any and all axle guards, chain guards, or other covers or guards supplied by the manufacturer are in place and in serviceable condition; That tires are in good condition, inflated properly, and have sufficient tread remaining; The area that the product is to be operated should be safe and suitable for safe operation.
• Components shall be maintained and repaired in accordance with the manufacturer’s specifications and using only the manufacturer’s authorized replacement parts with installation performed by dealers or other skilled persons.
• Don’t allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with moving parts, wheels, or drive train, while the motor is running.
• This product should not be used by children or persons with reduced physical, sensory  or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction (IEC 60335-1/A2:2006).
• Unsupervised children should not play with the product (IEC 60335-1/A2:2006).
• Adult supervision is required.
• The rider should not exceed 265 lb.
• Never use near motor vehicle.
• Units shall not be operated to perform racing, stunt riding, or other maneuvers, which may cause loss of control, or may cause uncontrolled operator/passenger actions or reactions.
• Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly stop.
• Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.
• Avoid riding around flammable gas, steam, liquid, or dust that could cause fire.
• Operators shall adhere to all of the manufacturer’s recommendations and instructions, as well as comply with all laws and ordinances: Units without headlights shall be operated only with adequate daylight conditions of visibility, and; Owners shall be encouraged to highlight (for conspicuity) using lighting, reflectors, and for low-riding units, signal flags on flexible poles.
• Do not ride at night.
• Only ride the product with adequate daylight conditions for visibility.
• Persons with the following conditions shall be cautioned not to operate: Those with heart conditions; Pregnant women; Persons with head, back, or neck ailments, or prior surgeries to those areas of the body; and persons with any mental or physical conditions that may make them susceptible to injury or impair their physical dexterity or mental capabilities to recognize, understand, and perform all of the safety instructions and to be able to assume the hazards inherent in unit use.
• Do not ride after drinking or taking prescription medication.
• Do not carry items when riding.
• Never operate the product barefooted.
• Always wear shoes and keep shoelaces tied.
• Make sure your feet are always placed securely on the deck.
• Operators always shall use appropriate protective clothing, including but not limited to a helmet, with appropriate certification, and any other equipment recommended by the manufacturer: Always wear protective equipment such as helmet, knee pads, and elbow pads.
• Always give way to pedestrians.
• Be alert to things in front and far away from you.
• Do not allow distractions when riding, such as answering the phone or engaging in any other activities.
• The product cannot be ridden by more than one person.
• When you ride the product along with other riders, always keep a safe distance to avoid a collision.
• When turning, be sure to maintain your balance.
• Riding with improperly adjusted brakes is dangerous and can result in serious injury or death.
• Applying brakes too hard or too suddenly can lock up a wheel, which could  cause you to lose control and fall. Sudden or excessive application of the brake may result in injury or death.
• The brake may become hot while operating, do not touch the brake with your bare skin.
• If the brake loosens, please adjust with the hexagon wrench, or please contact Jetson Customer Support.
• Replace worn or broken parts immediately.
• The area that the product is to be operated should be safe and suitable for safe operation.
• Check whether all safety labels are in place and understood before riding.
• The owner shall allow the use and operation of the unit after a demonstration  that such operators can understand and operate all components of the unit before use.
• Recommended for indoor use.
• Use caution when charging. Do not operate charger near flammable materials. Unplug charger and disconnect from scooter when not in use.
• When the battery is fully charged, stop charging and unplug the unit.
• Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials, store indoors when not in use.

California Proposition 65
WARNING: This product can expose you to a chemical such as Cadmium that is known to the state of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov/product
NOTICE OF COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the  following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Troubleshooting

Common issues with the Jetson Bolt may include battery drain, wheel alignment problems, or faulty brakes.

1. For battery drain, check if the battery is fully charged and ensure proper storage when not in use.
2. For wheel alignment issues, refer to the user manual for adjustment instructions. If brakes are malfunctioning, inspect for worn-out brake pads and replace them as needed.
3. Always follow safety instructions and warnings provided in the manual to avoid accidents.

Jetson Bolt Pros & Cons

Pros

• Portable Design: The foldable mechanism makes it easy to store and transport.
• Eco-Friendly: Environmentally friendly electric power reduces carbon footprint.
• Comfortable Ride: Pneumatic tires and adjustable handlebar ensure comfort during rides.
• Affordable: Priced competitively compared to other electric ride-on bikes.

Cons

• Limited Range: Maximum travel distance is up to 15 miles on a single charge.
• Assembly Required: Users need to assemble some parts upon unboxing.
• Weight Limitations: Designed for riders up to 250 lbs; heavier riders may experience reduced performance.

Customer Reviews

Customers have praised the Jetson Bolt for its ease of use, compact design, and reasonable price point. Many appreciate the smooth ride and efficient battery life. However, some users have noted that assembly can be somewhat tricky without clear instructions. Common complaints include occasional issues with battery charging and limited customer support.
