Introduction

The Kensington MouseWorks Customization Software enhances the functionality of Kensington mice and trackballs, allowing users to tailor their devices to meet specific needs. This software provides extensive customization options, enabling users to adjust pointer speed, assign functions to extra buttons, and create application-specific profiles for improved efficiency. With features like click-lock for repetitive tasks, it streamlines workflows and boosts productivity. Kensington MouseWorks is available for free, making it an accessible tool for all users.

Specifications

• Customizable button assignments
• Adjustable DPI settings for precision and speed
• Macro creation for complex tasks
• Support for multiple profiles
• Compatibility with Windows and macOS
• User-friendly interface
• Regular software updates for new features and bug fixes

Installing the MouseWorks Software

Remember to save your MouseWorks CD in case you ever need to reinstall the software. If you are running Windows NT, please remember to make a recovery disk.

IMPORTANT: Until you install the MouseWorks software, your new input device may not work as expected (for example, if your input device has extra buttons or a scroll wheel, it will not work without the software). Your input device will work as a basic mouse as soon as you plug it in, but to make full use of the device, you must install the software. For best results, install MouseWorks software from the included CD and restart your computer before connecting your Kensington input device.

See Getting Started with MouseWorks Software to find out how the MouseWorks software can help you work more efficiently and comfortably.

Installing for Windows98 or later

1. Turn on your computer (if it’s not already running) and insert the MouseWorks CD into your CD-ROM drive.
2. MouseWorks Setup should start automatically. If it doesn’t, you can run it from the Start menu:
   1. Click the Start button and choose Run.
   2. Click Browse and choose the CD-ROM drive.
   3. Select Mworks/setup.exe and click OK.
3. Read the license agreement in the installer and click Yes to accept the agreement.
4. When the MouseWorks installation is complete, MouseWorks Setup restarts your computer.

NOTE: Once the software is installed, always use MouseWorks to control the input device.(See “Getting Started with MouseWorks.”) Do not use the Mouse control panel supplied with Windows.

Installing for Macintosh computers

1. Turn on your computer (if it’s not already running) and insert the MouseWorks CD into your CD-ROM drive. A window showing the MouseWorks files should appear on your desktop.
2. Double-click the MouseWorks Installer.
3. Read the license agreement in the installer and click Accept to accept the agreement.
4. When the MouseWorks installation is complete, restart your computer.

Connecting Your Kensington Input Device

Look closely at the connector. Your Kensington input device may include one or more connectors: USB, serial, or PS/2 for PC computers; USB or Apple Desktop Bus (ADB) for Macintosh.

Which connector do you choose?

• If your input device comes with a USB connector and your computer has a USB port—choose USB. It will provide the best and simplest connection.
• If USB is not an option, use the connector that works with your computer.

CAUTION: Always turn off your computer before connecting or disconnecting any non-USB hardware.

Connecting to a PC

To connect to	Do this
USB port	Plug the cable into your computer’s USB port (or a USB port on a hub connected to your computer). You do not need to turn off your computer before connecting or disconnecting a USB device.
	NOTE: To use MouseWorks with a USB connected device on a PC, you must be running Windows 98 or higher.
PS/2 mouse port	1. Turn off your computer.
	2. Plug the cable into the computer’s round, 6-pin mouse port. If the PS/2 connector is on an adapter, first plug the cable into the adapter, then plug the adapter into the computer’s PS/2 port.
9-pin serial port	1. Turn off your computer.
	2. Plug the cable into your computer’s 9-pin serial port. If the serial connector is on an adapter, first plug the main cable into the adapter, then plug the adapter into your computer’s serial port.

NOTE: Some models of Expert Mouse may require you to connect the cable to the trackball base. On these models plug the round, 8-pin end of the cable into the port on the back of the Expert Mouse.

Connecting to a Macintosh computer

To connect to	Do this
USB port	Plug the cable into your computer’s USB port. You may also use the spare USB port on your keyboard or a USB port on a hub connected to your computer. You do not need to turn off your computer before connecting or disconnecting a USB device.
Apple Desktop Bus (ADB) port	1. Turn off your computer.  2. Plug the cable into an ADB port either at the back of the computer or on the keyboard. If you do not have a free ADB port, you may need to unplug the mouse you are currently using.

CAUTION: Always turn off your computer before connecting or disconnecting any non-USB hardware.

Cool Things You Can Do with Your Kensington Input Device

Your Kensington input device excels at basic mouse and trackball tasks. But it does more than that. Take a few minutes to experiment with the great features MouseWorks offers. Here are just a few of the ways that MouseWorks can save you time and energy.

Customize the buttons to perform a wide variety of tasks
MouseWorks lets you do other things with the buttons on your input device in addition to basic mouse clicks. When you start MouseWorks, you will see a picture of your input device. Next to each button on the picture is a response menu that lets you choose a function for the button:

Here are a few examples of things you can do with the press of a button:

• Set a button to double-click. Never worry again about clicking too slowly or moving the cursor between clicks.
• Launch any application or jump to your favorite Web sites with just one click.
• To fill out forms easily, set a button to type a block of text, such as your name, address, and phone/fax numbers.
• Set another button as your application menu, and move effortlessly between applications.

These and many other options are available in the MouseWorks software. For instructions on how to use these options, see the next section, Getting Started with MouseWorks Software, or refer to the MouseWorks Help.

Description

A full range of options to customize your mouse experience are available in the Kensington Mouse Works Customization Software. By giving each button a unique function, users may customize the arrangement to meet their own requirements. Additionally, the program facilitates the construction of macros, which let users perform intricate action sequences with only a single click.
The mouse can be adjusted for a variety of applications, from fast-paced gaming to precise graphic design work, thanks to the customizable DPI settings. With the software's capability for several profiles, switching between settings according to the work at hand is simple.

Getting Started with MouseWorks Software

Be kind to yourself. MouseWorks software settings help eliminate repetitive movements that put strain on your hands and wrists.

• Pace yourself by setting a Rest Reminder. If you lose track of time, the Rest Reminder lets you know when it’s time to work on something different, stretch, move around a little, or take a break.
• Use the Drag feature to drag without having to hold down a button.
• Reduce repetitive clicking by assigning Double-Click to a button.
• Try Snap to Default to reduce hand movement, including the number of times you need to move between your Kensington device and the keyboard.

Streamline your work with powerful MouseWorks software features.

• Create Pop-Up Menus to streamline everyday tasks and to keep frequently used commands at your fingertips.
• Tailor your input device to your favorite applications with Application Sets.
• Use MouseWorks’ advanced Acceleration controls to adjust the cursor’s movement speed. Zip your cursor across a big screen or slow it down for small and detailed movements, all within one convenient setting.

MouseWorks software is easy to use. Start by trying a few simple features. Then experiment with custom button options for the application you use most.

Starting MouseWorks

• On a Windows 98 or later computer: Click on the Start menu, then choose Programs > Kensington MouseWorks > Kensington MouseWorks.
• On a Macintosh computer: Choose Kensington MouseWorks from the Control Panels sub-menu of the Apple menu. You can also double-click the Kensington MouseWorks icon in the Kensington folder where you installed the software.

NOTE: This QuickStart is illustrated with the Expert Mouse, but every Kensington input device supports these same features.

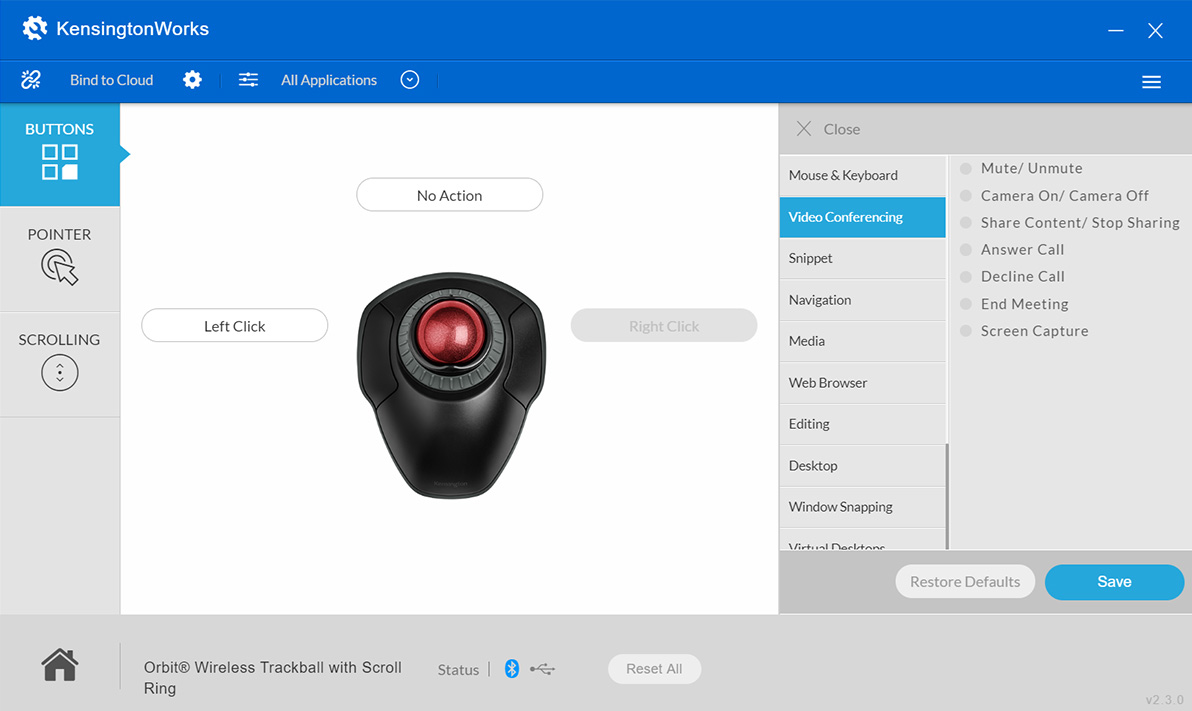

Getting Around MouseWorks
Most MouseWorks features are arranged in a series of tabs. The two outer tabs separate the two main categories of MouseWorks features:

The Settings for tab includes those features that can change from application to application. These features appear in a set of three inner tabs.

• The Buttons tab allows you to choose functions for each button on the input device.
• The Scrolling tab lets you adjust the scrolling speed, scrolling style, and Scroll Ring™ direction.
• The Movement tab allows you to turn on special options that change the way the cursor moves on screen.

The System-Wide Settings tab includes features that apply globally, regardless of which application you are currently running. Within this main tab, three inner tabs give you access to these features.

The Acceleration tab lets you adjust the speed of cursor movement.
The Click Speed tab allows you to adjust two things:

• the speed of the double-click, and
• how precise you must be when pressing left and right buttons simultaneously in order for the button presses to be interpreted as a chord.

NOTE: To perform a chord, press two mouse buttons (left and right) at the same time. You can assign functions to a chord in the same way that you assign button functions in the Buttons tab.

The Rest Reminder tab lets you set a reminder—a beep and/or an on-screen message—to prompt you when you have been working for too long without a break.
Click on a tab to view or change its settings.

Standard Settings

• When you first install MouseWorks, all of the buttons on your Kensington input device are set to perform common mouse functions such as click, right-click, etc.
• If your device has more than two buttons, at least one chord is available for your use, and a default chord response is assigned. To determine which combination(s) of buttons on your device will function as a chord, refer to the illustration of your device in the MouseWorks software. You may choose which function you want for the available chords, or leave the default settings in place.

You can use MouseWorks to change the settings for the other buttons, setting them up to perform any function you wish. Any function that you can assign to a button, you can also assign to a chord.

Adjust the cursor and click speeds, and choose scrolling options.

• Click the System-Wide Settings tab, then click the Acceleration tab. Drag the slider left or right to adjust the cursor movement speed. For more control, click the Fine Adjustment check box and adjust the sliders.
• If you have a mouse or trackball with a scroll wheel, you can roll the wheel forward to scroll up and back to scroll down in applications that support it. If your input device does not have a scroll wheel, you can use a button for scrolling—use the Buttons tab to assign one of the scrolling features (Scroll Up, Scroll Down, AutoScroll, or Scroll When You Move the Mouse) to a button.
• If you have a trackball with a Scroll Ring device, you can use any finger to turn the ring. A clockwise turn scrolls down and a counterclockwise turn scrolls up in applications that support scrolling. Although the Scroll Ring device is preset to scroll down with a clockwise turn, it easily can be reversed through MouseWorks—try both directions to see which is most comfortable and intuitive for you.
• The Scrolling tab lets you adjust the scrolling speed, change direction on the Scroll Ring device, and switch between the Kensington and Microsoft Office scrolling styles. For best results, always use the Office 97 scrolling style with applications that are Office 97-compatible. For any other application, deselect the Office 97 scrolling style option.

Button Press and Response
MouseWorks makes a distinction between a Button Press and the Response.

• A Button Press is the action you take; it is what you press.
• A Response is the signal that MouseWorks sends to the computer; it is what you get. MouseWorks responses are available from the Response Menu associated with each mouse button.

Set up the mouse buttons to do what you want them to do.

The three steps below outline how to assign a response from the response menu to a mouse button press.

1. Click the Settings for tab, then click the Buttons tab.
2. Click the Response Menu for a button.
3. Choose the response you want from the list. If the response requires more information, a pop-up window will prompt you. The Response Menu will now show the response you have assigned to the button press.

Your changes take effect immediately. To try the new response, just press the mouse button it is assigned to.

Try these easy button responses.

• Double-Click
  Use just one click to open documents, applications, and folders.
• Drag
  Select text or move objects without holding down a mouse button.
• EasyLaunch
  Open a document, application, or Web page with one click.
• Shortcuts
  Save time. With Shortcuts, cut, paste, edit, open files and more at the touch
  of a button.
• Paste Text
  Insert your name, address or any other text into any document.
• Scrolling
  Scroll up, down, AutoScroll, and more with a click.
• Application Menu
  Pop up a menu of the applications you have running. Switch applications easily.
• Instant Menu
  Instantly pop up the main menu of the current application

Snap to Default
Snap to Default makes your cursor jump automatically to the default button every time a dialog window opens, so you don’t have to move the cursor there manually. Choose Snap to Default from the Options menu.

A checkmark next to the Snap to Default item in the menu shows that the option is turned on. To disable it, simply select it again.

Made a mistake?
You can always use the Restore options on the File menu to revert to the default standard settings.

Choose custom settings for your favorite applications
Application Sets change the way your input device works with each of your favorite applications. MouseWorks automatically switches your settings whenever you start a program that has a set defined for it.

For instance:

• You can create a set for your Web browser that lets you click to AutoScroll and to open a pop-up menu with browser options.
• You can create another set for your word processing application that lets you paste text and open files at the click of a mouse button.

Using Application Sets
The two main MouseWorks tabs separate those items that are programmed for all applications (System-Wide Settings) from the features that may be customized for each application (Settings for:). In the area to the right of the words “Settings for:” is a pop-up menu. When MouseWorks is first installed, the phrase “All Other Programs” appears in the menu window.

As you create Application Sets, you can view them by pulling down this menu and choosing an application name.

MouseWorks already has a number of Application Sets that have been customized for common applications. If you choose one of the predefined Application Sets, the buttons will already be programmed to automate many tasks.

To use a Kensington Application Set:

1. Open MouseWorks and bring it to the front.
2. Click on the pop-up menu next to Settings for: (It will say “All Other Programs” the first time you add an application set).

3. Choose Add/Change Sets. This opens the Add/Change Application Sets window shown.



4. Highlight the Application Set you wish to use from the Inactive Sets list on the right side of the window.
5. Click copy. You will see the application name appear in the In Use Sets on the left side of the window.

If you wish, while the application name is still selected in the In Use Sets window, you can click Properties to change the label for the program and add comments.
You may also add Application Sets that are not already included. To do this, click the New button in the Add/Change Application Sets window and follow the on-screen instructions. This process is simpler if the application is running when you want to add it.

MouseWorks offers on-screen help

• The MouseWorks Guide is a complete on-screen reference manual for MouseWorks. To open it choose MouseWorks Help from the Help menu. Help will be displayed in your default browser (PC users) or the Apple Help Viewer (Mac users).
• For help on working with the currently visible MouseWorks window:
  Mac users: To display the Help Window, choose Help Window from the Apple menu, or choose MouseWorks Help... from the Help menu, or simply press command-H. A floating window will dynamically display information about whatever control the mouse points at.
  To activate Balloon Help, choose Show Balloons from the Help menu. A small help balloon will pop up next to whatever control you point at with the mouse. To turn off the balloons, choose Hide Balloons from the Help menu.

A Word About Comfort and Safety

Here are some suggestions about how you can work more comfortably with your Kensington input device. Keep in mind, however, that these are only suggestions. Comfort is very personal, and only you can judge what works best for you.

Using a Mouse

Grasp the mouse lightly between your fingers and thumb; do not apply too much pressure when lifting and moving the mouse. Allow your fingers to rest lightly on the buttons. This will not cause accidental clicks. Experiment with different button options to determine the best primary and secondary buttons for your hand size. With the MouseWorks mouse, it will be easier to click some buttons with the thumb.

Using a Trackball

Most users find the best way to handle a trackball is by using the fingertips to control the ball while using the thumb and pinky, or ring finger, to click the buttons. There are two basic ways to use a trackball, depending on its shape. With Expert Mouse and Turbo Mouse it is best to hover slightly above the unit to keep your wrist straight. The other devices work best when you place the blade of your hand (along the edge of your pinky finger) on the desktop next to the unit. Allow your hand to drape over the unit. This should keep your wrist in a comfortably neutral position. The thumb will be on one side of the ball and the other fingers on either the ball or the other buttons.

Creating a comfortable work space

Many factors go into creating a comfortable work space, including proper placement and adjustment of furniture and equipment, good lighting, and other environmental considerations.

In this section, we make some suggestions about how you can work more comfortably. Keep in mind, however, that these are only suggestions. Comfort is very personal, and only you can judge what works best for you.

Position of keyboard and input device

Try to place the keyboard and input device so that your arms and hands are in a relaxed, comfortable, and natural position. When the input device and keyboard are correctly positioned:

• Your forearms should be parallel or almost parallel to the floor and your wrists and hands should be in line with your forearms. Your wrist should not be extremely flexed or extended.



• Your hands and wrists should be in roughly the same neutral position as when your arms are loosely hanging by your sides. Your wrist should not be bent too much to one side or the other.



• You should not have to reach or stretch to use either the keyboard or the input device.



  Correct and Incorrect Ways to Arrange Input Device, Keyboard, and Display

• When you return from a break, slightly reposition the keyboard and input device to readjust them to comfortable positions.

Furniture and posture

Arranging your office furniture is one of the most important things you can do to make your workspace comfortable. Adjust the height of your chair and desk so that your body is comfortably aligned.

• Stay relaxed and sit relatively upright, but don’t force yourself into an unnatural position. Let your chair support you. Have your knees slightly lower than your hips, so that the angle of your torso and thighs is more than 90°.

• Support your lower back with your chair’s backrest.



• Place the items that you use regularly within reach. Avoid reaching and stretching.
• If you use a keyboard drawer, try to place the input device in the same tray as the keyboard. If you can’t arrange this, try to place the input device nearby. Try to avoid reaching up, away, or to the side for the input device.
• Don’t sit in one position for too long.
• Take breaks. This doesn’t mean that you have to stop working. If you have been typing, take a filing break or make some phone calls. Frequent short breaks are probably better than a few long ones.
• Stand up and stretch during your workday. Try to do this frequently.
• Keep a light touch on your input device and keyboard.
• Look into stress-reducing techniques that might work for you.

Kensington MouseWorks software helps you work comfortably

Kensington MouseWorks software is designed to make your Kensington input device a powerful, more efficient tool that streamlines your work. With MouseWorks software, you will be able to take advantage of the following features to help you work more comfortably.

• Use MouseWorks’ advanced Acceleration control to minimize mouse movement, especially on big screens.
• Use the Drag feature to make dragging easier.
• Use Snap to Default to reduce hand movement, including the number of times you need to move between the input device and the keyboard.
• Use the Double-Click feature to avoid repetitive clicking.
• Use the Slow Cursor feature to help you avoid small, tense motions during high-precision work.
• Use Pop-Up Menus to keep frequently used commands at your fingertips. This also reduces switching back and forth between the input device and the keyboard.
• Use the Rest Reminder to help pace yourself. If you become so absorbed in your work that you lose track of the passing minutes, the Rest Reminder can remind you that it’s time to change what you are working on, stretch, move around a little bit, or take a break.

Computer User Health Information

In recent years, medical attention on occupational injuries has identified normal, seemingly harmless activities as a potential cause of a wide range of problems collectively known as Repetitive Stress Injuries (RSI) or Cumulative Trauma Disorders (CTD).

It is now recognized that any repetitive motion may contribute to these health problems. As a computer user, you might also be at risk.

The most commonly accepted causes of this type of disorder are repeated, forceful actions, usually in an awkward position or posture, without sufficient rest to allow the body to recover, especially in the presence of cold or vibration. These repetitive actions may cause tendons, ligaments, and other soft body parts to become irritated and inflamed. In addition, experts have noted that stress, both on the job and at home, can be an important contributing factor in the onset of symptoms.

By paying attention to the way you perform your work, use your computer and phone, play sports, and work around the house, you can identify the behaviors that may be putting you at risk.

A thorough work site analysis by a qualified expert is important in order to reduce the risk of repetitive motion injuries. If you experience pain, swelling, numbness, or weakness in your wrists or hands (especially during sleep), see your physician immediately. These symptoms could mean that you are developing a repetitive stress injury that requires prompt medical attention.

Setup Guide

To operate the Kensington Mouse Works Customization Software,

1. Start by downloading and installing the software from the Kensington website.
2. Once installed, launch the application and follow the on-screen instructions to connect your Kensington mouse.
3. Configure your mouse by navigating through the various tabs in the software interface. Assign custom functions to buttons, adjust DPI settings, and create macros as needed.
4. Save your configurations to different profiles for easy switching between tasks.
5. For pairing, ensure your mouse is connected to your computer via the appropriate connection method (wired or wireless).
6. The software will automatically detect the mouse and allow you to configure it accordingly.

Cleaning Your Input Device

Input devices using mouse or track ball technology need to be cleaned periodically, but newer input devices using optical technology do not. Optical products are self-contained and should not be opened. Cleaning frequency for traditional mice and trackballs depends on how you work with your device and the work surface you use. When moving the mouse or ball of the trackball feels slow or rough, it's time for a cleaning.

To clean your input device

1. Turn off your computer.
2. Unplug the input device from the computer.
3. Remove the ball.
   1. To access the ball inside a mouse, you will have to remove the ballhousing cover by turning it counterclockwise.
   2. To remove the ball from a trackball, invert the trackball. Then while holding the ball in your free hand, press the spoon-shaped lever on the bottom of the trackball. The ball will pop free from the trackball, or you may simply grab the ball with your finger tips and pull it out of the base.
4. Clean the ball using a Kensington premoistened Cleaning Wipe or tap water and, if needed, a mild detergent. Dry it with a lint-free cloth. We recommend a Kensington Lint-Free Wipe.
5. Clean the ball cage. Use a Kensington premoistened Cleaning Swab or a cotton swab with rubbing alcohol. If lint is trapped inside the ball cage or on the rollers, use a cotton swab with rubbing alcohol to loosen it. Allow surfaces to dry completely before you reassemble.
6. Reassemble. Put the ball back into the ball cage. On a mouse, replace the ballhousing cover, and turn the cover clockwise until it locks. For a trackball, press the ball gently but firmly back into its socket.
7. Reconnect the input device.

8. Turn on your computer.
   Your Kensington input device requires no other maintenance.



Troubleshooting

• If you encounter issues with the software, check that your mouse is properly connected and recognized by the computer.
• Ensure that the latest drivers and software updates are installed.
• Common problems include button assignments not working as expected, which can be resolved by resetting the mouse to its default settings and reconfiguring the buttons.
• For macro issues, check that the macro is correctly recorded and assigned to the right button.
• Always refer to the user manual or Kensington support website for detailed troubleshooting guides and instructions.

Kensington Mouse Works Customization Software Pros & Cons

Pros

• Highly customizable to meet specific user needs
• User-friendly interface makes it easy to configure settings
• Supports multiple profiles for different tasks
• Compatible with both Windows and macOS
• Regular software updates add new features and improve performance

Cons

• May require a learning curve for advanced features like macro creation
• Some users may find the interface cluttered with too many options
• Occasional compatibility issues with certain mouse models or operating system updates

Customer Reviews

Customers have praised the Kensington Mouse Works Customization Software for its versatility and ease of use. Many have noted that the ability to customize button assignments and create macros has significantly improved their productivity.

However, some users have reported minor issues with software stability and compatibility, particularly after major operating system updates.

Most Common Complaints

Some users have complained about the occasional lag in button response after configuring complex macros. Others have noted that the software could benefit from more detailed tutorials for advanced features.

5-Year Warranty Information

KENSINGTON TECHNOLOGY GROUP, a division of ACCO Brands, Inc. [“KENSINGTON”] warrants this PRODUCT against defects in material and workmanship under normal use and service for five years from the original date of purchase. KENSINGTON, at its option, shall repair or replace the defective unit covered by this warranty.

Registering Online
Take a minute to register your Kensington input device and MouseWorks software. Registered customers are eligible to receive free technical support, notification of new products, and software updates. To register, start MouseWorks and choose Online Registration from the Help menu, or start your Web browser and go to: http://www.kensington.com/register
