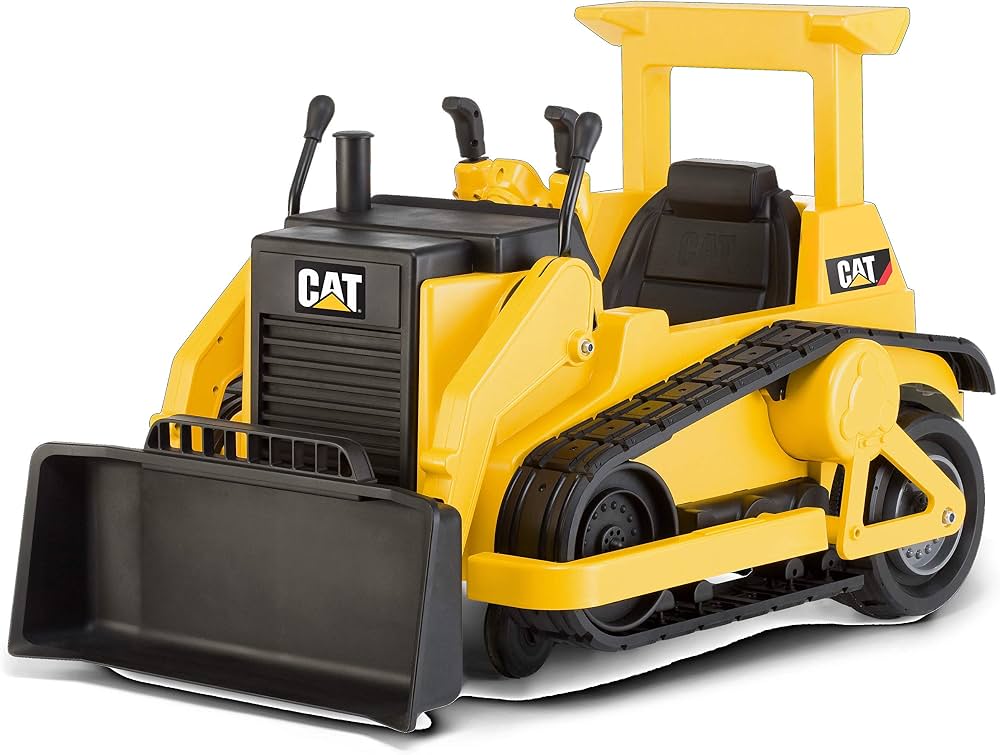

Introduction of Kid Trax Ride-On Cat Bulldozer KT1136WMI

The Kid Trax Ride-On Cat Bulldozer KT1136WMI is a powerful and exciting ride-on toy that is perfect for kids who love construction vehicles. This bulldozer features realistic details, such as a working front bucket and operational wheels, providing an authentic experience for young operators. The estimated price of this product is around $250, and it is currently available for purchase.

Parts

Important! Make sure you have all the parts before assembling.

HARDWARE
All hardware shown at exact size. During installation place the nut or screw required over the diagram to ensure the correct hardware is being used.

TOOLS REQUIRED
Note: AA batteries for steering controls are NOT included

Detailed Specifications

The Kid Trax Ride-On Cat Bulldozer KT1136WMI has the following specifications:

• Officially licensed Cat bulldozer design
• Working front bucket
• Operational wheels
• Foot pedal accelerator
• Max weight capacity of 66 lbs
• Requires 2 AA batteries for operation
• Recommended for children aged 3-5 years
• Dimensions: 32.5" x 17" x 24"

Description

The Kid Trax Ride-On Cat Bulldozer KT1136WMI is a high-quality ride-on toy that is designed to provide hours of fun for young children. The bulldozer features an officially licensed Cat design, ensuring that it looks just like the real thing. The front bucket can be operated by the child, allowing them to scoop up and move dirt or other materials. The wheels also move, providing a realistic experience for the child as they push the bulldozer around. The foot pedal accelerator makes it easy for the child to operate the bulldozer, and the weight capacity of 66 lbs ensures that it can accommodate most children aged 3-5 years.

Assembly of Kid Trax Ride-On Cat Bulldozer KT1136WMI

ATTACH THE BLADE ARMS

1. Insert the blade arm axle through the hole in the blade arm inset. Once the blade arm axle is inserted, be sure the blade arm axle has equal lengths extended on both sides of the bulldozer body. Figure 3.1



2. Orient the blade arms so the square peg on the inside of the blade arm is facing in towards the arm insets of the bulldozer body. Figure 3.2

3. Slide one of the blade arms over the end of the blade arm axle.
   Note: The square peg on the inside of the blade arm will fit into the slot of the blade arm inset.



4. Insert the square brace into the square hole on the inside of the blade arm. Figure 3.3

5. Repeat steps 2 – 4 for the opposite blade arm making sure the square brace is fully inserted into the blade arm and the square peg is engaged with the blade arm inset.

6. Insert a washer over each end of the blade arm axle.

7. Using the provided hex wrench, fasten a hex nut firmly onto each end of the blade arm axles and tighten.



ATTACH THE BLADE

1. Insert the two brackets on the back of the blade into the slots on the end of the blade arms. Figure 3.4

2. Be sure the holes in the blade brackets are completely aligned with the holes on the ends of the blade arms.

3. Insert a screw through the two holes on the end of each blade arm.

4. Fasten a small hex nut firmly onto the end of each screw (four total).



INSERTING STEERING CONTROL BATTERIES

WARNING!

• Do not mix old and new batteries.

• DO NOT mix alkaline, conventional (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

1. Remove battery cover and screw.

2. Place two AA batteries into the correct battery slots.

3. Re-attach battery cover and cover screw Figure 3.5



ATTACH THE STEERING CONTROLS

1. Insert the base of the steering control into the steering control opening in the middle of the dashboard as far as it will go. Figure 3.6
   Tips! Be sure the wire coming from the steering controls is completely inserted into the steering control opening.



2. Be sure the hole in the steering control base and the hole on the dashboard are completely aligned. Figure 3.7

3. Insert the screw completely through the hole in the steering control and the dashboard.

4. Fasten the nut on the end of the screw and tighten the nut.



CONNECT THE BATTERY TO THE MOTOR

1. Attach the blue battery connector coming from the battery to the blue connector coming from the electrical box.
   Note: You will only need to make this connection once. Figure 3.8
   VERY IMPORTANT! Only use the KidTrax toys 12V charger included with this vehicle (Input: AC 120V, 60Hz Output: DC 6V).



ATTACH THE SEAT

1. Insert the tabs on the front of the seat into the slots on the top of the seat frame. Rotate the seat back into place. Figure 3.9

2. Fasten the small screw into the hole on the seat back tab.



ATTACH THE EXHAUST PIPE

1. Align the tabs on the bottom of the exhaust pipe with the slots in the exhaust pipe hole. Figure 3.10

2. Press down on the exhaust pipe until it snaps into place.



ATTACH THE ROLL BAR

1. Align the tabs on the bottom of the roll bar with the slots in on the back of the bulldozer cab. Figure 3.11

2. Press down on the roll bar until it snaps into place.



WEAR THE TOY HARD HAT

1. Place toy hard hat on the worker's head. Figure 3.12

2. Tighten the chinstrap until the toy hard hat fits comfortably on the worker's head. Figure 3.13



Use

CHARGING THE BATTERY

Important! Before using the vehicle for the first time the battery needs to be charged for at least 24 hours. Only an adult who has read and understands the safety warnings should handle, charge or recharge the battery.

First payment: 20-24 hours. Do not charge more than 30 hours

Normal pay: 14-18 hours. Do not charge more than 24 hours

1. Open the Direct Connect™ charger port cover (gas cap) located above the right, rear wheel. Figure 4.1

2. Insert the battery connector into the charger port.

3. Plug the charger into a standard 120V wall outlet.
   Note: The charger may feel warm during charging. This is normal and not a cause for concern.

4. After charging is complete, unplug the charger from the wall outlet and unplug the battery connector from the charger port.



APPROXIMATE RIDING TIME WITH A FULLY CHARGED BATTERY

BATTERY REPLACEMENT AND DISPOSAL

The Kids Trax Toys 12V 12Ah battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose of the battery: Figure 4.2

1. Remove the screw from the seat back and remove the seat.

2. Disconnect the blue battery connectors.

3. Remove the screw from the battery bracket and remove the bracket.

4. Carefully remove the battery.

   • Depending on the condition of the battery (ie: leakage) you may want to wear protective gloves before removing.

   • Do not lift the battery by its connectors or cables

5. Place the dead battery in a plastic bag.
   Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and must be disposed of properly and legally. It is illegal in most areas to incinerate lead acid batteries or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler, such as a Kid Trax Toys authorized service center or your local automotive battery retailer. Do not throw the battery away with your regular household trash!

6. Replace the battery with a Kid Trax Toys 12V 12Ah battery.

7. Reconnect the blue battery connectors.

8. Fasten the battery bracket into place and tighten the screw.

9. Replace the seat, and lock it into place.



OPERATING THE VEHICLE

1. Blade levers: Pull back on both levers to raise the shovel blade and lock it in place. Figure 4.4

2. Foot Pedal: Applies power (speed) to the vehicle. Press the pedal down to apply power to the steering controls. To slow down or stop, lift your foot off the pedal.

3. Steering controls: used to steer the bulldozer in the following movements. Figure 4.3



4. Horn sounds: Press to hear air horn.

5. Reverse signal sounds: Press to hear the reverse signal sound effects.



Setup Guide

Setting up the Kid Trax Ride-On Cat Bulldozer KT1136WMI is easy and straightforward. Here are the steps to follow:

1. Insert the included AA batteries into the battery compartment.
2. Ensure that the front bucket is in the upright position.
3. Press the power button to turn on the bulldozer.
4. Press the foot pedal to move the bulldozer forward or backward.
5. Use the front bucket to scoop up and move materials.

Maintenance

The vehicle must be inspected for damaged, missing, or severely damaged components prior to use.

• Check the tightness of the fasteners before use.

• Check the tightness of the wheels.

• Make sure the battery is in good condition before use

• Sometimes use a lighter oil to lubricate moving parts such as wheels and steering linkages. Do not use oil on plastic or nylon parts. No oil is needed.

• Keep the car indoors or cover it with a tarp to protect it from rainy weather. Keep away from heat sources, such as stoves and heaters.

• Clean the car with a soft, dry cloth. To restore the shine to the plastic parts, use a non-wax furniture polish. Do not use car wax, or detergents or wash the car with soap and water. Water will damage the car, the lights, and the battery.

Safety

WARNING!
The following hazards can injure or kill the operator of the vehicle:

• This product contains small parts that are for adult assembly only. Keep the little ones safe when you get together. Remove and remove the protective covers and bulk bags before assembly. Be sure to remove all coverings and parts from under the car body.

• Riding the vehicle without a helmet. Riders must always wear a fitted helmet that complies with US Consumer Product Safety Commission (CPSC) Standard CFR 1183.

• The labels on batteries, terminals and other related materials contain lead and lead chemicals (acids) known in California to cause cancer, fertility, and are dangerous and harmful. Do not open the battery.

• Body parts such as hands, legs, hair and clothing can get caught in moving objects. Do not place a body part near a moving part or wear loose clothing when operating the vehicle. Always wear shoes when using the vehicle.

• Using the vehicle near roads, vehicles, lows such as: stairs, water (swimming pools) or other bodies of water, slopes, hills, wet areas, flammable vapors, in gaps, at night or in the dark may result in an unexpected accident. Always operate the vehicle in a safe area, under constant adult supervision.

• Using the vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand or white gravel may cause unexpected effects such as shaking and sliding, and damage the power supply and battery.

• Unsafe use of a vehicle. Examples include but are not limited to:

  1. Towing a vehicle with another vehicle or similar device

  2. Allowing more than one passenger

  3. Pushing the user from the back

  4. Driving at an unsafe speed

Always use common sense and safe practices when using the vehicle. This product contains or emits chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.

Battery Warnings
The following hazards can injure or kill the operator of the vehicle:

• Use of a battery or charger other than the supplied Kid Trax Toys 12V rechargeable battery and charger may cause a fire or explosion. Only use the supplied Kid Trax Toys 12V rechargeable battery and charger with the vehicle.

• Using the Kid Trax 12V test battery and charger for any other purpose may result in heat, fire or explosion. Do not use the KidTrax 12V rechargeable battery and charger with another product.

• Explosive gas is produced when driving. Place the battery in a well-ventilated area. Do not take the battery near heat or flammable materials.

• Contact between the positive and negative terminals may result in fire or explosion. Avoid direct contact between the terminals. Picking up the battery by the wires or charger can cause damage to the battery and may result in a fire. Always pick up the battery by it’s case or handles.

• Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery and keep the battery dry.

• Contact or exposure to battery discharge (lead acid) can cause serious injury. If contact or exposure occurs immediately call your doctor. If the product gets on the skin or in the eyes, rinse with cold water for 15 minutes. If the product is swallowed, immediately give the person water or milk. Do not give water or milk if the patient is vomiting or lacks appetite. Do not induce vomiting.

• Battery posts, terminals and related accessories contain lead and lead compounds (acid), chemicals known to the State of California to cause cancer, and reproductive harm and are toxic and corrosive. Never open the battery.

• Tampering or modifying the electric circuit system may cause a shock, fire or explosion and permanently damage the system. Exposed wiring, and circuitry in the charger may cause electric shock. Always keep the charger housing closed.

RETURN EXPIRATION AND TIME
Important!

• Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely.

• Check the battery and supply (supply cable, connector) for damage and damage before payment. Do not remove the battery if damage has occurred. Just replace it with the Kid Trax Toys 12V battery charger and charger.

On average you should charge the battery between 14 and 18 hours. Do not charge the battery for more than 24 hours. Failure to charge the battery as directed may permanently damage the battery and void the warranty.

BATTERY STORAGE

Do not leave the battery connected in the vehicle for a long period of time while not being used. This may drain the battery completely and cause permanent damage. Disconnect the battery connectors from the battery when the vehicle is not going to be used for a long period.

It is best to leave the battery in the battery compartment when the vehicle is being stored for long periods.

Follow these instructions if the battery is removed:

• Store the battery where temperatures are between -10° F (-24° C) and 75° F (24° C).

• Store the battery on a wooden surface. Do not place the battery on cement floors for extended periods. This will result in battery discharge.

• Wipe the battery clean with a dry cloth before storage.

• Charge the battery once every month for 14 to 18 hours.

USER REQUIREMENTS AND WARNINGS

• Age Range: 3 – 5 years (maximum)

• Weight: No more than 55 lbs (25 Kgs)

Before using the vehicle the child should understand the vehicle controls and safety issues. They must also demonstrate the ability to handle the vehicle and operate its controls. It is the responsibility of the adult to educate the child and supervise the vehicle use. Read the following safety warnings to any child using the Vehicle before riding.

WARNING!

• Only use the vehicle when an adult is present to watch (supervise).

• Always sit in the seat when operating the vehicle.

• Keep your hands, hair and clothing away from moving parts.

• Always wear shoes when using the vehicle.

• Only one passenger is allowed in the vehicle at a time.

• Children under the age of three cannot use the vehicle.

• Just drive.

• Do not go near water, drop-offs or up and down steep slopes.

• Do not drive the vehicle into loose dirt, mud, sand, fine gravel, or snow.

• Do not drive on roads or near vehicles.

Warning

• Park the car indoors or cover it with a tarp to protect it from rainy weather.

• Do not leave the car in the sun for too long or fading may occur. Store in the shade or cover with a tarp.

• Do not wash the car with a hose.

• Do not wash the car with soap.

Kid Trax Ride-On Cat Bulldozer KT1136WMI Troubleshooting

The follwing are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling Kid Trax Toys Consumer Relations. If you still need help solving the problem please call 877-741-6154.

Guarantee

Old Warranty Only

Six-Month Limited Warranty on Battery
Pacific Cycle, Inc. (PC) warrants this product to the original retail purchaser as follows: The vehicle (except for the 6-volt battery) is warranted against defective materials or workmanship for one year from the date of original purchase. The 6-volt battery is warranted
against defective materials or workmanship for six months from the date of original purchase. An original receipt is required to validate your warranty. PC will, at its option, provide replacement parts or replace this product. PC reserves the right to substitute if the part or model has been discontinued
