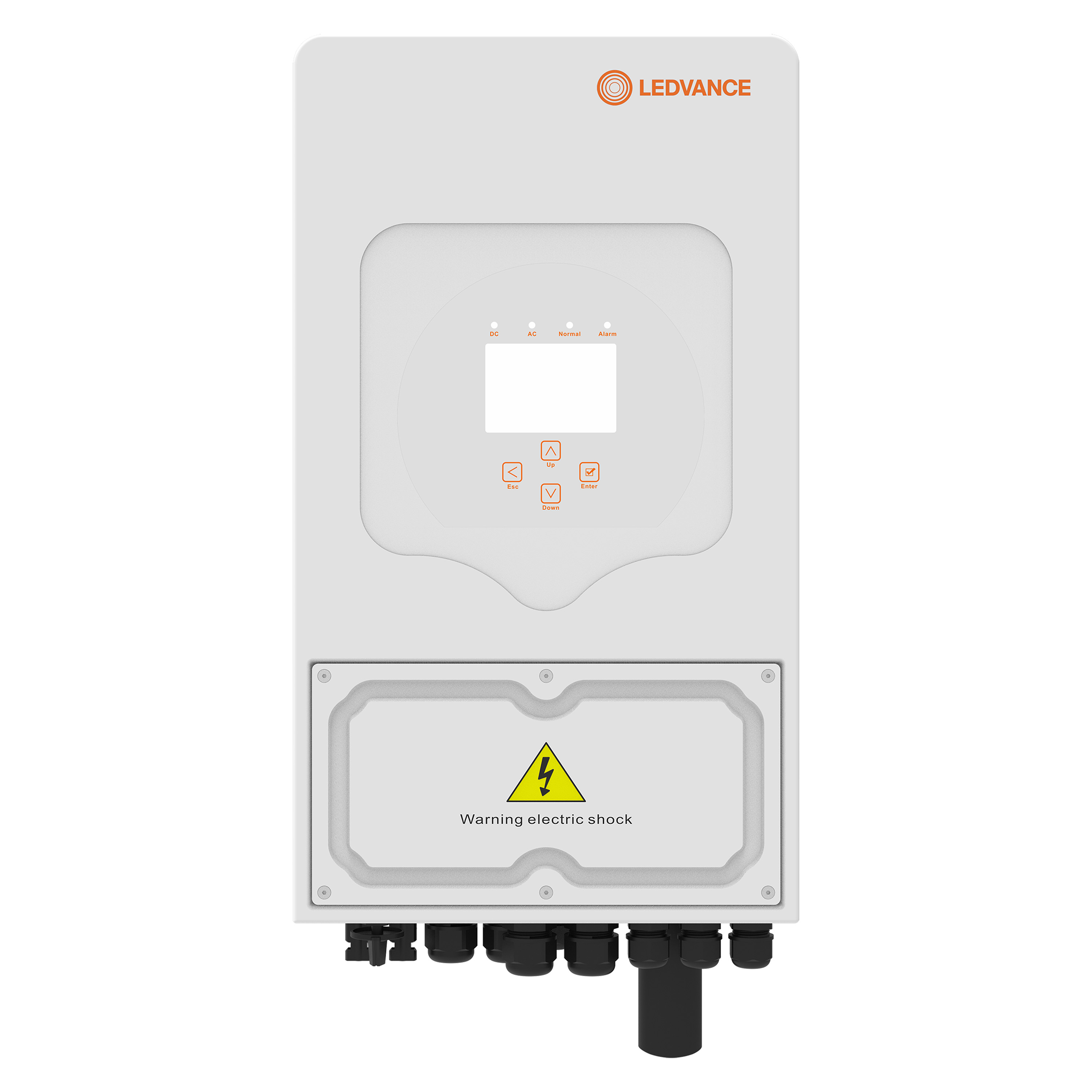

Introduction to LEDVANCE Hybrid Inverter LHS-LV-3.6K F1


The ledvance Hybrid Inverter LHS-LV-3.6K F1 is a compact single-phase low-voltage hybrid inverter designed for solar energy systems that need reliable power conversion, battery charging, and backup support in one unit. It is built for homeowners, small businesses, and off-grid or backup-power users who want to maximize solar self-consumption while keeping essential appliances running during grid outages. With its integrated inverter, solar charger, and battery charger functions, this hybrid inverter is especially useful in residential PV systems, small commercial installations, and energy-storage setups where space efficiency and simple control matter.

One of its main advantages is the combination of flexibility and ease of use. The LCD interface, configurable charging modes, and support for PV plus battery operation make it suitable for users who want straightforward system management without sacrificing performance. The ledvance Hybrid Inverter LHS-LV-3.6K F1 also offers UPS-style backup behavior, fast switching for critical loads, and broad monitoring and protection features that help improve system stability and battery life. It is designed for modern solar installations that need dependable operation, safe battery integration, and efficient energy use.

In terms of pricing, the estimated market range is typically around €900 to €1,100, depending on region, distributor, and included accessories. Availability is generally strongest through LEDVANCE renewable-energy channels and selected solar equipment suppliers, though stock may vary by country. For buyers comparing a hybrid solar inverter for home backup, battery storage, or PV self-consumption, this model stands out as a practical mid-range option with strong value.

Specifications for ledvance Hybrid Inverter LHS-LV-3.6K F1

Model: ledvance Hybrid Inverter LHS-LV-3.6K F1
Rated AC power: 3.6 kW
Battery system: 48 V low-voltage battery compatibility
PV input voltage range: 150 V to 425 V
MPPT operating range: 125 V to 500 V
Number of MPPT trackers: 2
Max charging/discharging current: up to 125 A in this product family
Efficiency: around 97% class performance, depending on operating conditions
Switching time: UPS-level fast transfer for critical loads
Protection: surge protection, earth fault detection, island protection, residual current monitoring, and overvoltage load drop protection
Cooling: intelligent air cooling
Ingress protection: IP65
Noise level: below 30 dB in normal operation
Operating temperature: -40°C to +60°C, with derating above 45°C
Installation: wall-mounted indoor or protected outdoor application

Compared with standard string inverters, this hybrid inverter adds battery charging and backup capabilities. Compared with larger hybrid models in the same series, the 3.6 kW version is better suited to smaller households or lighter daily loads where cost, size, and efficiency are more important than maximum output.

Detailed Description of the LEDVANCE Hybrid Inverter

The ledvance Hybrid Inverter LHS-LV-3.6K F1 is designed to act as the central energy hub in a solar-plus-storage system. It takes DC power from photovoltaic panels, converts it into AC power for home or business use, and manages battery charging and discharging automatically based on available solar input, grid status, and configured operating mode. This makes it especially effective for self-consumption systems where daytime solar production can be stored for evening use or backup during outages.

Its build focuses on practical field use. The compact enclosure, IP65 protection rating, and intelligent cooling make it suitable for demanding installation environments. The unit is built to support safe and stable operation with multiple monitoring layers, including grid protection and ground-fault checks. Users typically appreciate the simple LCD interface, flexible charging settings, and quiet operation. For residential users, the biggest benefit is convenience; for installers, it is the combination of predictable setup, compatibility with 48 V storage, and a compact footprint.

Real-world applications include solar backup systems for lighting and appliances, battery-supported home energy systems, and small commercial power setups that need reliable energy shifting from daytime to night usage.

Setup Guide for ledvance Hybrid Inverter LHS-LV-3.6K F1

Mount the inverter on a solid wall in a dry, well-ventilated location with adequate clearance around the unit.
Confirm that the PV array voltage, battery voltage, and AC input requirements match the inverter specifications before wiring.
Connect the grounding conductor first to ensure safe operation.
Wire the battery bank correctly, following polarity markings and torque recommendations from the installation manual.
Connect the PV strings to the designated input terminals and verify that the array is within the MPPT range.
Connect AC grid input and backup/load output to the correct terminals, then double-check line, neutral, and earth connections.
Power on the inverter and use the LCD menu to select battery type, charging priority, and acceptable input voltage range.
Test PV charging, battery charging, and backup-load operation before placing the system into service.

For connectivity and configuration, use the LCD controls to adjust charging source priority, output source priority, and battery charging parameters. If the inverter does not start, check battery voltage, PV polarity, and AC breaker status. Safety warnings include isolating PV strings before servicing, avoiding wet installation areas, and ensuring all work is performed by a qualified installer. Never connect the input and output terminals incorrectly.

Troubleshooting the LEDVANCE Hybrid Inverter

Most issues with the ledvance Hybrid Inverter LHS-LV-3.6K F1 can be traced to wiring errors, incorrect battery settings, or PV voltage outside the supported range.

No startup: Check battery connection, battery voltage, and DC disconnect switch position.
No solar charging: Verify PV polarity, string voltage, and whether the PV input is inside the MPPT window.
Grid not detected: Confirm AC breaker status, mains wiring, and local grid settings.
Backup output inactive: Ensure load wiring is connected to the backup/load terminals, not the grid input terminals.
Frequent overload alarms: Reduce connected load or distribute appliances more evenly.
Overtemperature behavior: Improve ventilation and avoid mounting in direct heat or sunlight.

Common fault messages generally relate to low battery, PV overvoltage, grid abnormality, or overload conditions. Preventive care includes periodic terminal checks, cleaning dust from vents, and ensuring firmware or configuration settings remain correct. Warranty coverage is commonly offered as a multi-year manufacturer guarantee, with regional support varying by distributor. For help, contact the local LEDVANCE renewable-energy partner, authorized installer, or the seller that supplied the unit, and keep the serial number and installation record available.

Pros and Cons of the ledvance Hybrid Inverter LHS-LV-3.6K F1

Pros

Combines inverter, solar charger, and battery charger in one compact device.
Supports 48 V low-voltage battery systems, which are common and cost-effective.
Fast backup switching helps keep essential loads running during outages.
IP65 protection and quiet operation make it suitable for modern home installations.
Strong safety monitoring features improve reliability and system protection.
Good value for users who need a 3.6 kW hybrid solar inverter without moving to a larger commercial model.

Cons

3.6 kW capacity may be too limited for larger homes with heavy appliance loads.
Low-voltage battery systems require proper cabling and can involve higher current at full load.
Installers must pay close attention to PV string design to stay within the input window.
Advanced users may prefer a model with more premium monitoring or expanded power headroom.

Overall, the ledvance Hybrid Inverter LHS-LV-3.6K F1 offers strong value for money for small to medium solar storage projects. It compares well with similarly sized hybrid inverters from other brands when the priority is simplicity, backup support, and dependable daily operation.

Customer Reviews of ledvance Hybrid Inverter LHS-LV-3.6K F1

Customer feedback for this type of LEDVANCE hybrid inverter is generally positive, with many users giving it 4 to 5 stars for ease of installation, compact design, and reliable backup performance. One common testimonial is that it works well for household solar self-consumption and keeps essential loads active during short power cuts. Users also praise the quiet operation and clear LCD menu.

Frequent complaints usually involve configuration complexity during first-time setup, especially for battery settings and PV string planning. Some users mention that 3.6 kW output can feel limited when running multiple high-demand appliances at once. For buyers who need a balanced hybrid inverter for home backup and battery storage, the model is often recommended as a practical and efficient choice.

Frequently Asked Questions

What is the ledvance Hybrid Inverter LHS-LV-3.6K F1 used for?

It is used to convert solar power, charge batteries, and provide backup power for homes or small businesses.

Does it support battery storage?

Yes, it is designed for 48 V low-voltage battery systems.

Is it suitable for off-grid use?

It can support backup and energy-storage applications, but the installation must be designed correctly for the intended operating mode.

Is the ledvance Hybrid Inverter LHS-LV-3.6K F1 good for home solar systems?

Yes, it is a strong fit for small to medium residential PV systems that need battery support and reliable backup power.

PDF

Faqs

How do I set up the ledvance Hybrid Inverter LHS-LV-3.6K F1 for the first time?

Start by installing the inverter in a dry, well-ventilated location that stays within the supported temperature range and allows enough clearance for cooling. Before powering it on, connect the PV inputs, battery bank, AC input, and backup/load output exactly as specified in the manual, then verify polarity and cable tightness. After wiring, use the LCD menu to set battery type, charging priorities, and acceptable input voltage range so the system matches your installation.

What battery type is compatible with the ledvance Hybrid Inverter LHS-LV-3.6K F1?

The ledvance Hybrid Inverter LHS-LV-3.6K F1 is designed for low-voltage battery systems, so compatibility depends on the battery voltage and the inverter’s configured charging profile. In practice, users should confirm the battery chemistry, voltage window, and communication requirements before connecting anything. Lithium and lead-acid setups may need different charge limits, discharge settings, and protection values, so matching the inverter settings to the battery manufacturer’s specifications is essential for safe operation.

Why is my ledvance Hybrid Inverter LHS-LV-3.6K F1 not charging the battery from solar power?

If the inverter is not charging from solar, check whether the PV string voltage is within the supported MPPT range and whether the panels are correctly wired. Also confirm that solar charging is enabled in the settings and that the battery is not already at its upper charge limit. Loose connectors, shading, incorrect polarity, or a tripped protection device can also stop charging. Review the LCD status screen for alarms or input values that may explain the issue.

Does the ledvance Hybrid Inverter LHS-LV-3.6K F1 support backup power during a grid outage?

Yes, the ledvance Hybrid Inverter LHS-LV-3.6K F1 is built to provide uninterruptible power support for connected loads when configured correctly. To use backup power effectively, connect critical appliances to the backup output and keep the battery capacity sized for the expected runtime. It is also important to separate essential loads from heavy non-essential loads, since excessive demand can shorten backup time or trigger protection shutdowns during an outage.

How can I optimize performance on the ledvance Hybrid Inverter LHS-LV-3.6K F1 for better solar self-consumption?

To improve self-consumption, set the charging and discharge priorities so solar power is used first for household loads and battery charging. Align operating times with your daytime usage pattern, and avoid oversizing high-power appliances on the backup circuit. You can also fine-tune the acceptable grid input range and battery charging thresholds to reduce unnecessary grid use. Regularly check inverter data to confirm that PV generation, load demand, and battery cycling stay balanced.

What should I check if the ledvance Hybrid Inverter LHS-LV-3.6K F1 shows an alarm or fault code?

When an alarm appears, start by reading the exact fault message on the LCD display and checking the PV, battery, and AC input values. Common causes include overvoltage, undervoltage, overheating, wiring errors, or overload on the backup output. Turn off connected loads if needed, inspect cables and breakers, and allow the unit to cool if temperatures are high. If the fault returns after basic checks, record the code before contacting support or an installer.

How often should I maintain the ledvance Hybrid Inverter LHS-LV-3.6K F1?

A basic maintenance check every few months is a good practice for the ledvance Hybrid Inverter LHS-LV-3.6K F1. Inspect cable connections, mounting hardware, and ventilation openings for dust or corrosion, and make sure no obstructions block airflow. Also review the LCD or monitoring data for unusual charging behavior, repeated alarms, or temperature warnings. If the installation is outdoors, check seals and cable glands more frequently to keep the IP-rated enclosure in good condition.

Is the ledvance Hybrid Inverter LHS-LV-3.6K F1 suitable for outdoor installation?

The ledvance Hybrid Inverter LHS-LV-3.6K F1 is designed for outdoor use, but it still needs a protected location with proper ventilation and safe cable routing. Avoid direct exposure to standing water, harsh impacts, or sealed enclosures that trap heat. Install it at a height that reduces splash risk and keep it away from continuous sunlight if possible. Outdoor installation also works best when the mounting surface is stable and the surrounding area allows easy access for inspection.
