Ledvance Hybrid Inverter LHT-HV-5K F2 User Manual

Content

Introduction

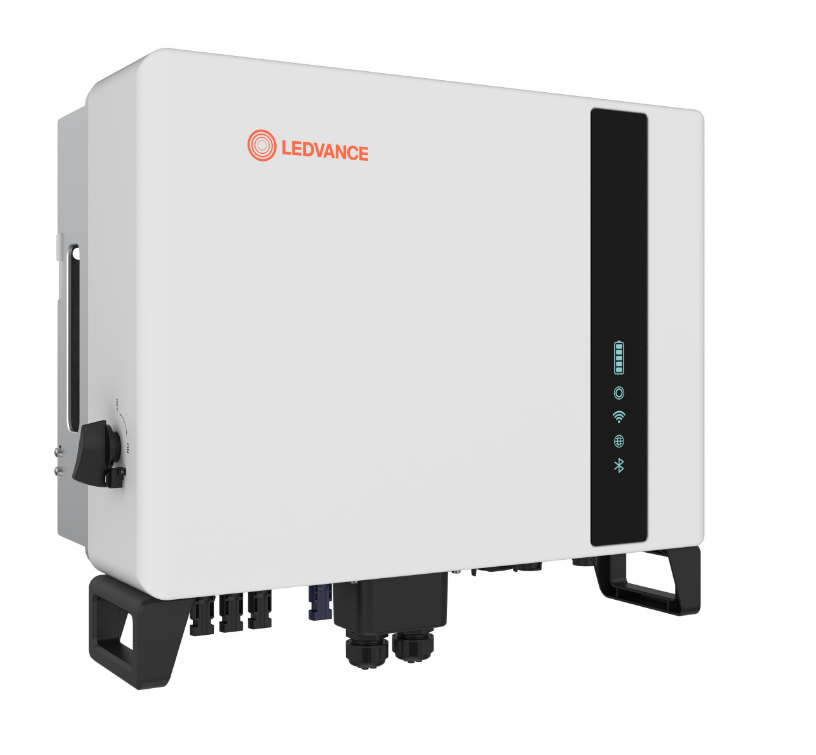

The ledvance Hybrid Inverter LHT-HV-5K F2 is a three-phase high-voltage hybrid inverter designed for modern solar energy systems that combine photovoltaic panels, battery storage, and grid interaction. Built for residential and light commercial installations, it helps users increase self-consumption, reduce reliance on the grid, and maintain backup power for critical loads during outages. Its hybrid architecture makes it especially useful for homes with variable daytime energy use, businesses seeking peak shaving, and installers who need a flexible inverter for multi-string PV layouts.

One of its biggest advantages is the combination of high-voltage battery support, multiple MPPT inputs, and outdoor-ready protection. The unit supports lithium-ion battery systems with a wide battery voltage range, fast charging and discharging, and automatic switching for backup operation. It is also designed with natural convection cooling, an IP66 enclosure, and integrated communication features that simplify installation and monitoring. These qualities make the ledvance Hybrid Inverter LHT-HV-5K F2 a strong option for users who want reliable solar performance with storage integration.

In terms of price, the inverter typically falls in the estimated range of USD 1,800 to USD 3,200, depending on region, distributor, and included accessories. Availability is generally through solar equipment distributors, certified installers, and renewable energy product channels. Buyers searching for a 3-phase hybrid inverter with battery backup will find this model attractive for its performance-to-feature balance and practical installation design.

Specifications

Model: ledvance Hybrid Inverter LHT-HV-5K F2
Type: Three-phase hybrid inverter
Nominal AC output power: 5.0 kW
Apparent output power: 5.5 kVA
Grid voltage: 3/N/PE, 380/400 V, 50/60 Hz
Battery type: Lithium-ion
Battery voltage range: 120–600 V
Charging/discharging current: up to 25 A on the 5K model
MPPT voltage range: 200–850 V
Number of MPPTs: 3
Maximum efficiency: 97.9%
European efficiency: 96.8%
Protection rating: IP66
Cooling: Natural convection
Operating temperature: -25°C to +60°C
Dimensions: 600 x 500 x 230 mm
Weight: 32.6 kg
Connectivity: CAN, RS485, Ethernet, optional Wi-Fi, cellular, LAN, Bluetooth
Warranty: 10 years

Compared with many entry-level single-phase hybrid inverters, this model offers stronger three-phase support, wider battery voltage flexibility, and a more robust enclosure for demanding environments. Against similar 5 kW hybrid inverters, it stands out for its three MPPT design, high efficiency, and backup-power capability.

Detailed Description

The ledvance Hybrid Inverter LHT-HV-5K F2 converts DC power from solar panels into usable AC power for the home or business while also managing energy storage from a high-voltage battery. During the day, it can prioritize solar consumption, charge the battery, and export excess energy to the grid when permitted. At night or during outages, it draws from the battery to keep essential loads running. This makes it a practical choice for users who want better energy independence and lower electricity bills.

The inverter is built with a transformerless design, which improves efficiency and reduces internal losses. Its three independent MPPT trackers help maximize yield when arrays face different directions or receive uneven sunlight. The IP66-rated enclosure and natural convection cooling support installation in challenging conditions, including outdoor locations with dust, humidity, or temperature changes. The white housing, integrated display, and pre-terminated cabling options contribute to a clean, professional installation.

In real-world use, the inverter is well suited to households with rooftop solar arrays, small offices, farms, and facilities that need backup power for critical circuits. Users typically value its quiet operation, stable performance, and straightforward monitoring options. For installers, the layout and connectivity options can reduce commissioning time and simplify system integration.

Setup Guide

Installing the ledvance Hybrid Inverter LHT-HV-5K F2 should always be handled by a qualified solar installer or licensed electrician. Before installation, confirm compatibility with the PV array, battery bank, grid code, and local regulations. Make sure wall mounting is secure, ventilation space is adequate, and all circuit breakers are switched off before any wiring begins.

Mount the inverter on a stable surface with enough clearance for cable routing and maintenance.
Connect the PV strings to the MPPT inputs, ensuring correct polarity and voltage range.
Connect the high-voltage lithium battery using the approved CAN or RS485 communication interface.
Wire the AC grid connection, backup output, and grounding according to the system diagram.
Power on the grid side first, then activate the DC isolation switch and battery connection.
Configure battery type, grid mode, export limits, and time-of-use settings through the display or monitoring platform.
Pair optional communications such as Wi-Fi or Ethernet for remote monitoring and firmware management.

Common setup issues include reversed polarity, incorrect battery communication, or PV voltage outside the start-up range. Always verify torque settings, cable sizing, and breaker ratings before commissioning. Never work on live conductors, and follow lockout/tagout procedures during installation.

Troubleshooting

Most issues with the ledvance Hybrid Inverter LHT-HV-5K F2 are related to wiring, communication, grid conditions, or battery setup. If the inverter does not start, check AC supply, DC isolation, battery voltage, and PV input voltage. If it shows no battery communication, confirm the CAN or RS485 cable is seated correctly and that the battery BMS is compatible.

No AC output: Check grid breaker, wiring polarity, and protection devices.
Battery not detected: Verify communication cable, battery voltage, and selected battery protocol.
Low PV generation: Inspect string voltage, shading, and MPPT allocation.
Overtemperature warning: Ensure airflow around the enclosure and remove heat sources nearby.
Grid fault or frequency error: Confirm local grid parameters and utility compliance settings.

If an error code appears, record it exactly as shown on the display and compare it with the installer guide or service documentation. Preventive maintenance includes checking cable tightness, cleaning the installation area, monitoring battery health, and reviewing event logs regularly. The product typically includes a 10-year warranty, and support is usually available through certified LEDVANCE distributors, installers, and regional service partners. For help, contact the original seller or authorized technical support channel.

Pros & Cons

Pros

High efficiency performance with strong solar conversion results.
Three MPPT inputs improve yield on complex rooftops.
High-voltage battery compatibility supports scalable storage.
IP66 protection and natural cooling make it installation-friendly.
Backup power and UPS-style switching add resilience during outages.
Good value for users who want a 5 kW three-phase hybrid system.

Cons

Best suited to professional installation rather than DIY users.
Three-phase design may not fit homes with single-phase service.
Battery and monitoring accessories may raise total system cost.
Advanced setup requires careful configuration for optimal results.

Overall, the ledvance Hybrid Inverter LHT-HV-5K F2 offers strong value when compared with other 5 kW hybrid inverters in the same class. It is especially compelling for users who want battery-ready solar storage, three-phase output, and a rugged enclosure rather than a basic budget inverter.

Customer Reviews

Typical user feedback is positive, with many owners giving the inverter 4.5 out of 5 stars for efficiency, build quality, and stable operation. Installers often praise the easy wiring layout and flexible MPPT design, while homeowners appreciate quieter operation and reliable backup support.

Common praise includes strong solar harvesting, clean monitoring options, and durable construction. Frequent complaints usually mention the need for professional setup, the complexity of battery configuration, and the higher upfront cost of a complete hybrid system. One user noted, “It solved our daytime solar waste problem and now charges the battery efficiently.” Another said, “The inverter performs well, but commissioning took time because the battery communication settings had to be matched carefully.”

This model is a good purchase recommendation for buyers who need a dependable three-phase hybrid inverter with storage support. It is less suitable for users who want a simple plug-and-play unit or who do not plan to add battery backup.

PDF

Faqs

How do I set up ledvance Hybrid Inverter LHT-HV-5K F2 for the first time?

Start with a proper wall-mounted installation on a strong vertical surface and keep the unit level to avoid power derating. Before powering up, verify that the PV strings, battery cables, meter connections, and communication lines are correctly seated and the battery voltage falls within the supported high-voltage range. For first use, follow the inverter’s startup sequence carefully, configure the grid code, battery type, and operating mode, and then test the system under light load to confirm stable operation.

What battery types and voltage range work with ledvance Hybrid Inverter LHT-HV-5K F2?

The ledvance Hybrid Inverter LHT-HV-5K F2 is designed for lithium-ion battery systems with a high-voltage battery range. In practice, this means you should choose a compatible battery bank that matches the inverter’s supported voltage window and communication protocol. It is also important to confirm BMS compatibility, because the inverter can work with battery management systems for safer charging and discharging. Always check the battery manufacturer’s approved settings before connecting.

Why is my ledvance Hybrid Inverter LHT-HV-5K F2 not starting after installation?

If the inverter does not start, first check the startup sequence, because these hybrid inverters usually require the AC supply and DC switch to be turned on in the correct order. Then confirm that the PV array voltage is high enough to wake the unit and that the battery is connected within the valid voltage range. Also inspect the fuse, breaker, and communication wiring. If the display stays off, test whether the battery or grid input is missing.

Can ledvance Hybrid Inverter LHT-HV-5K F2 run without solar panels?

Yes, the ledvance Hybrid Inverter LHT-HV-5K F2 can support operation in a hybrid setup where the battery and grid help power loads even when solar input is unavailable. That makes it useful for backup and energy management applications. However, the exact behavior depends on the selected work mode and system configuration. If you want battery-only or grid-assisted operation, you should configure the inverter settings carefully and confirm that the battery can supply the required load safely.

What should I do if ledvance Hybrid Inverter LHT-HV-5K F2 shows a fault or alarm code?

When a fault or alarm appears, read the code on the display or monitoring app and match it to the manual before resetting anything. Common causes include battery communication errors, incorrect PV voltage, overload, grid abnormalities, or loose wiring. Start by checking cables, breakers, and the battery BMS connection. If the alarm returns after a restart, reduce the load and verify that all connected devices fall within the inverter’s operating limits.

How can I improve performance and efficiency on ledvance Hybrid Inverter LHT-HV-5K F2?

To improve performance, size the PV array correctly, keep the inverter within its recommended temperature range, and avoid overloading the output. The inverter supports multiple MPPT inputs, so spreading panels across different roof orientations can increase solar harvest. For best results, also keep battery charging and discharging settings aligned with the battery’s specifications. Regularly review monitoring data to spot underperforming strings, shading issues, or unusual energy losses.

Is ledvance Hybrid Inverter LHT-HV-5K F2 compatible with backup loads and UPS-style switching?

Yes, the ledvance Hybrid Inverter LHT-HV-5K F2 is designed to support backup loads and fast transfer behavior for critical circuits. This makes it suitable for essential appliances that need near-instant switching during grid outages. To use this feature effectively, connect only approved backup loads to the correct output port and avoid exceeding the backup power limit. Test the transfer behavior during commissioning so you know which devices remain powered during an outage.

How often should I maintain ledvance Hybrid Inverter LHT-HV-5K F2, and what should I check?

Perform a basic inspection every few months and a more detailed check at least once a year. Look for dust buildup, loose terminals, corrosion, abnormal noise, and signs of overheating. Confirm that ventilation remains unobstructed and that cable glands and connectors stay tight. You should also review system logs and monitoring data for unusual fault patterns. Good maintenance helps extend inverter life, protect the battery, and keep solar production stable.
