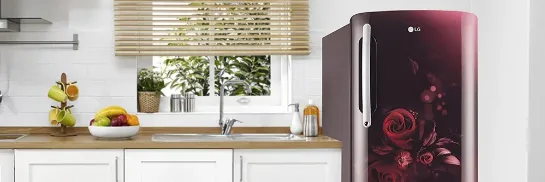

Introduction of LG REFRIGERATOR GL-225

The LG REFRIGERATOR GL-225 is a sleek and stylish refrigerator that is perfect for any modern kitchen. This refrigerator has a spacious interior, with a capacity of 22.5 cubic feet, providing ample storage space for all your food and beverages. The estimated price of the LG REFRIGERATOR GL-225 is around $2,000, and it is now available for purchase in most appliance stores.

Specifications

The LG REFRIGERATOR GL-225 comes with a range of features that make it a great choice for any household. Some of its key specifications include:

• Capacity: 22.5 cubic feet
• Door style: French doors
• Finish: Stainless steel
• Ice maker: Yes, located in the freezer door
• Water dispenser: Yes, located in the door
• Shelves: Glass shelves that are adjustable
• LED lighting: Yes, provides bright and even lighting inside the refrigerator
• Smart cooling system: Yes, helps to maintain consistent temperatures throughout the refrigerator and freezer
• Door-in-door design: Yes, provides easy access to frequently used items
• Dimensions: 35.75 x 69.75 x 31.25 inches (width x height x depth)

Do not cling to the door or the shelves of the door or home bar of the freezer or the cool chamber. It may make the refrigerator fall over or damage the hands. Especially, do not allow the children to do the above.

IDENTIFICATION OF PARTS

• GL-*225/221



• GL-*245/241/285/281



Features

•  LG REFRIGERATOR GL-225 BEAUTY AND CAR
  • It is placed in the refrigerator compartment and can be used for storing medicines and cosmetics.
  • Only those medicines which are supposed to be stored in refrigerator.

• ANTI-BACTER LG REFRIGERATOR GL-225
  An effective Anti Bacterial Gasket that prevents moulds & bacterial growth within the refrigerator.



• LG REFRIGERATOR GL-225 HANDLE
  Strong elegant handle with better grip with good looks & sturdiness.
• EGG-CUM-ICE TRAY LG REFRIGERATOR GL-225
• It is used for storing the eggs. It can also be used for making the ice.

• LG REFRIGERATOR GL-225 FASTEST ICE TRY
  LG's Patented Ice Trav made with a snecial material mixed with Aluminium provides fastest ice makinal



• LG REFRIGERATOR GL-225 MIST LANCE CRISP
  It keeps vour vegetables fresh by holding moisture & prevents from getting rotten.
• TOUGHED GLASS LG REFRIGERATOR GL-225
  LG's Glass Shelves are made of Toughened Glass which is capable of withstanding a load of 175 kg# so that you can place Heavy Utensils with ease and straight from your kitchen.

• LG REFRIGERATOR GL-225 Base Stand with drawer
  To keen onion & potato in drawer uoto 6 KG



• LOCK LG REFRIGERATOR GL-225
  Push and rotate the key for locking purpose

Lamp

• Unplug the power cord from the outlet.
• To remove the lamp cover, reach behind the lamp cover and pull it forward as shown in Flg.

• Turn the lamp counterclockwise.



Assemble the reverse order of disassembly. Replacement bulb must be the same specifications as original.

Power Cord Replacement: If the supply cord is damaged, it must be replaced by a special cord or assembly from the manufacturer or its authorised service agent.

Power Cut EverCool
LG Power cut Evercool, consists unique phase change material in Freezer section, maintains optimum cooling inside refrigerator up to 9 hours#even during long power cuts.

Suggestion for better cooling & cooling retention

1. Before loading let the refrigerators run for 12 hours. Set the thermostat at 5.



2. Refrigerator need to run minimum 8 hours continuously to freeze the EverCool case to provide maximum cooling retention.



3. Temperature Setting as per shown picture as per different model.



# As per LG Standard / LG

Installation LG REFRIGERATOR GL-225

INSTRUCTION

• Unpack the refrigerator and locate at desired location.
• Refrigerator should be located properly in ventilated area.
• Avoid placing the unit near heat sources, direct sunlight or moisture.
• Prior to storing food, leave your refrigerator on for 6 hours.
• Don't install this appliance below 5°. It may cause the debasement of the refrigerator.

• Move refrigerator only in front or side direction. Do not move in angle or zigzag direction.



LEVELLING

Levelling of refrigerator should be done with front leg. Refrigerator should be levelled with front to back inclination for base.

INSTALLATION GUIDE

1. Take base stand box out of refrigerator main box.

   • Open the base stand box and take the base stand out.
   • Place the base stand at appropriate location, you intend to install Refrigerator. Adjust legs of base stand to level it perfectly on Floor.
   • Adjust the refrigerator so that the gap on either sides is even.



   • Plug in the power supply.
   • Do not move refrigerator with base stand it might damage the stand
   • When Refrigerator is used without base ensure both the legs of refrigerator are in place and properly leveled.

2. Place refrigerator on the base stand, such that to insure the proper placement of refrigerator on base stand as indicated (fig. 2).



3. Adjust the refrigerator so that the gap on either sides is even.



   • Plug in the power supply.
   • Do not move refrigerator with base stand it might damage the stand

4. When Refrigerator is used without base ensure both the legs of refrigerator are in place and properly leveled.



CAUTION: Ensure that the refrigerator is unplugged from the power source, before installation.

Installation Guidelines

• Maintain required distance between walls.
• Leveling of legs for proper alignment.
• At a first time do not start /run refrigerator for minimum 3 hrs.
• Use three pin 6 Amp socket with proper earthing.

• Run the refrigerator for 6 hrs. Without loading food stuff / water etc...



Usage Guidelines

• For cooling control rotate knob.
• Store food stuff such as Milks, Fish etc. in Fresh Zone.
• Store food stuff at a proper distance from each other & in closed container in refrigerator compartment shelf area.
• Store vegetables & Fruits in Tray Vegetable. Cover or wrap al foods that you put into your refrigerator with polythene or aluminium foil.

Defrosting

Frost building on evaporator is natural. Defrost regularly to avoid heavy frost building on evaporator, which will reduce cooling efficiency.

• Make defrosting of refrigerator every 3 days regularly for better cooling at lesser power consumption.

• Defrosting can be done by pressing defrost knob.





Useful Tips for Energy Saving

• Do not place refrigerator in direct sunlight.
• Place the refrigerator in ventilated area.
• Do not open the door frequently.
• Do not keep Hot food directly inside refrigerator.

• Set cooling control as per requirement / load inside refrigerator. e.g. Less Load → 'Min' Setting.



CAUTION

• Do not tilt the refrigerator more than 45° angle while shifting the refrigerator.
• Do not use sharp edges / knife for removing ICE.
• Check Drain pipe at Rear Side incase of drain water overflow.
• Condenser (Black mesh behind the refrigerator) may get warm during the run time. This is normal phenomenon.
• Sweating / Water formation over refrigerator may happen during Monsoon / High humid conditions. Wipe it with soft cloth.

Operation

Refrigerator Temperature Control
Specially desianed knob aives vour facility to control temperature inside Refrigerator.

Defrosting
It is natural for moisture in the air to condense on the cold surface. This leads to a regular build up of frost on the surface of the freezer and the cooling in the fresh food compartment. This frost accumulation reduces the cooling effect, thereby reducing efficiency. Therefore, periodic defrosting is necessary to ensure optimum performance. The water in the drain tray evaporates by natural evaporation if defrosting is done once in two days. However, due to varied conditions of usage it is desirable to check the drain-tray occasionally and dispose of the water, if any, Please ensure that the chiller tray is in its correct position by pushing it to its correct position by pushing it to its extreme. Otherwise the defrosting water may fall over the contents of the refrigerator.
Manual Defrosting: However in some models, in case of defrosting or power failure the water directly accumulates in chiller tray, dispose off water directly from chiller tray by taking it out. If Water Overflow from Tray Drip, Disassemble it and remove the water from it.

ICE MAKING

• Fill ice trays with water, place in Freeze Box.

• To remove ice cube, gently twise Ice Tray.



SUGGESTIONS

• Don't open the refrigerator door too often-hot air will enter and increase the temperature.
• Don't keep the door open for more than 30 seconds at a time-cold air will rush out of the fridge.
• Don't cover the shelves with paper or plastic sheets. This prevents air circulation inside the cabinet.
• Don't use a knife or sharp instrument to remove the ice trays from the freezer or to remove the frost mechanically as it may damage the freezer coil.
• Fridge will automatically switched off when the proper temperature is attained. Don't switch off the fridge at night, this will create higher temperature inside the cabinet thus deteriorating stored foods.
• Feel free to call your LG Dealer or LG Representative in case your refrigerator has suffered and damage in transit. The Dealer or the Company Representative will assess the extent of damage and give you an estimate for repairs.
• Don't switch on the refrigerator, unless a minimum period of four minutes lapses after it was switched off, either due to power failure or otherwise.
• Don't allow food stuffs smeared with salt to come in direct contact with the freezer. It is a good practice to always keep the food in a container before placing in the freezer.
• It is recommended to use Voltage Stabilizer (0.5KVA) if power fluctuations are frequent and out of specified voltage range (135-290V)**. Stabilizer usage increases the refrigerator life.
• While removing/disassembling shelf/Trav use handle /slot for easy removing.
• Run the refrigerator for 12 hrs without load in factory setting.
• Do not open the Evercool assembly without the help of service engineer.

Important Points for Better Performance of Evercool Function

• Do not open the door frequently during power cut off to get the best effect of Evercool function
• Evercool performance will be detorated if the PCM is not freezed properly.

SUGGESTIONS ON FOOD STORAGE

• Don't keep hot milk or hot food in your refrigerator. This will result in an increased temperature of other food in the fridge and may lead to deterioration.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not store bottles in the freezer compartment - they may break when frozen.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, andpacked food should be wiped clean, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position. which keeps them fresh longer.** As per LGIEL test standards.

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION.

These words mean:

• DANGER: You will be killed or seriously injured if you don't follow instructions.
• WARNING: You can be killed or seriously injured if you don't follow instructions.
• CAUTION: Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only. All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INFORMATION

WARNING

1. Do not modify the power cord length or sharing of outlet with other appliances and don't replace the power cord with the damaged or unspecified power cord. It will cause electric shock or fire. If the power cord is damaged, it should be replaced by authorized service person as specified by the manufacturer.
2. Plug in the power socket properly. Loose plug-in causes electric shock or fire due to heat generation.
3. Do not switch ON/OFF the refrigerator with wet hands. It may cause electric shock.
4. Use only dedicated power socket for supply to refrigerator. Do not use an extension cord; otherwise it will cause overloading and intermittent tripping of other appliances or household lights.
5. Never splash water on your refrigerator. It may cause short circuit. Grounding (Earthing). In the event of an electric short circuit, grounding (Earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded. Consult a qualified electrician or service person if you have doubts on whether the appliance is properly grounded. Improper use of the grounding plug can result in an electric shock.
6. Never unplug your refrigerator by pulling the powercord, can cause damage and leads to shock/Fire, Always grip plug firmly and pull it straight out from the outlet.
7. When moving your appliance away from the wall, be careful not to roll over the power cord or damage it in any way.
8. Unplug the power cord from outlet for cleaning or other requirements. Never touch it with wet hands because you can get an electric shock or be hurt.
9. Never damage, process, pull out, or twist the power cord, because damage of power cord may cause a fire or electric shock.
10. Do not place the lit candle within the refrigerator to deodorize. It may cause explosion or fire.
11. Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator. It may cause explosion or fire.
12. When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center. It may cause fire.
13. The refrigerator should be so positioned that the supply plug is accessible for quick disconnection when accident happens.
14. When disposing the refrigerator, remove the packing materials from the door. It may cause to lock out the child.
15. Don't keep any electrical appliance on the top of refrigerator such as TV, Cooler, lightening decoration, harmful chemical, cloths etc.
16. The tempered glass on door can be broken by impact, do not touch the broken parts you may injured.
17. For best energy efficiency, make sure all of shelves, drawers and baskets are placed in their original position.
18. Be careful that your fingers are not caught in Hinge, Grille Fan Assy, etc.

CAUTION

• Before use, refrigerator must be properly installed and located as per the installation instructions.
• After your refrigerator is in operation, do not touch the cold surface in the freezer compartment, particularly when your hands are damp or wet.
• Skin could adhere to these extremely cold surfaces.
• Wait for 5 minutes or longer when reconnecting the plug. (It may cause the operation of the freezer to fail.)
• Do not install the refrigerator in the wet place or the place which water or rain splashes. (Deterioration of insulation of electric parts may cause electric leakage.)
• Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please. (Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.)

WARNING: To reduce the risk of fire, electric shock, or injury to persons while using your product, the following basic safety precautions should be followed. Read all instructions before using this appliance.

If gas used is R600a
This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and ventilate the room in which the appliance is installed for several minutes.

1. When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.
2. Natural Gas (isobutene, R600a) - is an environment-friendly refrigerant, even a small amount (30~90g) is combustible. When the gas is leaked due to severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.
3. Do not use or store inflammable materials like ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near in, or on the refrigerator.
4. It may cause explosion or fire.
5. When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact the service center. It may cause fire.

WARNING

• Keep the air vents clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartment, unless they are recommended by the manufacturer.
• The refrigerant and insulation blowing gas used in the appliance requires special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.

Description

The LG REFRIGERATOR GL-225 is a high-performance refrigerator that is designed to meet all your food storage needs. Its spacious interior provides plenty of room for all your groceries, while its French door style and stainless steel finish give it a modern and sophisticated look. The ice maker and water dispenser are located in the door, making it easy to access ice and water without having to open the refrigerator door. The door-in-door design provides easy access to frequently used items, while the LED lighting provides bright and even lighting inside the refrigerator.

LG REFRIGERATOR GL-225 Setup Guide

Setting up the LG REFRIGERATOR GL-225 is a straightforward process. Here are the steps to follow:

1. Unpack the refrigerator and remove all packaging materials.
2. Plug in the refrigerator and turn it on.
3. Allow the refrigerator to cool down for at least 2 hours before adding any food or beverages.
4. Adjust the shelves and door bins to suit your needs.
5. Set the temperature controls to your desired settings. The recommended setting for the refrigerator is 37°F, and for the freezer is 0°F.
6. Load the refrigerator and freezer with your food and beverages.

CLEANING

• EXTERIOR: Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
• INTERIOR: Regular cleaning of the interior and interior parts is recommended. If you have the Wash all compartments with a mild baking soda solution, then rinse and dry the compartment.

WARNING: Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Caution for Cleaning
  Not in use: Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable solution, Soapy water
• When careless using, it can occur a color change.

GENERAL INFORMATION

• VACATION TIME
   During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period remove all food, disconnect the power cord, clean the interior throughly and leave each door OPEN to prevent odour formation.
• POWER FAILURE
  Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.
• IF YOU MOVE
  Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the leveling screws, turn them all the way into the base.

DISPOSAL OF THE OLD APPLIANCE
This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable. All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

Troubleshooting of LG REFRIGERATOR GL-225

Here are some common problems that you may encounter with the LG REFRIGERATOR GL-225, along with their solutions:

• The refrigerator is not cooling: Check that the refrigerator is plugged in and that the temperature controls are set correctly. If the problem persists, contact LG customer service.
• The ice maker is not working: Check that the ice maker is turned on and that the water supply is connected. If the problem persists, contact LG customer service.
• The water dispenser is not working: Check that the water supply is connected and that the water filter is not clogged. If the problem persists, contact LG customer service.
• The refrigerator is making strange noises: This is normal, as the refrigerator contains several moving parts that can make noise. However, if the noise is loud or persistent, contact LG customer service.

Before Calling for Service

Check for yourself

Pros & Cons

Pros

• Spacious interior with a capacity of 22.5 cubic feet
• French door style and stainless steel finish give it a modern and sophisticated look
• Ice maker and water dispenser are located in the door, making it easy to access ice and water without having to open the refrigerator door
• Door-in-door design provides easy access to frequently used items
• LED lighting provides bright and even lighting inside the refrigerator

Cons

• Price may be a bit high for some buyers
• May be too large for some kitchen spaces

Customer Reviews

Customers who have purchased the LG REFRIGERATOR GL-225 have generally given it positive reviews. They appreciate its spacious interior, modern design, and convenient features such as the ice maker and water dispenser. However, some have noted that the price is a bit high, and that the refrigerator may be too large for some kitchen spaces. Overall, the LG REFRIGERATOR GL-225 is a high-quality refrigerator that is well worth the investment.

Most Common Complaints

The most common complaints about the LG REFRIGERATOR GL-225 are related to its size and price. Some customers have noted that the refrigerator is too large for their kitchen space, and that the price is higher than they would like to pay. However, these complaints are relatively rare, and most customers are satisfied with their purchase.
