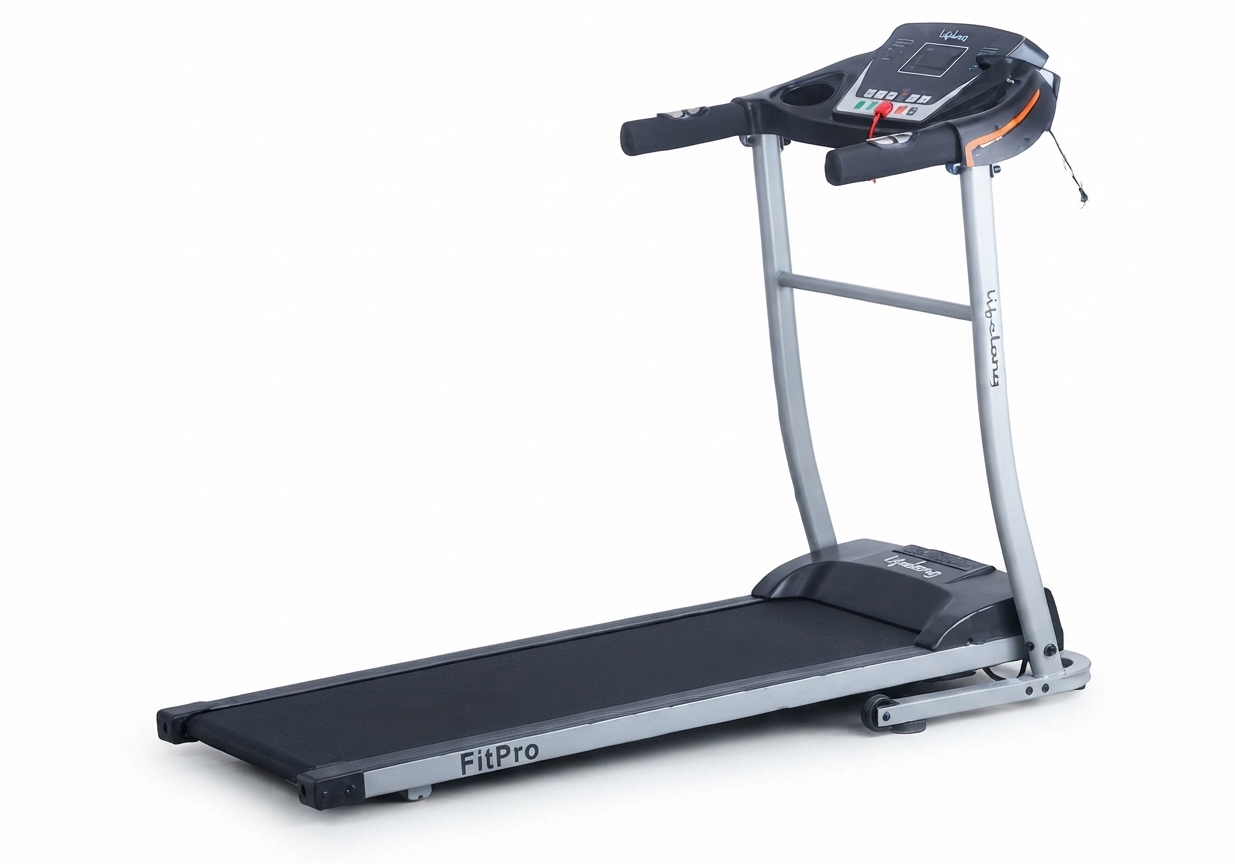

Introducing the Lifelong Fitpro Treadmill LLTM09

Lifelong Fit Pro Treadmill to be a part of your home. At Lifelong, our products are carefully built for the needs of India, which is why we have crafted a diverse range of innovative products, across a spectrum of categories Home, Kitchen, Grooming, Fitness, Lifestyle and Smart Home, to better help you. We then deliver them at the best prices, enriching your everyday living. We are sure you can't wait to start using your new Lifelong Fit Pro Treadmill.
We know we can't! Looking forward to building our bond for life, cheers!

ABOUT THE PRODUCT

Lifelong Fit Pro combines power and elegance to take your fitness journey to the next level. It is the perfect machine for losing weight or increasing endurance.

MARKING OF PRODUCT

Detailed Specifications

With a 2.5 HP strong motor, the LLTM09 can go up to 12 km/h. Its large running deck, measuring 123 x 41 cm, can accommodate up to 120 kg of user weight. Additionally, the treadmill boasts a handy 12-level automatic inclination function that lets you tailor your workout to your preferences. A sizable LCD screen that indicates your speed, time, distance traveled, number of calories burned, and heart rate is another feature of the LLTM09.

INSTALLATION INSTRUCTIONS

When installing, simply fix all the screws first, then tighten the screws only when the installation of the frame is done.

1. Put the machine flat on the ground. Remove the knob in the direction shown, in the picture below. Keep the columns and console in the direction shown in the picture below.

2. Remove the preinstalled screws M8*22 on the supporting frame and then tighten the supporting frame with screw M6*12 on the base. Use #6 hexagon wrench and screw  M6*12 to lock and fix the base(two screws for each side).



3. Hold left & right columns, use the #6 hexagon wrench, and screw M8*25 to lock the console frame on the columns (Tighten all screws in the above steps, and please notice not to clamp the cable by column).



4. Use the knob in step one to lock the main base and columns (Rotate clockwise, please refer to the arrow point direction). The uneven ground may cause trouble when rotating the knob, please lift the column slightly to the left side (as shown below).In order to fold the machine easily next time, please don’t rotate the knob too tight.



5. Put the safety key on the picture showing the yellow area, then press the start button to start the treadmill. (Notice: The treadmill can only start when the safety key is put on the yellow area on the console.)




   NOTE: please confirm that all screws are locked uniformly according to the requirements after installation, and check no part is left out before plugging electricity.
   Folding Instructions (Massager for option)
   When the treadmill is not in use, you can lift the running deck and then use the knob to lock the running deck and base, as shown in the picture below.

Product Description

Ideal for both residential and business usage, the Lifelong Fitpro Treadmill LLTM09 is a sturdy and high-quality treadmill. With a potent 2.5 HP motor that can accelerate to 12 km/h, it's ideal for jogging as well as walking. At 123 x 41 cm, the roomy running deck can accommodate up to 120 kg of human weight. The huge LCD display indicates your speed, time, distance, calories burnt, and heart rate. The automatic inclination feature has 12 levels so you can tailor your training to your preferences.

OPERATING INSTRUCTIONS

Please hold the running deck with your right hand before unfolding the treadmill, and use your left hand to remove the knob (in the counterclockwise direction), then lower the running deck slowly and install the plum lock back.

1. Using treadmill: Insert the power plug properly and turn on the switch (in red color) When the light is on, there will be a beep sound, and then the screen will light up.



2. Safety key Introduction: The treadmill can only start when the safety key is put on, in the yellow area of the console. Clip the safety key on your clothes when using the treadmill to prevent accidents. Put the safety key back when not using the treadmill.



3. Console instructions Overlay

BUTTON INSTRUCTIONS

• Start: When the treadmill is in standby condition, press “Start” to start the treadmill
• Stop: When the treadmill is running, press “Stop” to stop the treadmill. All the data will be cleared and the treadmill goes to manual mode.
• Program: In standby mode, press Program to change the options from manual mode to automatic programs. Manual mode is the system’s default running mode.
• Mode: In standby mode, press Mode to change the options of 3 different countdown running modes: time countdown running mode, distance countdown running mode, and calorie countdown running mode. When choosing any mode, speed-adjusting buttons can be used to set the value. Press “Start” to start the treadmill after setting the value.
• Play/Pause: When playing music, press Play/Pause to pause the music, and press the button again to play music again.
• Volume+ -: Can be used to adjust the volume. If there is no sound, press Volume + to increase the volume.
• Speed + –: Can be used to adjust the speed of the treadmill. Speed direct selection: When the treadmill starts, press the 3, 6, and 9 buttons to change the speed directly.

DISPLAY FUNCTION

• Speed display: Displays the current running speed value.
• Time display: Displays the time of manual mode and the countdown time under automatic modes and programs.
• Distance display: Displays cumulative distance under manual mode and programs. Displays the distance countdown in automatic mode.
• Calorie display: Displays cumulative calories under manual mode and programs. Displays the calorie countdown in automatic mode.
• Heart rate display: Heart rate signal will be detected, and the screen shows the heart rate count.
• Heart rate function(optional): In case the treadmill is energized, hold the heartbeat sensor piece for a while and the heart rate will be shown on the screen. (This data is for reference only; it cannot be considered as medical data.)

Setup Guide

The LLTM09 is simple to set up and operate. Unfold the treadmill and fasten it in position first. After that, switch on the treadmill by plugging in the power cord. Next, adjust the speed, incline, and workout program to your liking using the remote control that comes with it. Lastly, make sure the treadmill is level and stable by adjusting its position.

PRECAUTIONS BEFORE USE

• This Treadmill is for indoor usage only, avoid moisture and dust.
• Please wear suitable clothes and sneakers before exercise. It is prohibited to exercise on the treadmill barefoot.
• Keep children away from the machine to avoid accidents.
• Avoid overloading or using it for an exceedingly long time, otherwise it could cause damage to the motor and controller and will accelerate the deterioration of treadmill, running belt and running board. It is advised to maintain the machine on a regular basis.
• Please maintain good ventilation while running.
• Please clamp the security lock cable on your clothing to make sure the machine stops at emergency condition.
• If the power cord is damaged, please contact our qualified maintenance personnel for service rather than disassembling it at your own discretion. If you feel any pain or discomfort, please consult your physician.
• Do not use the machine when the power cord is damaged or the power plug pin is loose, otherwise will lead to an electric shock, short circuit, or fire.
• Do not damage or bend the power cord by force or reverse it.
• Do not place heavy objects on the machine, do not clamp the power line.
• Machine should not be used by more than 1 person at the same time.

DEVICE MAINTENANCE

• Comprehensive cleaning will extend the life of the electric treadmill. Remove dust periodically to keep the parts clean. Be sure to clean both sides of the running belt’s exposed portion as well.
• Make sure to wear clean athletic shoes to avoid carrying the dirt onto running board and belt.
•  Treadmill belts should be cleaned by a damp cloth with soap. Please pay attention to avoid spilling any liquids on the electrical components and running belt.

Note: Before cleaning or maintaining products, please ensure that the power plug of the treadmill is pulled out. Clean the motor at least once a year.

Running Belt Alignment

• Put electric treadmill flat on the ground.

• Make the treadmill run at a speed of about 6-8km/hour.

• If the running belt is lean to the right, rotate the right adjusting bolt with 1/2 turn clockwise, then rotate the left adjusting bolt with 1/2 turn counter-clockwise. (Picture A)

• If the running belt is lean to the left, rotate the left adjusting bolt with 1/2 turn clockwise, then rotate the right adjusting bolt with 1/2 turn counter-clockwise. (Picture B)

Silicon oil for belt’s maintenance

• Step 1: Lift the running belt slightly.

• Step 2: Open the silicone oil bottle, spray the silicone oil on the sides of running board, as shown in the following figure:



RUNNING BELT TENSION ADJUSTING

When you use the treadmill for a long time, the running belt or the multi-wedge belt becomes loose because of the abrasion. To facilitate safe use, an appropriate adjustment is needed.
Judgment: The feeling of running with the occasional pause phenomenon, which indicates that the treadmill belt or multi-wedge belt is a little loose then further affirmations need to be made.

1. Step 1: Remove the motor cover, make the treadmill run at a speed of 1 km/h, and then stand on the running belt, hold the handlebar, and tread the treadmill belt slightly.

   • A. If the instantaneous step cannot stop the belt, then the tightness is appropriate.

   • B. If your instantaneous step stops the running belt, but the multi-wedge belt and front roller are still running, which indicates that the running belt is loose and appropriate adjustments must be made to facilitate safe use.

   • C. If you observe that the instantaneous step makes the treadmill belt and multi-wedge belt stop, but the motor is still running, it indicates that the multi-wedge belt is loose and appropriate adjustments have to be made to facilitate safe use.

2. Step 2: Use a wrench to adjust the screws on the motor base according to the condition. Meanwhile, gently flip the multi-wedge belt between the motor shaft and the front roller, if it is too loose, you can flip the multi-wedge belt by 100%; if it is too tight, the degree to flip the belt is very limited. It is appropriate to flip the multi-wedge belt by 80%  after adjustment. Please adjust the tightness of the multi-wedge belt to the state that it could be flipped by 80%.

3. Step 3: Finally lock the motor base, and install the motor cover.

DOS AND DON’TS

• Do not use the machine in the status of a shell break in or break off (the internal structure exposed) or under the condition wherein the welding-parts may fall off, otherwise an accident or injury can happen.
• Don't jump up and down in the process of movement. It may cause injuries.
• Don't keep machine in or near moist area such as the bathrooms.
• Do not place the machine in direct sunlight, or elevated temperature places such as near a stove or a heating appliance. It may cause leakage and may burst into flames.
• Don't use when the power cord is damaged or power plug pin is loose, otherwise will lead to an electric shock, short circuit, or fire.
• Don't damage or bend the power cord by force or reverse it. Do not place heavy objects on the machine, do not clamp the power line, otherwise will cause fire or an electric shock.
• Machine should not be used by more than 1 person at the same time. Do not go close to the machine when it is in use. It may cause an accident or injury.
• Avoid drinking water or pouring water when machine is in operation. It may cause electric shock and fire.
• People who do not exercise frequently should not suddenly do intense exercise.
• Do not use this machine, after eating or when tired.

TROUBLESHOOT CHART

Warranty Service

All Lifelong consumer products are covered against manufacturing defects from them date of purchase.
Warranty coverage:  1 year
Please note: Purchase receipt is necessary for warranty verification.
Customer Care: [email protected]

Pros & Cons

Pros

• Powerful 2.5 HP motor
• Spacious running deck
• Automatic incline feature with 12 levels
• Large LCD display
• Easy to assemble

Cons

• May be too large for some home gyms
• Remote control may be difficult to use for some users
