Setup: Marshall Acton Multi-Room Loudspeaker User Manual

Content

Marshall Acton Multi-Room Loudspeaker

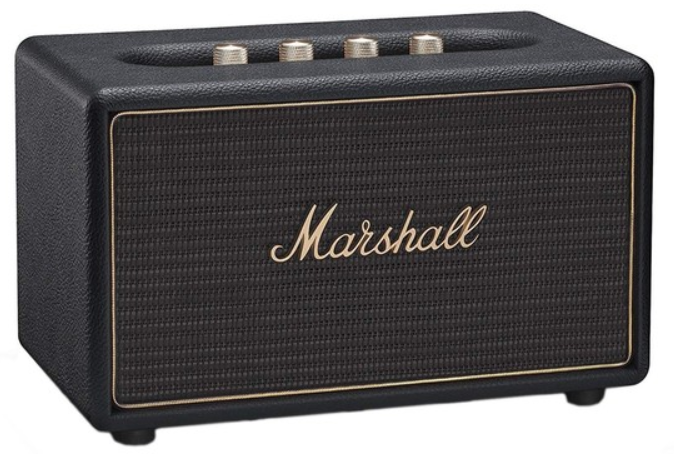

Marshall Acton Multi-Room Loudspeaker-PRODUCT

Introduction

The Marshall Acton Multi-Room Loudspeaker is a versatile and powerful wireless speaker that combines classic Marshall design with modern multi-room functionality. This compact speaker is designed for those who value both style and sound quality, making it ideal for small rooms and multi-room setups. Key benefits include its robust sound profile, featuring a frequency range of 55 to 20,000Hz, and connectivity options like Wi-Fi, Bluetooth, Apple AirPlay, and Spotify Connect. The Acton is perfect for music enthusiasts, homeowners looking to create a multi-room audio system, and those who appreciate the iconic Marshall aesthetic. With an estimated price range between $200 and $300, it offers excellent value for its performance and features.

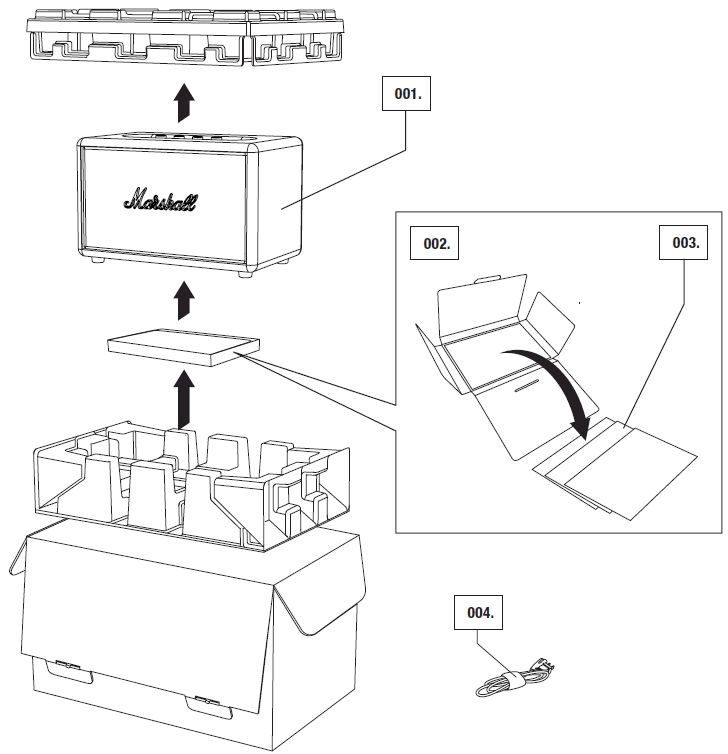

BOX CONTENTS

  1. MARSHALL ACTON MULTI-ROOM ACTIVE STEREO LOUDSPEAKER
  2. QUICK START GUIDE
  3. IMPORTANT SAFETY INSTRUCTIONS
  4. POWER CORD
Marshall Acton Multi-Room Loudspeaker-BOX CONTENTS

TECHNICAL INFORMATION

SOUND SPECIFICATION

ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM

  • DIGITAL CLASS D AMPLIFIER: 2 X 10 W + 1 X 30 W
  • ¾″ DOME TWEETERS: 2X
  • 4″ WOOFER: 1X

BASS AND TREBLE TONE CONTROLS

  • FREQUENCY RESPONSE: 52–20,000 HZ ±6 DB
  • CONNECTIVITY:
    • Wi-fi: WPA2, 802.11B/G/N/AC 2.4 GHZ/5 GHZ WITH DIVERSITY
    • Bluetooth: STANDARD V4.2 EDR A2DP
    • NPUT: AUX 3.5 MM
  • CONTINUOUS POWER OUTPUT: 50 W RMS

TECHNICAL INFORMATION

  • MAINS INPUT VOLTAGE: 100–240 V~
  • ABSOLUTE MIN/MAX: 90–264 V~
  • MAINS FREQUENCY: 50–60 HZ
  • MAX PEAK POWER CONSUMPTION: 60 W
  • NETWORK STANDBY POWER CONSUMPTION: 1.6 W
  • WEIGHT: 2.8 KG
  • SIZE: 265 X 160 X 150 MM

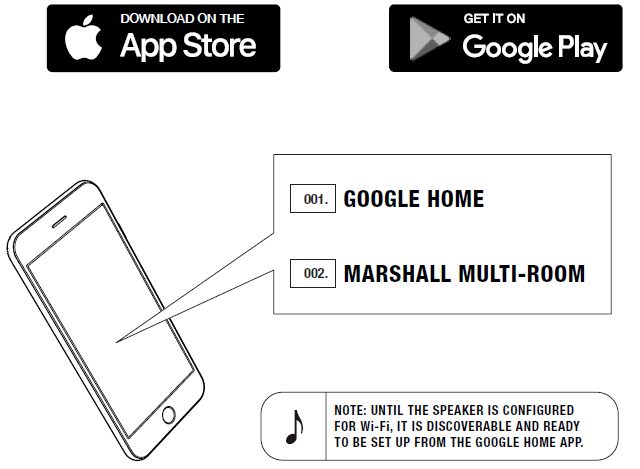

SETTING UP THE SPEAKER

BEFORE USING YOUR MARSHALL MULTI-ROOM SPEAKER, CONFIGURE IT FOR Wi-Fi® WITH THE GOOGLE HOME APP. USE THE MARSHALL MULTI-ROOM APP TO GET THE MOST OUT OF YOUR SPEAKER, ADD PRESETS, PLAY INTERNET RADIO, AND MUCH MORE.

  1. DOWNLOAD THE GOOGLE HOME APP AND FOLLOW THE IN-APP INSTRUCTIONS TO SET UP YOUR SPEAKER.
  2. DOWNLOAD THE MARSHALL MULTI-ROOM APP AND FOLLOW THE IN-APP INSTRUCTIONS TO CUSTOMISE YOUR SPEAKER.
Marshall Acton Multi-Room Loudspeaker-SETTING UP THE SPEAKER

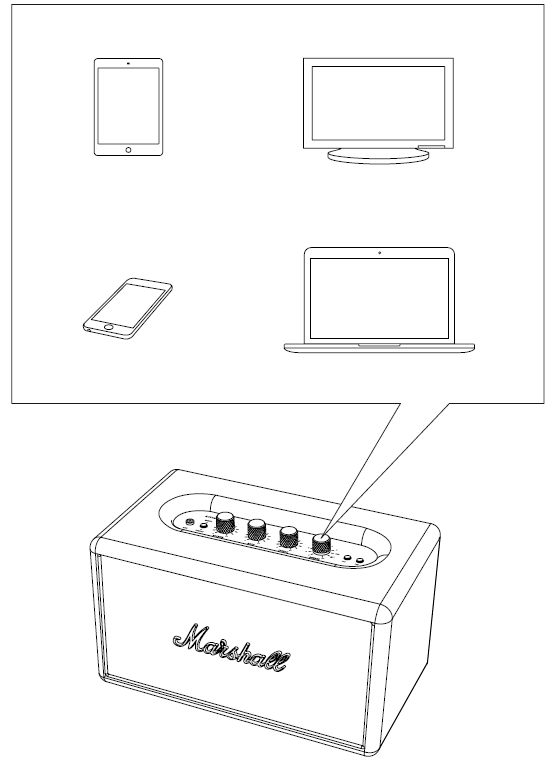

MANY WAYS TO CONNECT

THERE ARE MANY WAYS TO CONNECT TO YOUR ACTON MULTI-ROOM, WHETHER VIA YOUR PHONE, TV, TABLE, T OR TURNTABLE. THE CONNECTION CAN BE WIRELESS WITH Wi-Fi OR Bluetooth,h® OR BY USING A CABLE. THE  SOURCE  KNOB LETS YOU SELECT THE SOURCE.

Marshall Acton Multi-Room Loudspeaker-MANY WAYS TO CONNECT

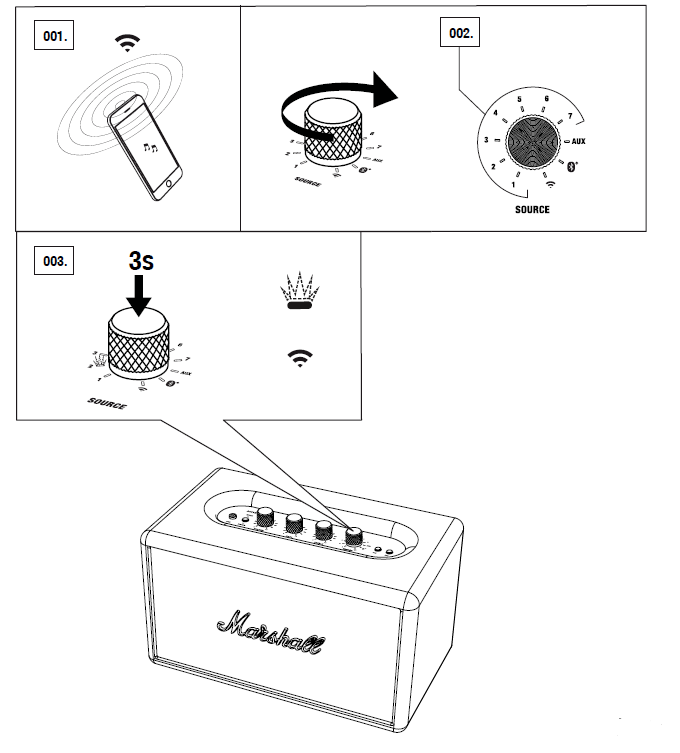

STORING PRESETS

THE ACTON MULTI-ROOM CAN HOLD UP TO 7 PRESETS FOR INSTANT MUSIC STREAMING VIA Wi-Fi.

  1. PLAY THE SPOTIFY PLAYLIST OR INTERNET RADIO CHANNEL THAT YOU WANT TO STORE.
  2. TURN THE  SOURCE  KNOB TO SELECT THE POSITION (1-7) WHERE YOU WANT TO STORE THE PRESET.
  3. PUSH THE  SOURCE  KNOB FOR MORE THAN 3 SECONDS TO STORE THE PRESET. PREVIOUSLY STORED PRESETS ARE OVERWRITTEN.

PRESETS CAN ALSO BE MANAGED IN THE MARSHALL MULTI-ROOM APP.

Marshall Acton Multi-Room Loudspeaker-STORING PRESETS

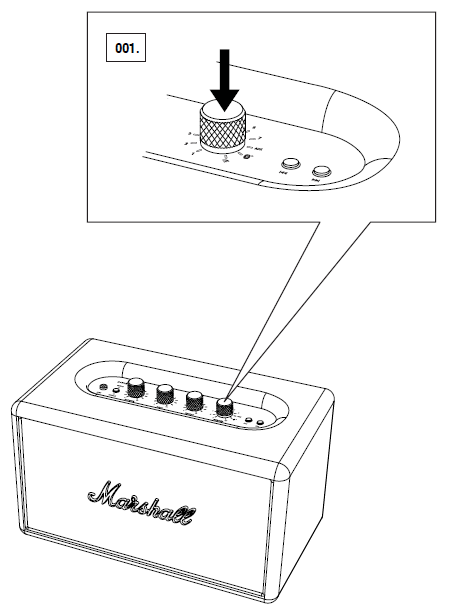

STANDBY MODE

THE SPEAKER GOES INTO STANDBY MODE IF NO AUDIO HAS BEEN PLAYED FOR 20 MINUTES. THE SPEAKER IS STILL CONNECTED TO THE NETWORK.

PUSH THE SOURCE  KNOB TO WAKE THE SPEAKER.

Marshall Acton Multi-Room Loudspeaker-STANDBY MODE

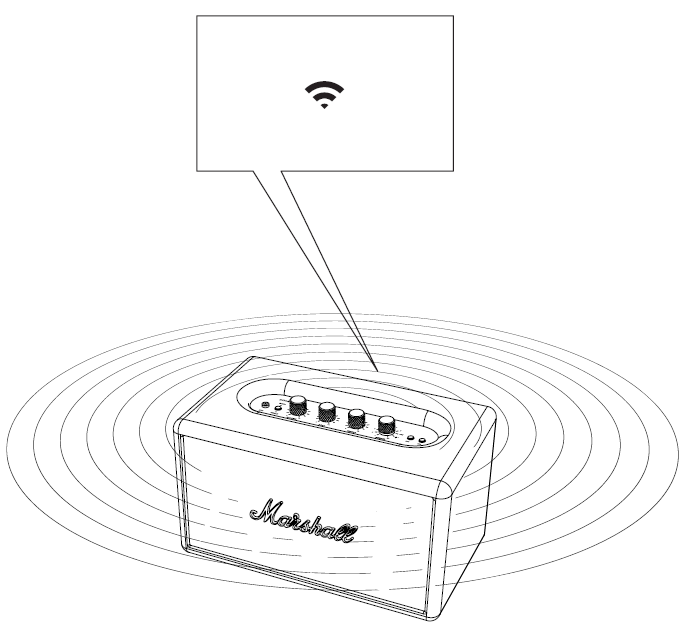

SPEAKER SOFTWARE UPDATE

THE ACTON MULTI-ROOM SPEAKER IS AUTOMATICALLY UPGRADED TO THE LATEST SOFTWARE RELEASE AS LONG AS THE SPEAKER IS CONNECTED TO Wi-Fi.
THIS IS DONE IN THE BACKGROUND AND REQUIRES NO MANUAL WORK.

Marshall Acton Multi-Room Loudspeaker-SPEAKER SOFTWARE UPDATE

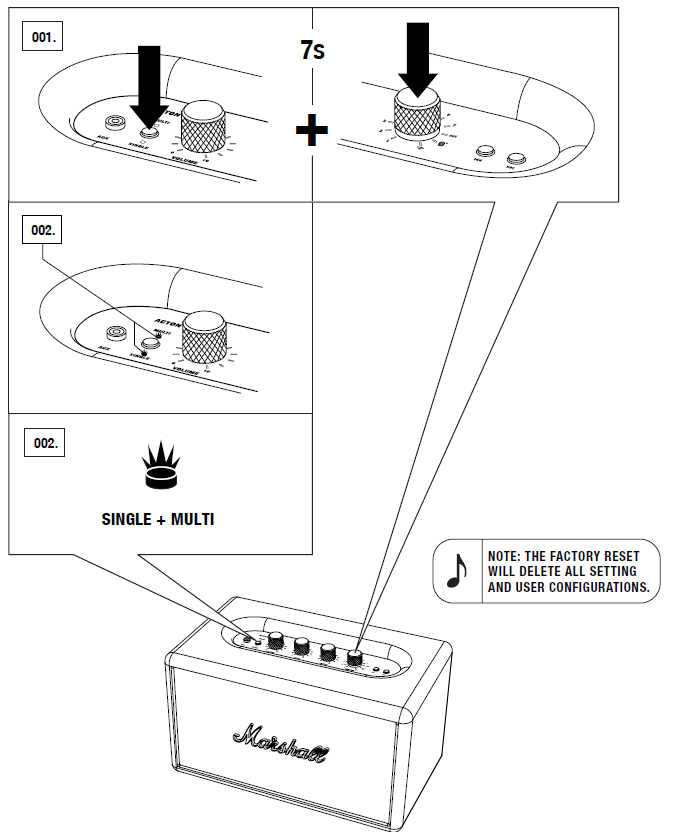

FACTORY RESET

TO RESET THE SPEAKER TO ITS FACTORY STATE:

  1. PUSH AND HOLD THE  SINGLE/MULTI  BUTTON AND THE  SOURCE  KNOB FOR 7 SECONDS UNTIL BOTH THE SINGLE AND MULTI-MODE INDICATORS ARE LIT.
  2. THE SPEAKER IS RESET TO ITS FACTORY STATE, RESTORED TO SETUP MODE, AND IS READY TO BE CONFIGURED.
Marshall Acton Multi-Room Loudspeaker-FACTORY RESET

INTALLATION & CONNECTION

  • Connect the product according to the instructions in this manual.
  • Connect the product only to the correct mains voltage as shown on the product.
  • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit the product.
  • Use only power cables of the type specified in these operating instructions or as marked on the product.
  • Do not defeat the safety purpose of the polarized or grounding-type plug.
  • If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
  • Unplug the product during lightning storms or when unused for long periods of time.
  • Do not install this product in a confined or a built-in space. Only install the product in a well-ventilated and open location. The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
  • No naked flame sources, such as lighted candles, should be placed on the product.

CLEANING & MAINTENANCE

Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
Clean only with a dry cloth.

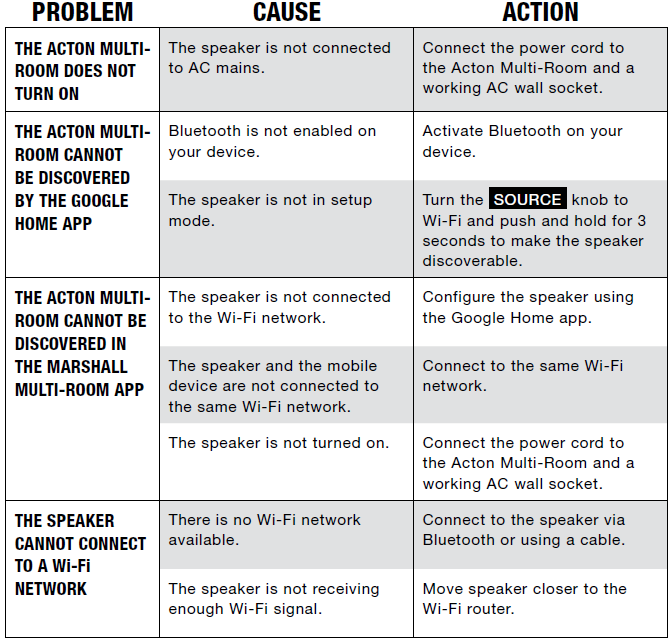

TROUBLESHOOTING

Marshall Acton Multi-Room Loudspeaker-TROUBLESHOOTING A

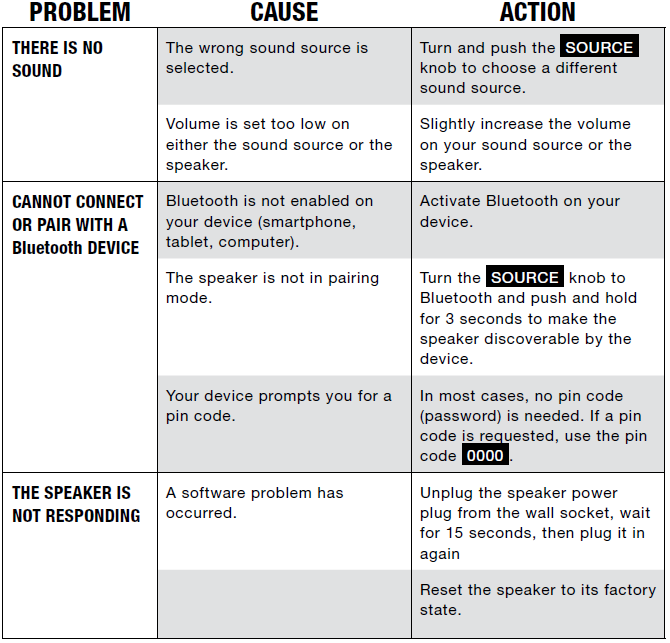

Marshall Acton Multi-Room Loudspeaker-TROUBLESHOOTING B

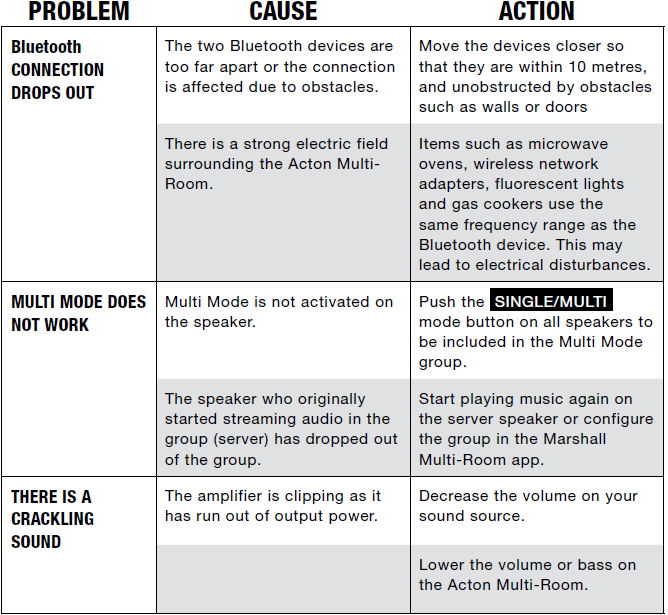

Marshall Acton Multi-Room Loudspeaker-TROUBLESHOOTING C

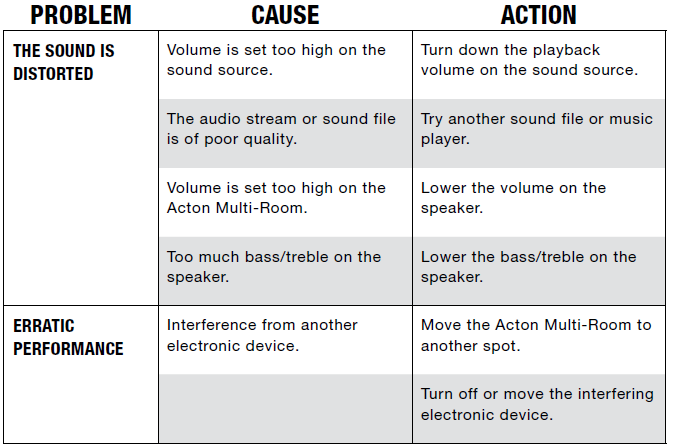

Marshall Acton Multi-Room Loudspeaker-TROUBLESHOOTING D

Pros & Cons

The Marshall Acton Multi-Room Loudspeaker offers several advantages and a few limitations.

Pros:

  • Sound Quality: Delivers clear midrange and extended highs, thanks to its 30W Class D woofer and two 10W tweeter amplifiers.
  • Multi-Room Capability: Seamlessly integrates with other Marshall speakers for a comprehensive home audio system.
  • Connectivity Options: Supports Wi-Fi, Bluetooth, AirPlay, and Spotify Connect for versatile streaming.
  • Design: Features a classic Marshall look with vintage details and a compact design.

Cons:

  • No Portability: Requires a power outlet, limiting its use in outdoor settings.
  • No Remote Control: Must be controlled through the Marshall app or Google Home.
  • Overkill for Small Spaces: The total power output might be excessive for very small rooms.

Customer Reviews

Users praise the Marshall Acton for its powerful sound and stylish design, with many appreciating its ability to fill small spaces effectively. Common complaints include the lack of portability and the need for a mains connection. With an average rating of 4 out of 5 stars, it is highly recommended for those seeking a compact, high-quality speaker for their home.

Customer testimonials highlight the speaker's ability to pair well with other Marshall speakers for a seamless multi-room experience. However, some users find the setup process a bit complex. Overall, the Marshall Acton is praised for its performance and value in the multi-room speaker market.

Conclusion

The Marshall Acton Multi-Room Loudspeaker is a standout choice for those seeking a compact, high-quality speaker with excellent connectivity options. Its robust sound and classic design make it a valuable addition to any home audio setup. Whether you're building a multi-room system or simply looking for a stylish speaker, the Acton delivers on both fronts.

PDF

Faqs

How do I set up my Marshall Acton Multi-Room Loudspeaker for the first time?

To set up your Marshall Acton Multi-Room Loudspeaker, first download the Google Home App and follow its in-app instructions to connect the speaker to your Wi-Fi network. Then, download the Marshall Multi-Room app to customize sound settings, add presets, and stream internet radio. Ensure the speaker is plugged into power and ready for setup. The speaker can be controlled via the app or using the knobs on the device.

What should I do if my Marshall Acton Multi-Room Loudspeaker won't connect via Bluetooth?

If your Marshall Acton Multi-Room Loudspeaker won’t connect via Bluetooth, ensure the speaker is in Bluetooth mode by turning the source knob to the Bluetooth symbol and holding it for 3 seconds until the indicator blinks. Enable Bluetooth on your device, select 'Acton Multi-room' from the list, and accept pairing. Keep your device within 10 meters without obstacles to maintain connection. Restarting the speaker and device or forgetting and re-pairing the speaker may also help.

Can I control the Marshall Acton Multi-Room Loudspeaker using both the app and physical knobs?

Yes, the Marshall Acton Multi-Room Loudspeaker can be controlled using both the Marshall Multi-Room app and the physical knobs on top of the speaker. The app allows you to customize presets, adjust bass, treble, and volume, while the knobs let you switch sources, change volume, and toggle settings directly on the speaker for convenience.

Is the Marshall Acton Multi-Room Loudspeaker compatible with AUX input devices?

Yes, the Marshall Acton Multi-Room Loudspeaker supports AUX input via a 3.5 mm stereo plug. Connect an audio cable from your device's audio output to the speaker’s AUX input, then use the source knob to select AUX mode. Note that the AUX cable is not included with the speaker and must be purchased separately.

How do I optimize sound performance on the Marshall Acton Multi-Room Loudspeaker?

To optimize sound on the Marshall Acton Multi-Room Loudspeaker, use the bass and treble knobs to adjust tone according to your room acoustics and personal preference. Additionally, the Marshall Multi-Room app provides EQ customization and presets. Position the speaker away from walls and corners to reduce bass boom and ensure clearer sound quality.

What are common troubleshooting steps if the Marshall Acton Multi-Room Loudspeaker is unresponsive?

If your Marshall Acton Multi-Room Loudspeaker is unresponsive, first unplug the power cord, wait 30 seconds, and plug it back in to perform a soft reset. Check that the speaker is powered on and the source knob is correctly set. If problems persist, you can perform a factory reset via the Marshall Multi-Room app or refer to the user manual for detailed reset instructions.

How often should I clean and maintain my Marshall Acton Multi-Room Loudspeaker?

Regular maintenance involves gently dusting your Marshall Acton Multi-Room Loudspeaker with a soft, dry cloth to keep its grille and controls clean. Avoid using liquids or harsh chemicals. Check cables and connections periodically for wear. Proper care helps maintain sound quality and prolongs the speaker’s lifespan.

Can I use multiple Marshall Acton Multi-Room Loudspeakers together for synchronized audio?

Yes, the Marshall Acton Multi-Room Loudspeaker supports multi-room functionality allowing several speakers to be grouped for synchronized playback. Use the Marshall Multi-Room app to create speaker groups, enabling you to play the same music across multiple rooms seamlessly via Wi-Fi.
