Introduction

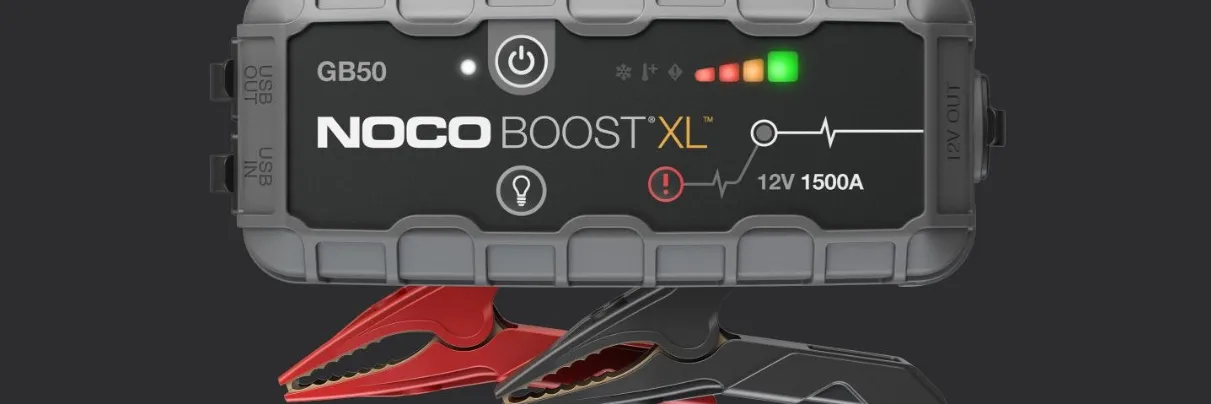

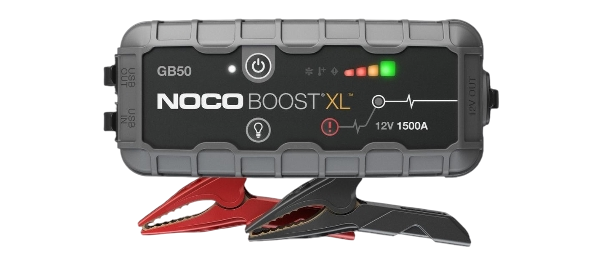

The noco GB50 Car Jump Starter 1500A is a compact and portable solution for jump-starting your vehicle in emergencies. With a peak current of 1500A, it can easily jump-start most 12V vehicles, including cars, trucks, SUVs, and boats. Priced at around $100, this jump starter is a great investment for any vehicle owner. The estimated launching date is not specified, but it is currently available for purchase.

Detailed Specifications

• Internal Battery: Lithium Ion
• Peak Current Rating: 1500A
• Operating Temperature: -20°C to +50°C
• Charging Temperature: 0ºC to +40ºC
• Storage Temperature: -20ºC to +50ºC (Avg Temp.)
• Micro USB (Input): 5V, 2.1A
• USB (Output): 5V, 2.1A
• Housing Protection: IP65 (w/Ports Closed)
• Cooling: Natural Convection
• Dimensions (L x W x H): 7.6 x 3.2 x 1.9
•  Inches Weight: 3 Pounds

How To Use

Charge the noco GB50 Car Jump Starter 1500A

The GB50 comes partially charged out of the box and needs to be fully charged prior to use. Connect the GB50 using the included USB Charge Cable to the USB IN port and the USB car charger. It can also be recharged from any USB powered port, like an AC adapter, car charger, laptop and more. The USB IN port is rated at 2.1 Amps to ensure safe and efficient charging of the internal lithium battery. Due to FCC regulations, we recommend not to charge and discharge the unit at the same time. The time to recharge a GB50 will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

When recharging, the charge level of the internal battery is indicated by the Charge LEDs. The LEDs will slowly pulse 'On' and 'Off' and become solid until all four Charge LEDs are on. When the battery is fully charged, the Green 100% LED will be solid, and the 25%, 50% and 75% Charge LEDs will turn "Off". From time to time, the Green 100% LED will pulse indicating maintenance charging is occuring.

Connect to the Battery

Carefully read and understand the vehicle owner's manual on specific precautions and recommended methods for jump starting the vehicle. Make sure to determine the voltage and chemistry of the battery by referring to your battery owner's manual prior to using this product. The GB50 is for jump starting 12-volt lead-acid batteries only. Before connecting to the battery, verify that you have a 12-volt lead-acid battery. The GB50 is not suitable for any other type of battery. Identify the correct polarity of the battery terminals on the battery. The positive battery terminal is typically marked by these letters or symbol (POS,P,+). The negative battery terminal is typically marked by these letters or symbol (NEG,N,-). Do not make any connections to the carburetor, fuel lines, or thin, sheet metal parts. The below instructions are for a negative ground system (most common). If your vehicle is a positive ground system (very uncommon), follow the below instructions in reverse order.

1. Connect the battery clamps to the GB50 by connecting to the 12V OUT port.
2. Connect the positive (red) HD battery clamp to the positive (POS,P,+) battery terminal.
3. Connect the negative (black) HD battery clamp to the negative (NEG,N,-) battery terminal or vehicle chassis.
4. When disconnecting, disconnect in the reverse sequence, removing the negative first (or positive first for positive ground systems).

noco GB50 Car Jump Starting 1500A

1. Make sure all of the vehicle's power loads (headlights, radio, air conditioning, etc.) are turned off before attempting to jump start the vehicle.
2. Press the Power Button to begin jump starting. All LEDs will flash, indicating that all LEDs are properly functioning. If you are properly connected to the battery, the White Boost LED will illuminate. If the battery clamps are connected in reverse, the Red Error LED will illuminate. Reverse the connections to clear this error and then the White Boost LED will illuminate. The White Boost LED is illuminated, when the GB50 is ready to jump start your vehicle.
3. Try starting the vehicle. Most vehicles will immediately start. Some vehicles may require the GB50 to be connected for up to 30 seconds before starting. If the vehicle does not start right away, wait 20-30 seconds and try again. Do not attempt more than five (5) consecutive jump starts within a fifteen (15) minute period. Allow the GB50 to rest for fifteen (15) minutes before attempting to jump start the vehicle again.
4. Once you have started your vehicle, disconnect the battery clamps, and remove the GB50.

Low Voltage Batteries & Manual Override

The GB50 is designed to jump start 12-volt lead-acid batteries down to 2-volts. If your battery is below 2-volts, the Boost LED will be "Off". This is an indication that the GB50 can not detect a battery. If you need to jump start a battery below 2-volts there is a Manual Override feature, which allows you to force "On" the jump start function.

CAUTION: USE THIS MODE WITH EXTREME CARE. THIS MODE IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY. BOTH THE SPARK PROOF AND REVERSE POLARITY PROTECTION FEATURES ARE DISABLED. PAY VERY CLOSE ATTENTION TO THE POLARITY OF THE BATTERY BEFORE USING THIS MODE. DO NOT ALLOW THE POSITIVE AND NEGATIVE BATTERY CLAMPS TO TOUCH OR CONNECT TO EACH OTHER AS THE PRODUCT WILL GENERATE SPARKS. THIS MODE USES VERY HIGH CURRENT (UP TO 1500 AMPS) THAT CAN CAUSE SPARKS AND HIGH HEAT IF NOT USED PROPERLY. IF YOU ARE UNSURE ABOUT USING THIS MODE, DO NOT ATTEMPT AND SEEK PROFESSIONAL HELP.

Description

The noco GB50 Car Jump Starter 1500A is a compact and powerful device that can jump-start your vehicle in just a few seconds. Its spark-proof design and reverse polarity protection ensure safe and easy use, even for those who are not mechanically inclined. The built-in LED flashlight with seven light modes is also a useful feature, providing added visibility in emergency situations. With its USB port for charging mobile devices, the noco GB50 Car Jump Starter 1500A is a versatile and convenient tool to have in your vehicle.

Setup Guide

To use the noco GB50 Car Jump Starter 1500A, follow these steps:

1. Connect the clamps to the jump starter, making sure that the red clamp is connected to the positive terminal and the black clamp is connected to the negative terminal.
2. Turn on the jump starter by pressing the power button.
3. Connect the clamps to the corresponding terminals on your vehicle's battery.
4. Wait a few seconds for the jump starter to initialize.
5. Start your vehicle.
6. Disconnect the clamps in the reverse order that they were connected.

INTERFERENCE

1. Internal Battery Level Indicates the charge level of the internal battery.
2. Error LED Illuminates Red if reverse polarity is detected.
3. Hot LED Illuminates solid Red; unit is fully operational, but approaching upper temperature limit. Flashing Red; unit is too hot to jump start, but other functions are still available.
4. Cold LED Illuminates solid Blue; unit is fully operational, but approaching lower temperature limit. Flashing Blue; unit is too cold to jump start, but other functions are still available.
5. Power Button Push to turn unit "On" & "Off".
6. Power LED Illuminates White when unit is "On".
7. Boost LED Illuminates White when Boost is active. If the unit is connected properly to a battery, the GB50 will automatically detect a battery and go into Boost mode (LED flashes White when Manual Overide feature is active).
8. Manual Override Button To enable, push and hold for three (3) seconds. WARNING: Disables safety protection and manually forces Boost "On". Only for use when a battery is too low to be detected.
9. Light Mode Button Toggles the ultra-bright LED light through 7 light modes: 100% > 50% > 10%  SOS > Blink > Strobe > Off

Troubleshooting noco GB50 Car Jump Starter 1500A

Error	Reason/Solution
Error LED: Solid Red Boost Light Does Not Come On w/Cables Connected Properly	Reverse polarity/Reverse the battery connections. Connected battery is below 2-volts/ Remove all loads, and try again, or use Manual Override Mode.
Hot LED: Solid Hot LED: Flashing Hot LED: Flashes Then All LEDs Off	Unit is fully operational, but approaching upper temperature limit. / Allow the unit to cool. Unit is too hot to jumpstart, but other functions are still available. /Allow the unit to cool. Unit is too hot to jump start or use other functions. / Allow the unit to cool, and bring the unit into cooler environment.
Cold LED: Solid Cold LED: Flashing Cold LED: Flashes Then All LEDs Off	Unit is fully operational, but approaching lower temperature limit. / Allow the unit to warm up. Unit is too cold to jump start, but other functions are still available. / Allow the unit to warm up. Unit is too cold to jump start or use other functions. / Allow the unit to warm up, and bring the unit into warmer environment.

NOCO Warranty

NOCO warrants that this product (the "Product") will be free from defects in material and workmanship for a period of one (1) year from the date of purchase (the "Warranty Period"). For defects reported during the Warranty Period, NOCO will, at its discretion, and subject to NOCO's technical support analysis, either repair or replace defective Products. Replacement parts and products will be new or serviceably used, comparable in function and performance to the original part and warranted for the remainder of the original Warranty Period.

Pros & Cons noco GB50 Car Jump Starter 1500A

Pros:

• Compact and portable design
• Spark-proof design with reverse polarity protection
• Built-in LED flashlight with seven light modes
• USB port for charging mobile devices
• Can jump-start most 12V vehicles

Cons:

• May not be powerful enough for larger vehicles
• May not hold a charge for an extended period of time
