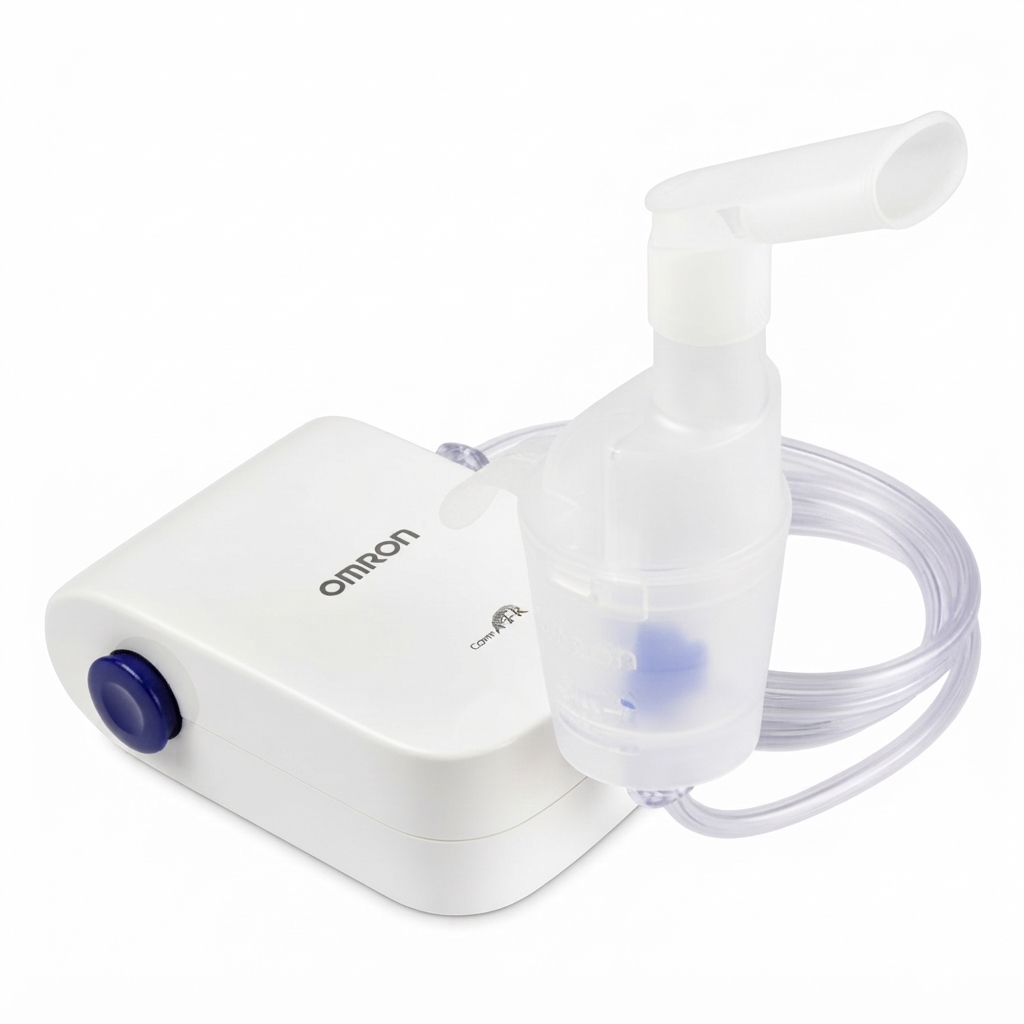

Omron Compressor Nebulizer NE-C803 Instruction Manual

cover-image

Content

Omron Compressor Nebulizer NE-C803 Introduction

This product was developed in conjunction with respiratory therapists for the successful treatment of asthma, chronic bronchitis, allergies and other respiratory disorders.  This is a medical device. Operate the device only as instructed by your doctor and/or respiratory therapist. The exact cost of the NE-C803 is $99.00.

How the nebulizer kit works

The medication that is pumped up through the medication channel is mixed with compressed air which is generated by a compressor pump. The medication is turned into fine particles and sprayed when in contact with the compressed air.


Intended use

Medical Purpose
This product is intended to be used for inhaling medication for respiratory disorders.
Intended User

  • Legally certified medical experts, such as doctors, nurses, and therapists.
  • Caregiver or patient under the guidance of qualified medical experts for home treatment.
  • The user should also be capable of understanding the general operation of NE-C101 and the content of the instruction manual.

Intended Patients
This product should not be used on patients, who are unconscious or are not breathing spontaneously.
Environment
This product is intended for use in a medical facility, such as a Hospital, clinic, or doctor’s office, and in a room of the general household.
Durable period
Durable periods are as follows, provided the product is used to nebulize saline 3 times a day for 10 minutes each time at room temperature (23°C). The durable period may vary depending on the usage environment. Frequent use of the product may shorten the durability period.

  • Compressor (Main unit) 5 years
  • Nebulizer Kit 1 year
  • Mouthpiece 1 year
  • Nosepiece 1 year
  • Air Tube (PVC) 1 year
  • Air Filter 60 days
  • Mask (PVC) 1 year

Precautions for use
Warnings and cautions described in the instruction manual should be observed.

Know your unit


Accessories (Sold separately)

NameModel
Nebulizer Kit & Mouthpiece SetNEB-NSET3-83E
Nebulizer Kit & Adult Mask (PVC) & Air Tube SetNEB-NSET4-83AP
Nebulizer Kit & Child Mask (PVC) & Air Tube SetNEB-NSET5-83AP
Adult Mask (PVC)NEB-MSLP-E
Child Mask (PVC)NEB-MSMP-E
MouthpieceNEB-MP-E
NosepieceNEB-NP-E
Air Tube (PVC, 100cm)NEB-TP-82E
Air Filters x 5NEB-AFR-30E
AC AdapterHHP-CF01

Technical data

Here is the table written out properly:

Name:COMP AIR
Model:NE-C803
Type:Compressor Nebulizer
Rating (AC adapter):100 - 240V ~ 50/60Hz 0.12 - 0.065A
Rating (Compressor Nebulizer):6V -- 0.7A
Operating Temperature/Humidity:+10°C to +40°C / 30% to 85%RH
Storage and Transport Temperature/Humidity/Air Pressure:-20°C to +60°C / 10% to 95%RH / 700 - 1060hPa
Weight:Approx. 180g (compressor only)
Dimensions:Approx. 85 (W) × 43 (H) × 115 (D) mm (compressor only)
Contents:Compressor, Nebulizer Kit, Air Tube (PVC, 100cm), Mouthpiece, Adult Mask (PVC), Child Mask (PVC), 5 pcs Spare Air Filters, AC Adapter, Storage Bag, Instruction Manual.
Classification:Class II equipment, Type BF applied part
IP Classification:

IP21

class_ll.png Class II equipment

applied_part.png Type BF applied part

book.png Read the instruction manual carefully manual carefully

power_on-.png No operation

power_on_apc_schneider_electric_back-ups_br1500g-in.png Power on

Technical data for the OMRON NE-C803 Compressor with the Nebulizer kit:

Particle Size:MMAD Approx. 3μm (MMAD = Mass Median Aerodynamic Diameter)
Medication Tank Capacity:10ml maximum
Appropriate Medication Quantities:2ml minimum - 10ml maximum
Nebulization Rate:Approx. 0.30ml/min (by weight loss)
Aerosol Output:0.37ml (2ml, 1% NaF)
Aerosol Output Rate:0.05ml/min (2ml, 1% NaF)

Result of cascade impactor measurements for particle size

  • Measured by OMRON HEALTHCARE Co., Ltd. Measured with saline at ambient temperature of 23°C and humidity of 40%. It may vary with the type of medication.
  • Independently measured by Prof. Dr. Hiroshi Takano, Therapeutic Systems Research Center, Doshisha University, Kyoto, Japan, according to EN 13544-1 :2007+A 1 :2009.

Notes

Subject to technical modification without prior notice.

  • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co., Ltd., Japan.
  • The device may not work if the temperature and voltage conditions are different to those defined in the specifications.
  • The device fulfils the provisions of the EC directive 93/42/EEC(Medical Device Directive) and the European Standard EN13544- 1 :2007 +A 1 :2009, Respiratory therapy equipment - Part1: Nebulizing systems and their components.
  • Performance may vary with medication such as suspensions or high viscosity. See medication supplier's data sheet for further details.

Description

The Omron Compressor Nebulizer NE-C803 features a robust compressor that generates a consistent airflow, ensuring that the medication is delivered quickly and efficiently. The device includes a nebulizer kit, mouthpiece, and tubing, as well as a carry bag for convenient transport. It also comes with a built-in medication cup that can hold up to 10 mL of liquid medication. The NE-C803 operates at a noise level of around 60 dB, making it relatively quiet compared to other nebulizers on the market.

How to use Omron Compressor Nebulizer NE-C803

Warning: Clean and disinfect the nebulizer kit, mask, mouthpiece or optional nosepiece before using them when as follows:

  • the first time after purchase.
  • if the device has not been used for a long period of time
  • if more than one person uses the same device

For the instructions, refer to "Cleaning and disinfecting" section.

  1. Make sure that the power switch is in the off ( no_operation_omron_compressor_nebulizer_ne-c803.png) position.
  2. Connect the AC adapter to the compressor and plug the power plug into a power outlet.
  3. Remove the inhalation top together with vaporizer head from the medication tank.
    Note: If the vaporizer head came off the inhalation top and fell into the medication tank, remove it out of the tank.

  4. Add the correct amount of prescribed medication to the medication tank.

  5. Make sure that the vaporizer head is securely attached to the inhalation top.


    Note: The sizes of the left- and right-hand attached parts of the vaporizer head are not the same. If the vaporizer head is not attached in the correct orientation, it will not nebulize correctly.

  6. Put the inhalation top back inside the medication tank.
    1. Align the protrusion on the inhalation top with the indent on the medication tank, as shown.
    2. Rotate the inhalation top clockwise until the arrow mark on it and the alignment mark on the medication tank are aligned, and they click in place.

  7. Attach the mask, mouthpiece or optional nosepiece to the nebulizer kit tightly.


    Note: Make sure that these attachments are fitted in such a way that the handle is positioned away from the patient. Otherwise, medication may be sprayed on patient's skin or clothes.

  8. Attach the air tube.
    Push the air tube plugs firmly into the air tube connectors.


    The nebulizer kit can be fixed on the compressor.

  9. Hold the nebulizer kit as indicated below.
    Follow the instructions of your doctor or respiratory therapist.


    Caution: Do not tilt the nebulizer kit at an angle of greater than 45 degrees in all directions. Medication may flow into the mouth or it may result in not nebulizing effectively.

  10. Press the power switch to the on ( power_on-.png) position. As the compressor starts, nebulization begins and aerosol is generated.
    Inhale the medication.
  11. When treatment is complete, turn the power off. Unplug the AC adapter from the power outlet and disconnect it from the compressor.
    Note: Securely hold and press the power plug down to disconnect the AC adapter.



    Caution: Do not pull the power cord. Damage may be caused.

Removing condensation from the air tube

If there is moisture or liquid remaining in the air tube, be sure to follow the procedure below to remove any moisture from within the air tube.

  1. Make sure that the air tube is connected to the air connector on the compressor.
  2. Remove the air tube from the nebulizer kit.
  3. Turn on the compressor and pump air through the air tube to expel the moisture.

Changing the air filter

If the air filter has been used for more than 60 days, replace it with a new one.

  1. Pull the air filter cover off the compressor.

  2. Change the air filter.

  3. Put the air filter cover back in place. Make sure it is attached properly.

Notes:

  • Use only OMRON air filters designed for this device. Do not operate without air filter.
  • Do not wash or clean the air filter. If the air filter becomes wet, replace it. Damp air filters can cause blockages.
  • There is no front or back orientation for the air filters.
  • Check that air filters are clean and free of dust before inserting them.

Setup Guide

To operate the Omron Compressor Nebulizer NE-C803:

  1. Start by assembling the nebulizer kit according to the instructions provided.
  2. Fill the medication cup with the prescribed dose of liquid medication and attach it to the nebulizer tube.
  3. Connect the tube to the compressor and plug in the device. Turn on the compressor and adjust the airflow as needed.
  4. Place the mouthpiece in your mouth and breathe in the mist slowly and deeply until the medication is fully administered.

Cleaning and disinfecting

Caution: Handling the Vaporizer Head

  • Always wash the vaporizer head after each use.
  • Do not use a brush or pin to clean the vaporizer head.
  • When disinfecting the parts by boiling, be sure to boil them in plenty of water.
  • Do not boil vaporizer head together with objects other than applicable nebulizer accessories.

Cleaning
Clean the parts after each use to remove residual medication. This will avoid inefficient nebulization or infection.
Washable parts

  • Nebulizer Kit (Inhalation top, Medication tank), Mask (PVC), Mouthpiece, Nosepiece (optional)
    Wash them in warm water and mild detergent (neutral detergent). Rinse them thoroughly with clean hot tap water and allow to air dry in a clean place.
  • Vaporizer Head
    Wash it with running water.

Non-washable parts

  • Compressor, Air Tube
    Firstly, make sure that the power plug is unplugged from the power outlet. Wipe clean with a soft cloth moistened with water or mild detergent (neutral detergent).
  • Air Filter
    Do not wash or clean the air filter. If the air filter becomes wet, replace it. Damp air filters can cause blockages.
  • Disinfecting
    Disinfect the parts once a week. If the parts are heavily stained, replace them with new ones. To select a method for disinfection, refer to the table below.

o: applicable X: not applicable

Disinfecting methodPartsMouthpieceNosepiece (optional)Nebulizer KitAdult Mask (PVC) Child Mask (PVC)Air Tube (PVC, 100cm)Air Filter
 MaterialsPPPPPP (Vaporizer Head: PC)Mask: PVC (Phthalate free) Band: Rubber (non-latex)PVC (Phthalate free)Polyester
AAlcohol
 Disinfecting ethanolX
 Sodium hypochloriteX
 Milton* (0.1%, 15min.)X
 Quaternary ammoniumX
 Osvan* (0.1%, 10min.)X
 ChlorhexidineX
 Hibitane* (0.5%, 30min.)X
 Amphoteric SurfactantX
 Tego 51* (0.2%, 15min.)X
BBoilingXX

An example of commercially available disinfectant. (The concentration and residence time specified in the table are under the conditions where the service life of the parts is tested with each disinfectant used as described in its instruction manual. Please note that the testing was not performed for the purpose of ensuring the effectiveness of the disinfectants. There is no intention of suggesting that such disinfectants be used. Conditions of use and ingredients of disinfectant vary for manufacturers. Please read the instruction manuals carefully before use and apply disinfectant to each part in an appropriate way. Please notice that service life of the parts may be shorter depending on conditions, environments and frequency of use.)

A. Use a commercially available disinfectant. Follow the instructions provided by the disinfectant manufacturer.
Note: Never clean with benzene, thinner or a flammable chemical.
B. Parts may be boiled between 15 to 20 minutes. After boiling, carefully remove the parts, shake off excess water and allow to air dry in a clean environment.


Omron Compressor Nebulizer NE-C803 Troubleshooting

Check the following if the device should fail during operation.

ProblemCauseRemedy
Nothing happens when the power switch is pressed.Is the AC adapter connected correctly to a power outlet and the compressor?Check that the AC adapter is connected to a power outlet and the compressor. Unplug then reinsert the plug if necessary.
No nebulization or low nebulization rate, when the power is on.Is there medication in the medication tank?Add the correct amount of medication to the medication tank.
 Is there too much/little medication in the medication tank?
 Is the vaporizer head missing or not assembled correctly?Attach the vaporizer head correctly.
 Is the nebulizer kit assembled correctly?Assemble the nebulizer kit correctly.
 Is the nozzle blocked?Make sure that the nozzle is free of blockages.
 Is the nebulizer kit tilted at a sharp angle?Make sure that the nebulizer kit is not tilted at an angle of more than 45 degrees.
 Is the air tube connected correctly?Make sure that the air tube is correctly connected to the compressor and nebulizer kit.
 Is the air tube folded?Make sure that the air tube is not twisted or bended.
 Is the air tube blocked?Make sure that the air tube is free of blockages.
 Is the air filter dirty?Replace the air filter with a new one.
The compressor is abnormally loud.Is the air filter cover attached correctly?Attach the air filter cover correctly.
The compressor is very hot.Is the compressor being covered?Do not cover the compressor during operation.

Note: If the suggested remedy does not solve the problem, do not try to repair the device the device is not user-serviceable. Please contact an authorized OMRON representative for assistance.

Omron Compressor Nebulizer NE-C803 Pros & Cons

Pros

  • Efficient Medication Delivery: Delivers medication quickly and effectively.
  • Compact Design: Portable and easy to transport.
  • User-Friendly Interface: Simple to operate with minimal setup required.
  • Quiet Operation: Operates at a relatively low noise level compared to other nebulizers.
  • Affordable Price: Priced competitively in the market.

Cons

  • Dependence on Electricity: Requires a power source to operate.
  • Maintenance Required: Needs regular cleaning and maintenance to ensure optimal performance.
  • Noisy Compared to Ultrasonic Nebulizers: Though quieter than many compressor nebulizers, it is still louder than ultrasonic models.
  • Bulky Compressor Unit: The compressor unit can be bulky compared to other types of nebulizers.

Customer Reviews

Customers have generally praised the Omron Compressor Nebulizer NE-C803 for its effectiveness and ease of use. Many have reported significant improvements in their respiratory symptoms after using the device. Some common praises include its quiet operation, compact design, and efficient medication delivery. However, a few users have noted that the device requires regular maintenance and can be bulky compared to other nebulizer models.

Common complaints

Include the need for frequent cleaning and the noise level being higher than some ultrasonic nebulizers. Despite these minor drawbacks, the overall feedback from customers is positive, highlighting its reliability and effectiveness in treating respiratory conditions.

Faqs

How do I assemble the Omron Compressor?

To assemble the Omron NE-C803, follow these steps: Attach the nebulizer tube to the medication cup, connect the tube to the compressor, and ensure all parts are securely fitted together. Refer to the user manual for detailed instructions and diagrams.

What is the recommended maintenance for the NE-C803?

Regular maintenance is crucial for optimal performance. Clean the nebulizer kit after each use with warm water and mild detergent. Allow all parts to air dry before storing. Also, replace the filter in the compressor unit every 1-2 months or as recommended by the manufacturer.

Can I use the Omron for pediatric patients?

Omron Compressor can be used for pediatric patients. However, it is essential to consult with a healthcare provider to ensure proper usage and to obtain any necessary pediatric accessories such as a child mask.

How long does it take to administer medication using the Nebulizer?

The time it takes to administer medication using the Omron Compressor typically ranges from 5 to 15 minutes, depending on the dose and flow rate. Follow your healthcare provider's instructions for specific treatment times.

Is the NE-C803 compatible with all types of medications?

The Omron Compressor Nebulizer is designed to work with most liquid medications prescribed for respiratory conditions. However, it is always best to consult your healthcare provider before using any new medication in the nebulizer.

Can I travel with the Omron Compressor Nebulizer?

Omron Nebulizer is designed to be portable. It comes with a carry bag that makes it convenient to transport. Ensure you pack all accessories and follow the manufacturer's guidelines for travel use.

How often should I replace the nebulizer kit?

It is recommended to replace the nebulizer kit every 1-3 months or as directed by your healthcare provider. Regular replacement ensures optimal performance and hygiene.

Is the NE-C803 suitable for patients with severe respiratory conditions?

The Omron Compressor Nebulizer NE-C803 is suitable for patients with various respiratory conditions, including severe cases. However, it is crucial to follow your healthcare provider's specific recommendations and guidelines for treatment.

What are the storage instructions for the Omron?

To store the Omron Compressor, ensure all parts are clean and dry. Store the device in its carry bag, away from direct sunlight and moisture. Follow the user manual for detailed storage instructions.

Can I purchase replacement parts for the Nebulizer?

You can purchase replacement parts such as nebulizer kits, filters, and other accessories directly from Omron or authorized retailers. Ensure you buy genuine parts to maintain the device's efficacy and warranty validity.
