Orbit Wifi Sprinkler Timer B-hyve Irrigation Controller Introduction

At Orbit, we share your passion for a beautiful landscape while protecting our most valuable resource–water. For over 40 years, this passion has driven us to deliver top of the line irrigation products to millions of customers all around the world. Our slogan, “Conservation through Innovation,” has driven our product development in timers for decades and continues to define our direction today with the B-hyve smart wifi sprinkler timer. The Orbit B-hyve is priced at approximately $79.99.

Connecting with B-hyve

Nature is a wonderful gardener and is always subtly working with you to take care of your landscape. Bees provide a great example of this remarkable, unseen effort to help your plants grow. The beehive is the central hub where this effort is coordinated, and the communication happens. While nature does a great job, sometimes a little help is needed. That is where we come in. When you connect your B-hyve timer to your wifi, you are plugging in to nature. The local weather, along with some inputs about your landscape, will work together to deliver
the right amount of water to your plants, eliminating water waste and saving you money. Thanks for connecting and welcome to B-hyve!

Contents in the Box

1. Wifi Sprinkler Timer
2. Screwdriver
3. Installation Hardware
4. Keys
5. Quick Start Guide

Detailed Specifications (Key Features)

• Wi-Fi Connectivity: Allows remote access via the B-hyve app.
• Weather Integration: Adjusts watering schedules based on real-time weather data.
• Smart Watering: Automatically skips watering during rain or high wind.
• Customizable Schedules: Set specific times and durations for each zone.
• Watering History: Tracks and displays past watering activities.
• Compatibility: Works with most standard sprinkler systems.

Getting Started

Your B-hyve sprinkler timer is great for new installations or for  replacing an old sprinkler timer. Here are some basic steps to get your timer set up and get you closer to saving water and money.

1. Install the timer
   Choose a location on your property with a good wifi signal.
2. Install the B-hyve app on your smart device
   You will need a smart device to connect the timer to wifi. After the timer is paired, you can also use a computer to adjust your timer.
3. Setup your timer with the app or at the timer
   Your timer works with and without wifi–it can be programmed with your smart device or at the timer interface.

Note: If replacing a timer, it is helpful to take a photo of the wires before you remove them from the old timer.

Timer Installation

1. Select a location
   Choose a location near power and away from direct sunlight, if possible. Make sure to leave room for the timer door to open completely.



2. Mount the timer
   Install a screw (included) into the wall. Use the expanding anchors (included) for plaster, masonry or drywall installations. Hang the timer on the installed screw using the keyhole slot. Level the timer and use the second screw in one of the preformed mounting holes to secure the timer.



3. Connect valve wires
   Strip 1/2" (12 mm) of insulation from each wire. Connect one wire from each valve to a “Common” (COM) wire and the other wires to a numbered terminal (only one wire per terminal.)



Note: We recommend you consult an electrician for hardwired installations.

Timer Installation Connecting to WIFI

1. Plug in your Orbit B-hyve timer
   Once your Orbit timer is plugged into the power source, it will automatically look to pair with your smart device. In the top left corner of the timer screen the “wifi” icon will begin a graduated blinking sequence. This indicates that your timer is ready to pair with a smart device.



2. Install the Orbit B-hyve app and create an account on your smart device



3. Find Orbit_SmartHome_XXXX  in your wifi list
   The B-hyve timer will create its own network that will appear in your list of available wifi connections on your smart device. Connect to the Orbit SmartHome network and then return to the Orbit  B-hyve app.
4. Enter your wifi settings
   After returning to the app, you will see  a list of available networks. Choose your network and then enter the password for the network to connect your timer to your wifi signal. When connected, the wifi icon on the timer will stop blinking and show solid lines.

Uninstalling/Reinstalling

• How to re-pair with wifi
  You can re-pair your smart device with your B-hyve timer by turning the dial to “Off” and pressing the reset button on the back of the swing panel. The timer display will show “Pair.”



• Deleting the timer from the app
  You may need to the delete the timer from a smart device. Go to settings to deauthorize the timer, after which it will ask for confirmation to remove the timer.



The B-hyve App

Note: There is a wizard in the app to guide you through initial set up of your sprinkler timer. In addition, there are help icons throughout the app with more information and useful tips.

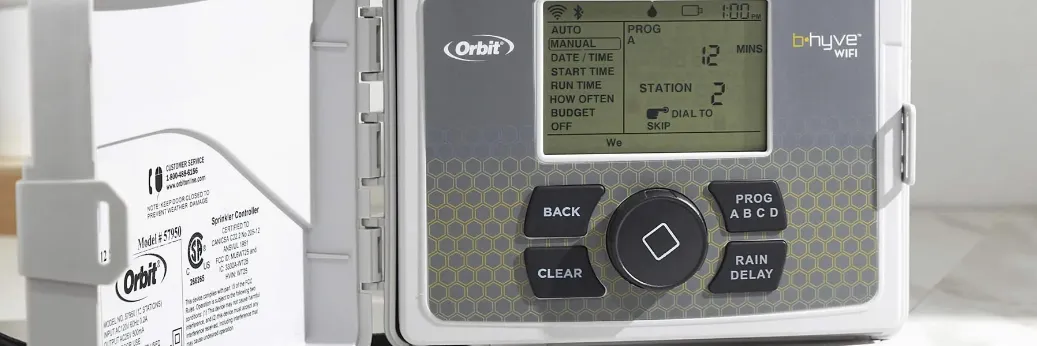

Timer Controls/Features

Your timer was built to make installation easy and fast, while providing convenient controls to make adjustments from anywhere in the world, or when you’re standing in front of the timer.

1. Lock and Latch
2. Weather Resistant
3. Cover
4. Dial
5. Digital Display
6. Swing Door Panel
7. Battery
8. Compartment
9. Transformer
10. Wiring Terminals
11. Reset Button
12. Line Cord

Simple Controls

Programming at the timer can be done whether you are connected to wifi or not. It allows the gardener who left their phone inside to run a manual cycle, or adjust programming as needed and keep dirty hands away from the phone.

Buttons	Function
	Scroll up or down, left or rightand push to make a selection
CLEAR	To clear a setting
PROG ABC	To moveto different programs: A, B, and C
BACK	To go back a step
RAIN DELAY	To pause operation for 1 to 32 days due to rain or other factors

Setup Guide

To set up the Orbit Wifi Sprinkler Timer, follow these steps:

1. Connect the controller to your Wi-Fi network using the B-hyve app.
2. Install the device near your existing sprinkler system and connect the wiring according to the provided instructions.

Using the DIAL

• The DIAL can be used to scroll up or down, left or right on menus, dates and times.

• Press the DIAL to confirm a selection, to deselect or to skip a running station.



Using the BACK and CLEAR Buttons

• The BACK button can be used return to the main menu, or can be pushed twice to return to auto.
• The CLEAR button can be used to clear entries in a selected screen.
• The CLEAR button may also be used  to cancel Rain Delay, cancel a running program or cancel a manual watering cycle.

Using the PROGRAM (PROG ABC) Button

• The A, B, C and Smart programs provide the flexibility to set up and run different programs for plants with different watering needs. For example: you could set your lawn zones to run on program A, your flowerbeds to run on program B and your garden to run on program C. Or, you can set up your zones to use smart watering and the timer will use local weather and on-site information to automatically set a watering schedule for you.
• The PROG ABC button toggles between programs when setting up or modifying start times, run times, how long and budget.
• Press PROG ABC to turn on or off programs that have been set-up. A, B, C or Smart will illuminate to show programs that are active and will water.
  Note: To water in smart mode only, the Phone icon is the only program that should be showing in the LCD.
  Note: If you do not see the program letter (A, B, C or the phone) in the LCD, that program will not water. Press PROG ABC until you see the program(s) that you wish to water.

Using the RAIN DELAY Button

• The RAIN DELAY button can be used to turn off all watering for a duration of 1 to 32 days.
• Press RAIN DELAY repeatedly, or turn the dial after pressing rain delay once, until the desired number of days is showing in the LCD.
• To cancel a rain delay, press CLEAR.

Timer LCD

Programming the Timer–AUTO and OFF

• The timer should be in AUTO during the irrigation season and OFF in the winter months or the non-irrigation months.
• Turn the dial to the AUTO position and press the dial or just leave it there to keep it in AUTO.
• If the dial selection is left in any position other than OFF, it will revert back to AUTO after approximately 20 seconds.
• To turn your timer OFF, turn the dial to OFF and press the dial or just leave it in the OFF position.

Note: Programming for each of the features covered here can be accomplished at the timer or with the app.

Programming the Timer–DATE/TIME

• If you are connected to wifi, the time  and date will automatically be sent to the sprinkler timer.
• To set the date and time manually, turn the dial until the selection box is on DATE/TIME and press the dial.
• Set the date by turning the dial until the correct year, month and day are shown and press the dial to confirm each selection.
• When setting the time, press the dial when the right time is set. Be careful to make sure that the am/pm selection is correct.

Programming the Timer–START TIME

• This is the time that the first zone will begin watering. Only one start time is needed to run each station in the program.
• Turn the dial until the selection box is on START TIME and press the dial.
• Turn the dial to the desired start hour and press the dial to confirm the selection.
• Turn the dial to the desired start minute and press the dial to confirm the selection.
  • Note: only one start time is needed to run all of your zones and that start time will show up as 1st.  If additional start times are needed, repeat this process. Additional start times are helpful to avoid run off and allow time for the soil to absorb the water.
• Press PROG ABC to set up start times for additional programs.

Programming the Timer–RUN TIME

• This is where you will set up how long each zone will run
• Turn the dial until the selection box is on RUN TIME and press the dial.
• The station number will flash–turn the dial until the desired zone is flashing and press the dial.
• The duration for that zone will flash–turn the dial until the desired duration is showing and press the dial.
• Repeat this process for each zone you wish to set up.
• If you wish to set-up zones in different programs, A B or C, press the PROG ABC button until the program is showing in the LCD.

Programming the Timer–HOW OFTEN

• This will determine HOW OFTEN (what days or interval) the timer will water.
• Turn the dial until the selection box is on HOW OFTEN and press the dial.
• Rotate the dial until the desired day of the week or Odd/Even or Int is flashing and press the dial.
• If days of the week are chosen, repeat this process until all of the desired watering days have a box around them.
• If INT (interval) is chosen, rotate the dial until the desired number of days between waterings is showing.
• If you are setting up additional programs, A B or C, press the PROG ABC button until the program is showing in the LCD and repeat this process.

Programming the Timer–BUDGET

• Budget makes it easy to change all of your run times without having to change them one by one.
• Turn the dial until the selection box is on BUDGET and press the dial.
• Adjusting budget will adjust all of the run times in a program by the percentage chosen.
  • Example: If you have zones set up to water for 10 minutes and you adjust your budget from 100% to 150%, those same zones will water for 15 minutes without having to change each run time.
• Budget is an easy way to adjust all zones for seasonal changes.
• If you are setting up additional programs, A B or C, press the PROG ABC button until the program is showing in the LCD and repeat this process.

Description

The Orbit Wifi Sprinkler Timer B-hyve Irrigation Controller is a sleek and compact device that easily integrates into your existing sprinkler system. Its durable design ensures long-term reliability, while the user-friendly interface makes it easy to operate even for those not tech-savvy. The controller supports up to 12 zones, allowing you to manage multiple areas of your lawn independently.

One of the standout features of this product is its ability to learn and adapt to your lawn's specific needs over time, optimizing water usage without compromising on lawn health. The device also includes a manual override option for those occasional quick waterings or adjustments.

Manual Operation

Manual is used to test zones or run an extra cycle for a zone, a program or for all zones. Turn the dial until the selection box is on MANUAL and press the dial. ALL will be displayed in the LCD.
To water all zones

• Press the dial while ALL is displayed and it will ask for a duration.
• Rotate the dial to the desired duration.
• Press the dial to begin watering.

To water a specific program-A, B or C

• When ALL is displayed, rotate the dial until the program you wish to water is showing.
• Press the dial to begin watering the specified program.

To water a specific zone–

• When ALL is displayed, rotate the dial past the A, B, C programs until Station and a number appear and press the dial.
• Rotate the dial to the desired zone and press the dial to enter a duration.
• Rotate the dial to the desired duration and press the dial to begin watering.

Note: you can program more than one specific zone using this process. Repeat the steps for zone selection and duration to water additional zones.

Remember, you can set your timer up with the app. But, if you don’t have wifi or just want to make an adjustment while you are outside, you can do it at the timer. Timer changes will be reflected in the app, and app changes will be reflected at the timer.

For more detailed instructions or troubleshooting information, visit bhyve.orbitonline.com

Also, the app has help screens and  video to assist you with wifi connections, programming, smart watering and other general questions you may have.   If the app and the website don’t have what you’re looking for, please call our technical support line.

Troubleshooting

If you encounter issues with your Orbit Wifi Sprinkler Timer, here are some common problems and solutions:

• Wi-Fi Connection Issues: Check your network's strength and restart both your router and the controller if necessary.
• Incorrect Zone Operation: Verify that all wiring connections are secure and correctly labeled.
• Watering Schedule Conflicts: Ensure that there are no overlapping schedules or conflicts between manual overrides and automated settings.
• App Connectivity Problems: Update the B-hyve app to the latest version or restart your mobile device.

Always refer to the user manual for detailed troubleshooting steps or contact Orbit's customer support if issues persist.

Orbit Wifi Sprinkler Timer Pros & Cons

Pros

• Efficient Water Usage: Optimizes watering schedules based on real-time weather data.
• Easy Installation: Simple setup process with clear instructions.
• Remote Access: Control your sprinkler system from anywhere via the B-hyve app.
• Adaptive Learning: The system learns your lawn's needs over time for better results.

Cons

• Dependence on Wi-Fi: Requires a stable internet connection for full functionality.
• Occasional App Glitches: Some users report occasional connectivity issues with the app.
• No Battery Backup Option: The device requires constant power supply; consider using a UPS during power outages.

Customer Reviews

Customer reviews generally praise the Orbit Wifi Sprinkler Timer for its ease of use and efficiency. Many users appreciate how it has helped them save water while maintaining a healthy lawn. However, some users have reported occasional connectivity issues with the app and a few instances of incorrect zone operations due to wiring errors. Overall, it is well-received as a reliable smart irrigation solution.
