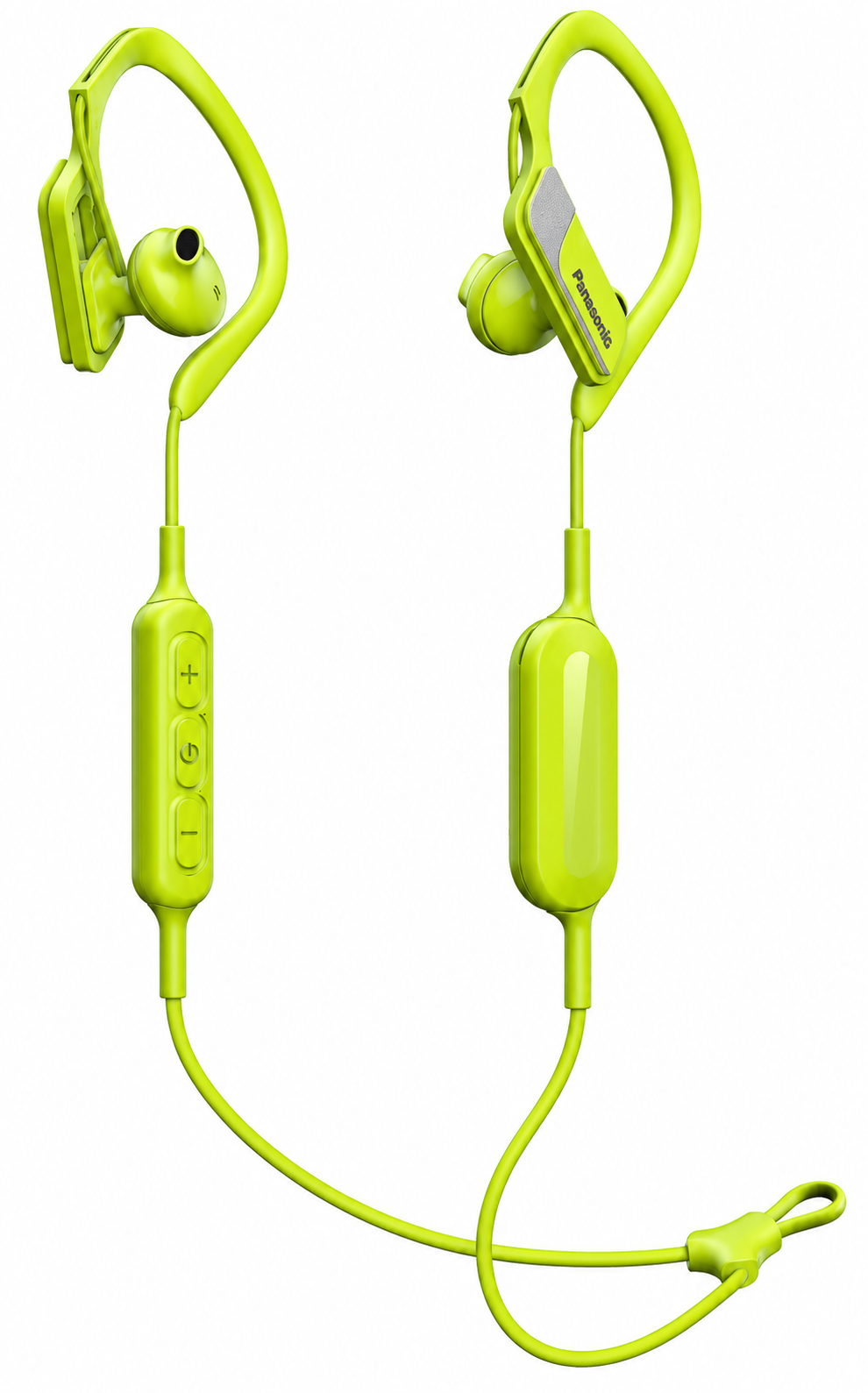

Introduction of Panasonic Stereo Earphones RP-BTS10

The Panasonic Stereo Earphones RP-BTS10 are a perfect blend of style, comfort, and advanced technology. These earphones are designed to deliver high-quality sound, making them ideal for music lovers who value crystal-clear audio. With an estimated price range of $50 to $60, these earphones are a steal, considering their exceptional features and performance. Although the launching date is yet to be confirmed by Panasonic, we expect them to hit the market soon.

Accessories

• 1 USB charging cord



Specifications

General

• Power supply

  • DC 5 V, 0.6 W

  • Internal battery: 3.7 V (Li-polymer 90 mAh)

• Operating time

  • Approx. 4 hours 20 minutes

• Charging time

  • Approx. 90 minutes (25 ºC (77 ºF))

• Charging temperature range

  • 10 ºC to 35 ºC (50 ºF to 95 ºF)

• Operating temperature range

  • 0 ºC to 40 ºC (32 ºF to 104 ºF)

• Operating humidity range

  • 35% RH to 80% RH (no condensation)

• Mass (Weight)

  • Approx. 20 g (0.7 oz)

• Water resistant

  • IPX2 equivalent

Bluetooth section

• Bluetooth system specification

  • Ver. 4.1

• Wireless equipment classification

  • Class 2 (2.5 mW)

• Frequency band

  • 2402 MHz to 2480 MHz

• Max RF power

  • 4 dBm (EIRP)

• Supported profiles

  • A2DP, AVRCP, HSP, HFP

• Supported codec

  • SBC

• Operating distance

  • Up to 10 m (33 ft.)

Speaker section

• Driver units: 14.3 mm (9/16 in.)

Terminal section

• DC IN DC: 5 V, 0.6 W

Microphone section

• Type: Mono

Accessory section

• USB charging cord: 0.1 m (0.3 ft.)

Panasonic Stereo Earphones RP-BTS10 Part names

• Earphone
• Remote controller
• LED indicator light
• Charging terminal
• USB lid
• Microphone
• Cord adjuster
• Battery case (Please remove the battery when disposing of this product. Please read the instruction on this manual.)
• Clip

Note: Tightening the cord too short using the cord adjuster will cause the clip to open and not fit securely. It is recommended that the cord not be overly tight so as to allow for a proper fit and normal movement. The product illustrations may differ from the actual product.

Charging

• LED indicator light (next to charging terminal)



• If PC used for charging enters “sleep mode”, charging may not take place. Press the center button for 5 seconds, until the LED blinks Red & Blue. Remote controller

  • Close the charging terminal cover securely.



  • Do not touch the charging terminal with wet hand.
• If sweat or liquid is attached to the charging terminal, malfunction may occur.

Description of Panasonic Stereo Earphones RP-BTS10

The Panasonic Stereo Earphones RP-BTS10 feature a sleek and lightweight design, making them comfortable to wear for extended periods. These earphones come with Bluetooth 5.0 technology, ensuring a stable and fast connection with your devices. The earphones have a battery life of up to six hours, providing you with uninterrupted music experience throughout the day. Additionally, the RP-BTS10 earphones are sweat-resistant, making them perfect for workouts and outdoor activities.

Connecting a Bluetooth device

Remote controller

1. Press the center button for 5 seconds, until the LED blinks Red & Blue



2. When the LED is blinking you’ve successfully placed the unit in the Pairing mode.



Go to your smart device’s Bluetooth menu and select this device. ice’s
LED lighting color

• Red
• Blue

Enjoy !

Operation example of the remote control

Note: “Increase/Decrease the volume” function is not available while pause.

Making a phone call

1. Connect the Bluetooth enabled phone and unit
2. When answering an incoming call: Press on the unit and answer the call When making an outgoing call: Make an outgoing call on the Bluetooth enabled phone
3. Start talking
4. Press to end the phone call

Setup Guide

Setting up the Panasonic Stereo Earphones RP-BTS10 is a breeze. Here are the steps to follow: 1. Turn on the earphones by pressing and holding the power button until the LED light turns on. 2. Activate Bluetooth on your device and search for the "RP-BTS10" in the list of available devices. 3. Tap on the "RP-BTS10" to connect. Once connected, the LED light on the earphones will flash blue and red. 4. To adjust the volume, press the + or - button on the earphones.

Phone calls

You cannot hear the other person / Your voice does not reach the other person

• Make sure that the unit and the Bluetooth enabled phone are turned on.
• Check if the unit and the Bluetooth enabled phone are connected. (→ 2 “Connecting a Bluetooth device”)
• Check the audio settings of the Bluetooth enabled phone. Switch the calling device to the unit if it is set to the Bluetooth enabled phone.
• If the volume of the other person’s voice is too low, increase the volume of both the unit and the Bluetooth enabled phone.
• Water, etc. may be adhering to the inside the earphones. Adhering water, etc. may lower the voice of the other person.
• Water, etc. may be adhering to the microphone. Your voice may not reach the other person due to adhering water, etc.

Maintenance

• Clean this unit with a dry and soft cloth
  • Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.
• Keeping the battery performance
  • During the long period of disuse, full charge this unit once every 6 months to keep the battery performance.

To remove the battery when disposing of this unit

The following instructions are not intended for repairing purposes but for the disposal of this unit. This unit is not restorable once disassembled. When disposing of this unit, take out the battery installed in this unit and recycle it.

Danger
As the rechargeable battery is specifically for this product, do not use it for any other device.

• Do not charge the removed battery.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not pierce the battery with a nail, subject it to an impact, or dismantle or modify it.
• Do not let the wires touch any other metal or each other.
• Do not carry or store the battery with a necklace, hair pin, or the like. Doing so may cause the battery to generate heat, ignite, or rupture.

Warning

• Do not place the removed battery, and other items within reach of infants. Accidental swallowing of such an item may have an adverse effect on the body.
• In the event that you think such an item has been swallowed, consult a doctor immediately. In the event of fluid leaking from the battery, take the following measure, and do not touch the fluid with bare hands. Fluid entering into an eye may cause loss of eyesight.
• Wash the eye with water immediately without rubbing it, and then consult a doctor. Fluid getting on your body or clothes may cause inflammation of the skin or injury.
• Sufficiently rinse with clean water, and then consult a doctor. A lithium-ion polymer rechargeable battery is built in to the battery case. Please discard according to local regulations. When disposing this product, disassemble properly by following the procedure, and remove the internal rechargeable battery.
• Disassemble after the battery runs out.

• When disposing of the battery, please contact your local authorities or dealer and ask for the correct method of disposal.



1. Put a straight-slot screwdriver (commercially available) into the battery case.
   • Make sure to keep fingers away from the tip of the screwdriver.
   • Select a screwdriver to be large enough for a space under the joint part.
2. Use the screwdriver for leverage, push and open the battery case.
   • Be careful not to touch the battery with the screwdriver.
3. Hold the battery and remove it.
4. Pull off the battery and separate it from the battery case by cutting off the wires, one by one, with scissors.
   • Insulate the wire parts of the removed battery with electric tape.
   • Do not damage or dismantle the battery.

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to “Customer Services Directory” if you reside in the U.S.A., or refer to “CONTACT INFORMATION” if you reside in Canada.

General

The unit does not respond

• Push button for 10 seconds. The unit will be reset.
  (The pairing device information will not be deleted.)

Power supply and charging

If you are having difficulty charging the unit

• Make sure the computer is turned on and is not on standby or sleep mode.
• Is the USB port you are currently using working properly? If your computer has other USB ports, unplug the connector from its current port and plug it into one of the other ports.
• If the steps mentioned above are not applicable, unplug the USB charging cord and plug it in again.
• If the charge time and operating time become shortened, the battery may have run down. (Number of charging times of the installed battery: Approximately 300.)

Charging takes longer

• Make sure to charge in a room temperature between 10 °C and 35 °C (50 °F and 95 °F).

LED does not light during charging

• Is the USB charging cord (supplied) connected firmly to the USB terminal of the computer? (→ 1 “Charging”)

The power does not turn on

• Is the unit being charged? The power cannot be turned on during charging. (→ 1 “Charging”)

Bluetooth device connection

• The device cannot be connected
  Delete the pairing information for this unit from the Bluetooth® device, then pair them again. (→ 2 “Connecting a Bluetooth® device”)

Sound and audio volume

No sound

• Make sure that the unit and the Bluetooth device are connected correctly. (→ 2 “Connecting a Bluetooth device”)
• Check if music is playing on the Bluetooth device.
• Make sure that the unit is turned on and the volume is not set too low.
• Pair and connect the Bluetooth device and the unit again. (→ 2 “Connecting a Bluetooth device”)

Low volume

• Increase the volume of the unit. (→ 3 “Enjoy !”)
• Increase the volume on the Bluetooth® device.

Sound from the device is cut off / Sound quality is bad

• Sound may be disrupted if signals are blocked. Do not fully cover this unit with the palm of your hand, etc.
• The device may be out of the 10 m (33 feet) communication range. Move the device closer to this unit.
• Remove any obstacle between this unit and the device.
• Switch off any wireless LAN device when not in use.
• A communication problem may arise if the battery is not fully charged. Charge the unit. (→ 1 “Charging”)

Panasonic Stereo Earphones RP-BTS10 Warranty

Pros & Cons

Pros

• High-quality sound
• Lightweight and comfortable design
• Bluetooth 5.0 technology
• Long battery life
• Sweat-resistant

Cons

• No noise-canceling feature
• No volume control on the earphones

Customer Reviews about Panasonic Stereo Earphones RP-BTS10

Customers have praised the Panasonic Stereo Earphones RP-BTS10 for their excellent sound quality, comfortable fit, and long battery life. However, some have expressed disappointment that the earphones do not have a noise-canceling feature or volume control on the earphones.
