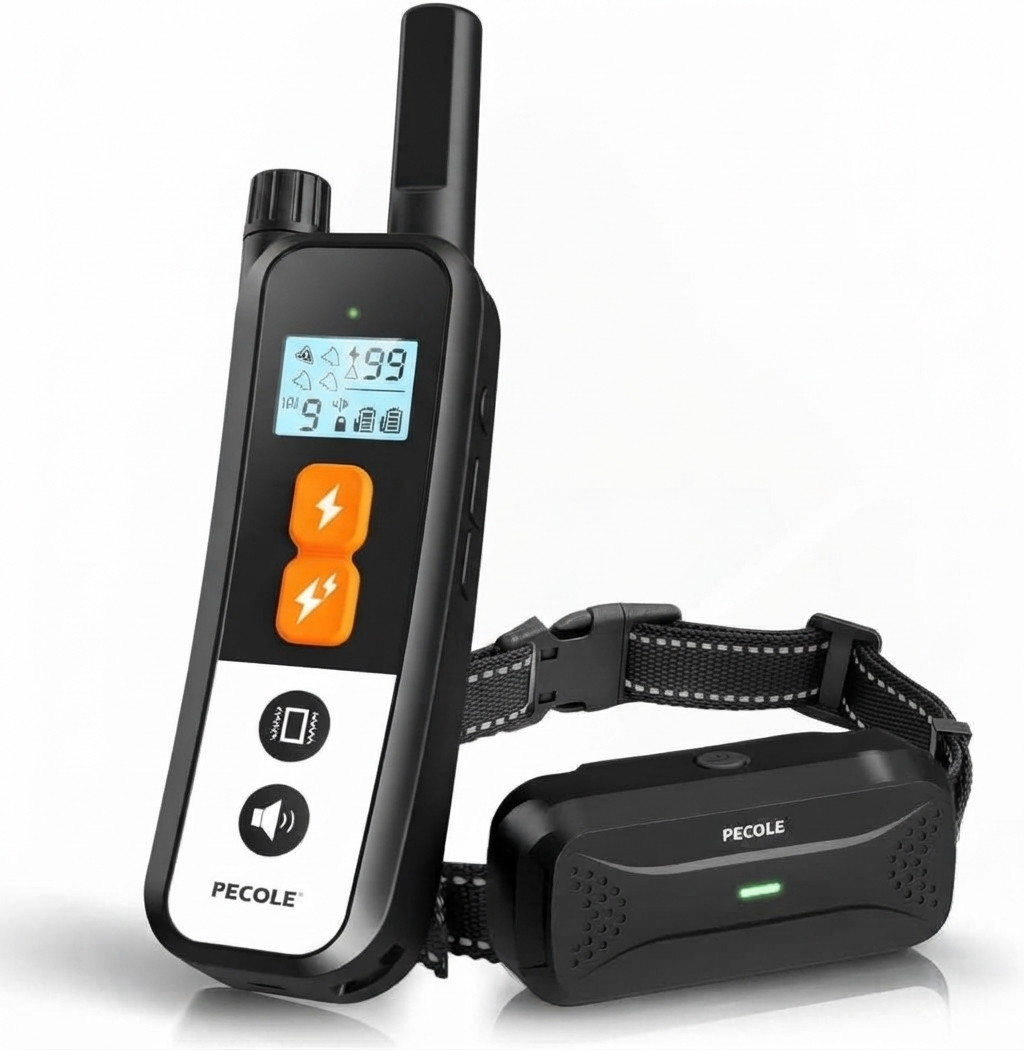

Introduction of Pecole Dog Training Collar PE-18

Pecole Dog Training Collar PE-18 is an advanced training tool designed to help dog owners train their pets with ease. This collar boasts of cutting-edge features such as a remote control with a range of up to 1000 feet, rechargeable batteries for both the collar and remote, and multiple correction modes to suit your dog's temperament. With an estimated price range of $60 to $80, this training collar is set to launch in the market soon.

Detailed Specifications

Here are the detailed specifications of the Pecole Dog Training Collar PE-18:

• Remote range: up to 1000 feet
• Waterproof collar: IPX7 rating
• Rechargeable batteries: remote and collar
• Charging time: 2-3 hours
• Battery life: up to 15 days
• Correction modes: beep, vibration, and shock
• Shock levels: 0-99
• Adjustable collar size: 7-27 inches
• Weight: 3.2 ounces
• Screen: LCD with backlight

Components

Remote transmitter	Used to remotely control the receiver collar to train pets.
Receiver collar	Wear it on your dog to receive the command from the remote transmitter.
USB charging cable	Used to charge the remote transmitter and receiver collar.
Wrist strap	Install it on the remote transmitter to prevent loss.
User manual	Detailed product specifications.
Test light tool	Used for impact function test and as a tool for tightening or loosening contact points.

Contact points	2 long contact points for dogs with thick hair   2 short contact points for dogs with short hair
Conductive silicone prongs	Sleeve on the contact point to make the contact point softer.

Pecole Dog Training Collar PE-18 Function

Remote transmitter

Receiver collar

Key definitions

Main characteristics

	Vibration, beep and shock training model
	9 adjustable vibration levels and 99 adjustable shock levels
	Dual battery status display of remote transmitter and receiver collar
	The waterproof grade of the receiver collar is IPX7 (the remote transmitter is not waterproof)
	Remote control range 1600 feet
	Long-life lithium polymer battery
	Large digital display
	One remote transmitter can support up to 4 receiver collars
	Magnetic charging port

Product setting steps

*In accordance with the following product steps before using the dog training collar.

Remote transmitter and receiver collar charging

When the charging is completed, the green light will be on.

Installation of contact points and conductive silicone prongs

1. Select the correct contact points and length of conductive silicone prongs according to your dog’s hair type.

   • For dogs with thick hair, please use 2 long contact points and conductive silicone prongs.

   • For dogs with short hair, please use 2 short contact points and conductive silicone prongs.

2. Insert the contact point into the port of the receiver collar, use the test light tool to rotate clockwise and tighten it (3A).

3. Install the conductive silicone prongs on the contact point to make it softer – it can be more comfortable to the dog’s skin (3B).



Adjustable receiver collar

1. Untie the strap from the slide buckle (4A).

2. Adjust the slide buckle according to the size of the dog (4B).

3. Pass the strap through the slide buckle (4C).

4. Thread the excess strap through the buckle (4D).



Description

The Pecole Dog Training Collar PE-18 is a versatile and reliable training tool that can help you train your dog in various scenarios. Its waterproof feature allows your pet to wear it during outdoor activities, such as swimming or playing in the rain. The collar's remote control has a long-range capability, up to 1000 feet, giving you the freedom to train your dog from a distance.

The collar also features multiple correction modes, such as beep, vibration, and shock, with adjustable levels to suit your dog's temperament. Its rechargeable batteries can last up to 15 days, and the LCD screen on the remote control displays the collar's battery level and correction mode. The collar's adjustable size fits dogs with neck sizes ranging from 7 to 27 inches, making it suitable for various breeds.

Test of Pecole Dog Training Collar PE-18

1. Turning on the receiver collar
   Press receiver collar button for 5 seconds until the green LED light flickers quickly. In normal mode, the green LED light will flash, indicating that the receiver collar is turned on and ready to receive the signal from the remote transmitter.

2. Turning off the receiver collar
   Press receiver collar button for 3 seconds until the red LED light appears.
   Note: in order to prolong the battery life, please turn off the receiver collar when not in use.

3. Note: First press the vibration/beep/shock button next to the controller, and then adjust the strength through the switch knob of the controller to adjust strength for vibration/beep/shock. The vibration level can be adjusted from 1 to 9, and the static shock level can be adjusted from 1 to 99. Please adjust it according to your dog’s reaction. It is not recommended to hold down the vibration button for too long to avoid any physiological or psychological impact on your dog.

How to use the test light tool

1. Shock function test

   • Turn on the receiver collar.

   • Attach the contactor of the test light tool to the contact points (or conductive silicone prongs).

   • Press the shock button, and the test light tool will light up. It will light up according to the increase of shock degree.

2. As a tool for tightening or loosening the contact points



Pairing

NOTE: You can skip this step because this setting has been paired with the factory settings.

1. please ensure that the receiver collar is turned off.

2. Hold down the switch for 5 seconds until the green light flashes quickly.



3. Controller pairing: press and hold the channel selection button D to pair the receiver collar.



4. Pairing succeeded: the receiver collar will beep and the green light will flash slowly.



Installing the receiver collar

NOTE: The contact point must directly contact the skin of the dog’s neck, check the tightness of the receiver collar, and insert two fingers tightly between the receiver collar and neck.

Turning on the remote transmitter and receiver collar

When the collar is not used, pel ase turn off the remote transmitter and receiver collar ot increase the battery life. (Press the button for 3 seconds to turn off the receiver collar.

Keypad lock

Three training mode instructions

1. Beep instruction
   Give an instruction to the receiver collar to beep at an unadjustable volume



2. Vibration instruction
   Give a vibration instruction to the receiver collar.
   Adjustment of vibration strength: hold down the vibration level button B and simultaneously rotate the level regulator A of the remote transmitter.



3. Shock instruction





Multiple receiver collar systems

NOTE: If you only use one receiver collar, please skip this step. This setting only applies to multiple receiver collar with one remote transmitter.)
Pairing the 2nd, 3rd or 4th receiver collar
(NOTE: You should buy an extra receiver collar.)

1. Receiver collar
   Make sure the receiver collar is turned off.
   Press and hold the switch for 5 seconds until the green light flashes quickly.

2. Remote transmitter
   Press and hold the pairing/channel selection button D, and simultaneously rotate the level regulator A to select the dog icon. (For example, Dog 2, the Dog 2 icon will flash .)
   Press the remote transmitter pairing/channel selection button D to pair the receiver collar.

Receiver collar switching
You can train 4 dogs by switching channels.
Press and hold the pairing/channel selection button D, and simultaneously rotate the level regulator A to select the dogs to be trained.

Reset all paired receiver collars
Make sure the remote transmitter is “ON”.
Press and hold the button B and C, turn the regulator switch A from OFF to ON. All paired receivers collar will be deleted and the Dog 1 icon will be flashes. Pair the receiver collar again.

Matters needing attention in pet training

1. Select contact points and conductive silicone prongs.
   For the best effect, please choose the right contact point according to your dog’s coat.
   For dogs with thick hair, please use 2 long contact points and conductive silicone prongs.
   For dogs with short hair, please use 2 short contact points and conductive silicone prongs.

2. Accessories suitable for training
   Please wear the receiver collar correctly, so that the contact point is close to the dog’s skin.
   After the receiver collar is worn correctly, you should be able to put two fingers between the receiver collar and the dog’s neck.
   Too loose: the receiver collar will move around your dog’s neck, and the contact point may hurt your dog’s skin.
   Too tight: it may cause breathing difficulties to your dog.

Precautions

• Don’t shave your pet’s neck, because it will increase the risk of skin irritation.

• Don’t wear the receiver collarfor more than 12 hours every day, otherwise it may cause skin irritation

Setup Guide

Here's how to operate, assemble, configure, and pair the Pecole Dog Training Collar PE-18:

1. Charge both the collar and remote control using the included USB cable.
2. Adjust the collar size to fit your dog's neck.
3. Turn on the collar and remote control by pressing the power button.
4. Pair the collar and remote control by holding the pairing button on both devices until they connect.
5. Test the correction modes to ensure they work correctly.

Important safety information

The warning and caution are used to remind you of potential dangers. Please observe the warning and be careful with all the safety information to avoid possible harm.
Warning: This product is not suitable for aggressive dogs. If your dog is prone to aggressive behaviors, please do not use this product. Aggressive dogs may cause serious harm to the owner and others. If you are not sure whether this product is suitable for your dog, please consult your veterinarian or certified trainers.
Caution: It indicates a dangerous situation that, if not avoided, can lead to mild or moderate injuries. Safety during training: your dog should have a strong leash. The leash should have a certain length, so as to enable your dog to chase an object and prevent your dog from reaching the road or other unsafe places. When your dog tries to chase you, you must also have enough physical strength to restrain it. The dog training collar is not a toy, please keep it out of the reach of children.
Caution: It indicates a dangerous situation that, if not avoided, may cause injuries to your pet. Please read carefully and follow the instructions in this user manual. It is very important to wear the receiver collar correctly. If the receiver collar is worn too long or too tight on your pet’s neck, it may cause skin injuries, from redness to pressure ulcer, which is often called as bedsore.

• Avoid wearing the receiver collar on your dog for more than 12 hours every day.

• The receiver collar can be re-positioned on your pet’s neck every 1 to 3 hours.

• Check whether the strength is appropriate to prevent excessive pressure. Please set it according to the instructions in this user manual.

• When using a separate receiver collar to tie the dog leash, it is not allowed to overlap it on the receiver collar to avoid excessive pressure at the contact points of the receiver collar.

• Clean the dog’s neck and receiver collar contact points with a wet cloth every week.

• Check the neck of the dog in contact with the receiver collar daily for signs of rash or bedsores.

• If rash or bedsore is found, please stop using the collar until the skin heals.

• If the rash or bedsore persists for more than 48 hours, please take your dog to the vet.

Troubleshooting

Here are some common problems and solutions for the Pecole Dog Training Collar PE-18:

• Problem: Remote control and collar are not pairing. Solution: Ensure both devices are charged and in pairing mode.
• Problem: Collar's battery drains quickly. Solution: Check if the collar is in deep sleep mode when not in use. You can also adjust the correction mode levels to conserve battery life.
• Problem: Remote control's screen is not displaying correctly. Solution: Ensure the remote control is charged and the backlight is on.

Pros & Cons

Pros

• Long-range remote control
• Waterproof collar
• Multiple correction modes
• Rechargeable batteries
• Adjustable collar size

Cons

• Some dogs may not respond to the shock mode
• The LCD screen on the remote control may be hard to read in bright sunlight

Customer Reviews about Pecole Dog Training Collar PE-18

Customers love the Pecole Dog Training Collar PE-18 for its long-range capability and waterproof feature. They also appreciate its multiple correction modes and rechargeable batteries. However, some customers complain that the shock mode is not effective on their dogs, and the LCD screen on the remote control is hard to read in bright sunlight.
