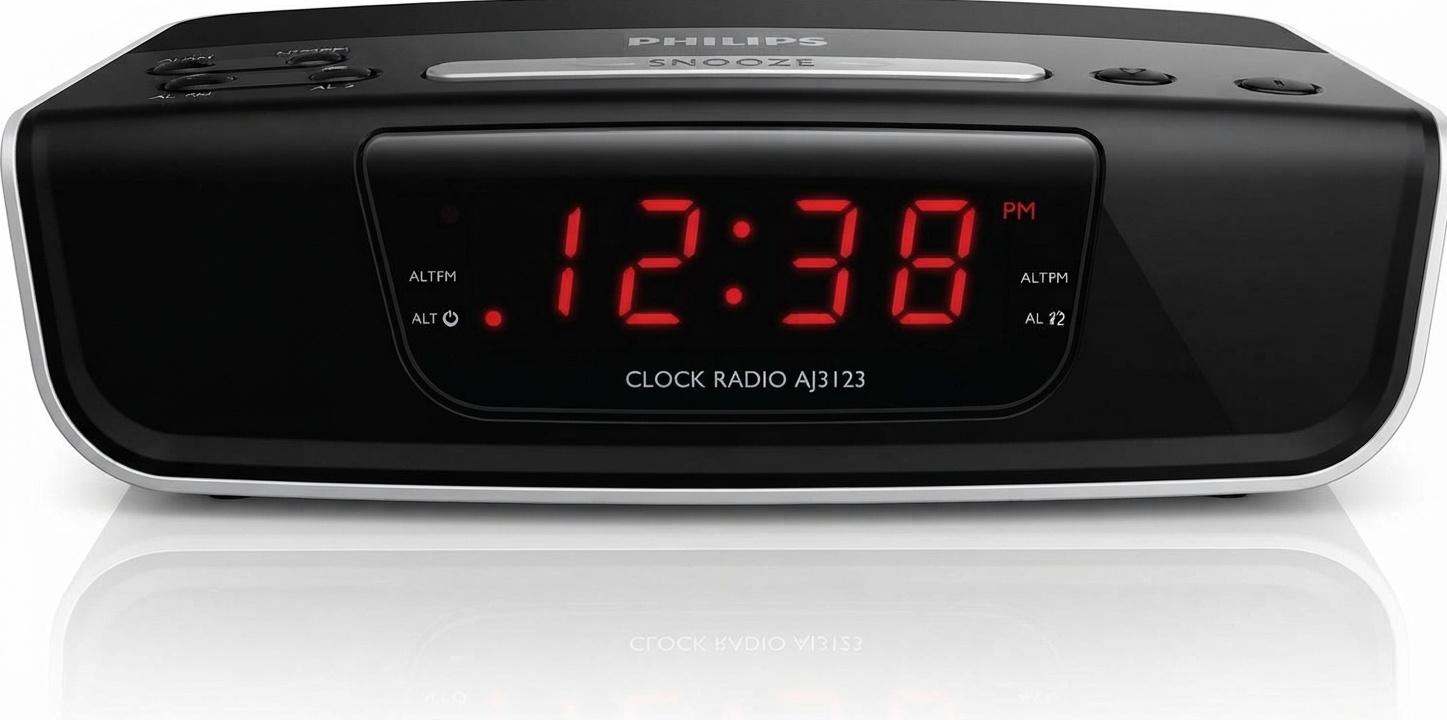

Introduction of Philips Digital Tuning Clock Radio AJ3123

The Philips Digital Tuning Clock Radio AJ3123 is a modern and functional alarm clock designed to enhance your morning routine. Featuring a clear digital display and easy-to-use tuning controls, it allows users to wake up to their favorite radio stations or a traditional buzzer. The adjustable brightness ensures visibility at any time of day, while the built-in battery backup keeps your settings intact during power outages. The cost of the Philips Digital Tuning Clock Radio is approximately $29.99.

Specifications

Amplifier

• Total Output Power: 200 MW

Tuner (FM)

• Tuning range: 87.5-108 MHz
• Tuning grid: 50 KHz

Sensitivity

• Mono, 26 dB S/N Ratio
• Stereo, 46 dB S/N Ratio
  • <22 dBf
  • <51.5 dBf
• Total Harmonic Distortion: <3%
• Signal to Noise Ratio: >50 dBA

General information

• AC power (power adapter)
• Brand name: Philips
• Model: AS030-060-EE050 / EML0600500
• Input: 100-240 V~, 50/60 Hz; 0.15 A
• Output: 6 V 0.5 A
• Operation Power Consumption: <5 W
• Standby Power Consumption: <1 W

Dimensions

• Main Unit (W x H x D): 177 x 48 x 123 mm

Weight

• Main Unit: 0.3 kg
• With Packing: 0.4 kg

Your clock radio

To fully benefit from the support that Philips offers, register your product at https://www.philips.com/support

What’s in the box

(Fig.1)

Get started

Always follow the instructions in this chapter in sequence.

Install battery

The battery can only back up clock and alarm settings.

Caution

• Risk of explosion! Keep the battery away from heat, sunshine or fire. Never discard battery in fire.
• The battery contains chemical substances, so it should be disposed of properly.

Insert 2 AAA batteries (not supplied) with correct polarity (+/-). (Fig.3)

Tip: The display backlight is off when AC power is disconnected.

Connect power

(Fig.2)

Caution

• Risk of product damage! Make sure that the power voltage corresponds to the voltage printed on the back or underside of the clock radio.
• Risk of electric shock! When you unplug the power adapter, always pull the plug from the socket. Never pull the cord.

Note

The type plate is located at the bottom of the clock radio.

Philips Digital Tuning Clock Radio AJ3123 Set time

(Fig.5)

Note: You can only set time in standby mode.

Description

The Philips Digital Tuning Clock Radio AJ3123 boasts a sleek and contemporary design, fitting seamlessly into any home decor. The large LCD display ensures that the time, date, and current radio station are always visible. The device supports both FM and AM radio bands, providing access to a wide range of stations. Its compact size makes it easy to place on a bedside table or kitchen counter without taking up too much space.

The user interface is intuitive, with clear buttons for adjusting volume, tuning stations, and setting alarms. The built-in sleep timer allows you to drift off to sleep while listening to your favorite show or music, automatically turning off after the set period.

Listen to FM radio

Note

• Keep the clock radio away from other electronic devices to avoid radio interference.
• For better reception, fully extend and adjust the position of the FM antenna.

Tune to FM radio stations

(Fig.6)

Store FM radio stations manually
You can store up to 10 FM radio stations.

1. Tune to an FM radio station.
2. Press and hold PRESET for two seconds.» » The preset number begins to blink.
3. Press TUNING repeatedly to select a number.
4. Press PRESET again to confirm.
5. Repeat steps 1 to 4 to store other stations.

Tip: To remove a pre-stored station, store another station in its place.

Select a preset radio station
In tuner mode, press PRESET repeatedly to select a preset number.

Other features

Set alarm timer

Set alarm

Note

• You can only set the alarm in standby mode.
• Make sure that you have set the clock correctly.

Follow the illustration to set the first alarm. (Fig.7)

• AL1: set the first alarm.
• AL2: set the second alarm.

Tip: The clock radio exits alarm setting mode when being idle for 10 seconds.

Select alarm source

You can select FM radio or buzzer as the alarm source. (Fig.8)

The corresponding alarm icon lights up.

Note

• If FM radio is selected as alarm source, when alarm sounds, volume rises gradually. You cannot adjust the alarm volume manually.
• If Buzzer is selected as alarm source, the alarm volume will be at default level and cannot be adjusted.

Activate/deactivate alarm timer

Press AL1 or AL2 repeatedly to activate or deactivate the alarm timer.

• If the alarm timer is deactivated, the alarm indicator turns off.
• The alarm repeats ringing for the next day.

Snooze alarm

The alarm snoozes and repeats ringing nine minutes later.

Set sleep timer

This clock radio can switch to standby mode automatically after a preset period. (Fig.4)

To deactivate the sleep timer:

• Press SLEEP repeatedly until [OFF] (off) appears.

Setup Guide

To operate the Philips Digital Tuning Clock Radio AJ3123, follow these steps:

1. Plug in the device or insert batteries if using battery backup.
2. Set the time and date by pressing the corresponding buttons.
3. Tune into your desired radio station using the auto-tune or manual tune options.
4. Set your alarm by selecting the type (radio or buzzer) and setting the wake-up time.
5. Use the sleep timer option if desired to automatically turn off the radio after a specified period.

Important

• Read these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the clock radio.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this clock radio during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the clock radio has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the clock radio, the clock radio has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the clock radio:
• Install the battery correctly, + and - as marked on the clock radio.
• Remove the battery when the clock radio is not used for a long time.
• The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• This clock radio shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the clock radio (e.g. liquid filled objects, lighted candles).
• Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the disconnect device shall remain readily operable.

Philips Digital Tuning Clock Radio AJ3123 Troubleshooting

Warning
Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/support). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
No power

• Ensure that the AC power plug of the unit is connected properly.
• Ensure that there is power at the AC outlet.

No sound

• Adjust the volume.

No response from the unit

• Disconnect and reconnect the AC power plug, then turn on the unit again.

Poor radio reception

• Increase the distance between the unit and your TV or VCR.
• Fully extend the FM antenna.

Alarm does not work

• Set the clock/alarm correctly.

Clock/alarm setting erased

• Power has been interrupted or the power plug has been disconnected.
• Reset the clock/alarm.

Gibson Innovations declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can find the Declaration of Conformity on https://www.philips.com/support

Pros & Cons

Pros

• Compact design suitable for small spaces.
• Clear and large LCD display.
• Ease of use with intuitive interface.
• Multiple alarm options including radio and buzzer alarms.
• Affordable price point.

Cons

• Limited preset station options.
• No Bluetooth connectivity or USB port for additional music sources.
• Some users report occasional static or interference in reception.

Customer Reviews

Customers generally praise the Philips Digital Tuning Clock Radio AJ3123 for its ease of use and clear sound quality. However, some users have noted that preset station options are limited and there can be occasional issues with reception quality.

Common complaints include the lack of modern features such as Bluetooth connectivity or USB ports for playing music from external devices. Despite these drawbacks, many users find it to be a reliable and affordable solution for their radio needs.
