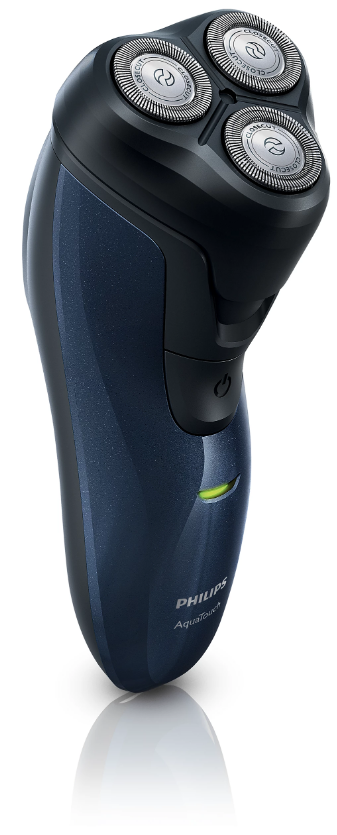

Introducing the Philips Norelco TripleHeader Shaver AT620

The Philips Norelco TripleHeader Shaver AT620 is a versatile and efficient electric shaver designed for a close and comfortable shave. It features three independently floating heads that adapt to the contours of your face, ensuring smooth gliding and maximum skin contact. The shaver's self-sharpening blades provide a clean cut with every stroke, while the pop-up trimmer allows for precise edging and sideburn grooming. Priced at $49.95, the Philips Norelco TripleHeader Shaver AT620 offers a reliable and affordable solution for a hassle-free shaving experience.

Detailed Specifications

• Triple-Header Design: Allows for more efficient shaving by covering larger areas.
• Self-Sharpening Blades: Maintains sharpness for optimal performance.
• Rechargeable Battery: Up to 40 minutes of cordless operation.
• Ergonomic Design: Comfortable grip for reduced fatigue.
• Cordless Operation: Convenience and portability.
• Travel Lock: Prevents accidental start during travel.

Features

Description

The Philips Norelco TripleHeader Shaver AT620 is engineered to provide an unparalleled shaving experience. The triple-header design consists of three independent floating heads that adjust to the contours of your face, ensuring a close shave every time. The self-sharpening blades are designed to maintain their sharpness over time, eliminating the need for frequent replacements. The ergonomic handle is designed for comfort, making it easy to maneuver around the face and neck.

Before First Use

Charge the shaver before you start using it (see 'Charging'). Make sure the shaver is switched off before you start charging it.

Important

• Only use the power cord provided to charge the shaver.
• The power plug transforms 100-240V AC to less than 24V DC.

Charging

• Charging or recharging at temperatures below 40°F/4.5°C or higher than 95°F/35°C adversely affects the lifetime of batteries.
• If the shaver is subjected to a major change in temperature, pressure, or humidity, let it acclimatize for 30 minutes before using.
• Charging or recharging requires 10 hours.
• A fully charged shaver has a cordless shaving time of up to 30 minutes.
• The shaving time may be less as a result of your shaving behavior, cleaning habits, or beard type.
• When charging the shaver for the first time or after a long period of non-use, charge for at least 10 hours.

1. Connect the cord directly to the shaver and plug the charging plug into any 100V to 240V AC outlet. Use only the power cord provided.
   • An adaptor plug may be necessary for charging plug usage in some foreign countries. Use an attachment plug adaptor of the proper configuration for the power outlet. The charging plug will automatically convert to work on 100V to 240V AC systems.
     • The charging light on the shaver will light up green.
2. Charging and recharging require a full 10 hours. A fully charged shaver has a cordless shaving time of up to 30 minutes.
   • When the battery is fully charged, the charging light will remain green.
3. The charging light will turn orange when the battery is almost empty (5 or fewer shaving minutes left). When you turn the shaver OFF, the charging light continues to light up orange for a few seconds.

Recharging

• Recharging requires 10 hours. Recharge when the charging light on the shaver display lights up.

Put It To The Test & Shaving Tips

• 21 Day Trial and Conversion Process: It is a fact that your skin and beard need time to adjust to a new shaving system.
• Use your new shaver exclusively for 3 weeks to fully enjoy the closeness of a Philips Norelco shave.
• At first, you may not get as close a shave as you expect, or your face may even become slightly irritated. This is normal since your beard and skin need time to adjust. Invest 3 weeks, and you'll soon experience the full joy of your new shaver.
• Stick with it! If you alternate shaving methods during the adjustment period, it may make it more difficult to adapt to the Philips Norelco shaving system.
• If you are still not convinced after 21 days, Philips Norelco will refund you the full purchase price as long as the request is received within 45 days of purchase.

How To Shave With An Electric Shaver

• This symbol on the shaver indicates that the shaver can be used in both the bath and shower.
• The shaver will not operate while the power cord is connected to an electrical outlet.
• For hygienic reasons, the shaver should only be used by one person.
• Use this shaver for its intended household use as described in this manual.
• Shaving with a clean face gives the best results.

1. Turn the shaver ON by pressing the on/off button once. Shave against the direction of beard growth using circular movements.
2. Stretch your skin with your free hand so the blades can cut whiskers. Gently press the shaver to your skin so the floating heads can follow the contours of your face. DO NOT press too hard. Too much pressure can pinch the skin into the combs.
3. Turn the shaver OFF by pressing the on/off button once.

4. Clean the shaver after each use.



Trimming

To groom sideburns and moustache:

1. Turn shaver ON.
2. Push down the spring-release trimmer switch. The trimmer can be activated while the shaver is running.
3. Move trimmer in downward strokes with gentle pressure.
4. Close trimmer by pressing trimmer down.
5. Turn shaver OFF.

Setup Guide

To set up and operate your Philips Norelco TripleHeader Shaver AT620:

1. Remove the shaver from the packaging and wash your hands before use.
2. Charge the shaver for at least 8 hours before first use to ensure maximum battery performance.
3. Wet your face with warm water or shaving cream to prepare for shaving.
4. Hold the shaver at a slight angle and shave in the direction of hair growth to avoid ingrown hairs and irritation.
5. Rinse the shaver under running water after use and clean with a brush provided.

Philips Norelco TripleHeader Shaver AT620 Cleaning

• Always switch the shaver OFF, unplug, and remove the power cord before cleaning.
• Never clean, remove, or replace the head assembly while the motor is on.
• Do not apply pressure to combs. Do not touch shaving heads with hard objects as this may dent or damage precision-made slotted combs.
• Do not use the shaver if combs are damaged or broken. Facial injury may occur.
• Do not use compressed air, abrasives, scourers, or aggressive liquids such as gasoline or acetone to clean the shaver.

Cleaning the Shaving Unit

The shaving heads may be quickly cleaned after each use by rinsing with hot water. Water from the tap should be on a hot setting, BUT BE CAREFUL TO TEST WATER FIRST TO AVOID BURNING OR SCALDING HANDS.

• Regular cleaning guarantees better shaving results.
• Do not immerse the shaver in water.
• While rinsing shaving heads, water may drip out of the base of the shaver. This is a normal occurrence.

1. Always turn the shaver OFF, unplug from the outlet, and remove the power cord from the shaver.
2. Place your thumb under the shaving unit and push the shaving unit off the shaver while holding it in your hand.

3. Clean the hair chamber by running it under hot water.



4. Clean the inside of the shaving unit by running it under hot water.
5. Clean the outside of the shaving unit by running it under hot water.

6. Reattach the shaving unit and shake off excess water.



Be careful not to hit the shaving unit against anything while shaking off excess water.
NOTE: Do not wipe or dry the shaving heads with a towel or tissue. This could damage the shaving heads.

Extra-thorough Cleaning Method

Do not mix up the cutters and combs as the shaving performance may be adversely affected for several weeks before optimal shaving performance is restored.

1. Turn shaver OFF, remove the charging plug from the outlet, and unplug the power cord from the shaver.
2. Place your thumb under the shaving unit and push the shaving unit off the shaver while holding it in your hand.
3. Turn the lock counterclockwise (1) to unlock and remove the retaining frame (2).
4. Remove and clean one set of cutters and combs at a time.

5. Separate the cutter from the comb. Clean the inside and outside of the cutter by rinsing under hot water.



   Important: Do not clean more than one cutter and comb at a time, as they are matching sets. If you accidentally interchange the cutters and combs, it could take several weeks before optimal shaving performance is restored.

6. Clean the inside and outside of the comb by rinsing under hot water.
   • For optimum performance, shaver cutters and combs should be cleaned in a degreasing liquid (e.g., alcohol) and lubricated with one drop of mineral oil (in the center of the head). This helps prevent wear of the shaving heads.
7. Replace the set back into the shaving unit. Make sure that the projections of the shaving head fit exactly into the recesses.
8. Repeat the process for the other two sets of cutters and combs.
9. Put the retaining frame back into the shaving unit.

10. Reattach the shaving unit and shake excess water off the shaver.



    Note: If the shaving unit does not close smoothly, ensure that you inserted the shaving heads properly and that the retaining frame is locked.

11. Remove the shaving unit and let the shaver air dry thoroughly.

After Each Use Trimmer

1. Turn shaver OFF.
2. Push down the spring-release trimmer switch.
3. Clean the trimmer by rinsing under hot water and allow it to air dry thoroughly.
4. Lubricate the trimmer teeth with one drop of mineral oil every 6 months.
5. Close the trimmer by pressing the trimmer down.

Replacing the Shaving Heads

• Replace the shaving heads once a year for optimal shaving results.
• Replace damaged or worn shaving heads with model HQ56 Philips Norelco shaving heads only.
• HQ56 Philips Norelco shaving heads are available on http://www.philips.com/store

1. Turn the shaver OFF, remove the charging plug from the outlet, and unplug the power cord from the shaver.
2. Place your thumb under the shaving unit and push the shaving unit off the shaver while holding it in your hand.
3. Turn the lock counterclockwise (1) to unlock and remove the retaining frame (2).
4. Remove the shaving heads and place the new shaving heads in the shaving unit. Make sure that the projections of the shaving head fit exactly into the recesses.

5. Put the retaining frame back into the shaving unit (1) and turn the lock clockwise until it locks into place (2).



6. Reattach the shaving unit.



NOTE: If the shaving unit does not close smoothly, make sure you inserted the shaving heads properly and that the retaining frame is locked.
This shaver has no other user-serviceable parts.

Storage

1. Be sure shaver is turned off. Remove cord from outlet and shaver before storing in a safe, dry location where it will not be crushed, banged, or subject to damage.
2. Do not wrap power cord around shaver when storing.
3. Store cord in a safe location where it will not be cut or damaged.
4. Do not place or store shaver where it can fall or be pulled into a tub or sink, water or other liquid while plugged in.

Assistance

For assistance, visit our website: www.philips.com/support or call toll free 1-800-243-30S0
Online information is available 24 hours a day,7 days a week.

Disposal

This Philips Norelco shaver contains a rechargeable nickel metal hydride battery which must be disposed of properly.

Accessories

Replacement Heads

Model HQ56 - For maximum shaver performance, replace your Philips Norelco shaving heads once a year.
Philips Norelco Shaver Accessories may be purchased at a store near you, or on our website https://www.philips.com/store

IMPORTANT SAFETY INSTRUCTIONS

When using an electric appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance.

DANGER
To reduce the risk of electric shock:

1. Do not reach for a corded shaver that has fallen into water. Unplug immediately.
2. Power plug is not for immersion or for use in the shower.
3. Do not use an extension cord with this appliance.
4. Always unplug this shaver from the electrical outlet immediately after use, except when shaver is (re)charging.
5. Unplug and remove power supply cord from shaver before cleaning.
6. The batteries used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.

WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this shaver is used by, on, or near children or invalids.
2. Use this shaver for its intended household use as described in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation.
3. Never operate this shaver if it has a damaged cord or charging plug, if it is not working properly, if it has been dropped or damaged, or dropped into water while plugged in. For assistance call 1-800-243-3050.
4. Keep the shaver, cord, and charging plug away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use the adapter in or near a power outlet that contains an electric air freshener to prevent damage to the adapter.
7. Do not charge or plug in shaver outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
8. Do not use this shaver with a damaged or broken comb, as facial injury may occur.
9. Always attach plug to shaver first, then plug into outlet. Be certain plug is inserted firmly into shaver up to the mark indicated on the plug. To disconnect, remove charging plug from the outlet.
10. Never put the shaver in direct sunlight, use, charge, and store at a temperature between 50°F (10°C) and 95°F (35°C).
11. Keep the cord dry at all times. Do not handle it with wet hands.
12. To prevent possible damage to the cord, do not wrap the cord around the shaver.
13. Do not attempt to open the appliance to replace the battery.
14. Only use the power plug supplied with the shaver.

SAVE THESE INSTRUCTIONS

IMPORTANT: The power plug contains a transformer. Do not cut off the power plug to replace it with another plug, as this will cause a hazardous condition.

Troubleshooting

If you encounter any issues with your Philips Norelco TripleHeader Shaver AT620, here are some common problems and solutions:

• Low Battery Life: Ensure proper charging habits and check if the charging port is clean.
• Dull Blades: Although self-sharpening, check if blades need replacement after extended use.
• Ingrown Hairs/Irritation: Shave in the direction of hair growth and avoid applying too much pressure.
• Travel Lock Not Engaging: Ensure the lock mechanism is properly aligned before travel.

Warranty of Philips Norelco TripleHeader Shaver AT620

FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants this new product (except cutters and combs) against defects in materials or workmanship for a period of two years from the date of purchase, and agrees to repair or replace any defective product without charge.

45 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Philips Norelco Men's Shaver, the shaver should be used for 3 weeks. This allows your hair and skin enough time to adapt to the Philips Norelco Shaving System. If, after that period of time, you are not fully satisfied with your Philips Norelco Men's Shaver, send the product back along with dated sales receipt and we'll refund you the full purchase price. The shaver must be shipped prepaid by insured mail, insurance prepaid, have the original sales receipt, indicating pur­ chase price, the date of purchase, and the money-back guarantee return authorization form enclosed. We cannot be responsible for lost mail. The shaver must be postmarked no later than 45 day5 from the date of purchase. Philips Norelco reserves the right to verify the purchase price of the shaver and limit refunds not to exceed suggested retail price.

Pros & Cons

Pros:

• Efficient Shaving: Triple-header design covers larger areas quickly.
• Comfortable Design: Ergonomic handle reduces fatigue.
• Long-Lasting Blades: Self-sharpening technology maintains blade sharpness.
• Cordless Convenience: Rechargeable battery offers up to 40 minutes of use.

Cons:

• Higher Cost: Pricier compared to some other models on the market.
• Noisy Operation: Some users report it can be quite loud during use.
• Battery Life Could Be Better: Some users find the battery life could be longer.

Customer Reviews

Customers generally praise the Philips Norelco TripleHeader Shaver AT620 for its efficiency and comfort. Many appreciate the unique triple-header design which significantly reduces shaving time. However, some users have noted that it can be a bit noisy and that battery life could be improved. Overall, it is seen as a reliable choice for those seeking a close shave with minimal effort.
