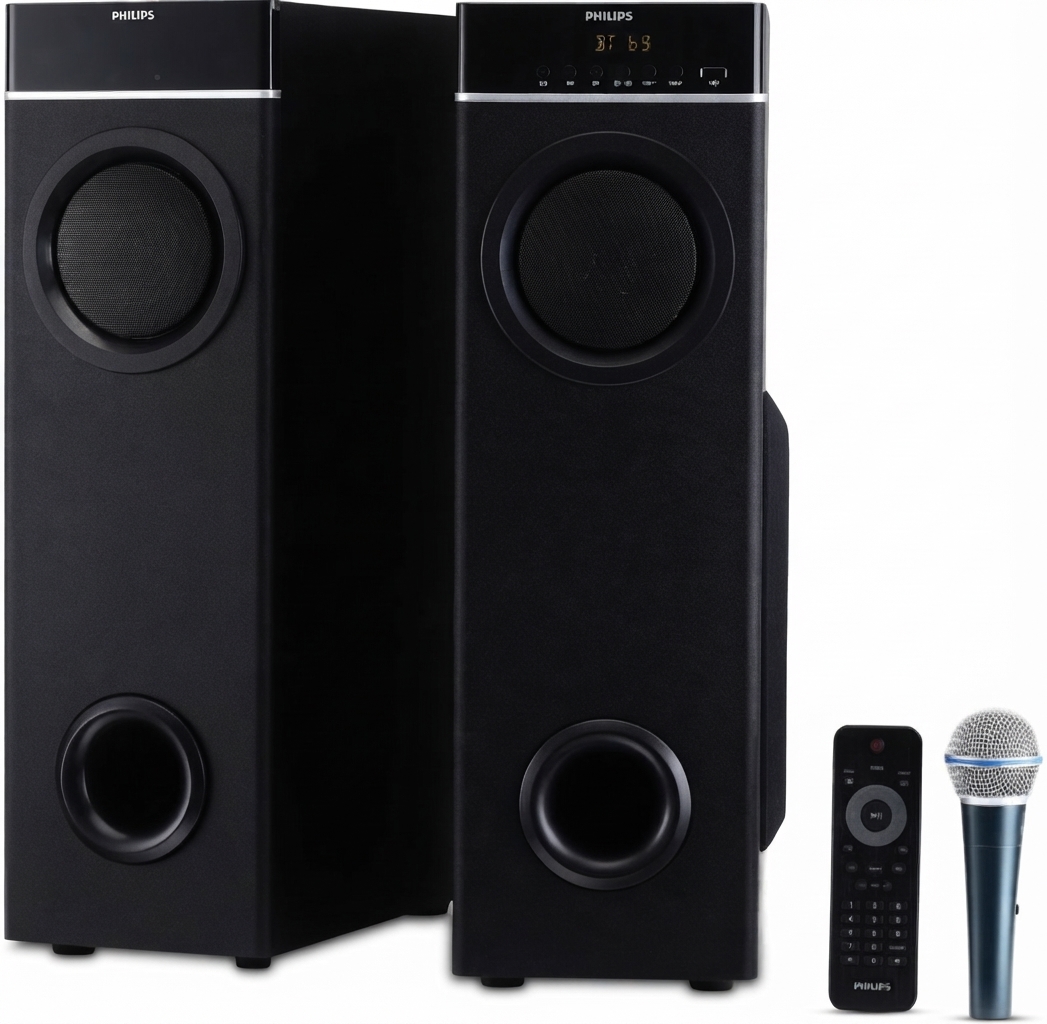

Philips Tower Speakers SPA9060B

Introducing with the Philips Tower Speakers SPA9060B, lose yourself in precise, rich audio. The target market for these speakers is audiophiles looking for a sleek, contemporary style together with excellent sound quality. Launched in late 2021, the Philips SPA9060B speakers are expected to cost about $300.

Product Specifications

• Total System Power: 60W RMS
• Separation: >35dB
• SNR: >60dB
• Audio Input Socket: RCA Type
• Audio Output Socket: RCA Type
• Power Consumption: 30W
• Frequency Response: 40Hz-20kHz
• Bluetooth Range: Up to 10 meters
• Speaker System: 2 x 2 Way
  • Woofer Size: 8" (200mm)
  • Woofer Impedance: 4 Ohm
  • Tweeter Size: 3" (75mm)
  • Tweeter Impedance: 4 Ohm
• Dimension: 165 x 545 x 310 (W x H x D)
• Net Weight: 11.4 Kg
• USB
  • Class Support: UMS (USB Mass Storage Class)
  • Capacity: up to 16 GB
  • File Format: MP3

General Information

Safety Instructions
Please read carefully the Safety Mark on the Back side

This mark is intended to alert the users from the non isolated dangerous voltage within the product that may be of sufficient magnitude to constitute a risk of electric shock to persons
This mark is intended to alert the user for important operating and servicing instruction

Warnings

• Avoid sustained periods on high-volume use, and do not turn the volume to maximum level while using high output signal, such as Mobile Phone or DVD, etc., as this will cause distortion and may damage the loudspeaker cones.
• Please switch off the system from the wall socket, when not in use.
• Please unplug the system from the AC outlet when unused for a long time
• Do not open the cover or back panel to avoid electronic shock or any other accidents. No user-serviceable parts are inside.
• Only for indoor use.
• Plug the system to the AC outlet with the right voltage marked on the back panel of the Speaker System.

Care and safety information

1. Avoid high temperatures, moisture, water and dust
2. Apparatus should not be exposed to dripping or splashing of liquid.
3. Do not place any sources of danger on the Tower Speaker (e.g. liquid filled objects, lighted candles).
4. Do not install near heat sources. Do not block any ventilation openings
5. Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 100cm (4 inches) of free space all around the apparatus for adequate ventilation.
6. At high volume the back cover of Tower Speaker becomes hot. Do not touch it.

Care of the cabinet

Use a soft cloth slightly moistened to clean the cabinet. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Description

Strong 80W output of the Philips Tower Speakers SPA9060B provides incredibly clear sound for gaming, movies, and music. A 1-inch tweeter and a 3.5-inch woofer provide the speakers balanced, precise sound. Modern home décor is ideal for the speakers' tall, sleek shape, and any space is made cozier by the wooden finish. Bluetooth connection on the speakers makes pairing your gadgets and enjoying wireless streaming simple.

Installation

Remote
(Use AAA X 2 Battery)

*Battery not provided

Speaker Placement & Connections

1. Placement



2. Connect audio from TV



3. Connect Corded MIC
   Corded MIC not included in the accessories



4. Connect Speakers



Front Panel Main Unit

1. DISPLAY PANEL
   Display information of your system
2. SENSOR
   Point remote to operate
3. SCAN
   Play and Pause in USB
   Auto Scan in Radio Mode
   Store station manually
4. Play previous file in USB
   Long press song will rewind
   Tuning down in radio mode
5. Play next file in USB
   Long press song will fast forward
   Tuning up in radio mode
6. To select desired input
   USB / FM / AUX IN / BLUETOOTH
   Long press switch ON and STAND BY
7. VOL- VOL+
   Adjusts volume of speakers.
8.
   To play through USB drive.

Back Panel Main Unit

1. TONE
   To adjust bass / Treble level.
2. MIC
   Insert MIC into MIC jack.
3. MIC VOLUME
   To adjust MIC volume.
4. ECHO
   To adjust ECHO according to your voice.
5. POWER*
   To ON/OFF system

The POWER needs to be put in OFF position, when not in use, to save energy.

Remote Control

1. Switches system ON or to STANDBY
2. MUTE Mute or restore volume
3.  VOL+ VOL- Increase or decrease volume
4.
   Play previous file in USB
   Tuning down in radio mode
5. Play and Pause USB / Bluetooth
6. NUMERIC KEYS Press number key to play directly MP3 files (Eg. To play 57th song press 5 then 7) In radio mode key in station frequency
7. EQ Select preset sound modes in USB / Bluetooth
8. To rewind
9. SOURCE To select desired input USB/FM/AUX IN/BT
10. REPEAT Repeats a track or the entire USB
11.
    Play next file in USB
    Tuning up in radio mode
12. SOURCE KEYS
    USB
    Switch to USB storage device AUX
    Select an audio input FM
    Switch to FM radio BT
    Play on Bluetooth mode
13. SCAN Auto Scan & store station in memory
14. TUN – /+ Up and Down preset channel on FM mode
15. To forward
16. Stop Play in USB mode

Available when connected

Note : Equalizer works in USB & Bluetooth mode only.

Playing TV Audio

You can enjoy a theatre experience by attaching the TV output to your Tower Speaker's Audio IN.

1. Select source from your source key on the remote.
2. Display shown AUX.

Button Action

• Vol – Volume Decrease
• Vol + Volume Increase
• Mute To Mute / Unmute Sound

Play from a USB Storage Device

The Speaker System is fitted with a USB connector that allows you to listen to music.

1. Connect the USB storage device to the Tower Speaker.
2. It auto shifts to USB mode.
3. Display shows USB.
4. Then song number & running time will appear on display. (e.g., if you are listening to the sixteenth song, 016 00:01 will appear).

5. Use the number key to select a song directly or the +10 key.

   Button	Action
   	Select previous or next track
   	Start, pause or resume Play
   	To rewind and fast forward
   Numeric Buttons	Select and songto play
   Repeat	Repeat track or the entireUSB
   EQ	Select a predefined sound effect

Play from Radio

You can store 40 stations in memory.

1. Select FM mode.
2. Press scan key to auto scan & store stations in your area.
3. You can also store manually. Tune to the desired station. Press the scan key on the panel, the display starts flickering, and then when the display stops flickering, the station will be stored.

Button Action

Button	Action
	Search for a radio station
– TUN + TUN	Select a presetradio station
SCAN	Press to auto scan the radio station
Numeric Keys	Key in station frequency (i.e. for104.6 press 1046)

Note

• While autoscan, turn off your TV/DVD or other radiation sources.
• For best reception while listening to the radio, turn off TV/DVD or other radiation sources.

External MIC

You can enjoy karaoke by attaching MICs to your Tower Speaker.

1. You can use MICs in all source selections.
2. Adjust MIC volume by rotary control given on the back panel.
3. For 'ECHO' adjustment, use the rotary control also provided on the back panel.
4. Remove MICs from back sockets when not in use.

Corded MIC not included in the accessories.

Playing through Bluetooth

You can enjoy music wirelessly with Bluetooth.

1. Select source.
2. Display shows BLUE (Flashing).
3. Pair your Bluetooth device with the tower speaker system name Philips SPA9060B.
4. Display stops flashing once the Bluetooth device is paired.

Now your system is ready to play through Bluetooth. Control all functions from your smartphone, e.g. ,, ,  play, pause, skip tracks.

Setup Guide

Configuring the Philips Tower Speakers SPA9060B is simple:

• Orient the speakers how you like, making sure they are at least one foot apart for best sound.
• Plug in the speakers' power wire to a power outlet.
• Utilising the power button on the right speaker's rear, turn on the speakers.
• To open pairing mode, press the Bluetooth button on the right speaker.
• Choose "Philips SPA9060B" from the Bluetooth devices list on your device.

Troubleshooting

WARNING: Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy the problem by following these hints, consult your dealer or PHILIPS for help.

Warranty

This Philips Tower Speaker is warranted against any defect due to defective materials or workmanship for 12 months from the date of purchase. Should a defect develop during the period of warranty, Gibson Innovations India Private Limited undertakes to repair the apparatus FREE OF CHARGE through the dealer from whom it has been purchased or at any of the Philips Authorized Service Centres.

Philips Tower Speakers SPA9060B Pros & Cons

Pros

• Powerful 80W output delivers clear, detailed sound
• Sleek, modern design with wooden finish
• Bluetooth connectivity for wireless streaming
• Balanced, accurate sound with 3.5-inch woofer and 1-inch tweeter

Cons

• May be too expensive for some budgets
• No remote control, must use buttons on the speakers
• No built-in equalizer settings

Customer Reviews

Customers rave about the Philips Tower Speakers SPA9060B's impressive sound quality and stylish design. However, some customers have noted that the speakers lack bass compared to other tower speakers. Overall, the Philips SPA9060B speakers receive high ratings for their sound quality, design, and ease of use.
