Portronics Wireless PureSound Pro III User Manual
Content

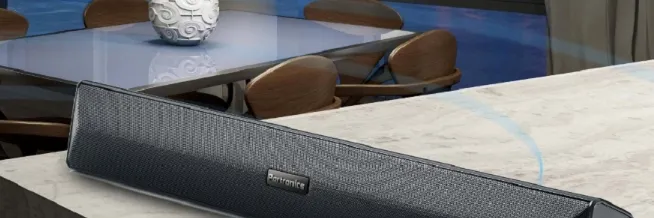

Introducing the Portronics Wireless PureSound Pro III
With the Portronics Wireless PureSound Pro III, you can enjoy high-quality music on the go in a portable and adaptable Bluetooth speaker. It guarantees flawless audio playback from a variety of sources thanks to its numerous connecting choices, which include Bluetooth, AUX, USB, and microSD card. This 10-watt speaker has an integrated microphone for hands-free calls and FM radio. It can play music for up to 7 hours on a single charge and is perfect for both indoor and outdoor activities.
WHAT'S INSIDE
Before using your product, read all accompanying safety information
SPECIFICATION
- Bluetooth: 4.2 Version
- Support: A2DP and AVRCP
- Freq. Response: 150-18k Hz
- S/N Ration: 75dB
- Power Rating: 2 X 5W(RMS)
- Power Input: DC 5V, 1A
- Battery Capacity: 2500mAh
- Playback Time: 6-7hours(Depends on the volume)
Overview of Portronics Wireless PureSound Pro III
Right
- A. Long press "+ "or*- * for VOL + and VOL-
- B. Short press to choose the previous or next song
Back
Description
A 10W built-in speaker on the Portronics Wireless PureSound Pro III generates a high-quality sound that amplifies audio clarity in any space. You have the option to connect many devices to the sound bar by using Bluetooth, USB, or AUX input. It is simple to operate thanks to its LED indicators and user-friendly controls, and its small size guarantees a clutter-free setting.
BLUETOOTH WIRELESS
- A. Hold the Button for 3 Seconds to Power On / Off
- B. Choose Bluetooth mode
- C. Open ON setting on your mobile Device, and Select “Pure Sound Pro Ill”
- D. While Pairing is successful, you can play music
USB MUSIC PLAY MODE
Short press the M button to change the mode to "USB MODE". it will play the music on your USB flash disk (it's need to insert the USB first, then you can choose USB mode)
RADIO PLAY MODE
- A. Short press the M button to change the mode to “ FM MODE”
- B. Hold press" " on the AUTOMATIC SEARCH.
- C. Hold press "+" or "-" Previous RADIO STATION and NEXT RADIO STATION.
- D. Support semi-auto scan of the FM channels (87.5MHz-108MHz)
AUX INPUT MODE
3.5mm audio cable into the Speaker, The Speaker Will automatically switch to line in play mode
LED INDICATION
With its sleek and contemporary appearance, the Portronics Wireless PureSound Pro III has a small form factor that allows it to neatly fit beneath your computer or TV monitor. This 10W sound bar is a great option for enhancing your audio setup because it produces clean trebles, powerful bass, and remarkable volume.
Setup Guide
- Unpack the accompanying accessories including the Portronics Wireless PureSound Pro III.
- Plug the power adapter into a power outlet and attach it to the soundbar.
- Using the included remote control or the power button on the side, turn on the soundbar.
- To activate pairing mode, push the Bluetooth button located on the remote control or sound bar. When the device is in pairing mode, use your computer, tablet, or other Bluetooth-enabled device to search for it and connect.
- As an alternative, use the AUX or USB input to link the sound bar to your device.
WARNING/DISPOSAL OF UNIT
Please do NOT attempt to change the battery yourself. If the battery has permanently died and you do not want to replace your battery, you should follow the disposal instructions below:
- Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
- Always dispose of used batteries/electronics in accordance with the prevailing regulations that apply to the disposal of batteries/electronics.
- If there are no local regulations concerning battery/electronics disposal, please dispose of the device in a waste bin for electronic devices.
CAUTION
The battery used in this device may present a risk of fire, explosion or chemical burn if mistreated.
- Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
- Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substance.
- Always confirm that the temperature is 5°C - 50° C before you charge the battery. Leakage or deterioration of the battery may occur if this warning is not heeded.
- Never expose the battery to any liquid.
- Never expose the battery to excessive heat such as direct sunlight or fire.
- Never use the battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.
- Always keep the battery out of the reach of infants and small children.
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.
- Water and Moisture
The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. - Ventilation
The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings. - Heat
The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. - Power Sources
The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. - Power-Cable Protection
Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket. - Cleaning
The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc. - Objects and Liquid Entry
Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product. - Attachments
Do not use attachments not recommended by the product manufacturer. - Overloading
Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. - Damage Requiring Service
The unit should be serviced by qualified service personnel when:- the power supply cable or plug has been damaged.
- objects have fallen into or liquid has been spilled into the enclosure.
- the unit has been exposed to rain.
- the unit has been dropped or the enclosure damaged.
- the unit exhibits a marked change in performance or does not operate normally.
- Periods of Nonuse
If the unit is to be left unused for an extended period of time, such as a month or longer, the power cable should be unplugged from the unit to prevent damage or corrosion. - Servicing
The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel
Troubleshooting
Try the following actions if the sound bar isn't working for you:
- Make sure that the power source is connected to the sound bar and that it is switched on.
- Verify the sound bar's and your device's Bluetooth connections
- Check the volume on your device and the soundbar.
- Make sure your device and the sound bar are both properly attached when using an AUX or USB connection.
- Holding down the power button for ten seconds will force the sound bar to revert to factory settings.
Portronics Wireless PureSound Pro III Pros & Cons
Pros
- Sleek and modern design
- Multiple connectivity options (Bluetooth, USB, and AUX)
- Compact size for easy placement
- Powerful 10W speaker for clear and immersive sound
- User-friendly controls and LED indicators
Cons
- No HDMI input
- Limited bass compared to larger sound bars
Faqs
What is the warranty period for the Portronics?
What is the Portronics Wireless PureSound Pro III?
Which connections does the PureSound offer?
What is the duration of the battery's life between charges?
What is the Bluetooth connectivity's range?
Can I make hands-free calls with the Portronics Wireless PureSound Pro III?
What is the PureSound output power?
How can I connect my gadget to the speaker?
Does the speaker come equipped with an FM radio?
How is the Portronics Wireless PureSound Pro III charged?
