Introduction ABOUT Powerbass OE692-GM O.E.M. PLUG and PLAY

Introducing the Powerbass PLUG and PLAY a game-changer in the world of car audio systems. This innovative product offers a direct factory replacement for select General Motors vehicles, ensuring a perfect fit and seamless integration. The estimated price of the Powerbass OE692-GM O.E.M. PLUG and PLAY is around $150, making it an affordable choice for car enthusiasts looking to upgrade their audio experience. Congratulations on your purchase of PowerBass Autosound speakers. You now own a speaker of uncompromising design and engineering from a factory that truly believes in the relentless pursuit of perfection.  Incorporating the highest quality parts and state-of-the-art materials, these speakers display the ultimate balance between high fidelity, performance and long-lasting reliability.t PowerBass USA, Inc. we are confident you will have many years of outstanding enjoyment from this great Component Speaker investment. For maximum performance, we recommend that you have your new PowerBass Autosound product installed by an Authorized PowerBass Autosound Dealer.

 Warning

Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. Powerbass OE692-GM O.E.M. PLUG and PLAY Autosound Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.

OE652-GM, OE65C-SPECIFICATIONS of Powerbass OE692-GM O.E.M. PLUG and PLAY

(Due to Constant Improvements, Specifi cations and Parameters are subject to change without notice.)

Before beginning your installation, thoroughly read this guide and keep it as a reference. It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected.

COMPONENT SILK DOME TWEETER SPECIFICATIONS

OE692-GM, OE69C-GM SPECIFICATIONS

(Due to Constant Improvements, Specifi cations and Parameters are subject to change without notice.)

Before beginning your installation, thoroughly read this guide and keep it as a reference. It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected.

COMPONENT HIGH-BANDWIDTH DRIVER SPECIFICATIONS

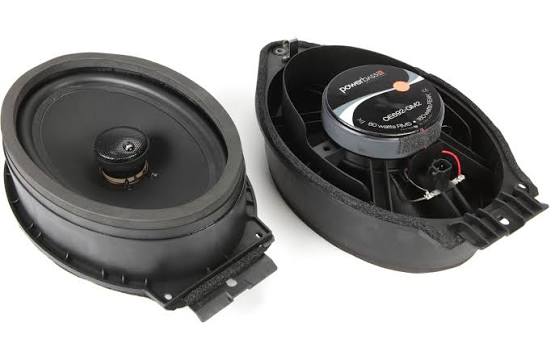

Description of Powerbass OE692-GM O.E.M. PLUG and PLAY

The Powerbass OE692-GM is a 6" x 9" 2-way component speaker system designed for easy installation and superior sound quality. Its O.E.M. Plug and Play feature ensures a hassle-free replacement process, while the polypropylene woofer cone and rubber surround provide durability and optimal sound performance. The system also includes a 1" silk dome tweeter for clear, crisp highs, and a high-pass crossover network for accurate sound reproduction. The Powerbass OE692-GM is an excellent choice for those looking to upgrade their car's audio system without sacrificing factory fit and finish.

POWERBASS GM OEM Plug & Play FEATURES

• Injection PP Cone
• Nylon OEM Speaker Basket
• 1” Silk Dome Tweeter on Coaxials (OE652-GM, OE692-GM)
• 1” Silk Dome Tweeter with Diffuser on Components Kit (OE65C-GM)
• 2.75” High Bandwidth Driver on Component Kit (OE69C-GM)
• 20 oz. Magnet (OE652-GM, OE65C-GM) 35 oz. Magnet (OE692-GM, OE69C-GM)

INSTALLATION EXPERIENCE

Installation of Powerbass OE692-GM O.E.M. PLUG and PLAY requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reservations about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance.

TIPS TO GET THE MOST OUT  OF YOUR POWERBASS SYSTEM

Your PowerBass Autosound speakers have been meticulously engineered and designed to handle high power musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are improperly used.  In general, you will hear distortion as a so-called warning before any damage occurs.  If you hear distortion in your system, immediately reduce the musical level to the point where the sound retains its clarity.

1. Be sure you supply the speakers with enough unclipped amplifier power to drive them properly. (More damage can be done to a speaker by under-powering and clipping your amplifier than any other way!)
2. Where possible, a separate amplifier just for your speaker should be used with an electronic crossover to set the frequency range.
3. When connecting speaker wires from the amplifier or head unit to that of the speaker itself, pay attention to the polarity of the connection.  This will insure optimum sound reproduction and performance.

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for proper installation.

• Phillips-head and standard screwdrivers
• 7mm Socket
• Panel Removal Tools

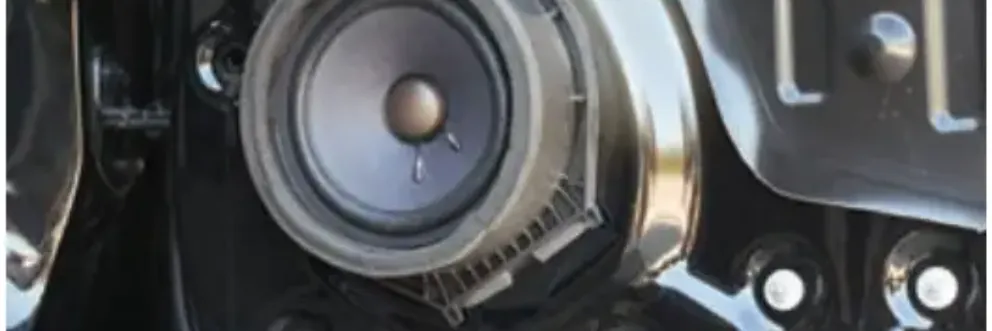

6X9” SPEAKER INSTALL (OE692-GM, OE69C-GM)

1. Remove door panel to gain access to the factory speaker. Remove the 7mm bolt at the top of the speaker (do not discard this bolt as you will need it to install your new speaker.



2. Remove the factory speaker by unclipping it at the top and pulling it forward. Then carefully unplug the speaker and remove from vehicle.



3. Plug in you new speaker and clip in starting from the bottom first. Securely mount the new speaker using the 7mm bolt. There are two extra mounting holes at the bot-tom of the speaker that will require drilling new holes to use. These are optional mounting holes.



4. Reinstall door panel to complete installation.



6.5” SPEAKER INSTALL (OE652-GM, OE65C-GM)

1. Remove door panel to gain access to the factory speaker. Remove the 7mm bolt at the top of the speaker (do not discard this bolt as you will need it to install your new speaker).



2. Remove the factory speaker by unclipping it at the top and pulling it forward. Then carefully unplug the speaker and remove the vehicle.



3. Plug in you new speaker and clip in starting from the bottom first. Securely mount the new speaker using the 7mm bolt. There are two extra mouting holes at the bot-tom of the speaker that will require drilling new holes to use. These are optional mounting holes



4. Reinstall door panel to complete installation.



COMPONENT TWEETER INSTALL (OE65C-GM)

1. Remove pillar or panel to gain access to the factory tweeter, unplug and remove tweeter from the vehicle.



2. Unclip or remove factory tweeter from pillar or panel.



3. Locate both the tweeter adapter ring and the correct tweeter plug, attach them to your new tweeter.



4. Install your new tweeter back into the pillar or panel. Plugin your new tweeter and reinstall pillar or panel into vehicle to complete installation.



HIGH BANDWIDTH DRIVER INSTALL (OE69C-GM)

• FRONT 1. Remove cover to gain access to the factory speaker. Remove the two 7mm screws securing the speaker. (Don’t discard these screws as you will need them to install your new speaker) carefully unplug and remove speaker.



• FRONT 2. Plug in and mount your new speaker with the screws you removed from the factory speaker.



• FRONT 3. Reinstall the speaker cover.



• REAR 1. Remove panel to gain access to the factory speaker. Carefully unplug and remove panel and speaker.



• REAR 2. Remove one/two 7mm screws securing the speaker (Don’t discard these screws as you will need them to install your new speaker) and remove speaker.



• REAR 3. Mount your new speaker with the screws you removed from the factory speaker. Plug in and reinstall panel.



LIST OF COMPATIBLE VEHICLES

OE652-GM   |   OE65C-GM

Speakers may fit in additional models other than those listed below -To verify fitment for your specific year and model, please see our expanded fitment guide at www.powerbassusa.com

Applications

• Buick Enclave
• Buick LaCrosse
• Buick Lucerne
• Buick Regal
• Buick Verano
• Cadillac ATS
• Cadillac Escalade
• Cadillac SRX
• Chevrolet Avalanche
• Chevrolet Caprice
• Chevrolet Colorado
• Chevrolet Cruze
• Chevrolet Express Van
• Chevrolet HHR
• Chevrolet Impala
• Chevrolet Malibu
• Chevrolet Orlando
• Chevrolet Silverado
• Chevrolet SS
• Chevrolet Suburban
• Chevrolet Tahoe
• Chevrolet Traverse
• Chevrolet Trax
• Chevrolet Volt
• GMC Acadia
• GMC Canyon
• GMC Sierra
• GMC Yukon
• Hummer H3
• Hummer H3T
• Pontiac G6
• Pontiac Solstice
• Saturn Aura
• Saturn Outlook
• Saturn Sky

(MAY NOT FIT IN VEHICLES WITH PREMIUM AUDIO SYSTEMS)
*OE652-GM & OE65C-GM models are designed to work in 4-OHM applications only. Please be sure to verify your OEM speaker impedance before installation.

OE692-GM | OE69C-GM

Applications

• Buick Enclave
• Buick LaCrosse
• Buick Lucerne
• Buick Regal
• Buick Verano
• Cadillac ATS
• Cadillac Escalade
• Cadillac SRX
• Chevrolet Avalanche
• Chevrolet Caprice
• Chevrolet Colorado
• Chevrolet Cruze
• Chevrolet Express Van
• Chevrolet HHR
• Chevrolet Impala
• Chevrolet Malibu
• Chevrolet Orlando
• Chevrolet Silverado
• Chevrolet SS
• Chevrolet Suburban
• Chevrolet Tahoe
• Chevrolet Traverse
• Chevrolet Trax
• Chevrolet Volt
• GMC Acadia
• GMC Canyon
• GMC Sierra
• GMC Yukon
• Hummer H3
• Hummer H3T
• Pontiac G6
• Pontiac Solstice
• Saturn Aura
• Saturn Outlook
• Saturn Sky

(MAY NOT FIT IN VEHICLES WITH PREMIUM AUDIO SYSTEMS)
*OE692-GM & OE69C-GM models are designed to work in 4-OHM applications only. Please be sure to verify your OEM speaker impedance before installation.

POWERBASS AUTOSOUND WARRANTY POLICY OF Powerbass PLUG and PLAY

PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms


• Powerbass OE692-GM O.E.M. PLUG and PLAY Autosound Speakers are to be free of defects in material and workmanship for a  period of one (1) year.
• This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the United States of America.  Products purchased by consumers from a PowerBass dealer in another country are covered only by that country’s Distributor and not by PowerBass USA.
• This warranty covers only the original purchaser of PowerBass product.  In order to receive service, the purchaser must provide PowerBass with the receipt stating the consumer name, dealer, product and date of purchase.
• Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at PowerBass’s discretion and will not be liable for incidental or consequential damages. PowerBass will not warranty this product under the following situations
  • Speakers received with bent frames or water damage
  • Abuse such as holes in the cone, surround or ripped spider
  • Voice coil damage due to amplifier clipping or distortion

Pros & Cons about Powerbass OE692-GM O.E.M. PLUG and PLAY

Pros

• Direct factory replacement for select General Motors vehicles
• Plug and Play feature for easy installation
• Polypropylene woofer cone and rubber surround for durability
• 1" silk dome tweeter for clear highs
• High-pass crossover network for accurate sound reproduction

Cons

• May not fit all vehicle makes and models
• Limited power handling capacity compared to some aftermarket speakers

Customer Reviews About Powerbass OE692-GM O.E.M. PLUG and PLAY

Customers have praised the Powerbass OE692-GM for its easy installation process and significant improvement in sound quality compared to factory speakers. The system's durability and affordability have also been highlighted as major selling points. However, some customers have reported issues with the speakers not fitting their vehicle, despite being listed as compatible. It's essential to double-check the compatibility of the Powerbass OE692-GM with your vehicle before making a purchase.
