Introduction

Introducing the Powerbass BT-50 SoundCube, a compact and portable Bluetooth speaker designed to deliver high-quality sound for all your music needs. This speaker is perfect for both indoor and outdoor use, making it a versatile option for any occasion. With an estimated price range of $60 to $80 and a launching date set for early 2023, the Powerbass BT-50 SoundCube is an affordable and highly anticipated addition to the Powerbass product line.

BT-50 Specifications

• Product Name: BT-50 SoundCube
• Bluetooth Version: 5.0
• Battery Capacity: 1200mAh
• Play Time: 4--6 hours (70% volume)
• Charging Time: 2-3 hours |
• Driver Units: 5W / 40
• Charging Current: 5V / 0.5A
• Product Dimensions: 144 x 95 x 46mm
• Product Weight: 210g

NOTES

1. Please read this manual carefully before use.
2. Upon using the speaker for the first time, please fully charge the unit.
3. Please use the included certified adapter which has passed national safety certifications.
4. Please charge the speaker at least once a month to maintain battery performance.
5. Using this speaker in extremely cold or hot environment (beyond the range of 104'F to -20-F) may trigger the auto tum off to protect the internal circuit
6. Charging this speaker in a high temperature environment may trigger the auto tum off for charging to protect the battery. The Power Indicator will flash quickly to Indicate that the charging envlronmental temperature or the product internal temperature is too high.
7. Recommended ambient storage temperature: -20'F-95'F RH <70% (recommended 77"C ,!:5' ).

Power On Bluetooth Connection

Long-press the O button for 2 seconds, you will hear prompt tone of power on. The blue LED indicator light will flash quickly and enter into the bluetooth pairing status

Phone Bluetooth Choose Device

Find "BT-50" in your bluetooth list and select it.

Pairing Success Bluetooth Indicator

The LED indicator remains blue once pairing is done, music may be played afterwards.

TWS Function

1. Power both BT-50 SoundCubes on.
2. On one of the BT-50 SoundCubes SHORT PRESS the (±) 8 buttons at the same time. They will enter into lWS Pairing mode accompanied by a sound notification.
3. After 1-2 seconds the two SoundCubes will pair automatically followed by another audible notification when they are connected successfully.
4. Open the Bluetoolh Devices Settings on your Bluetooth source menu and select 'BT-50'

Disconnect: SHORT PRESS (±) 8 to disconnect TWS.
NOTE

• For TWS pairing, please let the two speakers finish connecting to each other prior to enabling the Bluetooth source.
• TWS only works in Bluetooth Mode

Basic Operation of BT-50 SoundCube

O POWER BUTTON/MULTI-RJNCTION BUTTON

• Power on/off: Long Press O for 2 seconds
• Answer/end call: Short Press O
• Reject call: Press O twice
• Resume/pause music: Short Press O
• Disconnect Bluetooth: Press O 2x to disconnect bluetooth.

(+) (-) VOWME BUTTONS

• Volume increase: Short press (+)
• Volume decrease: Short press (-)
• Next track: Long press (+) in Bluetooth or TF Card Mode
• Previous track: Long press (-) in Bluetooth or TF Card Mode
• Next FM Station: Long press (+) in FM Mode
• Previous FM Station: Long press (-) in FM Card Mode

MODE BUTTON

• Switch between Bluetooth/SD/FM: Short press M
• Search FM Radio stations: Long press M

OPERATING THE FM RJNCTION

• Switch to FM Mode: Short press {B). A prompt tone with follow.
• Search FM Stations: Long press 8 to start searching for a station.
• Switch FM Stations: Long press (t) or 0 to switch.

Interface Instructions for BT-50

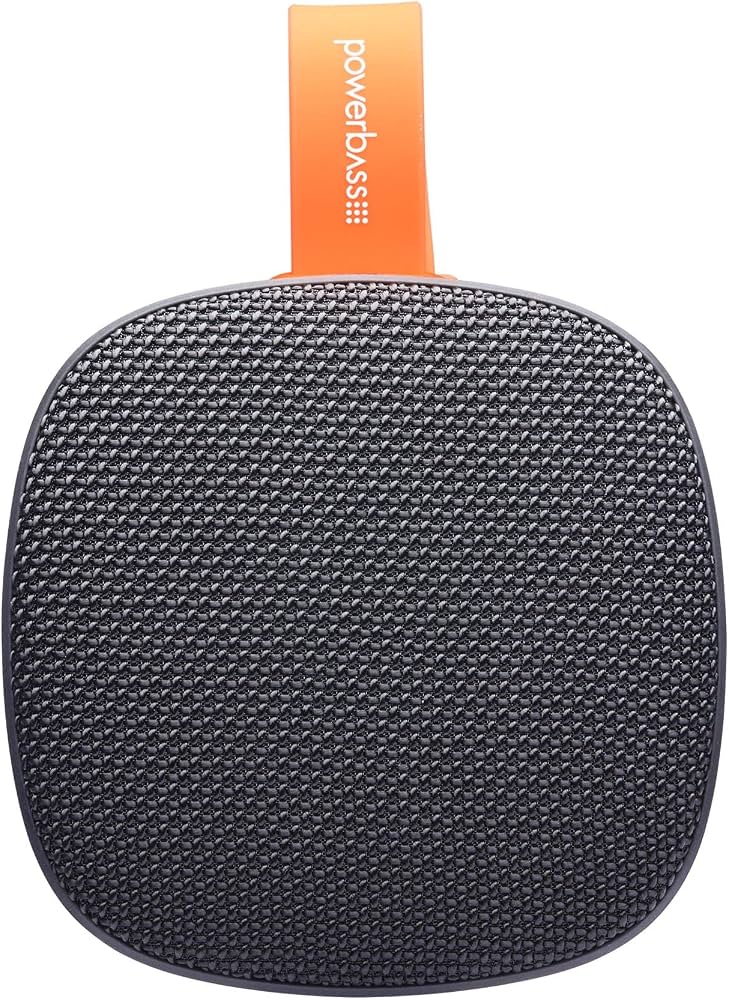

Description of Powerbass BT-50

The Powerbass BT-50 SoundCube boasts a sleek and modern design, with a compact cube shape that makes it easy to take on-the-go. It features Bluetooth 5.0 technology for a stable and seamless connection to your devices, as well as a built-in microphone for hands-free calling. The speaker is equipped with dual 5W drivers and a passive radiator, providing clear and powerful sound with deep bass. The rechargeable battery offers up to 8 hours of playtime, ensuring that the music never stops. The Powerbass BT-50 SoundCube also has an IPX5 waterproof rating, making it resistant to splashes and sprays of water.

Troubleshooting

Here are some common problems and solutions for the Powerbass BT-50 SoundCube:

• Problem: The speaker won't turn on.
• Solution: Make sure the power button is pressed and held for a few seconds. Also, check the battery level and charge it if necessary.
• Problem: The sound is distorted or low.
• Solution: Adjust the volume on the speaker and your device. Also, try moving the speaker closer to your device for a stronger connection.
• Problem: The speaker won't connect to my device.
• Solution: Make sure Bluetooth is enabled on your device and that it is within range of the speaker. Also, try resetting the speaker by holding the power button for 10 seconds.

Pros & Cons

Pros

• Compact and portable design
• Bluetooth 5.0 technology for stable connection
• Dual 5W drivers and passive radiator for clear and powerful sound
• Up to 8 hours of playtime
• IPX5 waterproof rating

Cons

• No option for wired connection
• Battery life could be longer

Customer Reviews

Customers have praised the Powerbass BT-50 SoundCube for its compact and portable design, as well as its clear and powerful sound. However, some have noted that the battery life could be longer and that there is no option for a wired connection. The IPX5 waterproof rating has also been a popular feature among customers.
