Introduction

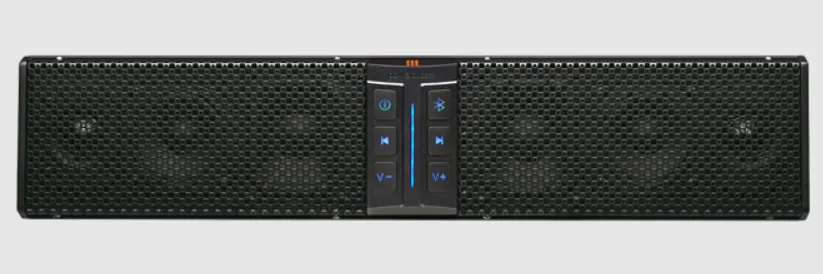

The PowerBass Xtreme Bluetooth Soundbar XL-650 is a powerful audio solution designed for outdoor adventures and sports applications. Featuring six speakers and a robust 250-watt amplifier, this soundbar delivers exceptional sound quality in a rugged, IPX6-rated housing that withstands the elements. With Bluetooth connectivity, users can easily stream music from their devices, while the LED control panel enhances usability. The PowerBass XL-650 is priced at approximately $299.99.

Technical Features

• Square Marine Grade Poly Cone Woofers To supply the low end bass response
• Full Range Marine Grade Poly Cone Speakers Set up in an optimum sound array for high volume output
• SD Mylar Tweeters Gives the sizzle that extends the sonic high frequency
• Precision Tuned DSP For extended frequency range and low distortion sonic playback
• Heavy Duty Extruded Aluminum Water Tight Housing For added heatsink cooling and a waterproof sealed environment
• Bluetooth And Wired AUX Inputs Let’s you select the way you want to delivery your music
• 2 Volt Line Output To add a second sound bar or external amplifier
• Universal L Mount Brackets Easy installation for many applications
• Optional Clamp Systems additional mounting options for square or round tubes (XL-SBCLAMP2, XL-SBSCLAMP, XL-SBTCLAMP Sold Separately).
• Optional Wireless Remote (XL-SBCONRF Sold Separately). To have wireless control of your soundbar.

XL-650:

• 3.5” x 2 Premium Marine Grade Woofers
• 3” x 2 Full Range Premium Marine Grade Speakers
• 1” x 2 Premium Marine Grade Mylar Dome Tweeters
• 300 Watt RMS Quad Bridged Mosfet Power Amplifier

SPECIFICATIONS

(Due to continuing improvements these specifications are subject to change without any notice. Do not attempt to fix or repair this unit. Unauthorized repairs will void the manufacturer’s warranty..)

INSTALLATION EXPERIENCE

Installation of PowerBass mobile amplified soundbars requires detailed knowledge of electronics wiring. We strongly recommend installation by an authorized PowerBass dealer. This Owner’s Manual only provides general installation and operation instructions. If you have any reservations about your installation skills, please contact your local PowerBass dealer for assistance.

IMPORTANT: This amplified soundbar is designed for operation in vehicles with 12-volt Negative ground electrical systems only.

GENERAL INSTALLATION TIPS

Your PowerBass XL Bluetooth Soundbars were specially designed for providing high-fidelity sound in any terrain while being able to withstand the harshest of environments with their splash proof design and military grade aluminum chassis. Possible damage to your speakers may occur if improperly used by overdriving the system causing the sound to distort causing permanent damage to the speakers. Playing loud music in a outdoor environment can permanently damage your hearing, as well as limit your ability to hear other traffic.

1. Be sure to carefully read and understand the instructions before attempting to install this product.
2. Turn off the audio system. For safety, disconnect the negative lead from the battery prior to beginning installation.
3. For easier installation, we recommend that if additional wiring is required, you run all wires prior to mounting your soundbar in place.
4. The outdoor environment can quickly accelerate corrosion so always use the highest quality connectors for a reliable installation and minimal signal or power loss.
5. Always use caution before you drill or cut! Be careful not to puncture gas tanks, fuel lines, hydraulic lines or electrical wiring when working on any vessel or vehicle.
6. Never run soundbar wires underneath the vehicle or exposed on a boat deck, keeping the wiring behind cover provides the best protection from environmental elements.
7. Avoid running any soundbar wire or signal cables near the vehicle’s electrical system to prevent noise from “bleeding” into the audio system.
8. Leave a little slack in the soundbar wire for easier installation, this will prevent pulling or stretching the wire and possibly causing a connection to come loose.

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for proper installation

• An electric drill with bits
• Allen / Hex Key / Wrench Set
• Philips head and standard screwdrivers
• Wire strippers
• Crimping tool
• VOM (electronic volt ohm meter)
• Heat shrink tubing and heat gun
• Soldering iron
• Electronic (Rosen not Acid Core) Solder

NOTE: The stainless steel hardware supplied with your PowerBass Xtreme soundbar has been chosen to resist rust and corrosion. If the particular hardware supplied will not work for your installation purposes, please be sure to use only appropriate marine grade (stainless steel) mounting hardware.

INSTALLATION PRECAUTIONS

NOTE: Proceed only if you are a qualified installer, otherwise; see your Authorized PowerBass Dealer to professionally install this amplifier. Always wear protective eyewear when using tools.

• Turn off all stereo and other electrical devices before you begin.
• Disconnect the negative (-) lead from your vehicles battery.
• Locate all fuel lines, brake lines, oil lines, and electrical cables when planning the install.
• When connecting ground points, make sure all paint is carefully scrapped away from the body and contact is made with bare metal.
• Use a utility knife to trim away fabric from hole locations before drilling or cutting.
• When running power cables through sheet metal, be sure to use grommets to properly insulate the metal edges from the wire insulation.
• If possible, use tubing through grommets.

WARNING: Check your vehicle’s owner’s manual before disconnecting the battery. Disconnecting the battery on some vehicles may require an anti-theft code when reconnecting the battery and require the on-board computer to be reset at the dealership. Check with your local dealer if you are uncertain.

Mounting the PowerBass Xtreme Bluetooth Soundbar XL-650

L-brackets (Also compatible with XL-SBT/SBS CLAMPS providing additional mounting options)
Use the supplied hardware to mount the L bracket to the sound bar at the desired mounting angle. Securely tighten all hardware. The diameter of the hole in the L- bracket is .25 inches.

NOTE: we do not supply the hardware to mount the sound bar to the vehicle when using the supplied L Brackets

C-clamp bracket (optional not included)
Place the XL-SBCLAMP2 at the desired mounting position, Remove the top C-Clamp portion and bolt the clamp base into the sound bar securely. Once in place and you are ready to mount the sound bar, attach the top C-Clamp portion using the correct length bolts for your bar size.

MOUNTING LOCATION

Find an unobstructed location that where the soundbar will be easily heard and out of the way so no harm will come to any individual in or around the vehicle. A prime location to mount the soundbar in an off-road vehicle would be on the roll bar preferably in the front of the cockpit.

POWER WIRING AND SIGNAL CONNECTIONS

• The Red Fuse Wire is the main power lead to be connected directly to the positive terminal of the 12V battery. It is recommended to hook this power wire directly to the battery for better current and voltage flow (fig. 4).
• Black Ground Wire (fig. 3 & 4) is the ground lead to the soundbar and needs to be a solid ground connec-tion. Sand or scrape the paint away from a solid chassis location and use a screw or bolt with a star washer for best results. It is recommended to connect the Ground Wire directly to the Battery negative (fig. 4).
• Blue Accessory Wire is the power on and off switch for your soundbar. Attach this lead your ignition or any 12 volt switched power.
• Blue & White Remote Out Wire is to power on and off external amplifiers for use along with your soundbar.
• AUX RCA Input is the audio input from a source unit that produces 250mV to 3 volts.
• AUX RCA Output is up to a 2 volt output to drive an external amp (subwoofer or full-range) or a second sound bar. This output is a full-range variable output that is controlled by the soundbar pre-amp.

AUX INPUT
Connect the external audio input wire to your soundbar. Turn the soundbar on by holding the power button for 3-5 seconds, an audible beep will confirm that the soundbar is powered on. Now you can use the main controller on the soundbar to adjust volume up, down and mute. Track back and forward as well as pause will not work in AUX mode; these features work only in Bluetooth mode. In Aux mode these features can only be operated by your connected device. (Radio, Phone or MP3 Player).

AUX OUTPUT
The soundbar will send up to 2 volts of audio output to either an external amplifier (subwoofer or full-range) or second soundbar. This is a variable output that is controlled by the main soundbar. To use the AUX output simply connect to the audio input of your amplifier or secondary sound bar.

Description

The Powerbass Xtreme Bluetooth Soundbar XL-650 boasts a sleek and durable design, making it a stylish addition to any home theater setup. The soundbar features two full-range drivers and a built-in subwoofer, ensuring deep bass and clear highs. The device supports multiple input options, including Bluetooth, AUX, USB, and Optical, providing flexibility in connecting your devices.

The soundbar comes with a remote control for convenient operation and has wall-mounting options for a seamless integration into your home decor. With its powerful 200W RMS output, this soundbar is capable of filling large rooms with rich and vibrant sound.

CONTROLLER LAYOUT

CONTROLLER OPERATION

1. POWER/MUTE/PAUSE BUTTON
   Press and hold the button down for 3 to 5 seconds to power unit on/off.
   Press the button momentarily to pause the music in Bluetooth mode and once again to un-pause.
   Press the button momentarily once to mute the music in AUX mode and once again to un-mute.
2. BLUETOOTH/AUX MODE BUTTON
   Press Bluetooth/Aux button momentarily to switch between Bluetooth and auxiliary input.
   Press the Bluetooth/Aux button to pair a Bluetooth device if no device is currently paired.
3. TRACK BACK BUTTON
   Press the Track Back button momentarily to skip back to the previous song (Bluetooth mode only).
4. TRACK FORWARD BUTTON
   Press the Track Forward button momentarily to skip to the next song (Bluetooth mode only).
5. VOLUME DOWN BUTTON
   Press the volume down button momentarily to lower the volume. Press the volume down button repeatedly until the desired volume level is achieved.
6. VOLUME UP BUTTON
   Press the volume up button momentarily to raise the volume. Press the volume up button repeatedly until the desired volume level is achieved. There will be an audible beep once maximum volume is reached.

BLUETOOTH PAIRING AND OPERATION

1. Turn sound bar on by holding power button for 3-5 seconds, there will be an audible beep to confirm the soundbar is on.
2. Press the Bluetooth button momentarily and you will hear an audible sequence of tones to confirm soundbar is now ready to pair with your device along with flashing back lights.
3. Go into the Bluetooth settings of your device and search for the XL-(model) Soundbar signal to pair. Once paired, there will be Aan audible beep to confirm that the soundbar and your Bluetooth device has paired successfully.
4. Once the pairing process is complete, use either the main controller on the soundbar or connected device to control volume up and down, track back or forward, and pause/mute.

WIRELESS REMOTE PAIRING OPERATION

(SOLD SEPERATELY)

Pairing your (Sold Separately) XL-SBCONRF wireless remote control can be achieved by following these simple steps.

1. Power up your XL Series Soundbar.
2. Push and hold – Track Forward – until the lights begin to blink.
3. Push any button on the XL-SBCONRF
4. Soundbar light will blink fast, then solid to confirm pairing is successful.

Setup Guide

To set up the Powerbass Xtreme Bluetooth Soundbar XL-650,

• First, unpack the soundbar and set it up where you want it.
• Use the AUX, USB, or optical cords that come with the soundbar to connect it to your TV or other device.
• Turn on Bluetooth on the soundbar and your device, then pair them as directed by the on-screen directions to connect wirelessly.
• To change settings including input selection, bass levels, and volume, use the provided remote control.

PowerBass Xtreme Troubleshooting

(Due to continuing improvements these specifications are subject to change without any notice. Do not attempt to fix or repair this unit. Unauthorized repairs will void the manufacturer’s warranty..)

Pros & Cons

Pros

• High-quality sound with deep bass and clear highs
• Multiple input options for flexibility
• Wireless Bluetooth connectivity for easy pairing
• Compact and stylish design suitable for any living room
• Wall-mountable for convenient installation
• Remote control included for easy operation

Cons

• May not be suitable for very large rooms due to limited power output
• No Dolby Atmos or DTS:X support
• Slightly heavier than some other soundbars in its class

Customer Reviews

Customers have praised the Powerbass Xtreme Bluetooth Soundbar XL-650 for its impressive sound quality and ease of setup. Many have noted that the built-in subwoofer provides excellent bass response, enhancing their movie-watching and gaming experiences. However, some users have mentioned that it may not be powerful enough for very large rooms.

Common complaints include the lack of advanced audio formats like Dolby Atmos and DTS:X, but overall, the product has received positive feedback for its performance and value.

WARRANTY POLICY

PowerBass Xtreme Bluetooth Soundbar are to be free of defects in material and workmanship for a period of one (1) year. The warranty is extended to two (2) years for parts and labor, if an Autho-rized PowerBass Xtreme Dealer completes the installation.
