Introduction

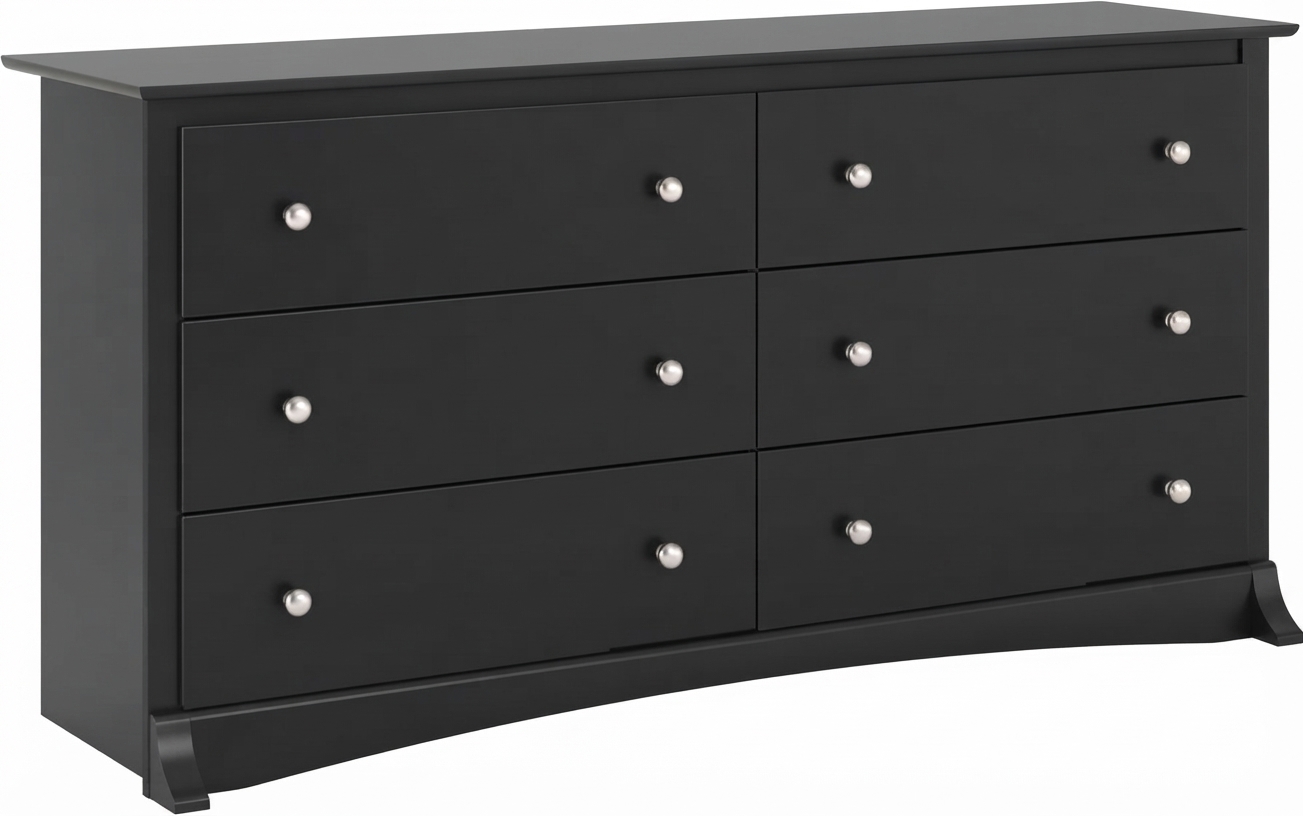

The Prepac 6-Drawer Dresser DC-6330 combines modern design with practical storage solutions, making it an ideal choice for any bedroom. Featuring six spacious drawers that glide smoothly on metal tracks, this dresser is both functional and stylish. Its elegant curved edges and brushed nickel knobs enhance its contemporary appeal, while the sturdy construction ensures durability. The dresser is available for approximately $299, providing excellent value for its quality and design.

This product is shipped in 2 cartons

Make sure you have both cartons. Sometimes cartons shipped on the same day get separated and are delivered on different days.

Depending on the collection, the style of your product may vary from this picture.

Online Option

Fill out the Replacement Parts Order form in the Product Support section of our website: https://www.prepacmfg.comOnline

Prepac 6-Drawer Dresser DC-6330 Required Tools

Optional Tools

Using a power screwdriver  will speed up  assembly.
Caution: Do not over tighten any screw. The last few turns of each screw should be done very slowly or by hand.

Hardware Identification

Cabinet Hardware

Drawer Hardware

Cable Tie  Hardware Package

Cabinet Parts

Detailed Specifications

The Prepac 6-Drawer Dresser DC-6330 boasts several key features that make it a standout product. Here are some of the detailed specifications:

• Dimensions: 59.75" H x 17.75" W x 35.5" D
• Material: Engineered Wood
• Drawer Count: 6 Drawers
• Finish: White, Espresso, and Black
• Weight Capacity: Each drawer can hold up to 50 lbs
• Assembly Required: Yes

Description

The Prepac 6-Drawer Dresser DC-6330 is crafted from engineered wood, ensuring durability and longevity. Its sleek design makes it suitable for various bedroom themes, whether modern, traditional, or contemporary. The six spacious drawers offer ample storage space for clothes, accessories, and personal items. The dresser comes in multiple finishes such as White, Espresso, and Black, allowing users to choose the one that best fits their room decor. The product is designed with safety in mind, featuring a robust structure that can support heavy loads.

Assembly Instructions

1. STEP 1 Estimated Time: 15 - 25 minutes
   1a Attach T-spacers to left and right sides and to both sides of the center divider using drawer slide screws
   1b Then, attach metal cabinet slides to T-spacers using drawer slide screws



2. STEP 2 Estimated Time: 1 minute
   Insert cams into holes on the top of each side



3. STEP 3 Estimated Time: 1 minute
   On the center divider, insert cams where shown



4. STEP 4 Estimated Time: 1 minute
   Insert Blue Rapid Rod into the center hole on each decorative stabilizer



5. STEP 5 Estimated Time: 5 minutes
   Decorative stabilizers C5 & C6 are interchangeable.
   5a Choose the style that you prefer, and attach it to the front of the center divider
   5b Attach the remaining stabilizer to the back of the center divider
   5c Lock both cams with a flat head screwdriver



6. STEP 6 Estimated Time: 10 minutes
   Attach both stabilizers to left and right sides using Confirmat screws. Insert screw cover caps to finish.



7. STEP 7 Estimated Time: 3 minutes
   Hammer plastic dowels halfway into side, center and top moldings



8. STEP 8 Estimated Time: 2 minutes
   Screw green twister dowels into the underside of the top



9. STEP 9 Estimated Time: 2 minutes
   Attach top to sides and lock cams using a flat head screwdriver



10. STEP 10 Estimated Time: 3 minutes
    Attach top & side moldings.
    Using your hands, apply even pressure to moldings and press firmly



11. STEP 11 Estimated Time: 4 minutes



    Drawer Parts Identification



12. STEP 12 Estimated Time: 5 minutes PER DRAWER
    12a Insert cams into drawer sides



    12b Screw black twister dowels into drawer fronts
    12c Attach drawer sides to drawer back with 1½” Hi Lo screws



    12d Attach drawer front and tighten cams using a flat head screwdriver
    12e Turn drawer upside down and slide drawer bottom into grooves



    12f Secure the drawer bottom to the drawer back with nails
    12g Insert the Drawer Bottom Stabilizer



    Position the Stabilizer in the center of the drawer and insert it into the groove on the drawer front. This is the same groove that you inserted the drawer bottom into.
    Then, tighten screw until it is flush
    12h Attach drawer slides to left and right drawer sides using drawer slide screws
    12i Attach knobs with machine screws



13. STEP 13 Estimated Time: 2 minutes
    Insert drawers



14. STEP 14 Attaching and Using the Cable Tie
    We strongly recommend using a cable tie on all furniture, especially if small children have access
    14a. With the #6-3/4” screw, attach one of the mounting bases to one of the sides 1 inch from the top.
    14b. Attach the 2nd mounting base to the wall 2” lower than the one on the cabinet
    Important: Find a wall stud and attach the mounting base with a 1½” screw (not included).  If you cannot locate a stud, use an approved wall mounting system
    14c. Feed the cable tie through each mounting base and then through the locking mechanism to tighten.



Setup Guide

To assemble and set up the Prepac 6-Drawer Dresser DC-6330, follow these steps:

1. Unpack all the components and ensure all parts are included.
2. Follow the instruction manual for step-by-step assembly instructions.
3. Use the provided tools to assemble the frame and attach the drawers.
4. Securely attach the handles to each drawer.
5. Place the dresser on a level surface to ensure stability.

Troubleshooting

If you encounter any issues with your Prepac 6-Drawer Dresser DC-6330, here are some common problems and their solutions:

• Drawers not closing properly: Check if the drawers are aligned correctly and ensure that no obstructions are preventing them from closing.
• Loose parts: Tighten any loose screws or bolts according to the instruction manual.
• Scratches or dents: Use a wood touch-up pen or consult a professional for repairs.

Instructions and Warnings:

• Avoid overloading the drawers beyond their weight capacity.
• Keep the dresser away from direct sunlight and moisture.

Prepac 6-Drawer Dresser DC-6330 Pros & Cons

Pros

• Affordable: Priced competitively compared to other dressers on the market.
• Ample Storage: Six spacious drawers provide generous storage space.
• Durable Construction: Engineered wood ensures long-lasting use.
• Stylish Design: Available in multiple finishes to match various decor styles.

Cons

• Assembly Required: Requires time and effort for assembly.
• Quality of Hardware: Some users have reported issues with the quality of hardware provided.

Customer Reviews

Customers have generally praised the Prepac 6-Drawer Dresser DC-6330 for its value-for-money proposition. Many have appreciated its sturdy construction and ample storage capacity. However, some users have mentioned that assembly can be challenging and time-consuming. Common complaints include issues with drawer alignment and the quality of hardware provided.
