Pyle Elite Series Introduction

Pyle Elite Series Waterproof Amplifier PLMRA402 is a powerful and durable audio solution designed for use in various environments. This amplifier is perfect for boats, cars, and outdoor parties, with its waterproof and rust-resistant construction. The PLMRA402 is capable of delivering 400 watts of peak power, ensuring high-quality audio output for your entertainment needs. It has an estimated price range of $150 to $200 and was launched in 2021.
Easy installation with mounting hardware is provided. The PLMRA402 has two input levels. The high or low-impedance input can be connected to units which incorporate BTL circuity or common-ground types.

PLMRA402 What’s in the Box

• 4-Ch. Marine Amplifier

• Audio Connection Cables

Technical Specs

• Output Power: 100 Watt x 4 MAX

• Amplifier Class: AB

• Fuse Type: 20A

• Input Gain Impedance Adjustment: 1 – 300mV

• Frequency Response: 15 – 30kHz +/-3dB

• Input Impedance: 10k Ohms (Low), 100 Ohm (High)

• Input Sensitivity: 250mV (Low), 2.5V (High)

• T.H.D.: <0.04%

• Matching Speaker Impedance: 4-8 Ohms

• Power Supply: DC 12V

• Dimensions (L x W x H): 9.0” x 7.9” x 2.0” -inches

Features of Waterproof Amplifier

• 4-Channel Amp System

• Dual MOSFET Power Supply

• Marine Grade Construction

• Waterproof Marine Rating IP-01

• Dual Adjustable Input GAIN Level Controls

• Dual High-Level Speaker Input Connectors

• Dual RCA (L/R) Input Connector Jacks

• Gold-Plated Speaker Output Terminal Connectors

• Adjustable Input GAIN Level Control

• Anti-Thump Delay Circuitry

• Built-in Thermal, Overload & Speaker Short Protection

• Heavy-Duty Aluminum Alloy Heatsink

• Power ON LED Indicator

• Remote Turn ON/OFF

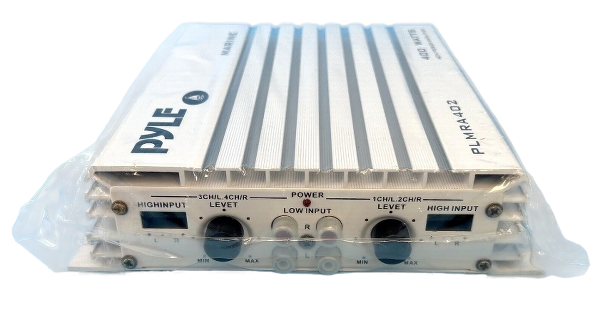

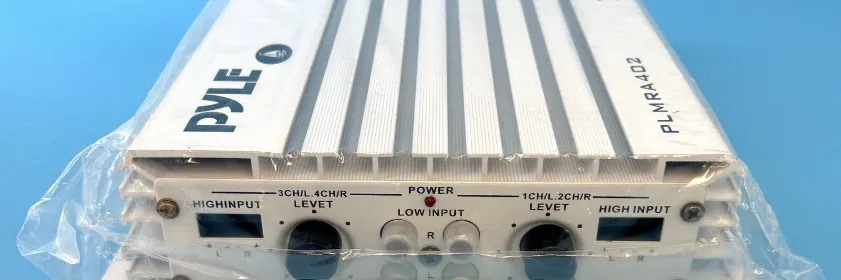

Functions of Waterproof Amplifier PLMRA402

1. POWER ON LED: Lights up when the remote on the system is energized.

2. INPUT GAIN CONTROL: Adjust high impedance input gain from 1 V to 300mV for best matching with PREAMP output for your car stereo.

3. LOW IMPEDANCE INPUT (HIGH-LEVEL INPUT): This unit is provided with two terminal inputs (Front & Rear) for LOW impedance. If your car stereo has four speaker outputs (LF, RF, LR, RR). Wire input as per FIG. 3 & FIG 3A.
   If your car stereo has two speaker outputs, please wire as per FIG 4 & FIG 4A.

4. HIGH IMPEDANCE INPUT (LOW-LEVEL INPUT): This unit is provided with gold plated RCA input jacks for high impedance. Couple the RCA input with the car stereo output using RCA-type connector cables. If your stereo has only left and right 2 channels outputs. You must use a Y-adaptor for connection (FIG 2).

5. POWER FUSE: The power fuse protects both this amplifier and the automobile electrical system from wrong electrical conditions.

6. POWER SUPPLY TERMINAL: Connect the +12V DC power supply wire into this terminal. By lugs and screws accessible at the panel of this amplifier (Fig. 5).

   • BATT +: Connect +12V DC power supply wire into this terminal from the (+) terminal of the battery.

   • GROUND: The ground terminal connects the ground wire from the chassis of the automobile.

   • REMOTE: Remote terminal connects the control wire which provides remote turn-on and off of the amplifier by the RADIO/CASSETTE players power antenna wire.

7. SPEAKERS TERMINALS: Speakers can be easily connected to signal barrier strip. You may use 4 to 8 ohms speakers. Before connecting, please check speaker connection diagrams.

Electrical And Audio Connections

STEREO INPUT CONNECTION

High impedance input of Pyle PLMRA402

Low impedance (BTL or Common Ground) Input

• Four Speaker Output Mode

  1. Floating Ground Type



  2. Common Ground Type



• Two Speaker Output Mode

  1. Floating Ground Type



  2. Common Ground Type



NOTE: High and low impedance input cannot be used at same time.

SPEAKER CONNECTION

Connect the speaker output terminals to the corresponding speakers. (Figure 5) The speakers must be high quality and capable of handling high power. Separated return paths and strong wires are required. (Fig. 5)
NOTE: This amplifier has built-in short circuit protection. If you mistakingly connect any speaker wires to ground, or positive power (+) and (-) wires short together, the protection circuit will operate automatically and cut-off output. In case of this, you must switch OFF the whole system immediately double-check speaker wire connections and isolation before switching on the amplifier again.

Power Connection

1. Connect the B+12V pole of power supply directly to the battery (+) position terminal.

2. Connect the GND pole of power supply directly to the (-) negative ground battery terminal or car chassis.

3. To make a good grounding and prevent motor boating noise problem connect another 12 gauge minimum wire from the (-) negative battery terminal to chassis of stereo unit.

4. Connect the ‘Remote’ pole to external switch for positive 12V ON/OFF. This may be connected to the receiver power antenna lead.

Installation

This ampliÿer comes complete with mounting hardware, if the unit is used in the line level (high impedance) mode, it is recommended to use gold plated RCA connection cables with the length as short as possible and mount the unit as close as possible to the receiver. This will lower the chance of stray magnetic pick up that may cause noise in the system.

1. Choose a suitable location.

2. Check the clearance behind and above the mounting area.

3. Wire unit according to the proper wiring digram.

4. Using the hardware provided, attach the unit to mounting surface



Pyle Elite Series Waterproof Amplifier PLMRA402 Description

The Pyle Elite Series Features a compact and robust design, measuring 9.06 x 2.36 x 5.24 inches and weighing only 4.4 pounds. Its waterproof (IPX5) rating ensures protection against low-pressure water jets from any direction, making it suitable for marine and outdoor applications. The amplifier supports various input sources, including Bluetooth, AUX, and USB, and includes a wireless remote control for convenient operation.

Setup Guide

To set up the Pyle Elite Series Waterproof Amplifier, follow these steps:

1. Connect the amplifier to a power source using the provided power cable.
2. Connect your audio source to the amplifier via Bluetooth, AUX, or USB input.
3. Connect speakers to the amplifier's speaker terminals.
4. Turn on the amplifier and adjust the volume using the volume control knob or the wireless remote control.
5. Customize audio settings through the amplifier's interface or the audio source device.

Maintenance

Your PYLE power Amplifier is an example of superior design and craftsmanship. The fllowing suggestions will help you care for your amplifier so you can enjoy it for years.

• Keep the amplifier dry. If it gets wet, wipe it dry immediately. Liquids can contain minerals that corrode electronic circuits.

• Use and stre the amplifier only in normal temperature environments. Temperature extremes can shorten the lile of electronic devices and distort or melt plastic parts.

• Handle the amplifier gently and carefully. Dropping it can damage circuit boards and cases and can cause theamplifier to work improperly.

• Keep the amplifier away from dust and dirt which can cause premature wear of parts.

• Wipe the amplifier with a damp cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong deter gents to clean the amplifier.

TESTING

1. After all the connections have been made, turn ON your stereo and listen for the amplifier to turn ON. If there are any unusual noises from the speakers then turn the system off and recheck all the wiring.

2. After you have connected your radio or equalizer to the amplifier, you may adjust the gain control to match the output level of your radio.

   • Set the volume control on your radio to 2/3 position.

   • Adjust the gain control for an average listening level.

   • Turn the radio volume all the way down and listen for background noise.

   • Start your vehicle and listen for electrical noise.

   • Making fine adjustments to the sensitivity can reduce background noise and some engine noise.

   • CAUTION: Never turn the sensitivity up any farther than you need to get clear sound at 2/3 volume.

   • This adjustment only needs to be made once.

Pyle Elite Series Troubleshooting Waterproof Amplifier

If you encounter issues with the Pyle Elite Series Waterproof Amplifier, consider the following solutions:

• If Bluetooth connectivity is poor, ensure that the audio source device is within range and that no obstacles are interfering with the signal.
• If the amplifier is not producing sound, check the speaker connections, power supply, and volume level.
• Avoid exposing the amplifier to extreme temperatures or moisture, as it may damage the device.

Pros & Cons

Pros

• Waterproof and rust-resistant design
• Delivers 400 watts of peak power
• Multiple input sources, including Bluetooth, AUX, and USB
• Compact and lightweight
• Wireless remote control

Cons

• May not be as loud as some higher-end amplifiers
• Limited equalizer settings
