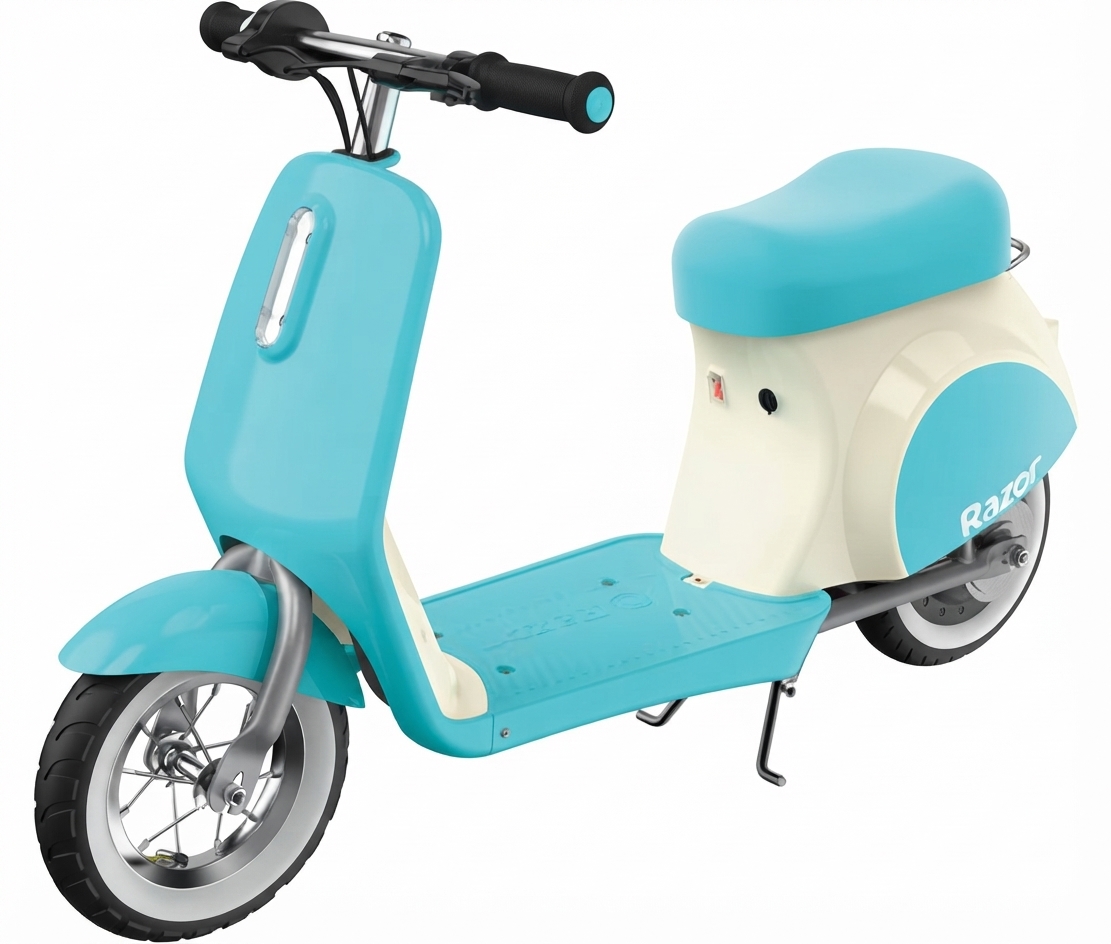

Razor Pocket Mod Miniature Electric Hub Motor Scooter Introduction

The Razor Pocket Mod Miniature Electric Hub Motor Scooter combines vintage style with modern electric performance, making it a popular choice for young riders. With its classic Italian moped design, this scooter features a padded seat and twist-grip throttle control, allowing for a comfortable ride. It can reach speeds of up to 15 mph and offers about 40 minutes of continuous use on a single charge. The cost of the Razor Pocket Mod is approximately $275.99.

POCKET MOD PETITE PARTS

Keep your Pocket Mod Petite running for years with genuine Razor parts. Visit our website or e-mail us for more information on spare part availability. (Specifications subject to change without notice.)

1. Handlebar End Cap (Right/Left)
2. Handlebar Grip
3. Single-Speed Twist-Grip Throttle 3-1 Sleeve
4. Handlebar
5. Brake Lever Assembly
6. Handlebar Grip
7. Wire Protecting Ring
8. Plastic Cover
9. Front Cover Plate
10. Front Fender
11. Front Wheel Complete
12. Back Cover Plate
13. 6 mm Stem Bolt w/ Wedge
14. Headset (Upper/Lower)
15. Frame
16. Front Fork
17. Base Fairing
18. Center Stand
19. Brake
20. Rear Wheel Complete/Hub Motor
21. Hub Motor Cover
22. Rear Tail Plate
23. Back Handle
24. Seat Cushion
25. On/Off Switch
26. Charger Port
27. Control Module
28. Battery Retaining Strap
29. Battery (12V/5aH)

Detailed Specifications

The Razor Pocket Mod Miniature features a 10-inch pneumatic tire, a chain-driven electric hub motor, and a rechargeable 24V battery that provides up to 10 miles of continuous ride time. The scooter reaches a top speed of 14 mph and has a durable steel frame. It also includes a retractable kickstand and a storage compartment under the seat for added convenience. The scooter's dimensions are 44 inches in length, 19 inches in width, and 25 inches in height, making it easy to store and transport.

BEFORE YOU BEGIN

1. Remove contents from the box.
2. Remove the separators that protect the components from damage during shipping.
3. Inspect the contents of the box for scratches in the paint, dents, or kinked cables that may have occurred during shipping.

Because the Pocket Mod Petite is 95% assembled and packed at the factory, there should not be any problems, even if the box has a few scars or dents.

MAKE SURE THE POWER SWITCH IS TURNED “OFF” BEFORE CONDUCTING ANY ASSEMBLY OR MAINTENANCE PROCEDURES.

Estimated Assembly and Set-Up Time

• Razor recommends assembly by an adult.
• Allow up to 15 minutes for assembly.
• Allow up to 12 hours for the initial charge (see page 7 for charging information).

Required Tools

• 5 mm Allen Wrench and 6 mm Allen Wrench (included)
• Two (2) 14 mm/17 mm Wrenches (included)
• Phillips Screwdriver (included)
• Tire Valve Adapter (included)

WARNING: DO NOT USE NON-RAZOR PRODUCTS WITH YOUR RAZOR POCKET MOD PETITE. The Pocket Mod Petite has been built to specific Razor design specifications. The original equipment supplied at the time of sale was selected based on its compatibility with the frame, fork, and all other parts. Certain aftermarket products may not be compatible and will void your warranty.

Product ID Locations

(See locations to the left)

1. Underneath Frame
2. Charger
3. Underneath Charger Port
4. UPC Side of Box (not shown)

Plastic Bag Contents

• Charger
• Tools
• Owner’s Manual

Description

The Pocket Mod Miniature combines classic Italian Vespa-style aesthetics with modern electric technology. Its compact size and lightweight design make it ideal for short trips around town or campus. The scooter's ergonomic design includes a comfortable seat and handlebars, ensuring a smooth ride experience. The electric hub motor is quiet and efficient, reducing noise pollution and environmental impact. With its stylish look and reliable performance, the Razor Pocket Mod Miniature is a great option for those seeking an environmentally friendly and fun mode of transportation.

ASSEMBLY AND SET-UP

Turn power switch off before conducting any assembly or maintenance procedures.

Attaching the Handlebars

Required Tool: 6 mm Allen Wrench (included)

1. Using a 6 mm Allen wrench, loosen steering bolt in four (4) complete turns so that the wedge is loose and not touching steering tube.
2. Facing the front of the Pocket Mod Petite, position the handlebars so the throttle is on your right and the brake lever is on your left (the red “SAFE ZONE” print will be facing you). Align wedge inside handlebar tube. Note: Plastic cover needs to be removed prior to installing the handlebars.
3. 3a While inserting the steering tube down into the handlebar tube, hold steering bolt steady with thumb and rotate handlebars 180 degrees in either direction making sure not to pinch any cables.
   3b The throttle should now be on your left and the brake lever on your right.
4. Slowly slide the handlebars up to make certain that the bar is in the “SAFE ZONE”. Failure to secure the handlebars within the ”SAFE ZONE” can cause the handlebars to come out while riding.

Note: Make sure the brake cables/wires are out of the way before inserting the handlebar into the fork.

WARNING: Periodically check to make sure the steering bolt is tightly fastened.
Note: Failure to secure the handlebars within the ”SAFE ZONE” can cause the handlebars to come out while riding.

Positioning the Brake Lever

Required Tool: 5 mm Allen Wrench (included)

1. Adjust angle of the brake lever to a comfortable position for the rider by turning back and forth.
2. Securely tighten the bolt using a 5 mm Allen wrench.

Attaching the Front Fender and the Front Wheel

Required Tools: Phillips Screwdriver, Two (2) 14 mm Wrenches (included)

1. Remove the plastic packing material from the front fork.  Discard plastic packing.
2. Insert the front fender into the front fork and tighten the screw using a Phillips screwdriver.
3. Insert the wheel into the front fork with the lock washers on the outside of the fork.
4. Insert the tab on the lock washer into the hole on the front fork.
5. Tighten the nuts using two (2) 14 mm wrenches.

Inflating the Front Tire

The front tire is inflated when shipped, but it invariably may lose some pressure between the point of manufacturing and your purchase. Always inflate tire to the correct PSI before first time use.

• Lower air pressure can result in a shorter ride time.
• Periodically check front tire. Reinflate when needed.

Using a bicycle tire pump equipped for a Schrader valve, inflate the front tire to the PSI indicated on the sidewall of the tire.

WARNING:  Do not use the Pocket Mod Petite for the first time until you have inflated the tires to the correct
PSI. Failure to do so may damage your Pocket Mod Petite and void your warranty.
WARNING:  Do not overinflate, as this could damage the tire or wheel.
Note: The pressure air supplies found at gasoline stations are designed to inflate high-volume automobile tires. If you decide to use such an air supply to inflate your Pocket Mod Petite tires, first make sure the pressure gauge  is working, then use very short bursts to inflate to the correct PSI. If you inadvertently overinflate  the tires, release the excess pressure immediately.

Inflating the Rear Tire

Required Tool: Tire Valve Adapter (included)
The rear tire is inflated when shipped, but it invariably may lose some pressure between the point of manufacturing and your purchase. Always inflate tire to the correct PSI before first time use.

1. Lower air pressure can result in a shorter ride time.
2. Periodically check front tire. Reinflate when needed.

1. Remove the valve cap and install the tire valve adapter. Using a bicycle style tire pump equipped for a Schrader-type valve, inflate the rear tire to the correct PSI indicated on the sidewall of the tire. Remove adapter and replace the valve cap. Keep tire valve adapter for future use.

CHARGING THE BATTERY

Your Pocket Mod Petite may not have a fully charged battery; therefore it is a good idea to charge the battery prior to use.

• Initial charge time: 12 hours
• Recharge time: up to 6 hours, even if the light turns green. Recommended maximum charging time is  24 hours.
• Always charge the battery immediately after riding.
• Fully charge battery before storing for extended periods of time.
• Unplug charger from the wall outlet when not in use.
• Failure to recharge battery periodically may result in a battery that will not accept a charge.
• Make sure power switch is turned OFF when product is not in use. If the power switch is left on for an extended period of time, the battery may reach a stage at which it will no longer hold a charge.
• To ensure long battery life, never store the product in freezing or below freezing temperatures! Freezing will permanently damage the battery.
• Run time: Up to 40 minutes of continuous ride time. Run time may vary depending on riding conditions, climate and/or proper maintenance.
• Constant stopping and starting may shorten ride time.
• Battery life can vary depending on proper maintenance and usage of the product

WARNING: Use ONLY with the recommended charger. Batteries are only to be charged under adult supervision. The charger is not a toy. Always disconnect the charger before wiping down and/or cleaning the Pocket Mod Petite with a damp cloth.
The charger supplied with the Pocket Mod Petite should be regularly examined for damage to the cord, plug, enclosure and other parts. In the event of such damage, the Pocket Mod Petite must not be charged until it has been repaired or replaced. Chargers have built-in overcharge protection to prevent battery from being overcharged.
Note: If the charger gets warm during regular use, this is a normal response and is no cause for concern. If your charger does not get warm during use, it does not mean that it is not working properly.

• Wall outlet - Green (stand by)
• Wall outlet and unit - Red (charging)
• Wall outlet and unit - Green (charged)

Note: Continue charging unit even if light turns green prior to 12 hours.
WARNING: Battery charge can deplete over time. Periodically recharge battery when not in use.

1. Plug the charger plug into wall outlet. The light on the charger should be green.
   Note: If green light (LED) does not turn on, try a different outlet.
2. Make sure the power switch is in the OFF position. Plug the charger into the charger port on the product. The light on the charger should turn red during charging. The light will turn green when charging is complete.

PRE-RIDE CHECKLIST

• Brake
  Check the brake for proper function. When you squeeze the brake lever, the brake should provide positive braking action. When you apply the brake with the throttle on/engaged, the brake cut-off switch should cut power to the motor.
• Tires
  Periodically inspect the tires for excess wear, and regularly check the tire pressure and reinflate as necessary. If you get a flat tire, the inner tube can be patched or a new tube can be purchased from Razor or an authorized service center.
• Frame, Fork and Handlebars
  Check for cracks or broken connections. Although broken frames are rare, it is possible for an aggressive rider to run into a curb or object and wreck, bend or break the frame. Get in the habit of inspecting your product on a regular basis.
• Hardware/Loose Parts
  Before every ride, check all parts, such as nuts, bolts, cables, fasteners, etc., to ensure they are secure and assembled correctly. There should not be any unusual rattles or sounds from loose parts or broken components. If the product is damaged, do not ride. Reference “Safety Warnings” on pages 1 and 2 of this manual.
• Safety Gear
  Always wear proper protective gear, such as an approved safety helmet. Elbow pads and kneepads are recommended. Always wear athletic shoes (lace-up shoes with rubber soles) and keep shoelaces tied and out of the way of the wheels, motor and drive system. NEVER RIDE BAREFOOTED OR IN SANDALS.
• Laws and Regulations
  Always check and obey any local laws or regulations.
• Insurance
  Do not assume that your existing insurance policies necessarily provide coverage for electric product use. Check with your insurance company for information regarding insurance.
• Storage
  Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials, store indoors when not in use.

USAGE

Starting the Pocket

Mod Petite
Once seated, place both hands on the handlebars. Slowly push forward with one foot and apply the throttle (A).

Note: Keep both feet on the base fairing when product is in motion.

Stopping the Pocket

Mod Petite
Release the throttle (A) and apply the brake (B), by squeezing brake lever.

Note: When coming to a complete stop, place both feet on the ground to balance the product.

Note: As an additional safety feature, the Pocket Mod Petite is designed to cut power to the motor when the hand brake is applied.

Setup Guide

To operate the Razor Pocket Mod Miniature, first ensure the battery is fully charged.

1. Assemble the scooter by attaching the handlebars and adjusting them to a comfortable height.
2. Check the tire pressure and ensure all parts are securely tightened.
3. To start, simply turn on the power switch and use the throttle to accelerate.
4. The scooter also includes a brake lever on the handlebars for safe stopping. For pairing, this scooter does not require any additional devices as it operates independently.

REPAIR AND MAINTENANCE

Turn power switch “OFF” before beginning repair or maintenance:

• Read the instructions
• Remove charger plug
• Turn the power switch off
• Secure the product under repair
• Exercise caution around exposed parts
• Contact Razor customer service if unsure about any repair or maintenance

Testing the Brake

To use the brake, squeeze the brake lever to increase the pressure on the brake. The brake lever is fitted with a cable adjuster to compensate for cable stretch and/or to fine-tune the lever movement to brake engagement. If brake is not engaging properly, follow instructions for adjusting the brake.

Adjusting the Brake

Required Tool: 10 mm Wrench (not included)

1. To adjust the tension, thread the brake lever adjuster on the hand brake in or out 1/4 to 1/2 turn until the desired brake adjustment is attained. Most adjustments are complete at this step. If brake still needs further adjustment, proceed to step 2.
2. If brake is too tight or has too much slack, use a 10 mm wrench to loosen the nut for additional adjustment on the brake cable on the rear wheel. Securely tighten nut when done.

WARNING: The brake is capable of skidding the tire and throwing an unsuspecting rider. Practice in an open area, free from obstacles, until you are familiar with the brake function. Avoid skidding to a stop as this can cause you to lose control or damage the rear tire.
Note: The brake lever contains a safety switch to cut power to the motor when the brake is applied. In an emergency, applying the brake will always stop the product from moving. Do not disable or replace this lever with anything other than a genuine Razor replacement part.

Rear Wheel/Hub Motor Replacement

Required Tools: Phillips Screwdriver, 17 mm Wrench (included), 10 mm Wrench, two (2) 8 mm Wrenches (not included)

1. Locate and disconnect motor from controller.
2. Using a Phillips screwdriver, loosen and remove three (3) screws from motor cover.
3. With a 10 mm wrench, loosen the brake cable anchor and disconnect the cable.
4. Using two (2) 8 mm wrenches, loosen and remove the bolt and lock nut from the cable guide bracket.
5. With 17 mm wrench, loosen the nut. Remove wheel/hub motor.
6. Install the cable guide bracket to the frame and brake plate using bolt, washers, and nut. Do not tighten. *See the hardware sequence on the right.
7. Thread the brake cable through the brake adjuster barrel, through the large spring, and into the small hole in the side of the anchor bolt. Position the cable to the original location (as indicated by the slight cable kink) and tighten securely.
8. Repeat the steps in reverse to reinstall.

*Note the hardware sequence (from outside toward the center).

Left Side (Brake)
20-1 17 mm Flange Locknut
20-2 Lock Washer
Frame
20-3 Spacer
20-4 Brake Plate

Right Side (Throttle)
20-5 Motor Cover
20-6 Screws (3)
*Note the hardware sequence (from left to right).
20-7 Nut
20-8 Cable Guide Bracket 20-9 Brake Plate
Frame
20-10 Bolt

Front Wheel Replacement

Required Tools: Two (2) 14 mm Wrenches (included)

1. Remove the nuts on both sides of the front axle using a 14 mm wrench then remove the lock washers and remove the wheel from the fork.
2. Insert the new wheel into the front fork with the lock washers on the outside of the fork. See step #3.
3. Insert tab on the lock washer (B) into the hole (A) on the front fork and then place the nuts (C) on top of the lock washer (B).
4. Tighten the nuts using two (2) 14 mm wrenches.

Battery Care and Disposal

Do not store in freezing or below freezing temperatures. To properly maintain your battery and ensure maximum battery life, carefully read the “Charging the Battery” section on page 7 of this owner’s manual.

Charger

The charger supplied with the product should be regularly examined for damage to the cord, plug, enclosure and other parts and in the event of such damage, the product must not be charged until it has been repaired or replaced. Use ONLY with the recommended charger.

Wheels
Wheels and drive system are subject to normal wear and tear. It is the responsibility of the user to periodically inspect wheels for excess wear and adjust and replace hub motor components as required.
Replacement Parts
The most frequently requested replacement parts are available for purchase at some Razor retail partners. For the complete selection of replacement parts visit www.razor.com.
Repair Centers
For a list of authorized Razor repair centers:
Check online at https://www.razor.com

Additional Customer Service contact information is listed on the back of this manual.

In the US and Canada only:
For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.call2recycle.org

WARNING: If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. Refer to the disposal instructions at left. If acid comes into contact with skin or eyes, flush with cool water for at least 15 minutes and contact a physician.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling.

SAFETY WARNINGS

WARNING: Riding a Pocket Mod Petite does present potential risks and caution is required. Like any riding product, the Pocket Mod Petite has inherent hazards associated with its use (for example, falling off or riding it into a hazardous situation). Like any riding product, the Pocket Mod Petite can and is intended to move, and it is, therefore, possible to lose control or otherwise get into dangerous situations. Both children and adults responsible for supervising them must recognize that if such things occur, a rider can be seriously injured or die, even when using safety equipment and other precautions. RIDE AT YOUR OWN RISK AND USE COMMON SENSE.

WARNING: PARENTAL AND ADULT RESPONSIBILITY AND SUPERVISION IS NECESSARY: Because products like the Pocket Mod Petite can and do present potential hazards plainly associated with their use, it is important to recognize THE NEED FOR EXERCISE OF PARENTAL RESPONSIBILITY in selecting riding products appropriate for the age of a child, or parental supervision in situations where children of various ages may have access to the same riding products. Not every product is appropriate for every age or size of child, and different age recommendations reflect the nature of the hazards and the expected mental or physical ability, or both, of a child to cope with the hazards.

• The recommended minimum rider age is 7 years and older. Any rider unable to fit comfortably on the Pocket Mod Petite should not attempt to ride it.
• A parent’s decision to allow their child to ride this product should be based on the child’s maturity, skill, and ability to follow rules.
• Keep this product away from small children and remember that it is intended for use only by persons who are comfortable and competent while operating the Pocket Mod Petite.
• Persons with any mental or physical conditions that may make them susceptible to injury, impair their physical dexterity, or mental capabilities to recognize, understand, and follow safety instructions, should not use or be permitted to use products inappropriate for their abilities.
• Persons with heart conditions, head, back, or neck ailments, or pregnant women, should not operate this product.
• DO NOT EXCEED THE WEIGHT LIMIT of 110 lb (50 kg). Rider weight does not necessarily mean a person’s size is appropriate to fit or maintain control of the Pocket Mod Petite.

CHECK AND MAINTAIN PRODUCT CONDITIONS
Before use, check that all guards or covers are in place and in serviceable condition. Ensure the brake is functioning properly and that tires are inflated and have sufficient tread. The Pocket Mod Petite should be maintained and repaired according to the manufacturer’s specifications using only authorized replacement parts. It should not be modified from the manufacturer’s original design.

ACCEPTABLE RIDING PRACTICES AND CONDITIONS

• Always obey local laws or regulations, which may affect where the Pocket Mod Petite may be used.
• Stay away from cars and traffic and only ride where allowed, with caution.
• Do not activate the throttle unless on the Pocket Mod Petite and in a safe, outdoor environment.
• The maximum speed of the Pocket Mod Petite is approximately 8 mph (13 km/h), which may be affected by rider weight, inclines, tire inflation, and battery level.
• Avoid excessive speeds, especially downhill.
• Keep a hold on the handlebars at all times.
• Do not touch the brake or hub motor after riding, as they can become hot.
• Ride defensively and avoid obstacles like pedestrians, skaters, bikes, or animals.
• The Pocket Mod Petite is designed for flat, dry surfaces, such as pavement. Avoid wet, uneven, or rough terrain, as it may impair traction and cause accidents.
• Do not ride in mud, ice, puddles, or water.
• Avoid sharp bumps, drainage grates, and sudden surface changes.
• Do not attempt stunts or tricks. This product is not built to withstand such misuse.
• Never allow more than one person on the Pocket Mod Petite.
• Do not ride at night or in conditions with limited visibility.
• Never use near steps or swimming pools.
• Keep body parts, clothing, or similar articles away from moving parts while the motor is running.
• Never use headphones, a cell phone, or text while riding.
• Do not ride in wet or icy weather and never immerse the product in water.
• Do not use the Pocket Mod Petite indoors on carpet or flooring, as it may damage surfaces.

PROPER RIDING ATTIRE
Always wear protective gear, including an approved safety helmet with a securely buckled chin strap, elbow pads, and kneepads. A helmet may be legally required in your area. It is recommended to wear a long-sleeved shirt and long pants. Always wear athletic shoes (lace-up shoes with rubber soles), and keep shoelaces tied and away from the wheels, motor, and drive system. Never ride barefoot or in sandals.

USING THE CHARGER

• The charger supplied with the Pocket Mod Petite should be regularly inspected for damage.
• Do not charge the Pocket Mod Petite if the charger is damaged.
• Use only the recommended charger.
• The charger is not a toy and should be operated by an adult.
• Do not operate the charger near flammable materials.
• Unplug the charger when not in use, and disconnect from the Pocket Mod Petite before cleaning it with a damp cloth.

FAILURE TO USE COMMON SENSE AND HEED THE WARNINGS INCREASES THE RISK OF SERIOUS INJURY. USE WITH CAUTION AND ATTENTION TO SAFE OPERATION.

Troubleshooting

Product(s) should be turned OFF and fully charged prior to doing any Troubleshooting.
NOTE: All troubleshooting steps should be performed by an adult only.

WARRANTY

Razor Limited Warranty
The manufacturer warranties this product to be free of manufacturing defects for a period of 90 days from date of purchase. This Limited Warranty does not cover normal wear and tear, tire, tube or cables, or any damage, failure or loss caused by improper assembly, maintenance, storage or use of the Razor Pocket Mod Petite.
This Limited Warranty will be void if the product is ever:

• used in a manner other than for recreation or transportation;
• modified in any way;
• rented.

The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product. Razor does not offer an extended warranty. If you have purchased an extended warranty, it must be honored by the store at which it was purchased. For your records, save your original sales receipt with this manual and write the serial number below.

Razor Pocket Mod Miniature Pros & Cons

Pros

• Compact Design: Ideal for short trips and easy storage.
• Environmentally Friendly: Electric motor reduces noise and pollution.
• Classic Style: Vintage-inspired design adds to its appeal.
• Efficient Operation: Rechargeable battery provides up to 10 miles of ride time.

Cons

• Weight Limitation: Maximum weight capacity of 170 pounds may limit user range.
• Battery Life: Requires regular charging which can be inconvenient for long trips.
• Speed Limitation: Top speed of 14 mph may be slow for some users.
• Maintenance Needs: Regular checks on tire pressure, brakes, and battery health are necessary.

Customer Reviews

Customers praise the Razor Pocket Mod Miniature for its stylish design and reliable performance. Many appreciate its ease of use and environmentally friendly features. However, some users have noted that the battery life could be longer and the top speed faster. Common complaints include issues with tire durability and occasional difficulties with starting the motor after extended periods of non-use.
