Setup: Rewire Security DB1 Advanced GPS Tracker Instruction Guide

Content

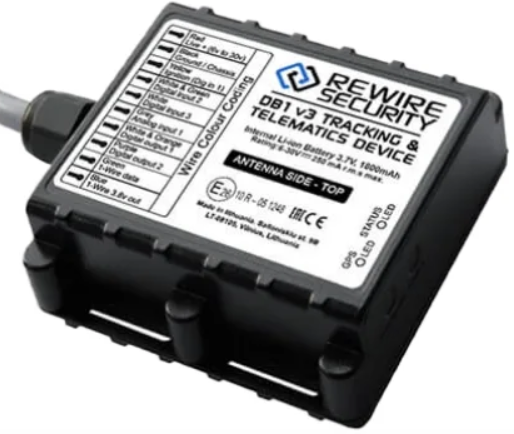

 Rewire Security DB1 Advanced GPS Tracker

rewire-security-DB1-Advanced-GPS-Tracker-product

Introduction

The rewire security DB1 Advanced GPS Tracker is a cutting-edge tracking device designed for real-time location monitoring with exceptional accuracy and reliability. Built for both personal and professional use, this GPS tracker excels in security management, asset tracking, and fleet monitoring. Its compact design combined with robust hardware makes it ideal for vehicles, valuable equipment, and individuals requiring constant location awareness.

Key benefits include precise tracking through advanced GPS and GSM technologies, long battery life, and multi-mode connectivity supporting SMS, GPRS, and mobile app integration. The device offers customizable alerts such as geo-fencing, overspeed warnings, and unauthorized movement detection. Its durable casing ensures reliable operation under harsh environments, including water and dust resistance.

Targeted at fleet operators, logistics companies, and security-conscious consumers, the rewire security DB1 Advanced GPS Tracker supports seamless integration with existing management systems. Typical use cases cover vehicle fleet tracking, theft prevention, personal safety monitoring, and asset management.

The estimated price ranges between $70 and $120, making it competitively priced against other mid-to-high-end GPS trackers. It is widely available through authorized distributors and online retailers.

Specifications of rewire security DB1 Advanced GPS Tracker

  • GPS Module: High-sensitivity GPS chipset with AGPS support for faster location fixes.
  • Network: GSM Quad-band (850/900/1800/1900 MHz) enabling global coverage.
  • Connectivity: SMS, GPRS data transmission, and mobile app compatibility.
  • Battery: Rechargeable 1200mAh lithium-ion battery supporting up to 10 days standby time.
  • Alerts: Geo-fencing, overspeed alarm, movement detection, low battery warnings.
  • Build: IP67 rated for water and dust resistance, suitable for harsh environments.
  • Size & Weight: Compact 80 x 40 x 20 mm, lightweight at approx. 60 grams.
  • Additional Features: Real-time tracking, historical route playback, remote engine cut-off (optional).

Compared to similar products like the Atlas GL300 or iTrack Micro GPS Tracker, the rewire security DB1 offers enhanced battery life and a more comprehensive alert system, making it a superior choice for long-term tracking and security applications.

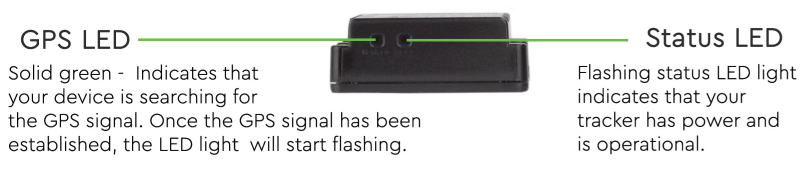

Charging & Status LEDs

rewire-security-DB1-Advanced-GPS-Tracker-product-a



If this is the first time you are using your tracker, it may take a while to establish a GPS lock. Take your device for a quick drive to allow it to establish a GPS satellite fix. Check that both LED lights on the tracker are flashing. Ensure the device is installed with the logo side facing up as this is where the directional GPS receiver is located.

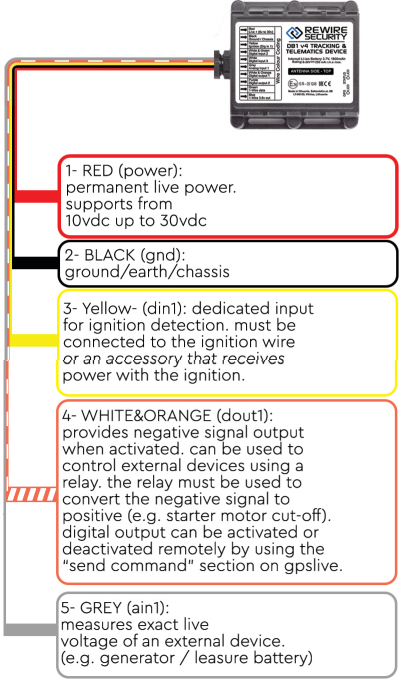

Wiring Diagram

rewire-security-DB1-Advanced-GPS-Tracker-product-b

Installation

  • We recommend the installation to be carried out by a professional auto electrician. The device should be connected to a permanent live feed.
  • If you only require location information, simply connect the RED - Power and BLACK - Ground cables only. The Input and output wires are optional.

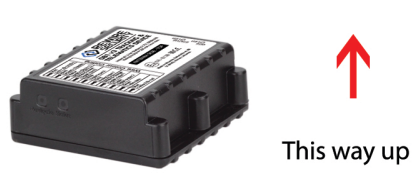

  • The device should be installed with the logo side facing up as this is where the directional GPS receiver is located.

    rewire-security-DB1-Advanced-GPS-Tracker-product-c

Do not install the device below thick metal surfaces as this will block the sat­ellite signal. (e.g. inside the engine bay or the boot). Ideal installation places are under the front dashboard or behind the glove box.

Accessing your account

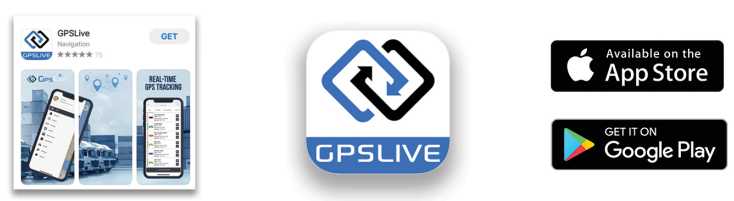

  • To access your account please visit: WWW.GPSLIVE.CO.UK or get our free to download app GPSLive on Google Play or Apple App Store.
rewire-security-DB1-Advanced-GPS-Tracker-product-set up

If you have purchased this device with subscription, it will have already been  added to your account. You'll receive your login details via email if you're a new user.

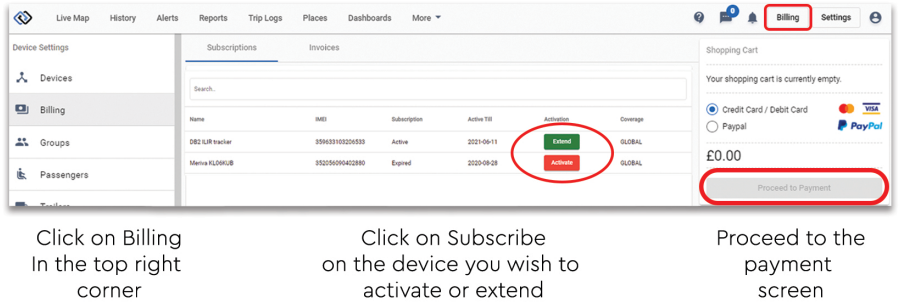

How do I manage my subscription?

IF YOUR SUBSCRIPTION RUNS OUT, YOUR VEHICLE WILL NOT BE PROTECTED AGAINST THEFT AND TRACKING WILL BE DISABLED DURING THIS PERIOD.

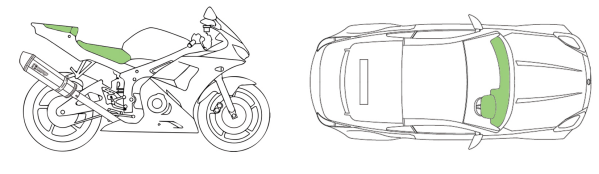

Ideal location for your tracker

rewire-security-DB1-Advanced-GPS-Tracker-product-setup-b

Troubleshooting rewire security DB1 Advanced GPS Tracker

  • Problem: No GPS signal detected.
    Solution: Ensure the device is outdoors or near a window for unobstructed satellite reception. Reset the tracker if needed.
  • Problem: Device not responding to SMS commands.
    Solution: Verify SIM card activation and correct number format. Check GSM signal strength and restart the device.
  • Error Code: E01 - Low battery warning.
    Fix: Recharge the device immediately to avoid shutdown.
  • Error Code: E02 - SIM card error.
    Fix: Reinsert SIM card or replace with a compatible one.

Preventive measures include regular battery charging, periodic firmware updates via the app, and avoiding physical damage. The product includes a one-year warranty covering manufacturing defects. For support, contact rewire security’s customer service via their official website or helpline.

Pros & Cons of rewire security DB1 Advanced GPS Tracker

Pros

  • Accurate real-time GPS tracking with fast fixes using AGPS.
  • Robust build quality with IP67 water and dust resistance.
  • Long battery life supporting up to 10 days standby.
  • Comprehensive alert system including geo-fencing and overspeed notifications.
  • Flexible connectivity via SMS, GPRS, and mobile app integration.
  • Competitive price point relative to features offered.

Cons

  • Requires a compatible SIM card with data plan, which can incur ongoing costs.
  • The initial setup may be complex for users unfamiliar with SMS command configurations.
  • Limited advanced features like remote engine immobilization may require additional modules.
  • Some users report occasional GPS signal delays in dense urban environments.

Customer Reviews of rewire security DB1 Advanced GPS Tracker

Users generally praise the rewire security DB1 Advanced GPS Tracker for its reliable tracking accuracy and durable design. Many highlight its ease of use once set up and appreciate the value for money it provides in the mid-range GPS tracker market.

Common complaints include minor delays in GPS signal acquisition in heavily obstructed areas and the learning curve for configuring SMS commands, especially for first-time users. The battery life and alert system receive consistent positive feedback, with users recommending this tracker for fleet management and personal security needs.

Average rating: 4.3 out of 5 stars

PDF

Faqs

How do I set up the rewire security DB1 Advanced GPS Tracker for my vehicle?

To set up the rewire security DB1 Advanced GPS Tracker, hardwire it to your vehicle’s power supply between +9V and +30V. Ensure both LED lights flash after installation, indicating a GPS and GSM connection. Take your vehicle for a short drive to establish a satellite fix. Use the provided web portal or app to configure alerts, geofences, and custom reports for real-time tracking and telematics monitoring.

What should I do if my rewire security DB1 Advanced GPS Tracker is not reporting location?

If the rewire security DB1 Advanced GPS Tracker isn’t reporting location, check that both LED lights are flashing, indicating GPS and GSM connectivity. Ensure the device is installed in a location with clear sky view and not near metal obstructions. Verify the SIM card is active and the device is powered. If issues persist, perform a reset and update firmware via the web portal for optimal performance.

Can I use the rewire security DB1 Advanced GPS Tracker for fleet management?

Yes, the rewire security DB1 Advanced GPS Tracker is ideal for fleet management. It supports multiple vehicles, offering real-time tracking, route history, driver identification, and custom reports. Use geofence zones, service alerts, and ignition status monitoring to manage vehicle usage, improve driver behavior, and streamline maintenance schedules for your entire fleet.

How do I configure overspeed and geofence alerts on the rewire security DB1 Advanced GPS Tracker?

Configure overspeed and geofence alerts through the rewire security web portal or app. Set your desired speed threshold for overspeed alerts and draw virtual boundaries for geofence zones. You’ll receive instant notifications via SMS, email, or push when vehicles exceed speed limits or enter/exit designated areas, enhancing vehicle security and operational control.

Is the rewire security DB1 Advanced GPS Tracker compatible with trucks and vans?

Yes, the rewire security DB1 Advanced GPS Tracker is compatible with trucks, vans, buses, and other vehicles operating on +9V to +30V systems. Its waterproof, compact design and dual high-gain antennas ensure reliable GPS and GSM coverage, making it suitable for harsh environments and commercial fleet applications across various vehicle types.

How does the remote engine block feature work on the rewire security DB1 Advanced GPS Tracker?

The remote engine block feature allows you to immobilize your vehicle via the rewire security app or web portal if unauthorized use or theft is suspected. When activated, the device prevents the engine from starting, providing an extra layer of security. This feature is especially useful for fleet managers and vehicle owners concerned about theft or unauthorized access.

How often should I maintain the rewire security DB1 Advanced GPS Tracker?

Maintain the rewire security DB1 Advanced GPS Tracker by checking connections and LED status every few months. Ensure the device is clean and free from dust or moisture. Update firmware regularly via the web portal for new features and security patches. Periodic checks help prevent connectivity issues and ensure reliable GPS tracking and telematics performance.

What makes the rewire security DB1 Advanced GPS Tracker different from other vehicle trackers?

The rewire security DB1 Advanced GPS Tracker stands out with its dual high-gain GNSS and GSM antennas, deep sleep mode for low power consumption, and advanced telematics features like digital inputs/outputs, motion detection, and remote engine block. It offers extensive reporting, real-time alerts, and is waterproof and compatible with all vehicle types, making it a robust solution for personal and fleet tracking needs.
