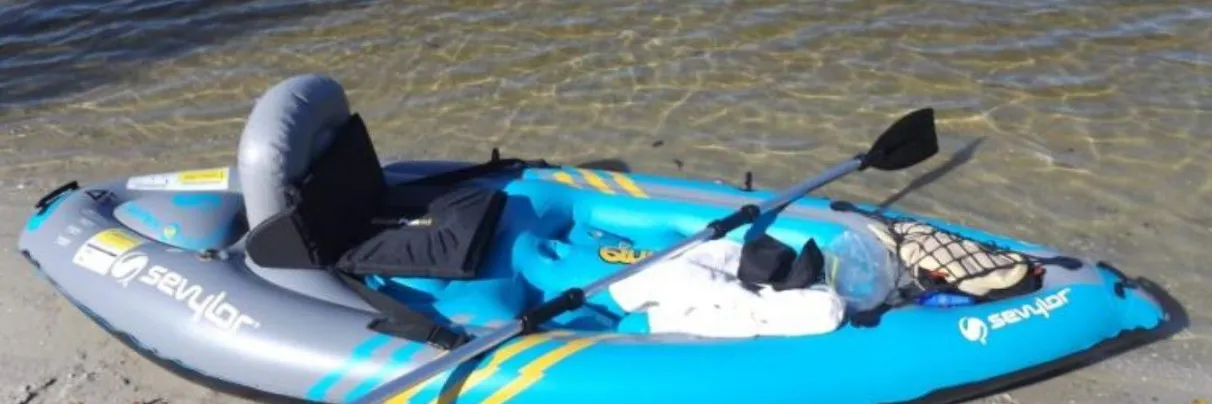

Introduction Of Sevylor QuickPak K1 1-Person Inflatable Kayak

The Sevylor QuickPak K1 1-Person Inflatable Kayak is a versatile and portable kayak designed for a single paddler. It is made with durable materials and features a lightweight and compact design, making it easy to transport and store. The kayak comes with a paddle, hand pump, and a backpack system that allows you to carry it like a backpack. The estimated price of the Sevylor K1 1-Person Inflatable Kayak is around $160 to $200, and it was launched in the market in 2017.

Detailed Specifications

The Sevylor QuickPak K1 1-Person Inflatable Kayak has the following specifications

  • Length: 8 feet 7 inches
  • Width: 3 feet
  • Weight: 18 pounds
  • Capacity: 400 pounds
  • Material: 21-gauge PVC
  • Includes: Paddle, hand pump, and backpack system

Description

The Sevylor QuickPak Inflatable Kayak is designed for a single paddler who wants a versatile and portable kayak. It is made with durable 21-gauge PVC material that can withstand rough waters, and it features a lightweight and compact design that allows you to take it anywhere. The kayak comes with a paddle, hand pump, and a backpack system that makes it easy to transport and store. The kayak's seat is adjustable and can be moved to different positions, providing comfort and stability. The kayak is also equipped with a durable Tarpaulin bottom that provides protection against punctures and abrasions.

Setup of Sevylor QuickPak K1 1-Person Inflatable Kayak

Setting up the QuickPak K1 1-Person Inflatable Kayak is easy and straightforward. Here are the steps to follow

  1. Unfold the kayak and lay it flat on the ground.
  2. Attach the hand pump to the valve and inflate the kayak until it is firm.
  3. Attach the paddle to the kayak and make sure it is secure.
  4. Put on the backrest and adjust it to your desired position.
  5. Place the kayak in the water and start paddling.

INFLATION INSTRUCTIONS

To inflate using any Sevylor QuickPump unit

  1. To begin inflation, open external cap and pull firmly on the lanyard to extend out. This will open internal yellow seal.

  2. Attach adapter nozzle to inflation end of pump. Insert pump and turn on.



    Note: The pump may look different from yours. It is for illustration purposes only.

  3. When fully inflated, seal valve by pushing in with pump nozzle. This will seal the internal yellow stopper and keep air from escaping while closing cap. Gently twist adapter sleeveto right while backing pump out of valve.

  4. Fully remove pump and close external cap. Valve should appear depressed into itself.


To inflate using the Sevylor® Dual Action Hand Pump or other inflation device

  1. To begin inflation, open external cap and pull firmly on the lanyard to extend out. This will open internal yellow seal.

  2. Attach adapter nozzle to inflation end of pump. Insert pump and turn on or start pumping. Note: The pump may look different from yours. It is for illustration purposes only.

  3. When fully inflated, seal valve by pushing in with pump nozzle. This will seal the internal yellow stopper and keep air from escaping while closing cap. Gently twist adapter sleeve to right while backing pump out of valve.

  4. Fully remove adapter and close external stopper. Valve should appear depressed into itself.


IMPORTANT! Inflate the product chambers in the following order

K5 QuikPak™ Kayak

  1. Inflate the floor chamber.
  2. Inflate the DIN chamber.
  3. Inflate the outside main chamber.

K3 QuikPak™ Kayak

  1. Inflate the inner main chamber.
  2. Inflate the outer main chamber.

K1 QuikPak™ Kayak

  1. Inflate the two foot wells chambers.
  2. Inflate the inner main chamber.
  3. Inflate the outer main chamber.
  4. Inflate seat back.

The chambers on the product will also be numbered to indicate order of inflation. This order of inflation will ensure the proper volume and buoyancy of the safety chamber.
CAUTION
Water temperature and weather does affect the pressure in inflatable products. In cold weather your product will lose some pressure due to the fact the air will contract. If this occurs, you may want to add a little air to improve your products performance. However, in hot weather, the air will expand. You must let some air out to prevent your product from failing due to overpressure. You should avoid exposing your product to extreme temperatures (hot or cold)

DEFLATION INSTRUCTIONS

  • Remove adapter hose from inflation end and attach to opposite deflation end of pump. Repeat same steps as inflation. This will draw the air out quickly.
  • Remove adapter hose from inflation port and attach to deflation port. Repeat same steps as inflation. This will draw the air out quickly.

K5 QuikPak Kayak Set-Up Instructions

  1. Remove QuikPak™ kayak from box.

  2. Unbuckle waist strap and shoulder straps. Unzip or remove spray skirt.

  3. Unbuckle inner support straps.

  4. Remove kayak from QuikPak™ unit and set kayak aside.

  5. Pull shoulder straps through openings in QuikPak™ unit.

  6. Fold bottom flap and inner support straps into the QuikPak™ unit.

  7. Fold over side flaps and secure with the hook & loop strips.

  8. Turn seat over and set aside.

  9. Inflate outer chamber to 0.9 PSI.

  10. Inflate DIN chamber to 0.9 PSI.

  11. Inflate floor chamber to 0.9 PSI.
  12. Take seat that was set aside in step 8, fold with velcro downwards as shown.set_up_instructions_of_sevylor_quickpak_k1_1-person_inflatable_kayak.png

  13. Line up hook & loop strip on seat bottom with the hook & loop strip on the kayak floor.

  14. Place seat in kayak with the hook & loop strips secured as shown in step 13.

  15. Attach back rest buckles on seat to the buckles on the kayak.

  16. Adjust backrest straps to desired tension.

  17. Zip spray skirt onto kayak.


K5 QuikPak Kayak Breakdown/Storage Instructions

  1. Remove kayak seat.

  2. Remove spray skirt and deflate kayak.

  3. Unfold side flaps, bottom flap & inner support straps
  4. Pull shoulder straps through the openings.
  5. Fold kayak using the following steps.
    1. Fold kayak lengthwise to center as shown in the above image.

    2. Fold kayak lengthwise again as shown in the above image.


    3. Fold over ends of kayak as shown in the above image.

    4. Fold over ends of kayak again as shown in the above image
    5. Fold kayak in half, with strake up, as shown in above image.sevylor_storage_instructions_quickpak_k1_1-person_inflatable_kayak.png
  6. Place folded kayak into QuikPak™ unit.

  7. Buckle & tighten horizontal support strap.Buckle & tighten vertical support strap.

  8. Attach spray skirt to QuikPak™ unit
  9. Store pump in cargo net on rear of QuikPak™ unit. Store paddle in side pockets and use hook & loop straps to secure the top of the paddle shafts.

Your QuikPak™ kayak is now ready to transport or store.

K3 QuikPak™ Kayak Set-Up Instruction

  1. Remove QuikPak™ Kayak & detachable fin from box.
    NOTE: Be sure not lose the detachable fin.
  2. Unzip QuikPak™ unit rear flap and unbuckle inner support strap.
  3. Remove kayak and set aside.
  4. Turn QuikPak™ unit over and unbuckle shoulder straps & waist strap.
  5. Insert shoulder straps through the openings and pull them through to the inside of the QuikPak™.
  6. Fold in side flaps.
  7. Fold up bottom flap, and buckle.

  8. Fold in top flap & secure with the hook & loop strips.

    sevylor_quickpak_k1_1-person_inflatable_kayak-k3_quikpak™_kayak_set_up_instructions.png
  9. Turn seat over and set aside.

  10. Unfold kayak and install detachable fin to connectors on bottom, rear of kayak, by hooking the fin tabs into the slots on the connectors.
    Note: Skip step 10 if model comes with permanently attached fin.

    sevylor_quickpak_k1_1-person_inflatable_kayak-k3_quikpak™_kayak_set_up_instructions-.png

    Inflate Kayak (using order shown below)

  11. Inflate inner chamber to 0.9 PSI.
  12. Inflate outer chamber to 0.9 PSI.
  13. Take seat that was set aside in step 9, and fold as shown. Seat Hook & Loop Strips

  14. Line up hook & loop strips on seat bottom with the hook & loop strips on the kayak floor. (See the following image that show installed seat)

  15. Connect seat backrest buckles to buckles on kayak.
  16. Adjust backrest straps to your desired tension.

K3 QuikPak™ Kayak Breakdown/Storage Instructions

  1. Remove kayak seat & deflate kayak.
  2. Unfold kayak seat as shown in figure above.
  3. Pull shoulder straps back through openings.
  4. Turn QuikPak™ unit over and set aside.
  5. Fold kayak using the following steps.
    1. Fold kayak lengthwise to center as shown in the above image.
    2. Fold kayak lengthwise again, as shown in the above image.
    3. Fold over kayak end to strake, as shown in the above image.
    4. Fold over the other kayak end, as shown in the above image.
    5. Fold kayak in half, with strake up, as shown in the above image.
  6. Place kayak into QuikPak™ unit, as shown in above image.
  7. Fold over bottom flap and buckle the inner support strap & pull tight.

  8. Fold over rear flap and zip closed.

    sevylor_quickpak_k1_1-person_inflatable_kayak-k3_quikpak™_kayak_set_up_instructions.png
  9. Buckle shoulder straps.

  10. Store pump in cargo net on rear of QuickPack™.  Store paddle in side pockets and use hook & loop straps to secure the top of the paddle shafts.

    sevylor_quickpak_k1_1-person_inflatable_kayak-k3_quikpak™_kayak_set_up_instructions-.png

K1 QuikPak™ Kayak Set Up Instructions

  1. Remove QuikPak™ Kayak from box.
  2. Unbuckle shoulder straps & waist strap.
  3. Turn QuikPak™ unit over and unbuckle the support strap.
  4. Pull the male buckles on cargo net out from each female buckle
  5. Remove cargo net and set aside.
  6. Remove kayak and set aside. Fold shoulder straps into QuikPak™ unit as shown above.
  7. Fold over left side flap of QuikPak™ unit, as shown above.
    NOTE: Left side must be folded over first so the hook & loop strips can be attached

  8. Fold over right side flap of QuikPak™ unit, attaching the hook & loop strips to secure the QuikPak™ unit side flaps.

    sevylor_quickpak_k1_1-person_inflatable_kayak-k1_quikpak™_kayak_set_up_instructions.png
  9. Buckle & tighten the support strap and set aside.
    Inflate Kayak (using order shown below)
  10. Inflate kayak using the following steps.
    1. Inflate foot wells to 0.5 PSI.
    2. Inflate inner chamber to 0.5 PSI.
    3. Inflate outer chamber to 0.5 PSI.
    4. Inflate seat back to 0.5 PSI.
  11. With male buckles facing downward, place cargo net onto kayak in the position as shown above.

  12. Insert each male buckle into the slots on kayak.

    sevylor_quickpak_k1_1-person_inflatable_kayak-k1_quikpak™_kayak_set_up_instructions-.png
  13. The cargo net installed onto kayak.
  14. Kayak seat.
  15. Align hook & loop strip on kayak with the hook & loop strip on the bottom of the seat.
  16. Connect the seat back strap buckles to the buckles on the kayak.

  17. Adjust seat back straps to your desired tension.

    sevylor_k1_quikpak™_kayak_set_up_instructions_quickpak_k1_1-person_inflatable_kayak.png

K1 QuikPak™ Kayak Breakdown/Storage Instructions

  1. Remove kayak seat, remove cargo net & deflate kayak.

  2. Unfold kayak seat in reverse order (QuikPak™ unit should look as shown above).

  3. Fold kayak using the following steps.
    1. Fold kayak lengthwise to center as shown above.
    2. Fold kayak lengthwise again, as shown above
    3. Fold over end of kayak, as shown above
    4. Fold over other end of kayak, as shown above
    5. Fold kayak in half, as shown above.
  4. Place kayak into QuikPak™ unit.

  5. Fold up left & right side flaps, buckle & tighten support strap.

  6. Install cargo net, as shown above (Refer to step 4 of K1 setup instructions for assistance).
  7. Buckle shoulder straps.

  8. Store pump in cargo net on rear of QuikPak™ unit. Store paddle in side pockets and use hook & loop straps to secure the top of the paddle shafts.


OPERATING INSTRUCTIONS

  • Follow all local boating regulations and navigation rules. Familiarize yourself with boating conditions where you plan to use the boat. Use common sense and caution when operating in unfamiliar places.
  • Observe the maximum weight the product can carry and do not overload past this limit. Overloading jeopardizes the safety of the occupants.
  • Be sure all accessories and/or equipment (e.g. oars, life jackets) are in proper working condition before using the boat. Each person occupying the boat is to wear an approved Personal Flotation Device (life preserver)
  • Sharp objects are not to be carried in the product without adequate protection or storage.
  • When navigating the product in any water depth, watch for submerged or sharp objects that may damage or pierce the boat’s air chambers.
  • Enter the product from the port (left) or starboard (right) sides not from the fore (front) or aft (back) sides
  • Never tow with a boat or any other vehicle.

MOTOR MOUNTING

CAUTION
Do not mount a motor on any of these kayaks.

CARE & STORAGE

  • These products are made of the highest quality materials and comply with NMMA (National Marine Manufacturers Association) regulations. Altering the construction of these products will void the limited warranty and could jeopardize the safety of
    the occupants.
  • If your product has been used in salt water, rinse it off with fresh water as soon as possible.
  • Remove tar spots or other soiled areas by using a mild soap and rinsing with fresh water.
  • Be sure your product is completely dry before storing.
  • The products may be stored inflated, but do not place any heavy or sharp objects on it. Storage is best in a dry room.

REPAIRING SMALL PUNCTURES

For inadvertent punctures, you can repair them with the included Sevylor® repair patch.
INSTRUCTIONS

  1. Thoroughly clean and dry the damaged area. Completely deflate if an inflatable article
  2. Cut a portion of the patch to cover the puncture, and allow an additional ¼" on all sides. Always cut a round or oval patch. Never leave corners.
  3. Be sure the spot is completely dry.
  4. Peel the backing from the patch.
  5. Adhere the patch to the puncture.
  6. Using your thumb or finger apply even pressure across the entire surface of the patch.

The Sevylor AirSeal repair kit is also another repair option available (Model # 2000003730 - not included). Sevylor® AirSeal is a fast, reliable repair for vinyl inflatables: air mattresses, toys, pools, boats as well as rainwear, groundsheets, golf bags, etc. INSTRUCTIONS

  1. Thoroughly clean and dry the damaged area. Completely deflate if an inflatable article.
  2. When the damage is small (a pin hole or tear under 2 inches) apply a light coat of AirSeal two or three times. Allow five minutes to dry between each application.
  3. For heavier material, e.g. fabric backed vinyl or a vinyl boat, apply  up to five coats allowing a five-minute drying period between coats
  4. Ensure the AirSeal is completely dry before resuming use of the article.
  5. When the damage is more extensive, cut a patch (with rounded corners) using any vinyl material. Generously coat the damaged area spreading the AirSeal at least 3/8" from the torn edges. Apply the patch and apply AirSeal to all edges of the patch making a seal between patch and the item being repaired. Allow the article to dry at least 10 hours before using.

PADDLE ASSEMBLY: SELECT MODELS ONLY.

Join the three shafts together by screwing them together with the two couplers. Attach the blade to the shafts by screwing onto the end of the shaft.
GUIDELINES FOR USAGE
These kayaks may be wider than a typical kayak, which means they may feel more stable. However, as with any narrow, flat bottom kayak, users must be aware of the possibility of the kayak tipping and compensate for it. Paddle with short, even and easy strokes. Paddle close to the kayak with the paddle almost vertical. Pull with one hand and push with the other. If the nose of the kayak is moving right to left you are probably paddling too hard. Ease off on the force of your stroke to reduce the swaying of the front end. Paddling backward or breaking can sometimes offer quick maneuverability.

Safety

  • Paddle sports can be very dangerous and physically demanding. The user of this product should understand that participating in paddle sports may involve serious injury or death. Observe the following safety standards whenever using this product.
  • It is the owner’s responsibility to carefully read the manual and instruct all  users in safe operation of this product.
  • Not a life saving device.
  • Get paddle sport instruction specific to this type of craft.
  • Obtain certified first aid training and carry first aid and  safety/rescue equipment.
  • Always wear an approved Personal Flotation Device (Life Preserver)
  • Wear a helmet when appropriate.
  • Dress appropriately for weather conditions; cold water and/or cold  weather can result in hypothermia.
  • Never paddle alone.
  • Do not paddle in flood conditions.
  • Be aware of river water levels, tidal changes, dangerous currents and  weather changes.
  • Do not use in high wind, strong currents, open water or dangerous tides. 􀀁 Scout unfamiliar waters; portage when appropriate.
  • Do not exceed your paddling ability; be honest with yourself.
  • Consult a physician prior to beginning your paddle sport training.
  • Do not use this product under the influence of alcohol or drugs.
  • Do not make any alterations to this product.
  • Do not overload or over inflate.
  • Never tow from another boat or vehicle.
  • Know and follow local water safety rules and boating regulations.

Troubleshooting

Here are some common problems and solutions when using the QuickPak K1 1-Person

  • Problem: The kayak is not inflating properly.
  • Solution: Check the valve for any leaks and make sure the pump is properly attached. Inflate the kayak slowly and check for any air leaks.
  • Problem: The kayak is unstable in the water.
  • Solution: Make sure the kayak is properly inflated and the backrest is in the correct position. Adjust your seating position to distribute your weight evenly.
  • Problem: The kayak is punctured.
  • Solution: Use the repair kit that comes with the kayak to patch any punctures. Avoid sharp objects and rocks when kayaking.

PRODUCT WARRANTY

 The Coleman Company, Inc. (“Coleman”) warrants that for a period of 1 year from the date  of original retail purchase, this product will be free from defects in material and workmanship. Coleman, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman dealers, service centers, or retail stores selling Sevylor® products do not have the right to alter, modify or in any way change the terms and conditions of this warranty.

Pros & Cons of QuickPak  Inflatable Kayak

  • Pros

    • Portable and lightweight design
    • Durable materials and construction
    • Comfortable and adjustable seating
    • Includes paddle, hand pump, and backpack system

  • Cons

    • Not suitable for rough waters
    • Slow inflation time
    • Limited color options

Customer Reviews of Sevylor QuickPak Inflatable Kayak

The QuickPakInflatable Kayak has received positive reviews from customers. Many customers have praised its portability, durability, and comfort. However, some customers have complained about the slow inflation time and limited color options. Overall, customers have rated the kayak highly for its value and performance.

Rice Cooker & Steamer BRC18LDSS11

Gigabit Ethernet Unmanaged Switch GS108v4

Leave a Comment

Name

Email

Comment
