Usage: Sharper Image 2-IN-1 STEAM IRON AND FABRIC STEAMER SI-770 User Manual

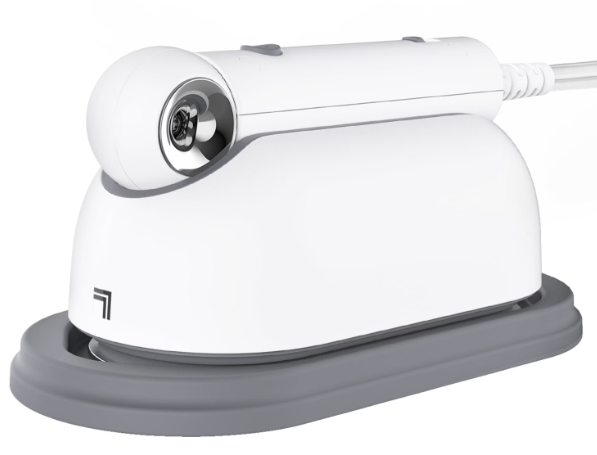

Sharper Image 2-IN-1 Steam Iron and Fabric Steamer SI-770

Introduction

The **Sharper Image 2-IN-1 Steam Iron and Fabric Steamer SI-770** is a versatile and compact solution for both ironing and steaming, perfect for those seeking to streamline their fabric care routine. This innovative device offers the dual functionality of a steam iron and a fabric steamer in a single unit, making it ideal for users who value convenience and efficiency. Key benefits include its ability to heat quickly, use both horizontally and vertically, and feature a non-stick sole plate. The SI-770 is designed for a wide range of users, from frequent travelers to those with limited space at home. It is available in the market within an estimated price range of $40 to $70, depending on the retailer and any ongoing promotions.

This product is particularly appealing to individuals who need both ironing and steaming capabilities but prefer a compact design that saves space. Whether you are a busy professional or a traveler, the SI-770 fits perfectly into your lifestyle by providing smooth finishes and crisp creases without the need for separate irons and steamers.

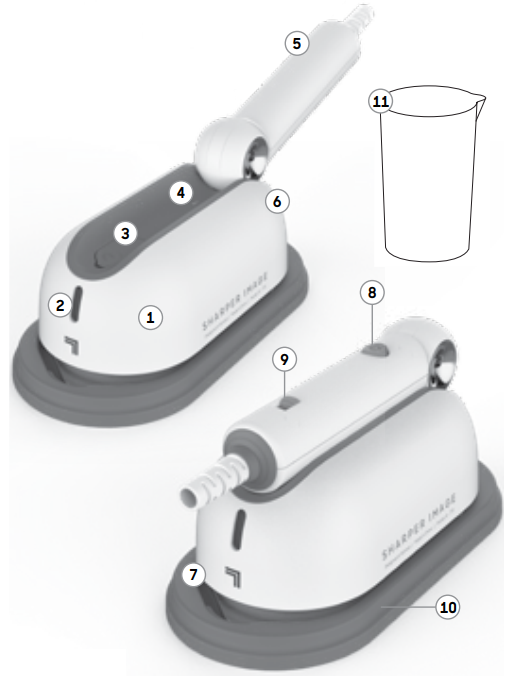

1. MAIN BODY
   Contains the unit's internal heating components.
2. WATER TANK (INTERNAL)
   Designed to hold a maximum of 3.38 oz (100 mL) of water.
3. WATER TANK COVER
   Covers the Water Tank fill hole to eliminate water from dripping out of the tank during use.
4. POWER LIGHT
   Illuminates ORANGE when the unit is powered on and ready for use. The light illuminates PURPLE during steam output.
5. HANDLE
   Designed for easy control and navigation of the unit.
6. ROTARY BUTTON
   Allows the handle to rotate and lock into position.
7. IRONING PLATE
   The heated, non-stick surface that is used to press fabrics, remove wrinkles,, and create creases. Has six steam outlet holes for steaming fabrics.
8. STEAM BUTTON
   When pressed, the unit will begin to produce.. The button must be held down during use for steam production.
9. POWER SWITCH
   Turns the unit ON ( I ) and OFF (O ).
10. RESTING PLATE
    Provides a heat-resistant surface to rest the unit while not in use.
11. FILL CUP
    Designed to help you easily and consistently fill the Water Tank.

HOW TO USE

CAUTION: When steaming and ironing material for the first time, it's recommended that you test a small inconspicuous area before proceeding. Do not use on synthetic fabrics such as 100% nylon or polyester, or other steam-sensitive materials.

CAUTION: The Ironing Plate can reach a temperature of 392ºF. Ensure the fabrics being ironed are appropriate for this temperature.

DRY IRONING

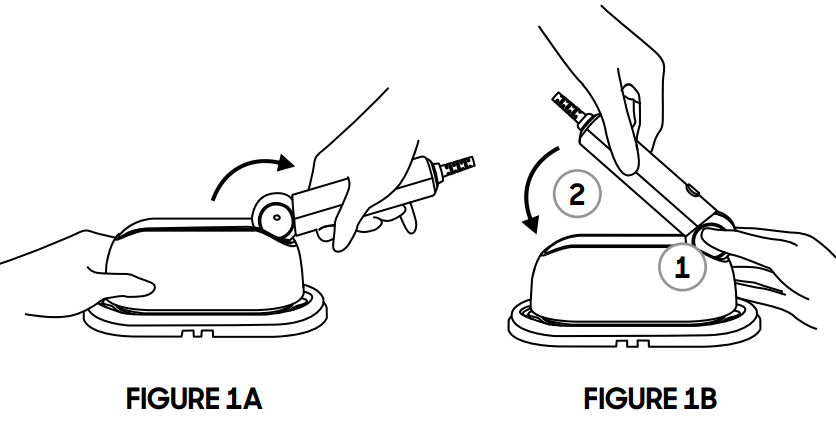

1. Rotate the Handle until the Rotary Button clicks into place. See figure 1A.
2. Plug the power cord into a convenient electrical outlet
3. Turn the unit to the ON ( I) position. When ON, the Power Indicator Light will illuminate ORANGE. When using the Steam function, the Light will illuminate PURPLE.
4. The Ironing Plate will immediately begin to heat and, after approximately 35 seconds,, will reach its maximum temperature of 392ºF. Ensure the materials being ironed are appropriate for this temperature.
5. Place the unit on the Resting Plate while adjusting fabrics and garments.
6. When ironing tasks are finished, turn the iron OFF.
7. Place the unit on the Resting Plate and allow it to cool for at least 15 minutes.
8. Press and hold the Rotary Button to return the handle to its resting positionn. See figure 1B.

STEAM IRONING AND FABRIC STEAMING

1. Follow the Filling Water Tank procedure on page 8.
2. Follow steps #1-4 above.
3.  For steam production, press and hold the Steam Button. Steam will immediately begin to emit from the Ironing Plate.
4. To steam iron, press the steaming ironing plate along the garment or fabric you wish to iron to remove wrinkles and create creases.
5. To steam hanging fabrics,
   1.  Hang the garment or fabric from a clean, rust-free hanger
   2. Direct the steaming Ironing Plate towards the bottom of the garment. Steam will rise along the inside and outside of the material, removing wrinkles. Slowly slide the steaming Ironing Plate upward from the bottom to the top of the garment
   3. Direct steaming Ironing Plate away from the garment and smooth material with a free hand.
   4. Repeat as necessary until the garment is fresh and wrinkle-free.
6. Release the Steam Button and set the unit on the Resting Plate while adjusting fabrics and garments.
7. When steaming tasks are finished, turn the unit OFF.
8. Place the unit on the Resting Plate and allow it to cool for at least 30 minutes.
9. Press and hold the Rotary Button to return the handle to its resting position. See figure 1B.

CAUTION: BURN HAZARD. Do Not Touch the surface and Do Not activate the steam while e the unit is seated on the Resting Plate.

GENERAL STEAMING TIPS

• For the most effective results, hold the Ironing Plate within 1/2 inch of fabrics, or press it directly against surfaces.
• Curtains and draperies can be steamed while still hanging.
• To remove wrinkles from towels, handkerchiefs,, and napkins, drape them over a rod or towel rack and gently steam them.
• Heavier fabrics may require repeated steaming to achieve e the desired results.
• To remove exceptionally stubborn wrinkles, steam both sides of the fabric.
• Be especially careful when steaming any delicate fabrics that may be damaged by heat or water spotting.
• To sanitize a fabric, hold the Ironing Plate within 1/2 inch of a single area for at least 5 seconds. Use caution when doing this on more delicate fabrics.

When you are finished using your 2-in-1 Steam Iron and Fabric Steamer, immediately turn OFF and unplug the power cord from the electrical outlet. Refer to Storage & Care guidelines on Page 12 of this manual for proper storage and maintenance procedures.

CAUTION: Always point the steam in a safe direction (away from yourself, other people, pets,, and plants) when steaming.

STORAGE & CARE

PROPER STORAGE
Preparing your 2-in-1 Steam Iron and Fabric Steamer for storage is quick and simple. When you have finished your tasks, follow the steps listed below.

1. Set the unit on the Resting Plate.
2. Turn the unit OFF and unplug it from the power source.
3. Allow the unit to cool at least 30 minutes.
4. Drain any remaining water into a sink or tub to minimize potential build-up.
5. Press the Rotary Button to rotate the handle to the resting position.
6. Wrap the cord with the supplied "hook and loop" fastener when storing.
7. Store unit in a cool, dry place.

MINERAL BUILD-UP
A common maintenance need for steam appliances is the removal of build-up caused by high mineral content in many municipal water supplies. This mineral build-up may cause the unit to spew water, limit the effectiveness,, and reduce the life of your 2-in-1 Steam Iron and Fabric Steamer.

The best way to minimize mineral build-up is to use distilled or de-mineralized water when using your 2-in-1 Steam Iron and Fabric Steamer.

TO REMOVE MINERAL BUILD-UP

1. Follow Steps 1-4 undethe r the Proper Storage section.
2. Fill measuring cup with 1.0oz (29.6mL) of distilled water and 1.0oz (29.6mL) of vinegar.
3. Slowly pour water-vinegar solution into the Water Tank, then replace the Water Tank Cover.
4. Plug in the power cord and turn the unit ON. The unit will immediately begin to heat.
5. Point the Ironing Plate into a sink or tub and press the Steam Button to allow the unit to produce steam for 1 minute. Then, turn the unit off and unplug it from the power source.
6. Allow the unit to sit powered off for approximately 30 minutes, then plug it back in and turn it on. Allow the remainder of the Water Tank’s contents to be steamed out.
7. Once the Water Tank is drained, turn the unit off and refill the Tank with 3.38oz (100mL) of fresh, distilled, or de-mineralized water. Turn on again and allow the remainder of the Water Tank’s contents to be steamed out. Repeat as necessary until theuntil the h inegar odor dissipates.

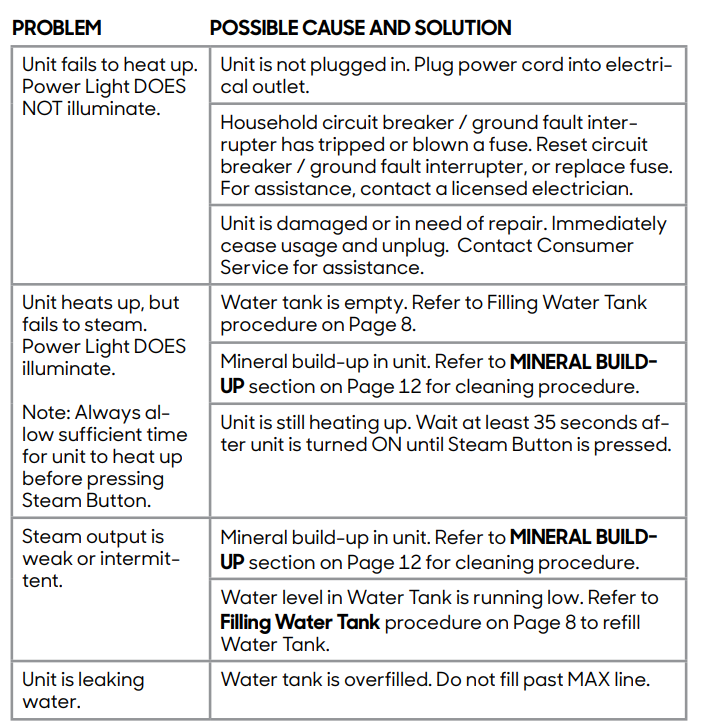

TROUBLESHOOTING

WARRANTY

If you’re not satisfied with this product, let us know.

• Vornado Air, LLC warrants to the original consumer or purchaser that this Sharper Image® Steam Product (“Product”) is free from defects in material or workmanship for a period of one (1) year from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
• For warranty or repair service: Call 833-800-8669  to obtain a Return Authorization (“RA”) form. Please have or include your Product’s model number and serial number, as well as your name, address, city, state, zip code,, and phone number when contacting Vornado for warranty service.
• After receiving the RA form, ship your Product to: Vornado Air L, LC,, Attn: Warranty Repair,   5 East 13th Street, Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received.
• Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling,,andling and shipping.
• This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use,, or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country not intended for use,, will void all warranties. Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts is not, recommended,, and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNABE IS NOT LIABLE NOLIABLELE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
• Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

• All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond

  to the latest available the information at the time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

• ©2021 Vornado Air LLC, Andover, Kansas 67002 USA.
• Specifications subject to change without notice.
• Sharper Image® name and logo are registered trademarks. Manufactured, marketed, and distributed under license by Vornado Air LLC, Andover, Kansas 67002.
• Manufactured in China.
• U.S. Patents Pending.
• Sharper Image® Distributed under license by Vornado Air LLC, Andover, Kansas 67002.

Specifications of the Sharper Image SI-770

The Sharper Image SI-770 features a powerful set of specifications that make it a standout in its class:

• Wattage: 1100 Watts, providing efficient heating and quick performance.
• Water Tank Capacity: 3.38 oz (100 mL), sufficient for up to 10 minutes of continuous steaming.
• Heating Time: Heats in as little as 35 seconds, ideal for quick touch-ups.
• Steam Output: Features a steam button for controlled steam release, with a power light that changes color to indicate steam output.
• Non-Stick Sole Plate: Ensures smooth gliding and prevents fabric scorching.
• Compact Design: Lightweight and easy to maneuver, perfect for travel or limited space.

Compared to similar products, the SI-770 offers a unique blend of portability and functionality, making it highly competitive in the market.

Pros and Cons of the Sharper Image SI-770

Pros

• Compact and Lightweight: Easy to store and transport.
• Dual Functionality: Combines ironing and steaming capabilities.
• Quick Heating: Ready for use in under a minute.
• Non-Stick Sole Plate: Reduces the risk of fabric scorching.
• Value for Money: Offers excellent functionality at a competitive price.

Cons

• Water Tank Size: Relatively small, requiring frequent refills.
• No Continuous Steam: Requires holding the steam button for steam output.
• Handling: Some users may find it slightly cumbersome to use as a handheld steamer.

Customer Reviews and Recommendations

Users of the Sharper Image SI-770 have praised its compact design and dual functionality, making it a favorite among those who value convenience. It receives a high rating of 4.7/5, with many users appreciating its ease of use and effectiveness in both ironing and steaming. Common praises include its ability to quickly remove wrinkles and its lightweight design, which makes it easy to handle and store.

Some users have noted that the small water tank requires frequent refills, but overall, the product is recommended for its versatility and value for money. For those looking to purchase a reliable and space-saving fabric care solution, the SI-770 is a solid choice.
