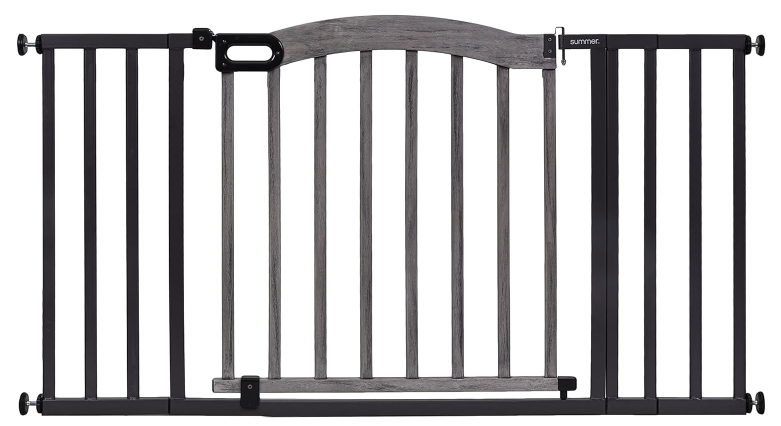

Summer 27220 Wood & Metal Expansion Walk-Thru Gate

Introducing the stylish and durable safety gate designed to keep children and pets safe. Combining the elegance of wood with the strength of metal, this gate fits openings from 29.5 to 42 inches wide and stands 30 inches tall. It features a pressure-mount system for easy installation and removal, with optional hardware for added security. The gate includes a convenient walk-thru door that swings in both directions and a one-hand release handle for easy access. Perfect for use in doorways and hallways, the Summer 27220 gate provides a secure barrier while complementing your home decor.

This pressure-mounted gate helps you create and maintain a secure environment for your child. It has an extra wide hinged swinging door that opens easily in either direction with one hand. It's fully adjustable to fit openings from 36"- 60".

Detailed Specifications

The Summer 27220 Wood & Metal Expansion Walk-Thru Gate several key features that make it an excellent choice for families:

• Suitable for children aged 6 to 24 months
• Pressure-mounted design with no drilling required
• One-handed operation with a dual-locking system
• Walk-through design with a 22.5-inch wide opening
• Extends up to 44 inches wide
• Can be used on stairways and in doorways or other openings
• Made with durable and sturdy materials
• Meets safety standards set by the American Society for Testing and Materials (ASTM)

FEATURES & COMPONENTS

Description

Installable in any area of your house, the Summer 27220 Wood & Metal Expansion Walk-Thru Gate is a practical and simple-to-use safety gate. Its pressure-mounted design eliminates the need for drilling, making it ideal for both homeowners and renters. With its dual locking mechanism, the gate provides additional security, making sure that your youngster cannot inadvertently open it. With a 22.5-inch wide entrance, its walk-through design allows parents convenient access while keeping kids secure. The gate can fit through a range of doorways and openings because it is 44 inches wide. The gate satisfies ASTM safety regulations and can tolerate normal wear and tear thanks to its strong construction and long-lasting materials.

SET-UP

• Step 1: Measure the width of the opening where you intend to install the gate. Please refer to the following pictures to determine the correct installation configuration. Note that the presence of baseboard molding may change which configuration below is appropriate. If a gap greater than 3 inches (as shown in Figure K) exists, then move to the next highest letter configuration below.



• Step 2: To use with the extension frame, assemble (Figure I).
• Step 3: Screw the tension knobs down the tension bolts until they contact the pads. Insert 4 tension bolts into holes on the outside and slide inward towards the frame as far as possible.

• Step 4: Place the gate in the opening so that the bottom of the gate frame is completely flat on the floor (Figure J).



• Step 5: Center the gate in the opening, so that the distance from the bottom of the gate frame to each side wall is equal (Figure K).




  Note: Never create a gap on either side more than 3". Use the marks etched into the wrench as a ruler. Slide the tension bolts out until the pads contact the door frame or wall. Then screw the tension knob away from the pad until it contacts the gate frame (Figure L).



• NOTE: The wrench is provided for final tightening of all four tension knobs (if necessary) (Figure M).



• Step 6: Tighten both of the tension knobs on the bottom inward towards the frame at the same time (Figure N). Then tighten both of the tension knobs on the top inward towards the frame at the same time (Figure O), so that the upper latch set goes below the release button completely (Figure Q).





To verify installation: Push the frame to ensure that it is secure in the opening and then push the gate panel to ensure that the upper and lower latch sets lock securely in the housings on the frame (Figures P and Q).

Note: If the gate is difficult to unlatch, the top tension knobs may be too tight.

OPERATION

To open the gate: (Figure R)

1. Push the release button towards the door frame or wall.
2. Lift up the gate panel.
3. Swing open in either direction.

To close the gate

1. Lift gate panel.
2. Position over latch.
3. Push down to lock the release button.
4. After closing the gate, ALWAYS check to be certain that it is latched securely.

Troubleshooting

If the gate does not stay closed

1. The upper latch set is not properly adjusted.

   Solution: Adjust the upper tension knobs by turning them counterclockwise to release tension or clockwise to increase tension. Ensure that the upper latch set button always remains below the release button (Figure Q). Also ensure that the upper latch set button engages securely when the gate is closed and that it can be released properly when the release button is pushed.

If the gate does not stay in position

1. It may not be installed properly (Figure S).



   Solution: Although unusual, some door frames may be out of alignment. In this case, you may have to adjust the individual tension knobs to ensure that the gate is aligned properly. Remove and reinstall the gate, making sure the gate is installed correctly (Figure S) and make sure the upper latch set is still below the release button (Figure Q).

MAINTENANCE

1. Regularly check tension knobs and rubber pads to make sure the gate is securely in place.
2. Do not use the gate if any components are damaged or missing.
3. Wipe surface with a damp cloth or sponge, using mild detergent and warm water.

WARNING: IMPORTANT! KEEP FOR FUTURE REFERENCE!

• To prevent serious injury or death, securely install the gate and use it according to the manufacturer's instructions.
• NEVER use with a child able to climb over or dislodge the gate.
• NEVER leave the child unattended.
• Use only with the locking mechanism securely engaged.
• ALWAYS close and lock the gate behind you.
• Do not use if any components are missing or damaged.
• To prevent falls, never use at the top of stairs.
• This product is intended for children from 6 months up to 24 months of age.
• This product will not necessarily prevent all accidents. Proper adult supervision is required at all times.
• Adult assembly required. Exercise care when unpacking and assembling the product.

CAUTION: KEEP SMALL PARTS OUT OF CHILD'S REACH.

Summer 27220 Pros & Cons

• Pros
  • Pressure-mounted design requires no drilling
  • Dual-locking system for extra security
  • Walk-through design with a 22.5-inch wide opening
  • Extends up to 44 inches wide
  • Meets safety standards set by the ASTM
• Cons
  • May not be suitable for larger openings or doorways
  • Can be difficult to install for some users

Customer Reviews

Customers generally have positive things to say about the Summer 27220 Wood & Metal Expansion Walk-Thru Gate. Many praise its easy installation and secure design, noting that their children cannot open it accidentally. Others appreciate the gate's versatility and ability to be used both indoors and outdoors. However, some users have mentioned that the gate can be difficult to install and may not be suitable for larger openings or doorways.
