How to Use: Swagtron E-Bike EB-6 Instruction Guide

Swagtron E-Bike EB-6

Introduction

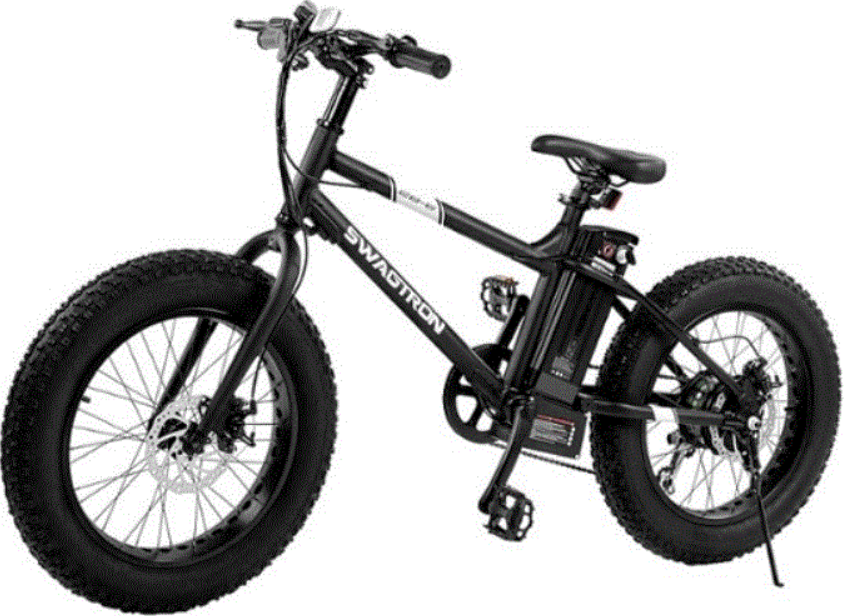

The Swagtron E-Bike EB-6 is a robust electric bike designed for off-road and urban riders seeking a reliable, fun, and efficient mode of transportation. Featuring a powerful 350W rear hub motor and 20-inch air-filled tires, this e-bike offers excellent traction and control on diverse terrains, including trails, gravel, and city streets. Its aluminum alloy frame ensures a lightweight yet sturdy build, allowing easy maneuverability and durability.

Key benefits include a maximum speed of 18.6 mph with electric pedal assist and throttle modes, a 20-mile range per charge, and Shimano 7-speed indexed gear shifting for smooth, adaptable riding performance. The double disc brakes provide superior stopping power, enhancing safety on steep or rough paths. The lithium-ion battery recharges fully in under five hours, supported by a handy battery indicator to monitor power levels conveniently from the handlebars.

Ideal for outdoor enthusiasts, commuters, and casual riders aged teens to adults, the Swagtron EB-6 suits those who want an adventurous yet practical e-bike that can handle up to 264.5 lbs of rider weight and tackle inclines up to 25°. Its versatility makes it suitable for daily commutes, weekend trail rides, or light cargo transport.

Currently, the Swagtron EB-6 is available through multiple online retailers and specialty bike shops, with an estimated price range of around $700 to $900, depending on the vendor and promotions. This positions it as a competitively priced option in the mid-range electric bike market, offering solid features and quality for its cost.

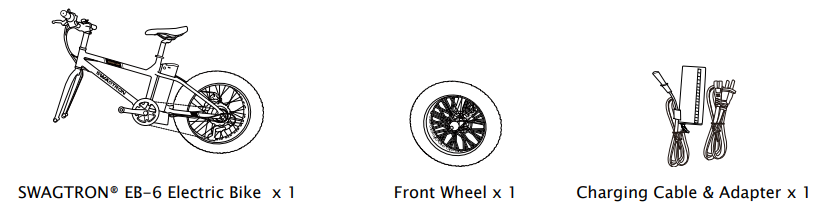

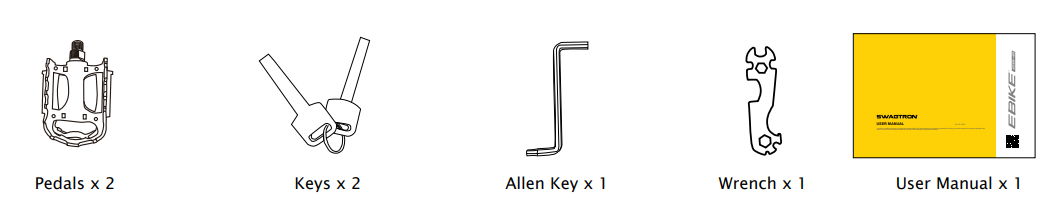

 What’s In the Box?

• 1 x SWAGTRON® EB-6 eBike
• 1 x Front Wheel
• 1 x Charging Cable & Adapter
• 2 x Pedals
• 2 x Keys
• 1 x Allen Key
• 1 x Wrench
• 1 x User Manual

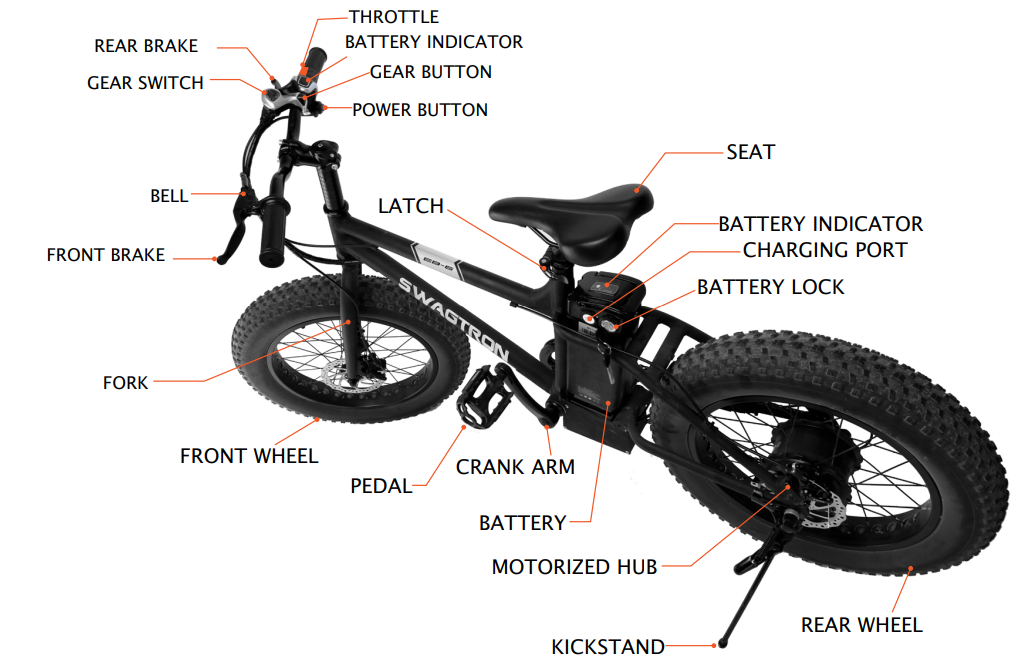

 SWAGTRON® EB-6 eBike Diagram

Assembling, Adjusting Your SWAGTRON® EB-6 eBike

• NOTE: Be careful not to position your fingers between the latch and the stem. Doing so may result in injury.

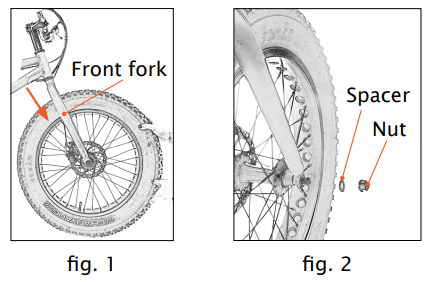

Installing the Front Wheel

• For initial assembly, you will need to ask for someone's help.
• Step 1. Have someone hold the front wheel upright on the floor (fig.1).
• Step 2. Pick up your eBike, line up the fork with the axle at the center of the wheel, and fit the two together.  (fig.1).
• Step 3. On one side of the wheel, slide 1x black spacer on the axle,,e then add 1x nut and tighten slightly  (fig.2). Repeat on the other side of the axle with the other black spacer and nut. Use the included wrench to fully tighten each nut.
  An extra spacer may have been included with your bike. If the front brake is difficult to adjust and/or use, add this spacer between the front fork and wheel on the left side (left side when seated on the bike). If this part was not included with your bike or you otherwise need a replacement, please contact customer service.

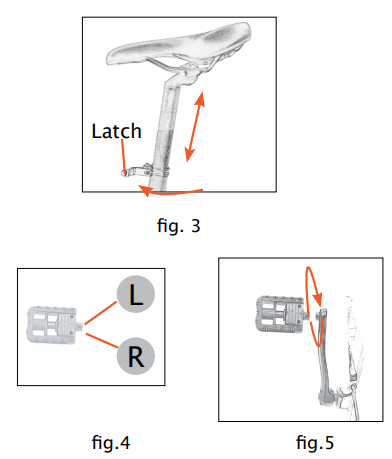

Adjusting Seat Height

For better pedaling, safety, and overall comfort, positioning the seat at the right height is key. The rider’s leg length is used to determine the seat’s position. During pedaling, your hips should remain level while your legs shouldn’t suffer strain from overextension. To determine the right seat height, sit on the eBike with one pedal at its lowest point and place the ball of your foot on the pedal. If your knee bends slightly at this position, the seat is at the right height. Additionally, when placing your heel on the pedal, your leg should be nearly straight.

• First, open the clamp under the seat post. Pull the seat up or push it down to adjust height. Check to make sure the seat post is fully inserted into the frame and the head of the seat is parallel with the frame. Lastly, close the clamp to secure the seat in place  (fig. 3).

Attaching the Pedals

• Before installing the pedals, please check each for a small letter to indicate which side of the bike the pedal should be attached to. L is for the left side w,, while R is for the right side (fig.4).
• With the kickstand holding your eBike upright, screw the pedals onto the crank arms (fig.5) and tighten them with the included wrench.

How to Ride

The instructions below will ensure you have a comfortable and safe riding experience. Please read carefully. Remember to use the keys to turn the battery into the ON position if you plan to use the throttle and/or battery power. For regular pedaling without power and/or after you are done riding, use the keys to turn the battery OFF.

Start your eBike by pressing the Power Button, or ride it with your feet directly.

• Moving forward on your eBike is as easy as twisting the Throttle.
• Switch between 7 gears by pressing the Gear Button or pushing the Gear Switch.
• To stop, release the Throttle, then squeeze the front and rear brakes to slow the front and rear wheels down.
• Use the Bell to alert pedestrians and other riders of your presence.
• The Indicator shows how much charge is left in the battery. Make sure the battery is at full power before heading out on a long-distance ride.

Maintenance

• Do not perform any kind of maintenance while the eBike is charging.
• Attempting to repair or modify your eBike can void all warranties. Only authorized repair centers may open and service the eBike.

Cleaning
Proper cleaning of your eBike can guarantee a longer lifespan and a smooth riding experience.

• Wipe the outer body of your eBike with a soft, dry microfiber cloth.
• Check around the wheels and ensure there is no blockage. The eBike’s design allows for easy wheel maintenance.
• The eBike meets IPX4 water-resistance, meaning it can withstand splashes; however, do not submerge the eBike in water.
• Do not let water or liquids get into the eBike’s electric parts or battery.

Storage
Below are some tips to consider when storing your SWAGTRON® EB-6 Electric Bike.

• Before storing, fully charge the eBike to prevent battery over-discharge due to non-use.
• If storing the eBike for more than one month, discharge and recharge the battery at least once a month.
• Cover the eBike to keep dust out. Do not store in a dusty environment a,,s this may cause damage over time.

 Specifications

• Model Name
  • EB-6
• Net Weight
  • 48.5 lbs / 22 kg
• Dimensions
  • 67.3 x 22.5 x 37.8 in. / 1710 x 570 x 960 mm.
• Max Incline
  • 25°
• Maximum Load
  • 264lbs / 120 kg
• Battery
  • 36V 7.8 Ah
• Charging Voltage
  • 110V - 220V / 50 - 60Hz /42V 2A OC G
• Wheel Size
  • 23.6" Front / Rear
• Wheel Inflation
  • 20 PSI | 1.4 BAR
• Charging Time
  • 4 ~ 5 Hours
• Water Resistance
  • IPX4
• Warranty
  • 1 Year Limited

1 Year Limited Hardware Warranty

Your SWAGTRON® EB-6 Electric Bike (“Product”) includes a One-Year Limited Hardware Warranty..

(“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers. This Warranty gives you specific legal rights,s, and you may also have other rights which vary from state to state.

This Warranty starts on the date of your purchase and lasts for one year (the "Warranty Period"). The Warranty Period is not extended if the Product is repaired or replaced. We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive.

Warranty services are provided by SWAGTRON®. If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, SWAGTRON® will: Repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or

1. Exchange the Product with a product that is new or refurbished, which is substantially equivalent to the original product.

This Warranty is for one replacement only of like-items and does not cover items out of production if the product is no longer made or stocked. This Warranty is not assignable or transferable. The original purchaser may call SWAGTRON’s toll-free number at 1-844-299-0625for a service request.

When a product or part is exchanged, any replacement item becomes your property, and the replaced item becomes SWAGTRON®’s property. This warranty only covers technical hardware defectiveness during the warranty period and under normal use conditions. SWAGTRON® does not warrant uninterrupted or error-free operation of this Product.

This Warranty does not cover any damage due to:

1. transportation;
2. storage;
3. improper use;
4. failure to follow the product instructions or to perform any preventive maintenance;
5. modifications;
6. unauthorized repair;
7. normal wear and tear; or
8. external causes such as accidents, abuse, or other actions or events beyond our reasonable control.

Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only SWAGTRON® or a party expressly authorized by SWAGTRON® should perform service on this Product.

DISCLAIMER OF WARRANTY: THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL,, OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,, SE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.

Troubleshooting Common Issues with the Swagtron E-Bike EB-6

Users of the Swagtron E-Bike EB-6 may occasionally experience common issues such as battery not charging or holding charge, brake adjustment needs, or gear shifting difficulties. Here are solutions for typical problems:

• Battery Issues: Ensure the battery is fully seated in its cradle and connections are clean. If the battery does not charge or drains quickly, check the charger and replace the battery if defective.
• Brake Adjustment: Double disc brakes may need periodic tuning for optimal stopping power. Tighten or replace brake pads as necessary to maintain safety.
• Gear Shifting Problems: The Shimano 7-speed indexed system might need derailleur adjustment or cable tensioning for smooth gear changes.
• Error Codes: The EB-6 does not display electronic error co , de,s but monitoring battery and motor responsiveness helps identify faults early.

Preventive care includes regular cleaning of mechanical parts, checking tire pressure (recommended ~20 PSI), and storing the bike indoors to avoid weather damage. The Swagtron EB-6 comes with a manufacturer’s limited warranty covering defects; consult the user manual or retailer for warranty terms.

For support, Swagtron customer service can be contacted via their official website or through retailer support channels. Prompt professional servicing is recommended for unresolved issues.

Pros & Cons of the Swagtron E-Bike EB-6: Balanced Review

Pros

• Powerful Motor and Speed: 350W motor delivers up to 18.6 mph, ideal for both commuting and light trail riding.
• Off-Road Capability: 20" air-filled tires and double disc brakes provide traction and control on uneven terrain.
• Versatile Gearing: Shimano 7-speed system allows easy adaptation to various inclines and terrains.
• Battery Life: Up to 20 miles per charge with a relatively quick 4-5 hour recharge time.
• Lightweight Frame: Aluminum alloy construction keeps the weight around 48.5 lbs, enhancing portability.

Cons

• Battery Reliability: Some users report variability in battery performance and shorter lifespan.
• Size Limitations: A Smaller frame size may be less comfortable for taller riders.
• Brake Pads Quality: Brake pads may wear quickly and require replacement sooner than expected.
• Price Point: At $700-$900, it’s mid-range,, but some competitors offer better specs or build quality.

Compared to alternatives in its class, the Swagtron EB-6 offers solid off-road features and ease of use, but prospective buyers should assess battery condition and size fit for the best value.

Customer Reviews and User Feedback on the Swagtron E-Bike EB-6

Customers generally praise the Swagtron E-Bike EB-6 for its fun riding experience, impressive speed, and solid build, especially noting the effective pedal assist and robust motor. Typical ratings range from 4 to 4.5 stars out of 5.

Common praises include the bike’s capability on various terrains, ease of shifting through Shimano gears, and responsive disc brakes. Users also appreciate the quick battery recharge and clear battery indicator.

On the downside, some buyers report issues with the battery failing prematurely or not holding a full charge. A few have experienced minor brake adjustments shortly after purchase. Size constraints for taller riders and occasional concerns about brake pad durability are also noted.

Overall, customers recommend the Swagtron EB-6 for anyone seeking a versatile electric bike for light off-road and urban use, advising to verify battery health before purchase and consider personal fit. Many highlight that it offers great value for its price when maintained properly.
