Introduction

The Swagtron Swagger 5 Boost Folding Electric Bike is a sleek, versatile, and highly functional e-bike designed for urban commuters and recreational riders. Launched in 2022, this bike is part of Swagtron's lineup of innovative electric vehicles. The estimated price for the Swagger 5 Boost is around $799, making it an affordable option for those looking to transition to eco-friendly transportation.

This e-bike is perfect for short to medium-distance commutes, running errands, or simply enjoying a leisurely ride. Its foldable design makes it easy to store in small spaces, such as apartments or office cubicles, and it can be easily carried on public transportation. The Swagger 5 Boost combines the convenience of a traditional bicycle with the power and efficiency of an electric motor.

Parts & Features

Please read the user manual in its entirety before using the Swagger 5 Boost so that you may fully understand its parts and functions and be able to operate it safely.

What’s in the Box?

• 1x Swagger 5 Boost Folding Electric Scooter
• 1x Charger
• 1x Bottle Holder
• 2x Cable Ties

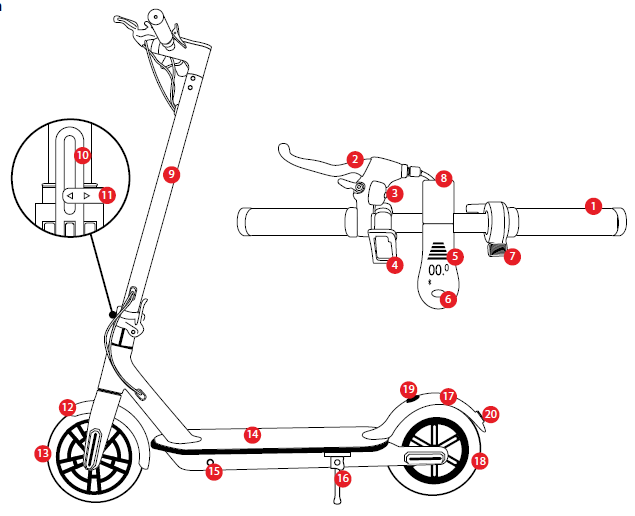

Swagger 5 Boost Diagram

1. Handles
2. Brake
3. Bell
4. Lock
5. Display
6. Power Button
7. Throttle
8. Headlight
9. Stem
10. Latch
11. Collar
12. Front Bumper
13. Motorized Front Wheel
14. Deck
15. Charging Port
16. Kickstand
17. Rear Bumper
18. Rear Wheel
19. Hook
20. Taillight

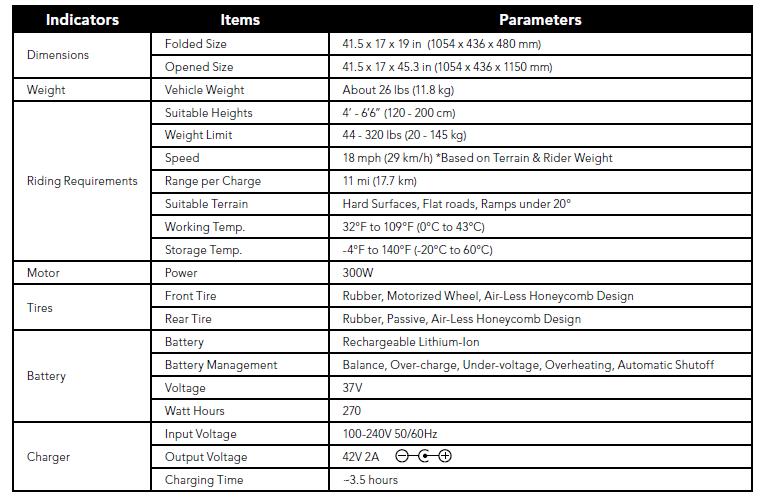

Specifications

General Information

Before operating this vehicle, please read all instructions. This manual will guide you through the functions, usage, and proper care of your Swagger 5 Boost Folding Electric Scooter. If you have any questions or cannot find the information you need in the manual, please contact your place of purchase or our customer service at 1-844-299-0625. Before contacting customer service, please have your purchase information ready,, as this may be needed during the call. This information may be recorded below.

Charge the Swagger 5 Boost before using it.
The charge cycle is complete when the battery indicator on the display is full. Each charge cycle from zero to full charge will take approximately 3.5 hours. When the backlit display on the handlebars indicates that battery power is low, recharge the Swagger 5 Boost. To recharge the Swagger 5 Boost, use the included charger.

• Step 1. Make sure the scooter is powered off, then locate the charging port under the deck.
• Step 2. Insert the appropriate end into the charging port,, and then insert the other end into an outlet.
• Step 3. While the scooter is charging, the charger light will turn red.
• Step 4. When the scooter is fully recharged, the charger light will turn green. You may then disconnect the scooter from the charger.

DO NOT, under any circumstances, use the scooter while it is charging or connected to the charger.
The charging time is approximately 3.5 hours. Charging longer than that may affect battery life and/or performance. If the charger’s light doesn’t turn on, it may not be fully connected. Check that it is securely connected to the wall and to the scooter.

Usage

We sincerely hope every operator can ride the Swagger 5 Boost safely. Note the following information before attempting to ride your Swagger 5 Boost.

• An ASTM F1492-approved helmet, as well as other protective gear,, must be worn at all times.
• The Swagger 5 Boost supports up to 320 lbs (145 kg).
• Before each ride, especially if you may travel a long distance, check the tires for proper inflation, check all cables for damage, and test the brakes. Do not ride if any part of the scooter is damaged or malfunctioning.
• Only operate the Swagger 5 Boost where permitted. Local laws may restrict where you may ride.

The Swagger 5 Boost contains a motor and may be classified as a motor vehicle under local laws in your area. It is your responsibility to understand and abide by any local laws restricting how or where you may ride.

How to Ride

Assuming you have equipped suitable protective gear and that the Swagger 5 Boost has been placed on a level surface, is charged, and does not have any issues, follow the steps below. For your safety, please read this entire section before attempting to ride.

• Start your scooter by pressing and holding the power button for 3~5 seconds.
• Moving forward with your scooter is as easy as pressing the throttle.
• Cruising is as simple as maintaining speed for at least 5 seconds.
• Use the bell to alert pedestrians and other riders of your presence.
• Turn the headlight on/off by quick-pressing the power button twice.
• Switch gears between 1, 2, and 3 by quickly pressing the power button once. Each gear has a different speed. Gear 1’s max. is 5 mph, Gear 2’s is 10 mph, and Gear 3’s is 18 mph.
• The display shows how much battery power is left.
• To slow down, gradually ease off the throttle and apply pressure to the brake.
• To stop, apply full pressure to the brake until the scooter stops completely.

1. Handles
2. Brake
3. Bell
4. Headlight
5. Display
6. Power Button
7. Throttle
8. Pairing Indicator

Maintainance

• Do not perform any maintenance when the power is on, or the battery is charging. Do not let water or liquids get into the scooter, as this will cause permanent damage to the electronic components.
• After each ride, especially if you have traveled a long distance, inspect your scooter.

1. Check the tires for proper inflation and cracks on the walls of the tires. Proper inflation is 28 PSI / 1.9 BAR. Keeping the tires properly maintained will help prevent flats and damage. For inflation instructions, see Section 3.4.
2. Inspect the brakes to make sure that both are working properly.
3. Make sure all screws and bolts are taut and properly fastened to prevent injury and unnecessary wear and tear.

For questions, concerns, or part replacement, please contact customer service.

Cleaning
The Swagger 5 Boost may need cleaning after riding for extended periods of time. See the following tips below.

• Completely power off the scooter before cleaning.
• Use a dry, non-abrasive cloth to gently remove debris or dust.
• If needed, dampen a cloth with water or a mild cleaner and wipe off the scooter.
• Never use alcohol or ammonia-based cleaning solutions.
• Never spray liquid directly onto any part of the scooter.
• Do not allow any type of liquid to come in contact with the scooter’s electronic parts.

Storage

• Before storing the scooter, fully charge it to prevent battery over-discharge due to non-use.
• If storing the scooter for more than one month, discharge and recharge the battery every three months.
• Cover the scooter to protect it from dust. Do not store in a dusty environment, as, with all electronic devices, this may cause damage over time.
• DO NOT store the scooter in an unheated garage, shed, or other location with extreme temperature fluctuations or ranges. Store only in environments where temperatures will be stable and kept between -4°F to 140°F (-20°C to 60°C).

Transportation
Before moving, lifting, or otherwise transporting the scooter, turn it off. Fold the scooter (see Section 3.3 for instructions) and pull the scooter along as you move it if needed.

When lifting the entire scooter, please note that the Swagger 5 Boost weighs approximately 26 lbs (11.8kg). If you are unsure of your ability to lift this weight, please use both hands or have a second person help.

Troubleshooting

If you encounter issues with your Swagger 5 Boost, here are some common problems and solutions:

• No Power: Check if the battery is fully charged and properly connected. Ensure the power button is functioning correctly.
• Braking Issues: Inspect the brake pads for wear and ensure they are properly adjusted. Clean the brake rotors if necessary.
• Tire Deflation: Regularly check tire pressure and inflate as needed. Inspect for punctures or damage.

Always follow safety instructions and warnings provided in the user manual to avoid accidents or injuries.

90-Day Limited Hardware Warranty

• Your SWAGTRON® Swagger 5 Boost Folding Electric Scooter (“Product”) includes a 90-Day Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use.  This Warranty is limited to residents of the United States (Excluding Hawaii, Alaska, and U.S. territories) and Canada only and is available only to original purchasers.  This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
• This Warranty starts on the date of your purchase and lasts for 90 days (the “Warranty Period”). The Warranty Period is not extended if the Product is repaired or replaced. We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive.
• Warranty services are provided by SWAGTRON®.  If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, SWAGTRON® will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to the original product. This Warranty is for one replacement only of like-items and does not cover items out of production if the product is no longer made or stocked.  This Warranty is not assignable or transferable. The original purchaser may call SWAGTRON’s toll-free number at 1-844-299-0625 for a service request.
• When a product or part is exchanged, any replacement item becomes your property,, and the replaced item becomes SWAGTRON®’s property. This warranty only covers technical hardware defectiveness during the warranty period and under normal use conditions. SWAGTRON® does not warrant uninterrupted or error-free operation of this Product.
• Return shipping shall only be provided for Products dead on arrival (“DOA”) within 30 days of purchase only.  All other returns/repairs shall require payment of shipping cost at a discounted rate to be determined as follows:
• SWAGTRON®  E-Scooters, and Hoverboards shall be Twenty Dollars ($20)
  SWAGTRON®  K-Line shall be Eight Dollars ($8)
• Shipping prices are subject to change with further notice.
• This Warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper use; (d) failure to follow the product instructions or to perform any preventive maintenance; (e) modifications; (f) unauthorized repair; (g) normal wear and tear( including but not limited to wearables and other consumable parts such as tires); or (h) external causes such as accidents, abuse, or other actions or events beyond our reasonable control.

Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only SWAGTRON® or a party expressly authorized by SWAGTRON® should perform service on this Product.

DISCLAIMER OF WARRANTY:
THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL,, OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES  OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,, SE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.
