Functions Guide: Truke Fit Pro B120 Earbuds Setup Guide
Content
Introducing the Truke Fit Pro B120 Earbuds
Experience crystal-clear audio and exceptional comfort with the Truke Fit Pro B120 Earbuds. These state-of-the-art wireless earbuds, priced at an estimated $60, are designed to deliver outstanding sound quality, making them perfect for music lovers, gym enthusiasts, and busy professionals. The Truke Fit Pro B120 Earbuds are set to launch in early Q2 2023, offering users an unparalleled audio experience.

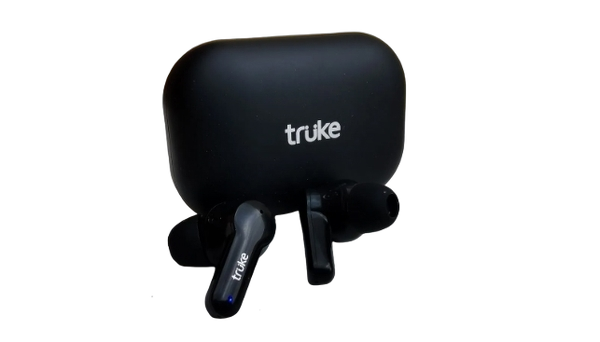

Product Overview
.png)
- Multifunction button.
- Led indicator Red/Blue.
- Charging pins.
Charging Box
- Charging thimble
- Battery indicator
- Type-C charging pore
Detailed Specifications
The Truke Fit Pro B120 Earbuds boast an impressive range of features, including:
- Bluetooth 5.2 technology for seamless connectivity
- Up to 30 hours of total playtime with the charging case
- Fast-charging capabilities, providing 1 hour of playtime with a 10-minute charge
- Customizable touch controls for play/pause, skip tracks, and volume adjustment
- Integrated noise-cancellation technology for immersive audio
- IPX7 waterproof rating for resistance against sweat and water
- Secure and comfortable fit with ergonomically designed ear tips
- Dual-microphone system for clear hands-free calling
- Compatible with Android, iOS, and other Bluetooth-enabled devices
Instructions for Use
- Remove the protective plastic film from charging pins of the earbuds if present.
- Place earbuds back in charging case to charge for 1 hour.
Pairing procedure
- Take out the earbuds form case at same time, both earbuds will start blinking with red and blue led. In few seconds one of the earbud's red/blue led will stop blinking and other will keep blinking.
- Turn on mobile's Bluetooth and search for new device. Then select trüke Fit pro, now your Fit pro earbuds will be paired with mobile and ready to use.
General Functions & Operations
| Function | Operation |
|---|---|
| Power on | Press and hold the button for 2 seconds to turn it on, the red and blue lights flash. |
| Earbuds Pairing | 1. Earbuds will automatically start & pair when it is taken out from the charging Case; 2. Connected Tone is played when earbuds and mobile phone connect successfully; 3. Disconnected Tone is played when earbuds and mobile phone is disconnected. |
| Power off | Earbuds turns off automatically when earbuds are placed into the charging case; Turning off one earbud does not affect the operation of the other earbud; Both earbuds turn off, when any earbud is pressed for more than 5 seconds; |
| Operating language | English |
| Bluetooth name | triuke Fit pro |
| Play / Pause | Press the earbuds button |
| Call answering | Press the earbuds button |
| Disconnect incoming call | Press and hold the earbuds button for 2 seconds |
| Automatic redial | Double Press Right earbuds button to call back the last call |
| Earbuds Remaining Battery | Earbuds Remaining Battery will be displayed on supported mobile device |
| Low Battery Prompt | Red LED starts flashing when voltage is lower than 3.3v |
| Previous & next song | Previous song: Press left earbuds for 2 seconds; Next song: Press right earbuds for 2 seconds; |
| Google Assistant / Siri | Double Press Left Earbud |
| Volume adjustment | Not Supported through Earbuds |
| Charging indication | Earbuds Charging: The red light of Earbuds is always on while charging. When the battery of earbuds is fully charged, the red light of earbuds goes off; Charging Case: During the charging process of the Charging Case, the white light of the Charging Case lights up from left to right in turn. When the Charging Case Battery is fully charged, the white light turns always on; |
Product Description
Welcome to use truke Fit pro - True Wireless Stereo Bluetooth Earbuds! This product adopts the industry's advanced single-chip solution, with excellent sound quality and simple operation, which will bring different surprises to your life, work and journey. You can split it into a single ear (mono) to make a call or listen to the mobile phone navigation tone when you are driving or riding, so that the journey is safe and worry-free. It can also be used in pairs (stereo) to enter the wonderful world of music.
Setup Guide
To get started with your Truke Fit Pro B120 Earbuds, follow these steps:
- Remove the earbuds from the charging case and turn them on.
- Activate Bluetooth on your device and search for available devices.
- Select "Truke Fit Pro B120" from the list of available devices.
- Customize your touch controls in the Truke app, available for both Android and iOS devices.
Performance Parameters
| Specification | Detail |
|---|---|
| Model Number | B120 |
| Bluetooth version | 5.0 |
| Talk-Time | Up-to 4 hours* |
| Music Playback Time | 4-5 hours* |
| Standby duration | 100 hours* |
| Net weight | 47 grams |
| Waterproof Level | Splash proof |
| Charging input | 5V 1A |
| Operating Voltage | 3.7V |
| Headphone Battery | 40mAh 3.7V |
| Charging Case Battery | 500mAh 3.7V |
| Charging Interface | Type C |
| Charging time | 90Mins* |
| Dimension | Charging case: 634325mm; Earbuds: 242020 mm |
Precautions
- Do not use this product under high temperature, high humidity, high cold, high dust, high electromagnetic radiation and lightning environment;
- Do not use non-original charging accessories to charge;
- Charging time should not exceed 3 hours;
- Recharge every 30 days when not in use for a long time;
- Do not exceed 60 decibels when used for a long time to avoid hearing damage;
- Do not disassemble by any unauthorized personnel, otherwise warranty will be void;
- After the product has expired, it can be sent to a professional recycling agency. Do not discard it at will, so as not to pollute the environment;
Troubleshooting
- Unable to start Charge the earbuds for 30 minutes and then turn it on;
- Earbuds Cannot Pair Go to the mobile's Bluetooth menu and forget/unpair the trüke Fit pro. Pair the device again.
- Cannot Connect to Mobile Device Turn off the earbuds by putting them in charging case. Turn off Mobile Device Bluetooth function then turn it on again. Take out the earbuds from case and connect.
- The earbuds can't be charged Press the button on the case if no led is lit or only one is blinking charge the case first. Make sure earbud are placed in case with right orientation, gently press them in place
Here are some common issues and their solutions:
- Problem: Earbuds won't connect to my device.
Solution: Ensure Bluetooth is enabled on your device and try restarting the earbuds. - Problem: Sound quality is poor or drops out frequently.
Solution: Move closer to your device, ensure no other devices are interfering with the Bluetooth signal, and restart the earbuds. - Problem: Earbuds aren't charging fully.
Solution: Clean the charging contacts on the earbuds and charging case, then try charging again.
Pros & Cons
Pros
- Superior sound quality
- Long battery life
- Customizable touch controls
- Effective noise-cancellation technology
- Waterproof and sweat-resistant design
Cons
- No wireless charging for the charging case
- Limited color options
Customer Reviews
Users praise the Truke Fit Pro B120 Earbuds for their clear audio, comfortable fit, and long battery life. Some report occasional connectivity issues, but overall, the earbuds receive high marks for their sound quality and user-friendly design.
Faqs
According to the Truke Fit Pro B120 Earbuds, what is the Bluetooth version that is utilized?
By utilizing Bluetooth 5.2 technology, the Truke Fit Pro B120 Earbuds are able to provide a flawless connection.
In what amount of time does it take for the Truke Fit Pro B120 Earbuds to reach their full charge?
The Truke Fit Pro B120 Earbuds take approximately 1 hour to fully charge, and the charging case requires around 2 hours.
Am I able to utilize only one of the earbuds that come with the Truke Fit Pro B120 set?
You are able to utilize either earbud on its own, and when you do so, they will make the transition to mono mode automatically.
Is it possible to pair the Truke Fit Pro B120 Earbuds with several devices at once?
Although the Truke Fit Pro B120 Earbuds do not offer multipoint pairing, they are able to switch between devices in a relatively short amount of time and with little effort when Bluetooth is enabled.
With the Truke Fit Pro B120 Earbuds, what is the range of the headphones?
A range of up to 10 meters (33 feet) in open space is possible with the Truke Fit Pro B120 Earbuds, and there is very little interference in the process.
If I get the Truke Fit Pro B120 Earbuds, is it possible to personalize the touch controls?
Using the Truke app, which is compatible with both Android and iOS smartphones, it is possible to personalize the touch controls without any problems.
How do I know when the Truke Fit Pro B120 Earbuds are fully charged?
In the event that the earbuds have been fully charged, the LED indication on the earphones will change a solid white color, and the LED on the charging case will turn a solid green color.
Are the Truke Fit Pro B120 Earbuds compatible with voice assistants like Siri or Google Assistant?
Yes, the Truke Fit Pro B120 Earbuds are compatible with voice assistants. Simply double-tap the earbud to activate your device's default voice assistant.
If you purchase the Truke Fit Pro B120 Earbuds, will you receive a warranty?
Truke Fit Pro B120 Earbuds do, in fact, come with a warranty from the manufacturer that lasts for one year and covers any problems that may occur in the materials or the craftsmanship.
How can I clean the earbuds that come with my Truke Fit Pro B120?
When cleaning your Truke Fit Pro B120 Earbuds, use a dry, soft cloth to polish them. It is important to refrain from using liquids or products that are abrasive because they have the potential to cause harm to the earphones.
