Vornado Evaporative Whole Room Humidifier EVAP3: Complete Product Manual and Review

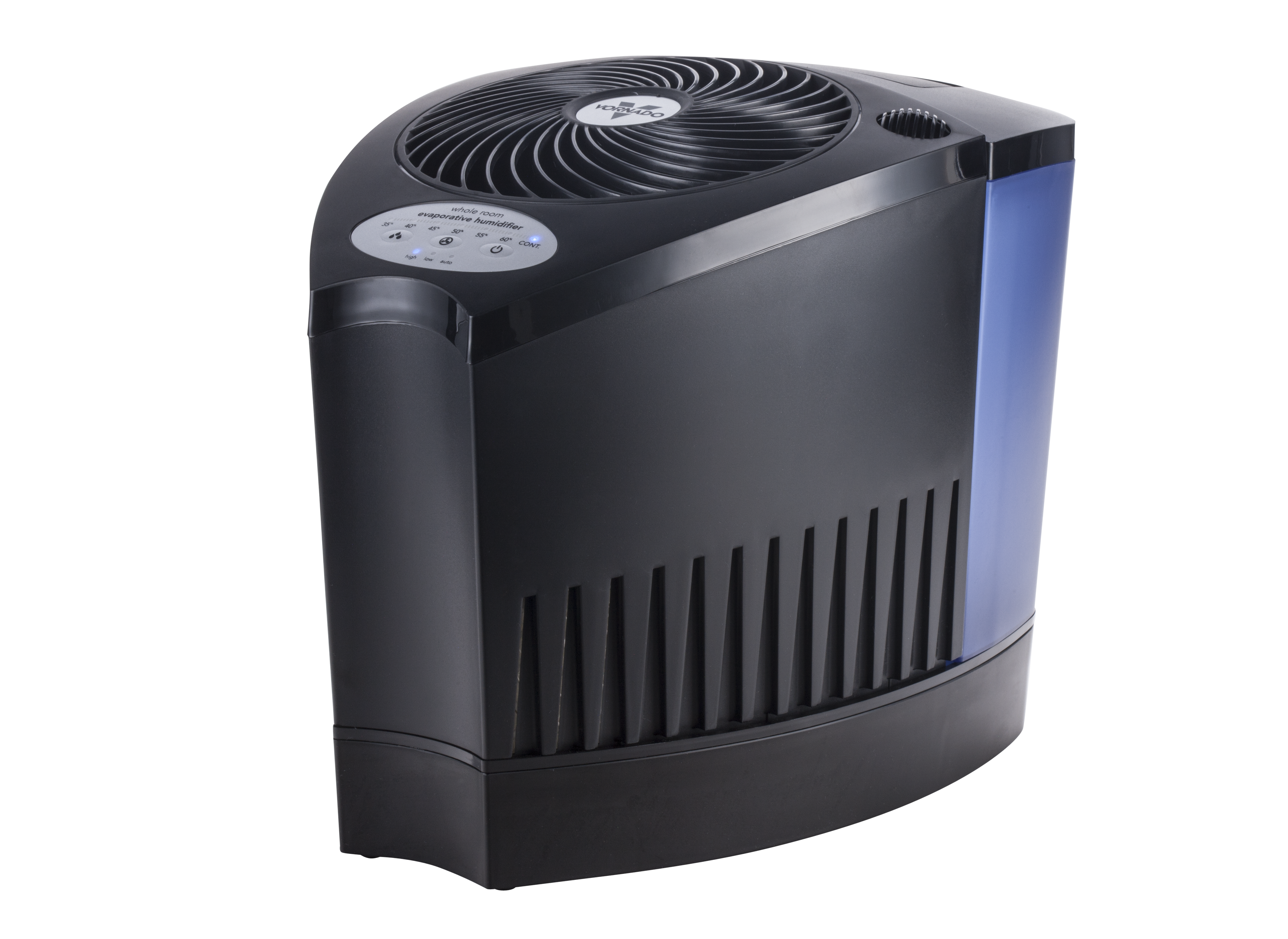

Introduction to the Vornado Evaporative Whole Room Humidifier EVAP3

The Vornado Evaporative Whole Room Humidifier EVAP3 is a powerful, efficient solution for maintaining optimal indoor humidity levels across large spaces. Designed with Vornado's signature Vortex Action technology, this evaporative humidifier circulates moist air evenly throughout rooms up to 700 square feet, eliminating dry air issues common in winter or arid climates. Unlike ultrasonic models, the EVAP3 uses natural evaporation to produce cool mist without white dust residue, making it ideal for homes with children, pets, or allergy sufferers.

Key benefits include automatic humidity control via an electronic humidistat that maintains levels between 35-60% or runs in continuous mode, reducing energy waste and over-humidification risks. Its large 1.5-gallon water tank minimizes refills, while the 45-watt power draw ensures low operating costs. Target audiences range from families combating dry skin and respiratory irritation to office workers seeking comfortable environments. Use cases span bedrooms, living rooms, and open-plan homes during heating seasons.

Unique selling points feature easy push-button controls for fan speed and humidity settings, daily maintenance for peak performance, and whole-room coverage that outperforms stationary mist humidifiers. Priced in the $100-150 range, the Vornado EVAP3 is widely available at retailers like Macy's, Walmart, and Home Depot, offering excellent value for reliable evaporative humidification.

Technical Specifications and Key Features of Vornado EVAP3 Humidifier

The Vornado Evaporative Whole Room Humidifier EVAP3 boasts robust specs tailored for whole-room performance. Here's a detailed breakdown:

• Dimensions: 10.2"W x 15.1"L x 12.1"H – compact footprint for versatile placement.
• Water Tank Capacity: 1.5 gallons, supporting up to 2.6 gallons daily output with fewer refills.
• Power Consumption: 45 watts for energy-efficient operation.
• Coverage Area: Up to 700 sq. ft., ideal for medium to large rooms.
• Humidistat: Electronic control for 35-60% RH or continuous mode, with programmable options.
• Mist Type: Cool mist evaporative – no warm mist, minimizing scald risks around kids.
• Noise Level: Measured at highest setting; suitable for quiet environments per lab tests.
• Maintenance: Daily cleaning required; handles hard water effectively.
• Additional Features: Push-button panel, Vortex circulation for even humidity distribution.

Compared to ultrasonic alternatives like the Vornado EV3 (670 sq. ft., 1.5L tank), the EVAP3 excels in room-filling output and mineral-free mist, though it requires more maintenance than filter-free ultrasonics. Performance benchmarks from Consumer Reports highlight strong output per square foot and efficiency in watt-hours per gallon.

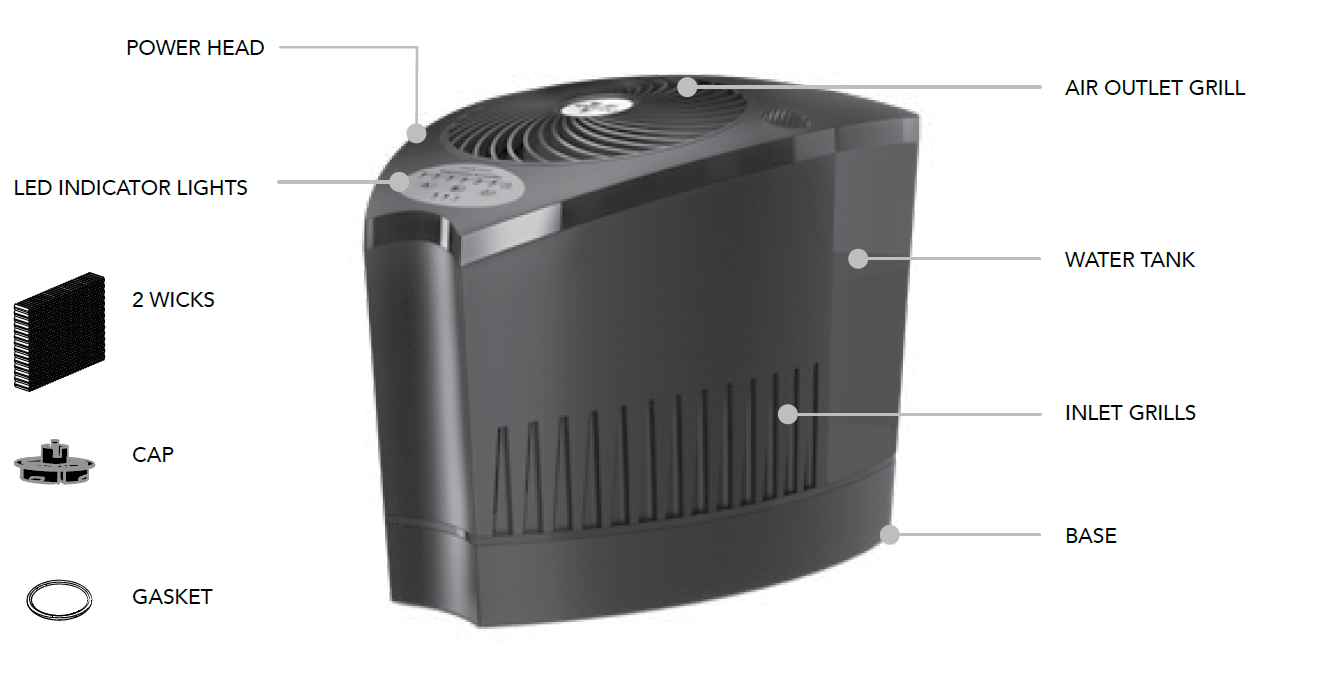

FEATURES

• Power Head: Powerful motor circulates humidified air throughout the entire room.
• LED Indicator Lights: Display the current operating settings.
• 2 Wicks: Absorb water and filter out impurities.
• Easy-to-Remove Cap: Allows convenient water tank refilling.
• Gasket: Creates a watertight seal between the cap and water tank.
• Air Outlet Grill: Directs airflow using Vornado's signature Vortex circulation.
• Water Tank: Large 1.5-gallon capacity reduces the need for frequent refilling.
• Inlet Grills: Designed for efficient air intake.
• Base: Durable construction that is easy to clean.

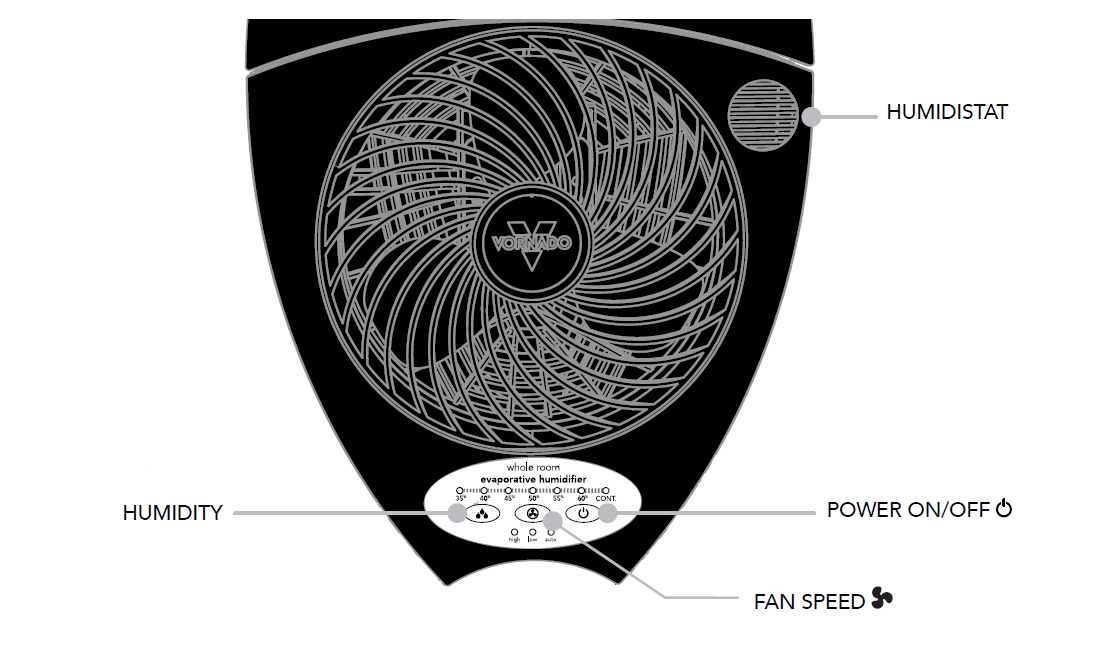

CONTROLS

• Humidistat: Monitors room humidity for automatic humidity control.
• Humidity Control: Adjust humidity between 35% and 60%, or select continuous operation.
• Power On/Off: Turns the humidifier on or off.
• Fan Speed: Select HIGH, LOW, or AUTO fan speed.

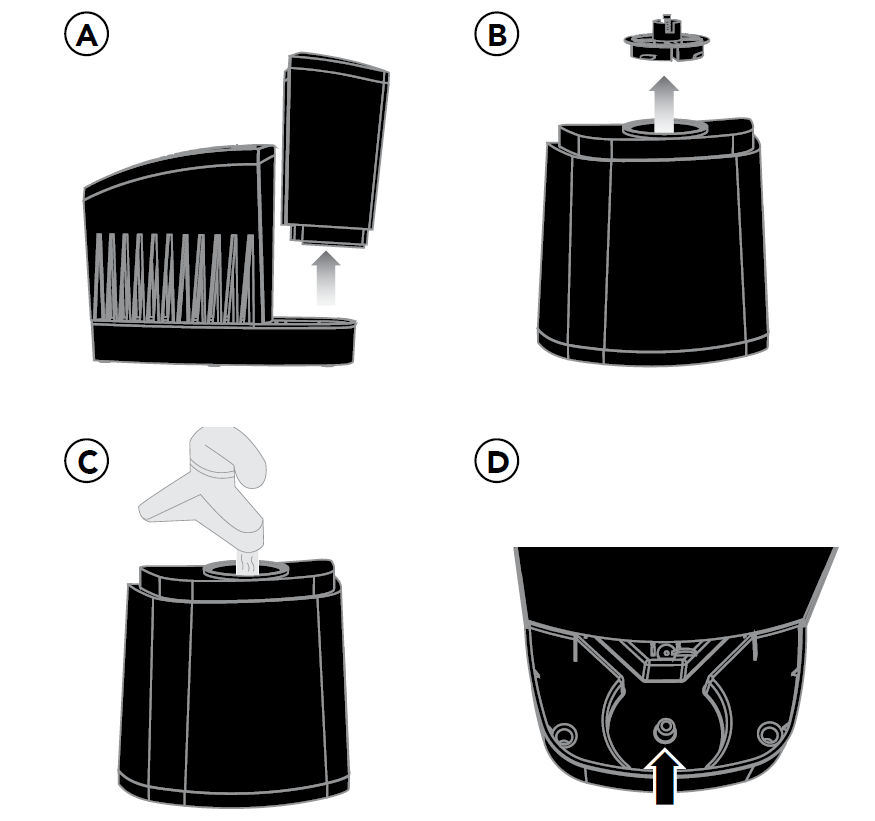

FILLING THE WATER TANK

1. Unplug the humidifier and place it on a level surface, such as the floor.
2. Remove the water tank by grasping the recessed handle and pulling it toward you.
3. Turn the water tank upside down and remove the cap.
4. Fill the water tank with cool tap water.
5. Ensure the gasket is correctly positioned around the cap. Replace the cap, applying slight downward pressure if necessary, and rotate it one-quarter turn clockwise.
6. Lower the water tank into the base, positioning it over the raised bump. Once properly seated, the water outlet valve opens and releases water into the base.

HOW TO USE

1. Position the humidifier so that airflow does not blow directly onto objects or plants.
2. Plug the power cord into a 110–120V AC outlet.
3. Press the Power button to turn on the humidifier.
4. On first use, the humidifier defaults to HIGH fan speed and Continuous Humidity mode.
5. Adjust the fan speed and humidity settings according to your preference.
6. The humidifier remembers your settings during normal power on/off cycles.
7. If the unit is unplugged, it resets to the factory defaults of HIGH fan speed and Continuous Humidity.

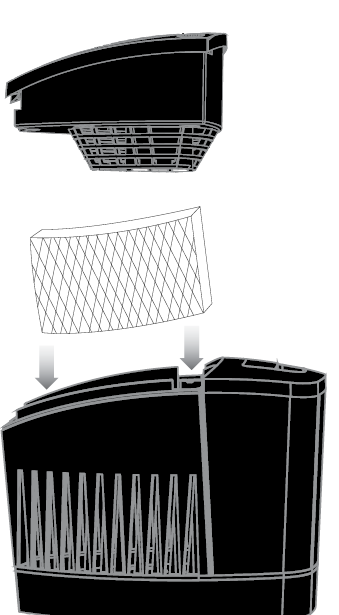

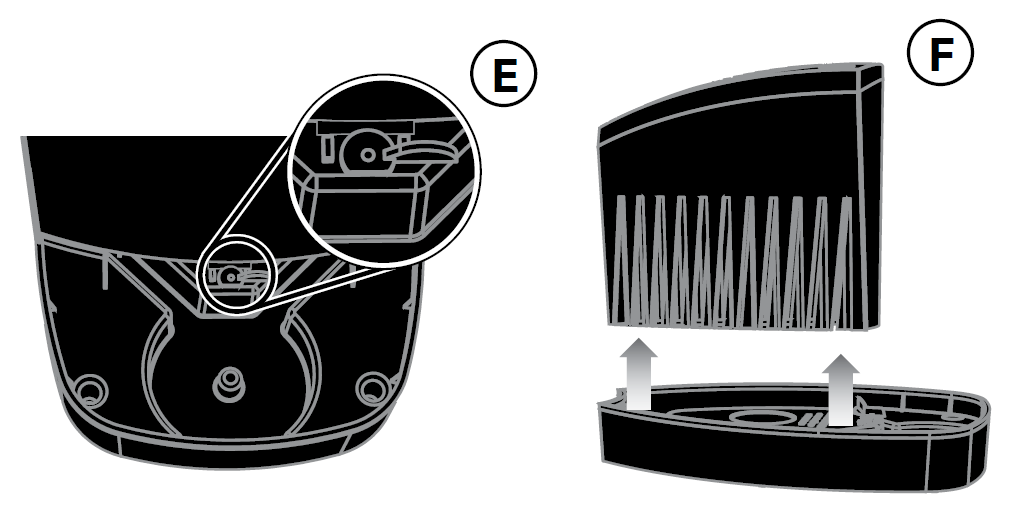

REPLACING THE WICKS

The humidifier uses two replaceable wicks. They typically last approximately 4–8 weeks, depending on usage, water hardness, and environmental conditions. Replace the wicks when they become hard or stop absorbing water effectively.

1. Turn off the humidifier and unplug it.
2. Remove the power head.
3. Remove and discard the used wicks.
4. Slightly bend the new genuine Vornado wicks to match the curve of the unit.
5. Ensure both wicks fit flush against the bottom of the unit and snugly against the inlet grill.
6. Reinstall the power head. The humidifier is now ready for use.

Important Wick Care Information:

• Use genuine Vornado replacement wicks for optimal performance.
• Wicks contain an antimicrobial preservative that protects the product itself.
• Wash your hands and avoid touching your eyes after handling the wicks.
• Chemically softened water may cause the wicks to harden.
• Water containing excessive minerals, lime, or iron may shorten wick life.
• A mild odor during initial use is normal and generally disappears after a few hours.

Removing Strong Wick Odors:

1. Mix 2 teaspoons of white vinegar with 1 gallon of water.
2. Soak the wick for 20–30 minutes.
3. Rinse thoroughly with cool water.
4. Allow excess water to drain and the wick to dry before reinstalling.
5. Do not wring or twist the wick.

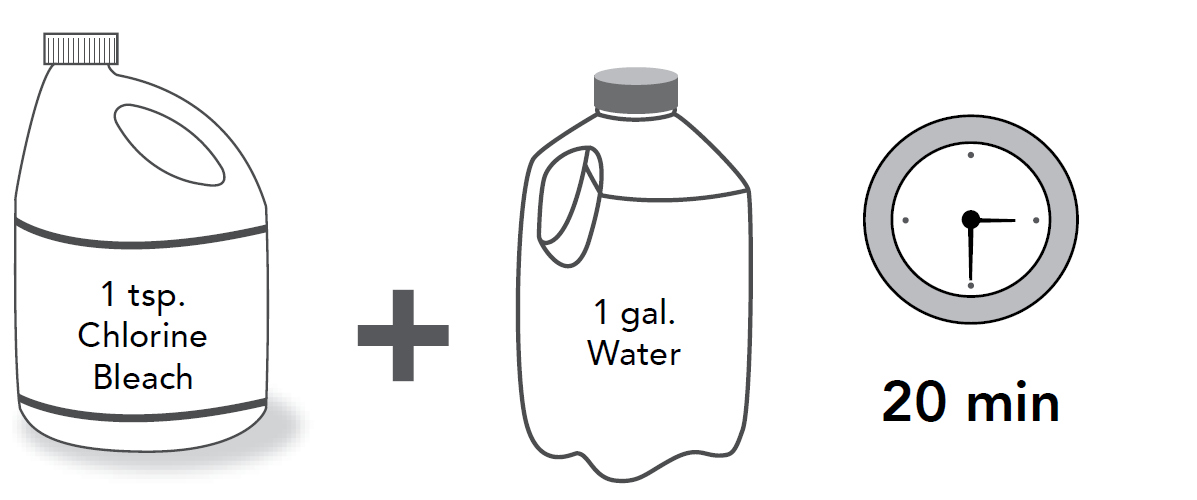

CLEANING

Regular cleaning helps maintain air quality, humidifier performance, and proper water absorption.

1. Turn off and unplug the humidifier before cleaning.
2. Remove the water tank and empty any remaining water.
3. Inspect the base and water tank for mineral deposits, algae, or other particles.
4. Clean the accessible surfaces using a soft cloth and a suitable cleaning method.
5. Rinse the cleaned water-contact components thoroughly.
6. Allow the components to dry before reassembly.
7. Inspect the wicks and replace them if they have hardened or become ineffective.
8. Reassemble the humidifier and refill the tank with fresh water.

Cleaning Frequency: Thoroughly clean the humidifier several times throughout the season under average-use conditions, or whenever mineral buildup, algae, or other deposits appear.

STORAGE

1. Unplug the power cord and bundle it loosely.
2. Empty all remaining water from the water tank and base.
3. Allow the humidifier to dry completely before storage.
4. Remove and discard any wick that is unsuitable for reuse.
5. Never store the humidifier with a wet wick.
6. If the wick is suitable for reuse, empty the tank and base, reinstall the tank, and operate the humidifier at HIGH fan speed until the wick is completely dry.

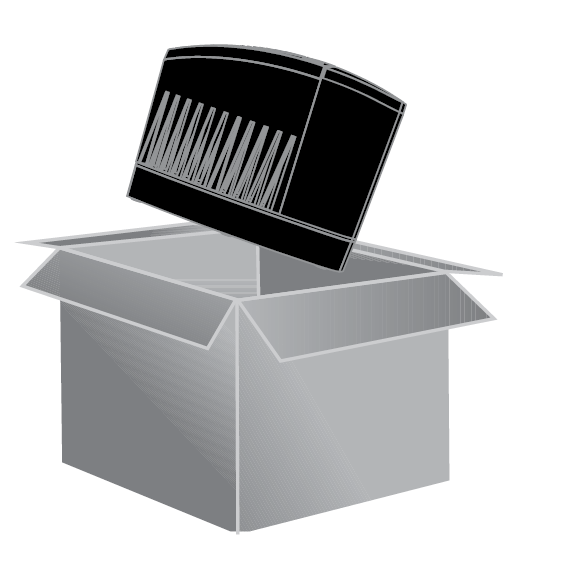

7. Cover the humidifier or place it in its original retail carton to prevent dust accumulation.
8. Store the humidifier in a cool, dry location.

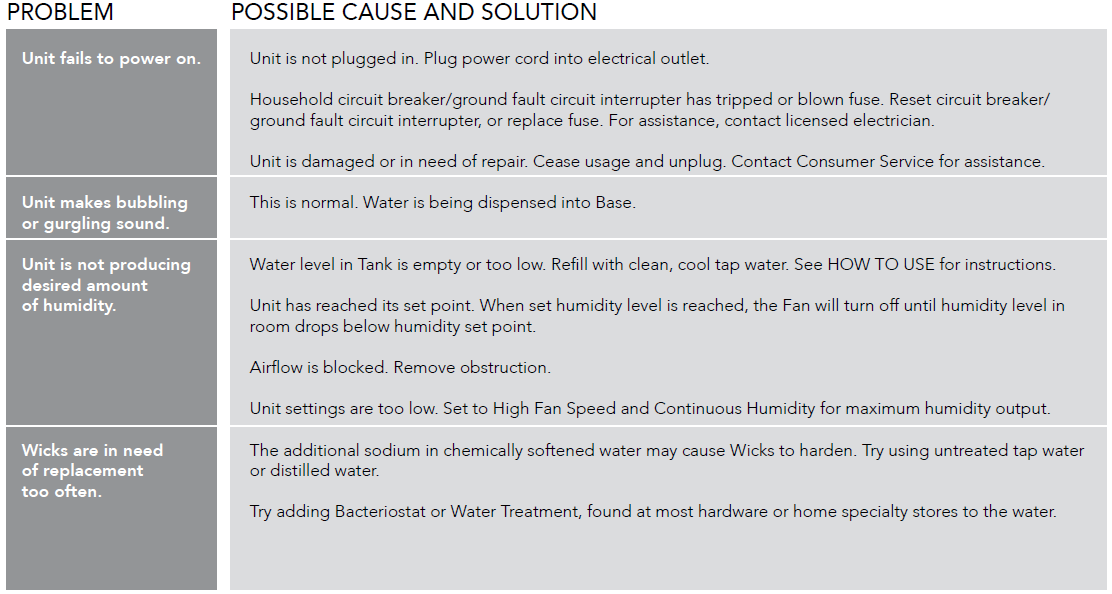

TROUBLESHOOTING

Pros and Cons of the Vornado Evaporative Whole Room Humidifier EVAP3

Pros

• Exceptional whole-room coverage up to 700 sq. ft. with Vortex technology for uniform humidity.
• Electronic humidistat prevents over-humidification, saving energy at 45 watts.
• No white dust from the evaporation process; healthier than ultrasonic humidifiers.
• 1.5-gallon tank reduces refill frequency; easy-to-use controls.
• Great value for money at $100-150, outperforming pricier competitors in lab output tests.

Cons

• Daily maintenance required to prevent mold; more hands-on than self-cleaning models.
• Cool mist only; not ideal for users preferring warm mist in cold rooms.
• Higher noise at max fan speed compared to whisper-quiet ultrasonics.
• Limited distribution in some areas, per Consumer Reports.

Overall, the Vornado EVAP3 offers superior value versus alternatives like basic cool-mist units, balancing performance and cost effectively.

Customer Reviews and Feedback on Vornado EVAP3 Whole Room Humidifier

Users praise the Vornado Evaporative Whole Room Humidifier EVAP3 for its powerful circulation and reliable humidity control, earning average 4.2-4.5 star ratings across retailers. Common praises include "even moisture distribution in my 600 sq. ft. living room without wet spots" and "quiet operation on low settings beats my old ultrasonic model." Testimonials highlight allergy relief: "No more dry sinuses – the humidistat keeps it perfect at 45% RH."

Frequently mentioned issues involve maintenance: "Daily wick cleaning is a chore but prevents buildup," and occasional hard water scaling. Walmart and Macy's reviews recommend it for large spaces, with 80% repurchase intent. Compared to ultrasonic options, fewer mineral complaints boost satisfaction. Ideal for dry climate users seeking long-term reliability.
