Vornado Evaporative Whole Room Humidifier EVAP40 Product Manual: Complete Guide

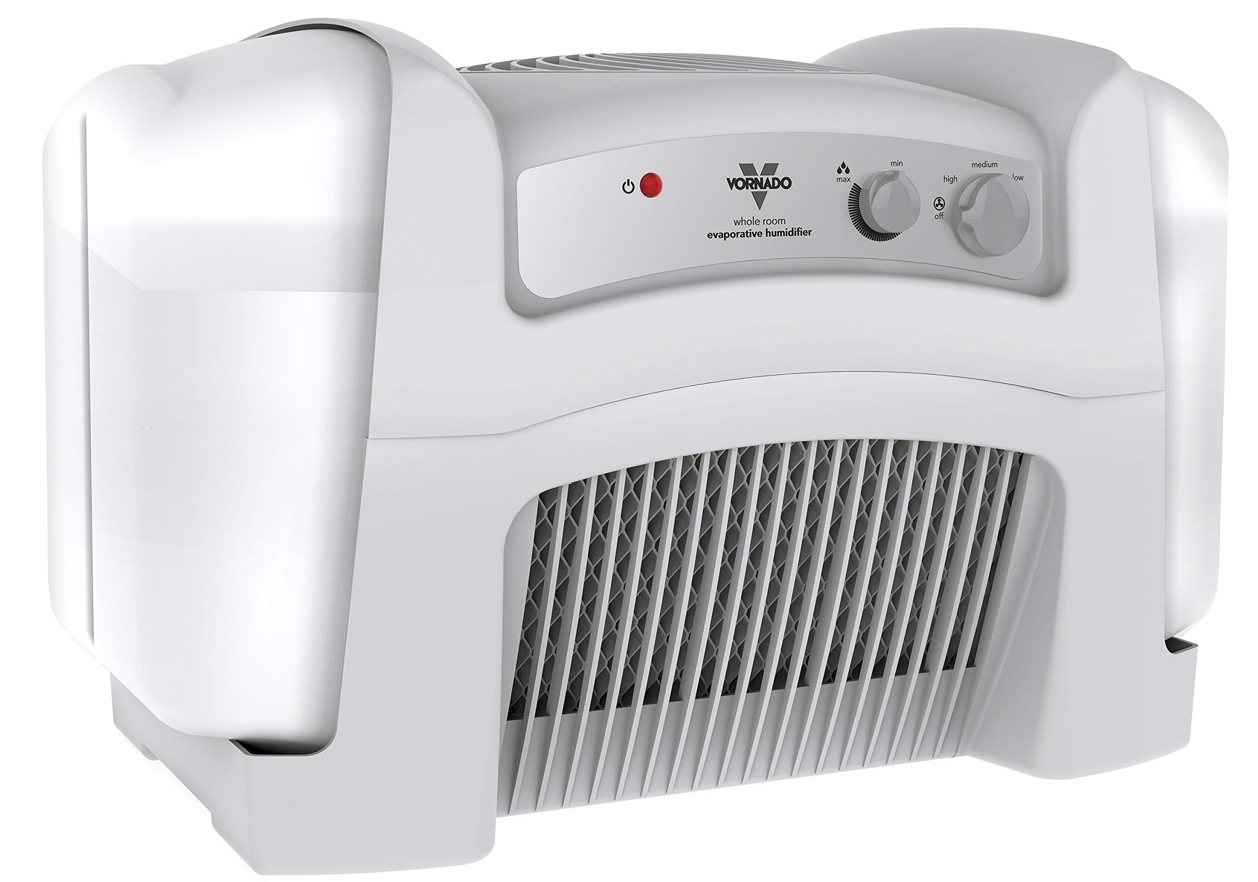

Introduction to Vornado Evaporative Whole Room Humidifier EVAP40

The Vornado Evaporative Whole Room Humidifier EVAP40 is a powerful evaporative humidifier designed for large spaces up to 1,000 square feet, delivering consistent moisture through Vornado's signature Vortex Action technology. Unlike ultrasonic models that produce visible mist, this evaporative whole room humidifier uses two high-efficiency wicks to naturally humidify air, pulling in dry air and circulating moistened air evenly for optimal comfort in homes, offices, or large living rooms.

Key benefits include automatic humidity control via a built-in humidistat, preventing over-humidification, and an extra-large 4-gallon capacity (dual 2-gallon reservoirs) for up to 4 gallons of output in 24 hours on high—ideal for fewer refills during dry winter months or arid climates. Its whisper-quiet operation (low speed at 750 RPM) and three fan speeds (low, medium, high up to 1600 RPM) make it suitable for bedrooms or continuous use. Target users include families combating dry skin, allergies, or static, as well as those in spacious homes seeking reliable whole room humidification.

Unique selling points: Easy-to-clean design, 5-year limited warranty, UL-listed safety, and energy efficiency at just 43 watts. Estimated price range is $100-$150, widely available at retailers like Home Depot, Office Depot, and online stores. This Vornado EVAP40 stands out for its set-it-and-forget-it reliability, making it a top choice for long-term humidity control in extra-large rooms.

Vornado EVAP40 Specifications and Key Features

The Vornado Evaporative Whole Room Humidifier EVAP40 boasts robust specs for superior performance in rooms up to 1,000 sq. ft. Here's a detailed breakdown:

Room Coverage: Up to 1,000 square feet with Vortex Action circulation.
Humidification Type: Evaporative wick system (2 filters included, part #MD1-0034).
Tank Capacity: 4 gallons (dual 2-gallon reservoirs) for extended runtime.
Output: Up to 4 gallons (32 pints) per 24 hours on high speed.
Fan Speeds: 3 settings (Low: 750 RPM, High: 1600 RPM).
Humidity Control: Built-in humidistat with turn-dial (min-max); automatic regulation.
Dimensions: 13.5" H x 10.5" W x 19.5" D; Weight: 9 lbs.
Power: 120V, 60Hz, 43 watts max; 8 ft. power cord (2-pin polarized).
Additional Features: Refill indicator, easy-clean design, no automatic shutoff or filter change indicator.
Warranty: 5-year limited; UL-listed.

Compared to similar products like ultrasonic humidifiers, the EVAP40 excels in even distribution and no white dust residue, though it requires wick replacements for peak efficiency.

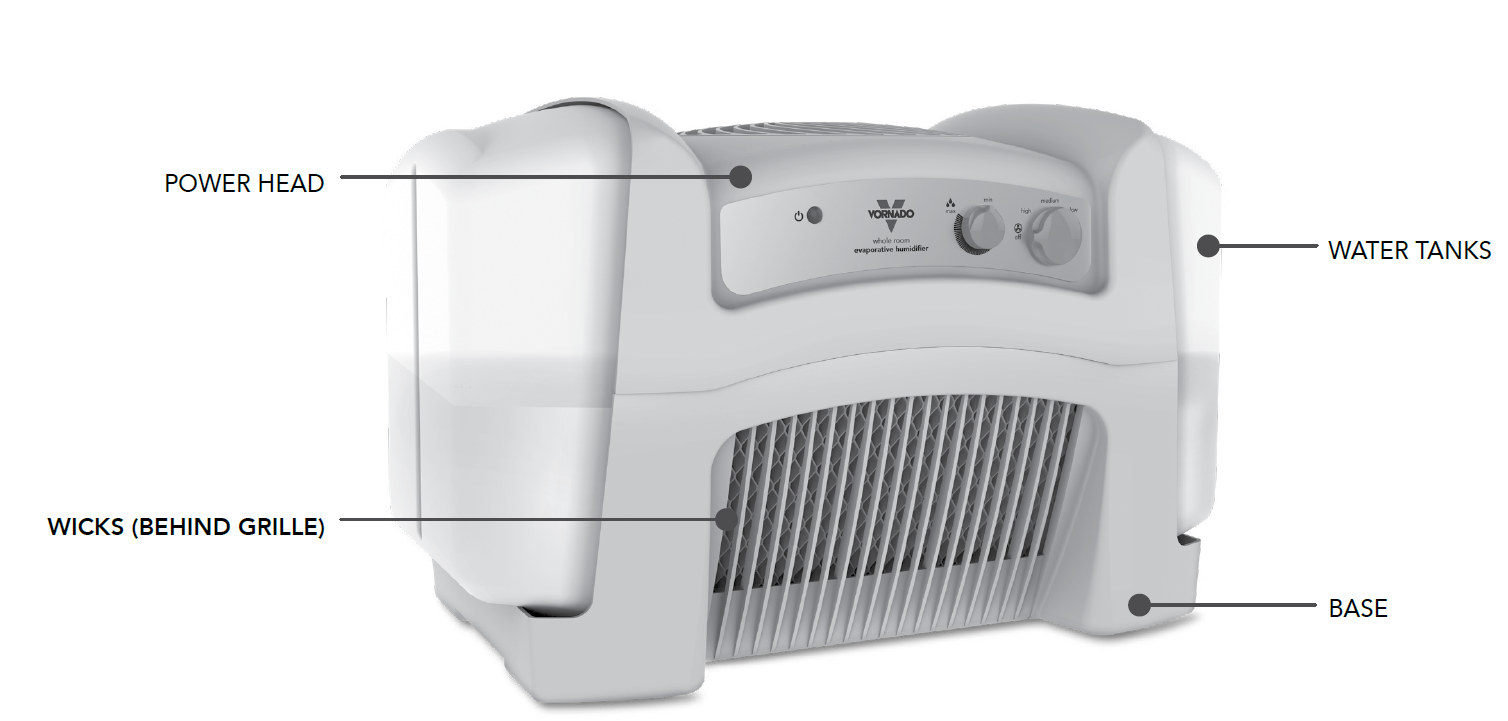

Features

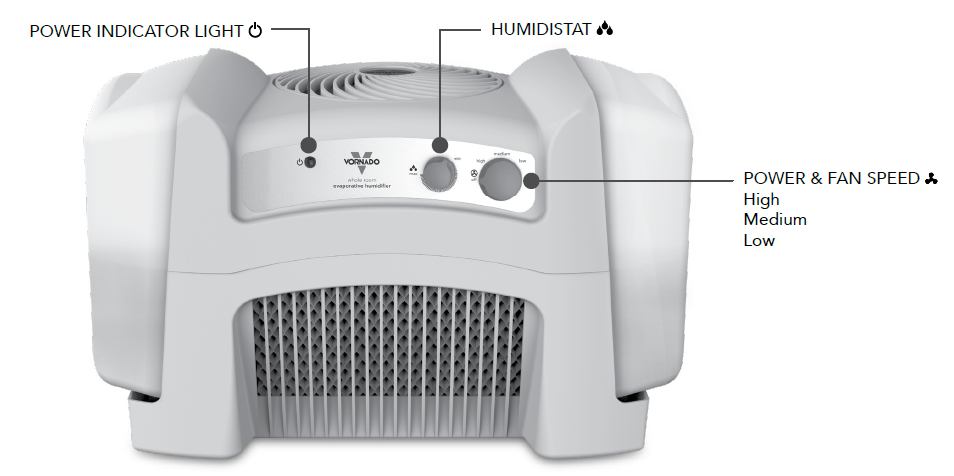

Controls

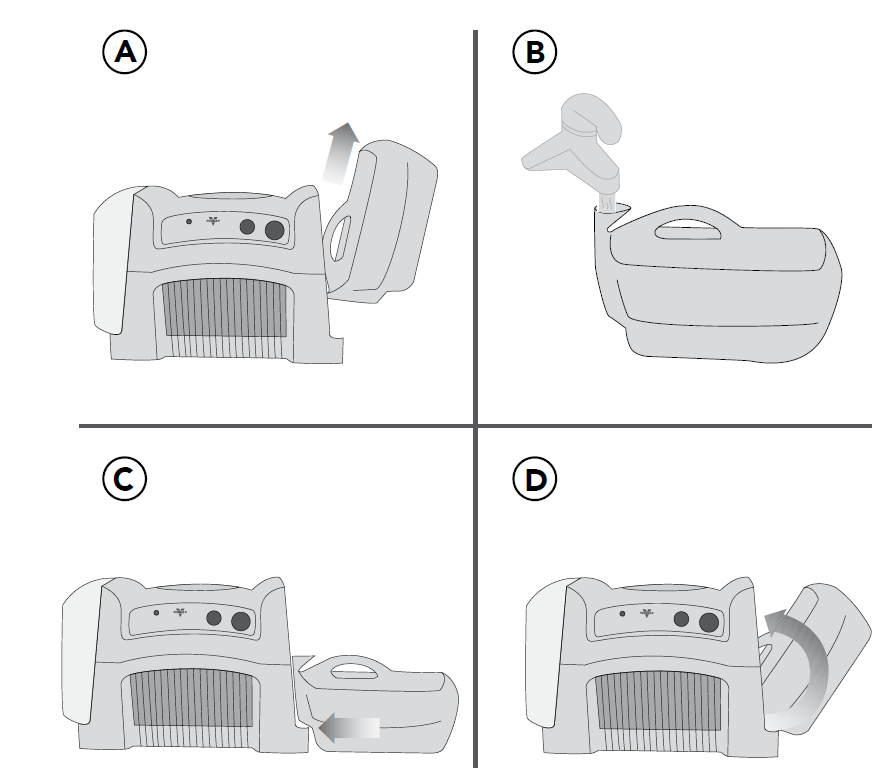

Filling water tanks

Unplug humidifier and place on a level surface, such as the floor.
Remove Water Tanks (A).
The patented rugged Water Tanks have no caps or valves and fit in most kitchen sinks. Fill the Water Tanks by running cool tap water into the spout. The built-in, wide-mouth spout and funnel make filling easy under most faucets. Each Water Tank is designed to sit stable in the sink or on a countertop (B).
Place the filled Water Tanks next to the base, with the groove in the Water Tanks resting on the curved edge of the base cavity (C).
Simply rotate the Water Tanks into position by tilting the Water Tanks up (D). The Water Tanks will begin to dispense water into the base reservoir just before they nest into their upright position. Proper water level in the base is continuously maintained. Tanks must be in place for the unit to work correctly.


How to use

Position humidifier so it does not blow directly on objects or plants. Plug power cord into a 110–120 volt AC outlet.

Turn the control fully clockwise to the MAX position for maximum humidity level.
To turn the unit On, rotate the fan power speed knob clockwise. The power indicator light will illuminate. Select a fan speed for the desired humidification.
When the room has reached the desired humidity level, lower the humidistat slowly counter-clockwise until the fan stops. The unit will automatically restart when the humidity falls below this setting. The power light will stay lit even when the fan has stopped.

Replacing wick

While your humidifier came equipped with Wicks, you will eventually have to replace them, as they last approximately 4–8 weeks, depending on use. Many factors affect the life of the Wicks, including amount of use, water hardness, and outside environmental factors. You will know the Wicks need to be replaced when they become hard and are no longer absorbing the water effectively. Replace the Wicks with genuine Vornado® Wicks. While other brands may fit the units, these Wicks do not carry the same quality and life as genuine Vornado Wicks and may diminish the humidifier’s performance.

Turn humidifier Off and unplug.

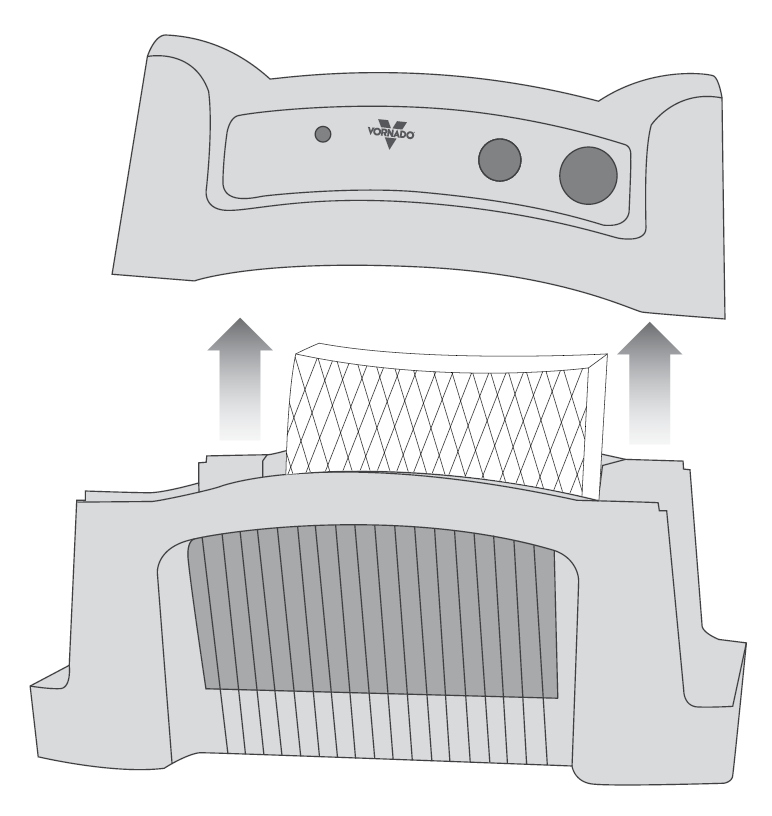

Remove the Power Head.
Remove and discard used Wicks.
Install new genuine Vornado Wicks by laying them at an angle along the open grille, inside the base.
Replace the Power Head, making sure it is properly aligned. Your humidifier is now ready for use.


Cleaning

Proper cleaning of your Evaporative Whole Room Humidifier is essential to the air quality and performance of your humidifier. The frequency at which your humidifier will need to be cleaned will vary depending on use, water hardness, and outside environmental factors. Assuming average use, it is recommended to thoroughly clean the unit several times throughout the season or whenever algae, mineral deposits, or other particles begin to form.



Storage

During the off-season or after extended periods of non-use, you may choose to store your humidifier. To ensure long life of the product, it is recommended to store your humidifier by following these instructions.

Unplug the power cord and bundle it loosely.
Let humidifier dry completely before storing. Do not store with water inside Water Tanks or Base. Remove and discard Wicks if they are not suitable for reuse. Do not store humidifier with wet Wicks. If the Wick is suitable for future use, remove and empty water from the Base and Water Tanks. Replace Water Tanks, power On, and select HIGH Fan Speed. Allow humidifier to run until Wicks are completely dry.

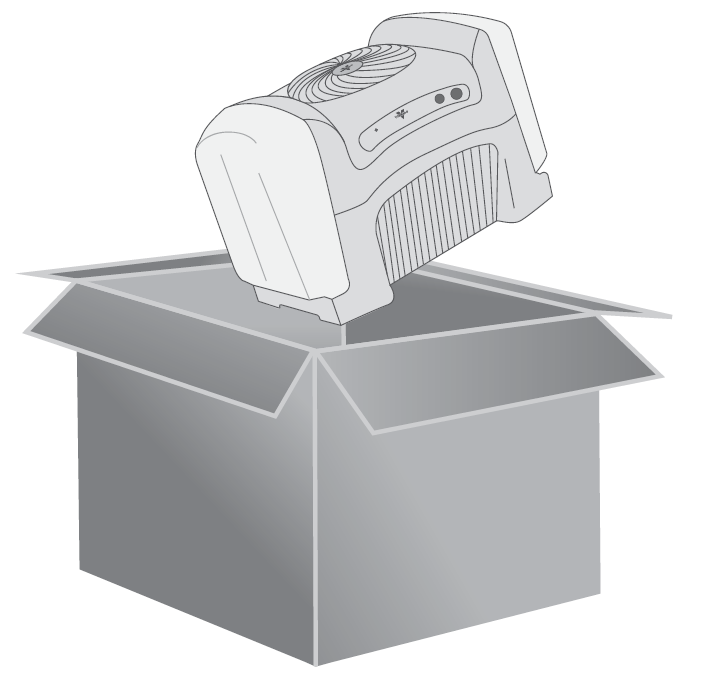

Cover the humidifier or place it back in the retail carton, if available. This will prevent the humidifier from accumulating dust over time.
Store humidifier in a cool and dry location.

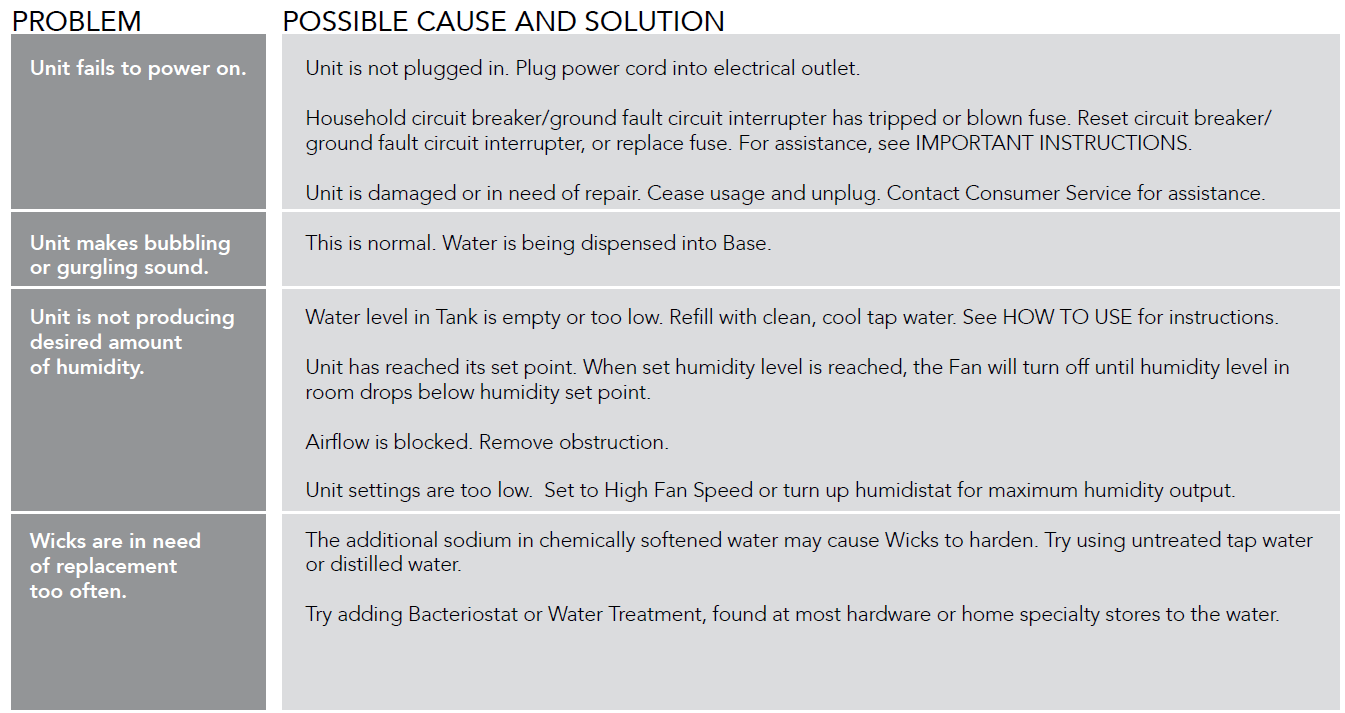

Troubleshooting


Pros and Cons of Vornado Evaporative Whole Room Humidifier EVAP40

Pros

Exceptional whole-room coverage up to 1,000 sq. ft. with Vortex technology for uniform humidity.
Automatic humidistat prevents over-humidification, saving energy (43W low power draw).
4-gallon capacity means fewer refills—runs 24 hours on high without interruption.
Easy to clean and operate with simple dials; quiet on low for bedrooms.
Excellent value at $100-$150 with 5-year warranty, outperforming budget ultrasonics in durability.

Cons

No automatic shutoff—requires manual monitoring when empty.
Filters need periodic replacement (not included beyond initial 2), adding maintenance cost.
Larger footprint (19.5" depth) may not suit tiny spaces.
Higher fan speeds can be audible, less ideal for ultra-quiet needs.

Overall, the Vornado EVAP40 offers strong value for large-room users, edging out competitors like Honeywell models in circulation power.

Customer Reviews: Vornado EVAP40 User Feedback

Users praise the Vornado Evaporative Whole Room Humidifier EVAP40 for its reliability, with average ratings around 4.5/5 stars across retailers. Common praises include powerful room-filling humidity: "Transformed my 900 sq. ft. living room—no more dry air or static!" and easy setup with accurate humidistat. Many highlight the 4-gallon tank: “Lasts days without refilling, perfect for winter.”

Complaints focus on maintenance: "Wicks need replacing every few months" and no auto-shutoff, leading to occasional overflows if ignored. Testimonials recommend it for dry climates: "5 stars—beats ultrasonic units, no mineral dust." Frequently mentioned issues like noise on high are minor for most. Ideal purchase for large spaces; pair with distilled water for longevity.

PDF

Faqs

How do I set up the vornado Evaporative Whole Room Humidifier EVAP40 for the first time?

To set up your vornado Evaporative Whole Room Humidifier EVAP40, insert the two Wicks on each side of the evaporative filter area after removing the top cover. Fill the two 1-gallon water tanks with cool water, optionally adding water conditioner to prevent mineral buildup. Align the tanks' grooves on the base's curved edge and tilt them upright to dispense water into the reservoir. Plug into a 110-120V outlet, set fan speed to medium for normal use, and adjust the humidistat from MAX to your desired humidity level. Position away from objects for optimal circulation.[1][2]

How do I install and fill the water tanks in vornado Evaporative Whole Room Humidifier EVAP40?

Installing water tanks in the vornado Evaporative Whole Room Humidifier EVAP40 is simple: Place filled tanks next to the base with grooves on the curved edge. Tilt tanks up to rotate into position; they automatically dispense water into the base reservoir for continuous proper levels. Tanks must be seated correctly for operation. Fill tanks with cool, clean water—use water conditioner for hard water to minimize minerals. Each tank holds 1 gallon, providing up to a week of runtime depending on settings and room size.[1][2]

What should I do if the vornado Evaporative Whole Room Humidifier EVAP40 fan isn't turning on?

If the fan on your vornado Evaporative Whole Room Humidifier EVAP40 isn't turning on, first ensure tanks are properly installed and filled, as the unit won't operate without them. Check that the humidistat dial is not set to MIN; turn it clockwise toward MAX to start. Verify the power light is lit after plugging into a 110-120V outlet. Turn the fan speed knob clockwise from off. If issues persist, unplug, check for blockages on Wicks, and consult the owner's guide for resets. Power light stays on even when fan cycles off.[1][3]

How often should I replace the Wicks in vornado Evaporative Whole Room Humidifier EVAP40?

Replace the Wicks in your vornado Evaporative Whole Room Humidifier EVAP40 every 4-6 weeks, depending on water hardness and usage, as reduced humidification indicates they're saturated with minerals. Signs include poor mist output or dry air despite full tanks. Purchase Vornado Wicks (one per side), remove the top cover, slide out old ones, and insert new. Use water conditioner daily to extend Wick life. Regular replacement ensures optimal evaporative performance and whole room humidity circulation without bacteria risks.[1][2][3]

How do I clean the vornado Evaporative Whole Room Humidifier EVAP40 base and tanks?

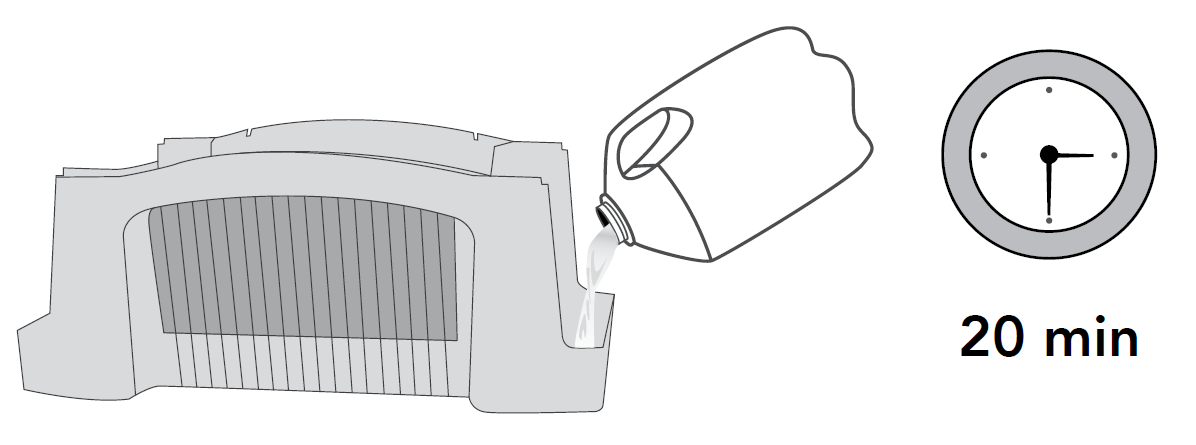

To clean your vornado Evaporative Whole Room Humidifier EVAP40, unplug and empty all water. Mix a bleach solution (1 tsp bleach per pint of water), fill the base, and let sit 20 minutes, swishing occasionally to wet surfaces. Rinse thoroughly until bleach smell dissipates, then dry with a cloth. Wipe tanks and vacuum dust from the power head. Clean weekly for best maintenance, avoiding soaps that leave residue. This prevents mold and ensures efficient evaporative humidification.[1]

What fan speeds and humidistat settings work best for vornado Evaporative Whole Room Humidifier EVAP40?

The vornado Evaporative Whole Room Humidifier EVAP40 offers three fan speeds: LOW (750 RPM) for quiet nighttime or small rooms, MEDIUM (1150 RPM) for normal operation, and HIGH (1600 RPM) for maximum circulation. Set humidistat to MAX for continuous run, or adjust between MAX and MIN for auto-shutoff at desired humidity (e.g., 30-50%). Start at MAX, then dial back counterclockwise until fan cycles correctly. This optimizes whole room humidification without over-drying.[1][2]

Can the vornado Evaporative Whole Room Humidifier EVAP40 cause leaks or spills during setup?

The vornado Evaporative Whole Room Humidifier EVAP40 features spill-proof, leak-free tanks, but minor splashing may occur during initial water tank installation if not aligned properly. Place tanks on the base edge and tilt smoothly upright to avoid spills. Test by filling the base slightly before full use, as one user noted a wet spot from splashing, not leaks. Always use on level surfaces and empty before moving. Proper setup ensures no ongoing leaks, maintaining its reliable evaporative design.[1][3]

What water should I use with vornado Evaporative Whole Room Humidifier EVAP40 for best performance?

Use cool, clean tap water in the vornado Evaporative Whole Room Humidifier EVAP40, but add Vornado Water Conditioner for hard water areas to reduce mineral deposits on Wicks and improve efficiency. Avoid hot water, distilled, or softened water, as they can harm Wicks or reduce evaporation. Conditioner prevents white dust and extends Wick life up to 4-6 weeks. Refill tanks as needed for 4-gallon capacity, ensuring consistent whole room humidity without residue buildup.[1][2]
