Setup: Vornado EVDC500 Humidifier Instruction Guide

Vornado EVDC500 Humidifier: Complete Product Manual & Guide

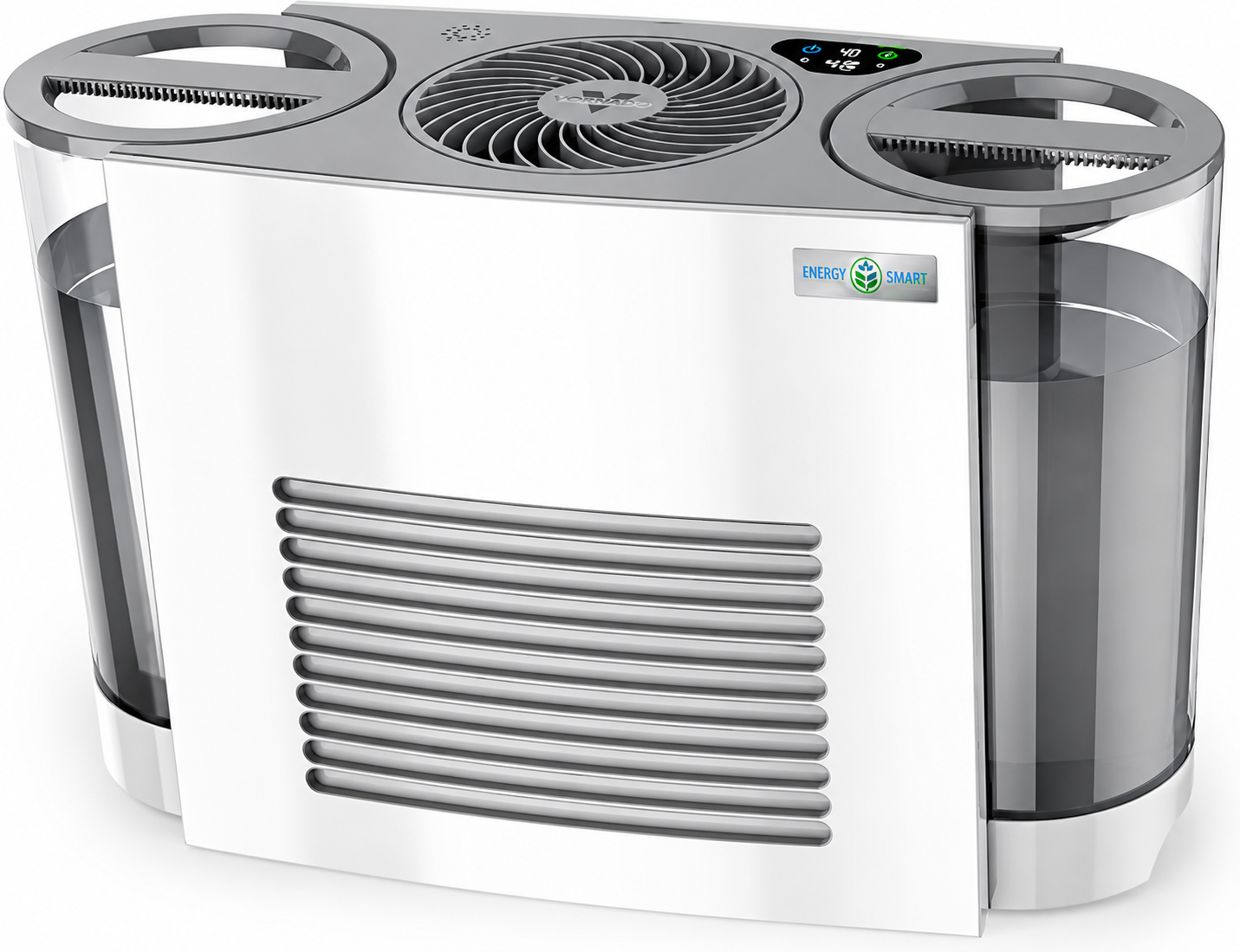

Introduction to the Vornado EVDC500 Energy Smart Evaporative Humidifier

The Vornado EVDC500 is a whole-room evaporative humidifier designed for homeowners seeking efficient humidity control without excessive energy consumption. This energy-smart humidifier combines Vornado's signature vortex action technology with advanced DC motor efficiency to deliver consistent moisture distribution across large spaces. The EVDC500 humidifier is ideal for anyone experiencing dry air during winter months, whether in bedrooms, living rooms, offices, or other medium to large spaces up to 1,000 square feet.

Key benefits of the Vornado EVDC500 include its exceptional energy efficiency—using just 9 watts of power on the highest setting, making it up to 90% more energy-efficient than traditional humidifiers. The device features customizable humidity control between 40-60% relative humidity, allowing users to maintain their ideal comfort level. With a 2-gallon tank capacity and 4-gallon daily output, this humidifier reduces the white dust and mineral deposits associated with ultrasonic models, thanks to its evaporative wick technology.

The Vornado EVDC500 is particularly valuable for individuals with dry skin, respiratory sensitivities, or those living in arid climates. Target audiences include families, professionals working from home, and anyone prioritizing energy efficiency without sacrificing performance. The humidifier is typically priced between $150-$200, with availability through major retailers including Best Buy, Lowe's, Home Depot, and online specialty stores. The product comes backed by a comprehensive 5-year customer satisfaction warranty and an impressive 10-year motor warranty, reflecting manufacturer confidence in long-term reliability.

Technical Specifications of the Vornado EVDC500

Physical Dimensions & Weight:

• Height: 12.23 inches
• Width: 18.85 inches
• Depth: 8.12 inches
• Weight: 8.92 pounds (approximately 8-9 lbs)
• Tank Capacity: 2 gallons total (two 1-gallon SimpleTank systems)

Performance Metrics:

• Coverage Area: Up to 1,000 square feet
• Moisture Output: 4 gallons per 24-hour operation
• Fan Speed Settings: 2 speeds (low and high)
• Low Speed RPM: 1,700
• High Speed RPM: 3,000
• Humidity Range: 40-60% relative humidity
• Maximum Run Time: Approximately 12 hours on full tank

Electrical Specifications:

• Power Consumption: 9 watts (high speed)
• Voltage: 120 volts
• Frequency: 60 Hz
• Power Cord Length: 6 feet
• Plug Type: 2-pin polarized
• Energy Efficiency: 90% more efficient than comparable Vornado models

Control & Display Features:

• Touch-sensitive digital control panel
• Automatic brightness control for display
• Low-water indicator light with auto shut-off
• Precise automatic humidity control
• Energy Smart Mode for optimized efficiency
• Integrated carry handles for portability

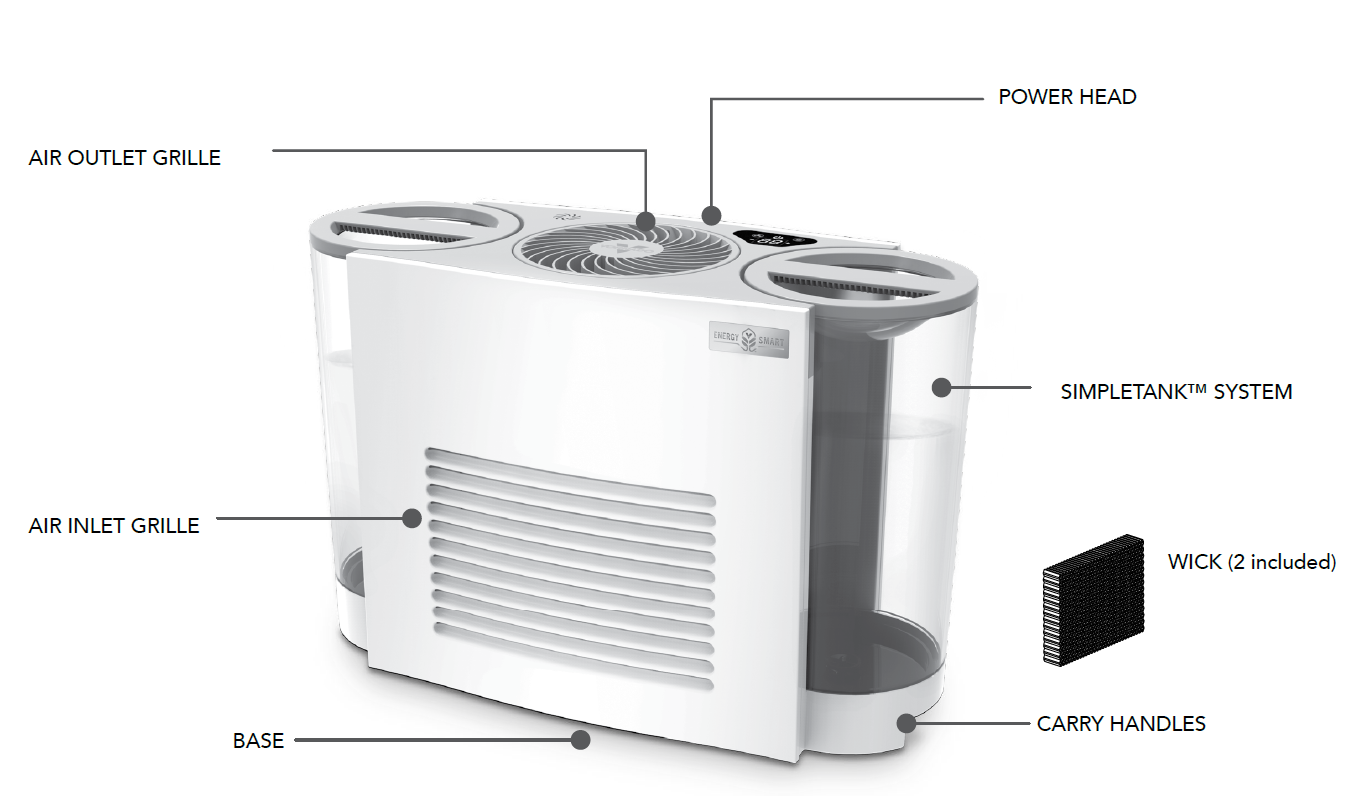

FEATURES

• AIR OUTLET GRILLE

  Initiates Vornado's signature Vortex circulation. Removable for easy cleaning.

• AIR INLET GRILLE

  Designed for efficient air intake.

• BASE

  Durable and easy to clean.

• POWER HEAD

  Powerful brushless motor circulates humidified air throughout the whole room. Easy to access for cleaning.

• SIMPLETANK™ SYSTEM

  Easy to carry, fill, install, clean, and view water level. Includes two 1-gallon capacity tanks.

• WICK

  Wicks up water and filters out impurities.

• CARRY HANDLES

  Integrated handles on the sides of the base for lifting and carrying.

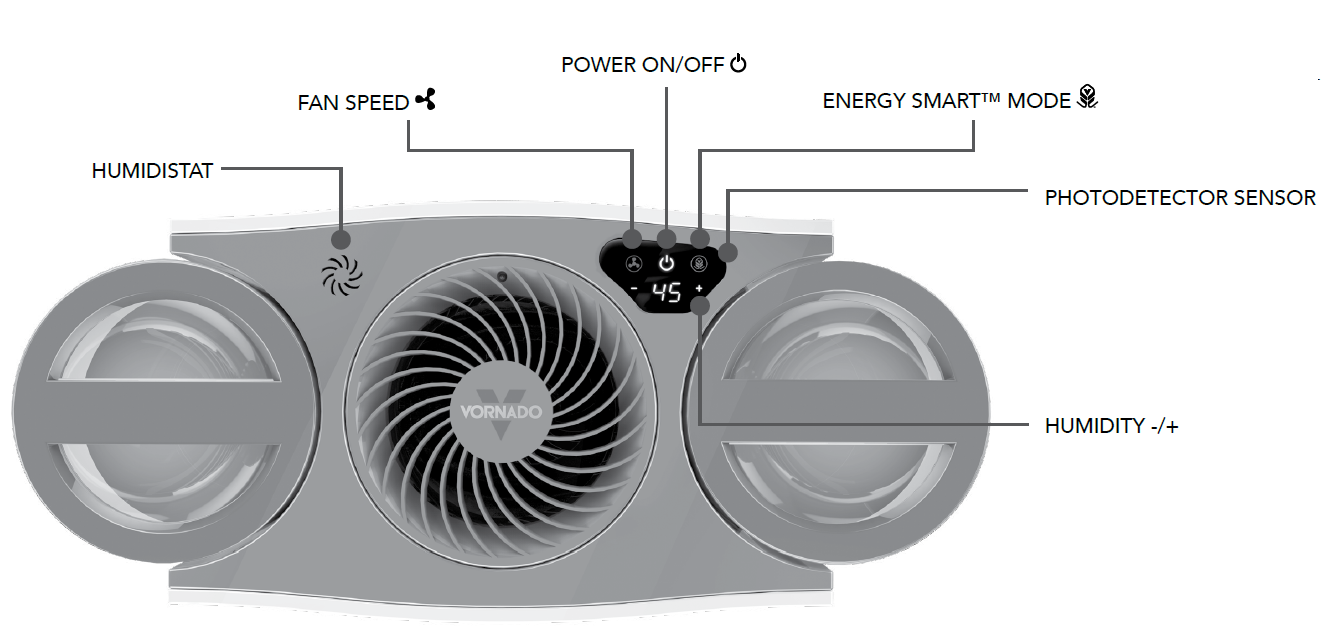

CONTROLS

• FAN SPEED

  Select the desired TURBO (HH), HIGH (HI), or LOW (LO) fan speed.

• POWER ON/OFF

  Turn the humidifier On/Off.

• ENERGY SMART™ MODE

  Delivers the right amount of humidity with the least amount of power to be as energy efficient as possible. Fan speed will vary to maintain the set humidity level.

• HUMIDISTAT

  Reads humidity in the room for precise automatic humidity control.

• PHOTODETECTOR SENSOR

  Based on the amount of light detected in the room, the photodetector sensor will automatically adjust the brightness of the control display and the light on the side of the humidifier.

• HUMIDITY -/+

  Control humidity level at 40%–60%, or allow the unit to run continuously.

FILLING WATER TANK

1. Unplug the humidifier and place it on a level surface.
2. Remove the Water Tank from the base by grasping the top integrated handle and pulling upward toward you (A). CAUTION: When removing the Water Tank, lift vertically. Do not twist the tank while it is still in the base, or the Cap may disengage and leak.
3. Turn the Water Tank upside down and remove the Cap by turning it counterclockwise (B).
4. Gently place the Water Tank on a flat surface and fill it with cool tap water.
5. Ensure the Gasket, the rubber ring around the Water Tank, is properly positioned. Insert the Cap into the grooves of the tank and turn clockwise until tightened. When the Cap is fully tightened, the arrows on the tank will align with the indicator lines on the Cap (C).
6. Lower the Water Tank into the Base, positioning the Water Tank around the ledge for secure placement (D). Once in the nested position, the water outlet valve inside the Cap opens, releasing water into the Base.

HOW TO USE

1. Position the humidifier so that it does not blow directly on objects or plants. Plug the power cord into a standard grounded wall outlet.

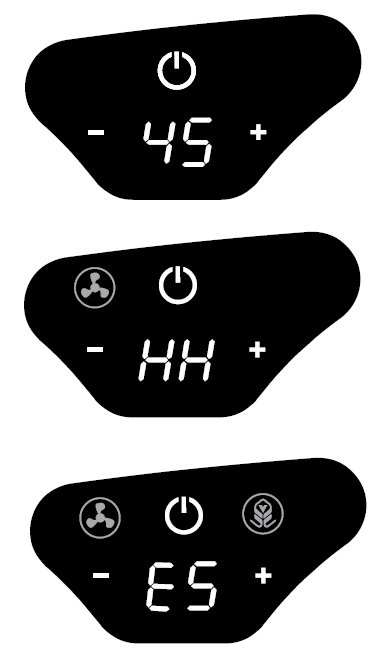

2. To turn the humidifier on, touch the Power button. The humidifier will default to LOW fan speed and 50% humidity. Set the humidity level by touching -/+ until the desired humidification level appears on the display. If Continuous is selected, CO will appear on the display, and the humidifier will run continuously.
3. Touch the Fan Speed control to select Turbo (HH), High (HI), or Low (LO) fan speed. The indicator will illuminate blue. The selection will flash for five seconds, then be set, and the display will return to the selected humidity level.
4. You may also select Energy Smart™ mode. ES will flash on the display for five seconds, then be set before returning to the selected humidity level. The indicator will illuminate green. In Energy Smart™ mode, Continuous (CO) and Turbo (HH) fan speed are disabled.

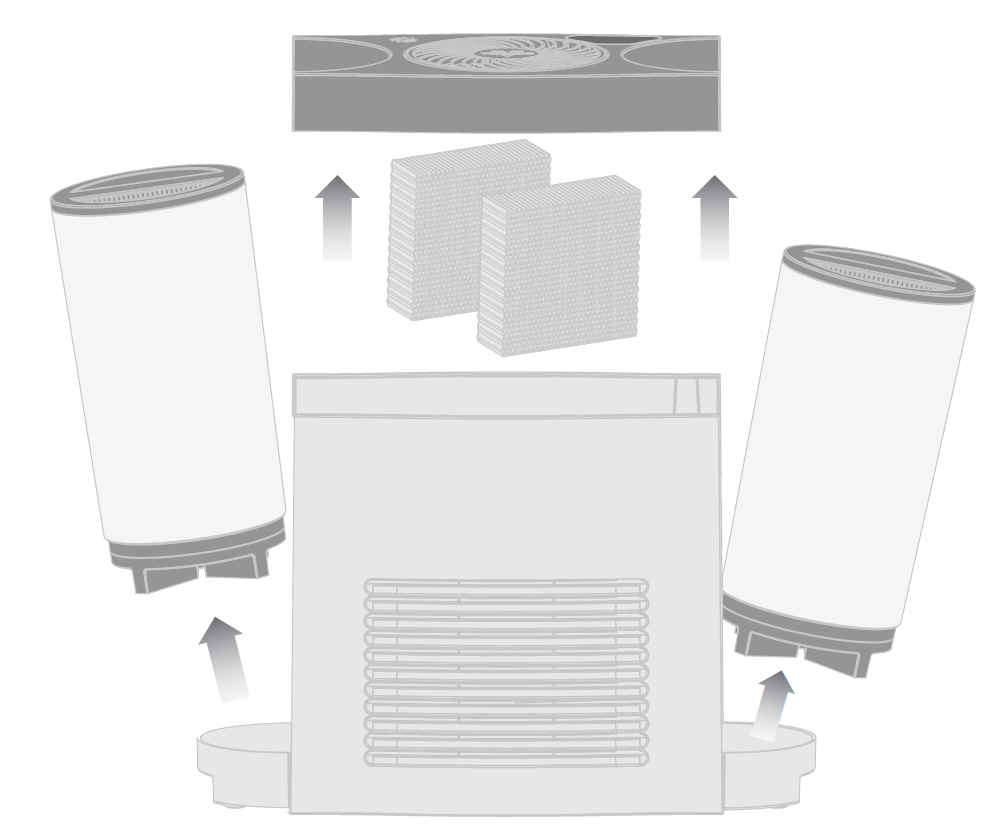

REPLACING WICK

While your humidifier came equipped with Wicks, you will eventually have to replace them, as they last approximately 4–8 weeks, depending on use. Many factors affect the life of the Wicks, including the amount of use, water hardness, and outside environmental factors. You will know the Wicks need to be replaced when they become hard and are no longer absorbing water effectively. Replace the Wicks with genuine Vornado® Wicks. While other brands may fit the unit, these Wicks do not carry the same quality and life as genuine Vornado Wicks and may diminish the humidifier's performance.

1. Turn the humidifier Off and unplug it.

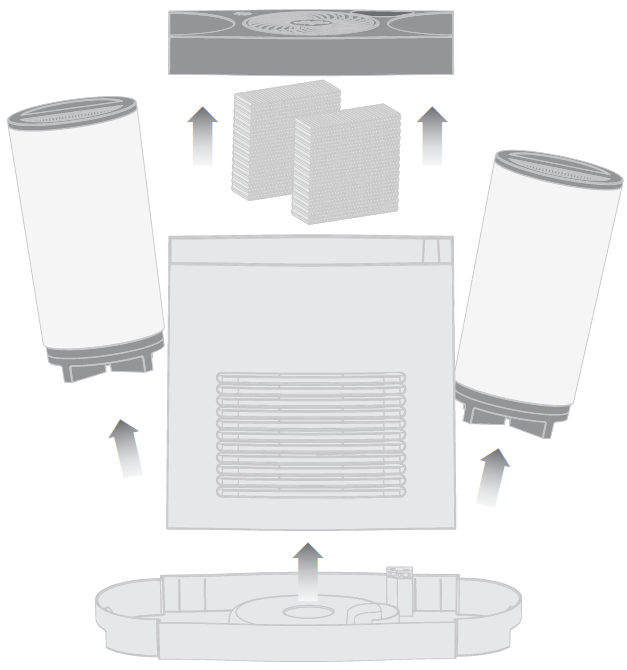

2. Remove the Water Tanks and Power Head by lifting them up.
3. Remove and discard the used Wicks.
4. Install new genuine Vornado Wicks by slightly bending the Wicks to match the curve of the unit. Ensure the Wicks are pushed all the way to the bottom of the Base. If installed incorrectly, water will not be absorbed.
5. Replace the Water Tanks and Power Head.

CLEANING

Proper cleaning of your Evaporative Whole Room Humidifier is essential to the air quality and performance of your humidifier. The frequency at which your humidifier will need to be cleaned will vary depending on use, water hardness, and outside environmental factors. It is recommended, assuming average use, to thoroughly clean the unit several times throughout the season or when algae, mineral deposits, or other particles begin to form.

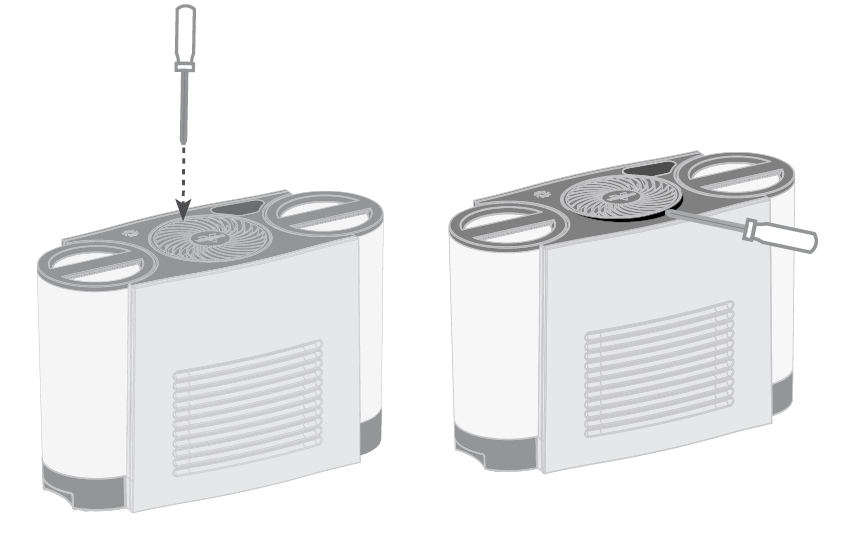

TO CLEAN GRILLE

1. Turn the humidifier Off and unplug it.
2. Using a Phillips head screwdriver, remove the screw located at the 12 o'clock position inside the grille. Twist the grille counterclockwise to unlock, then use the screwdriver to lift the grille.
3. Clean the grille, blade, or underside of the motor with a soft cloth or a can of compressed air.
4. Reinstall the grille and twist it clockwise until the screw holes align. Replace the screw.

STORAGE

During the off-season or after extended periods of non-use, you may choose to store your humidifier. To ensure a long life for the product, it is recommended to store your humidifier by following these instructions:

1. Unplug the power cord and bundle it loosely.
2. Let the humidifier dry completely before storing. Do not store it with water inside the Water Tank or Base. Remove and discard the Wick if it is not suitable for reuse. Do not store the humidifier with a wet Wick. If the Wick is suitable for future use, remove and empty the water from the Base and Water Tank. Replace the Water Tank, power On, and select HIGH Fan Speed. Allow the humidifier to run until the Wick is completely dry.

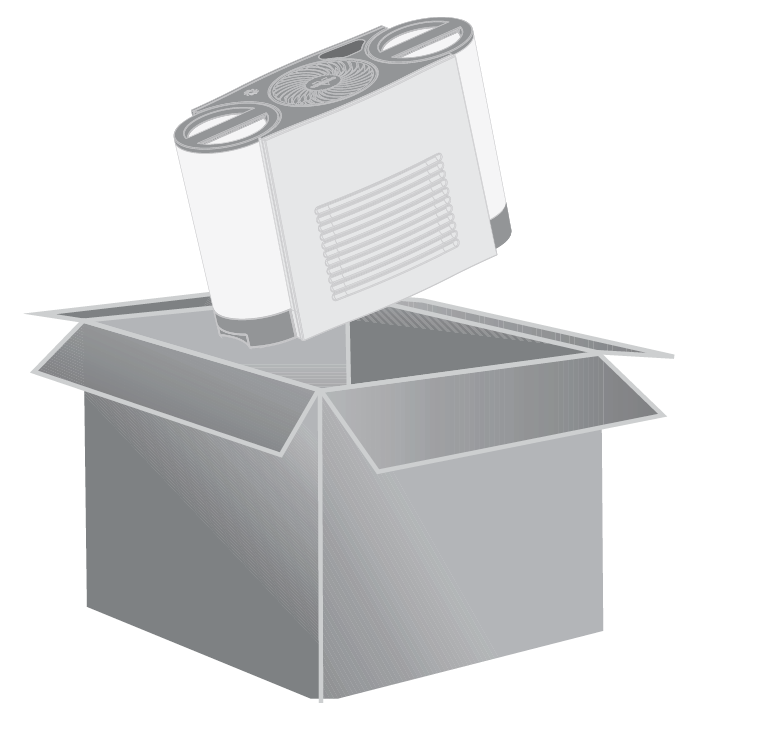

3. Cover the humidifier or place it back in the retail carton, if available. This will prevent the humidifier from accumulating dust over time.
4. Store the humidifier in a cool and dry location.

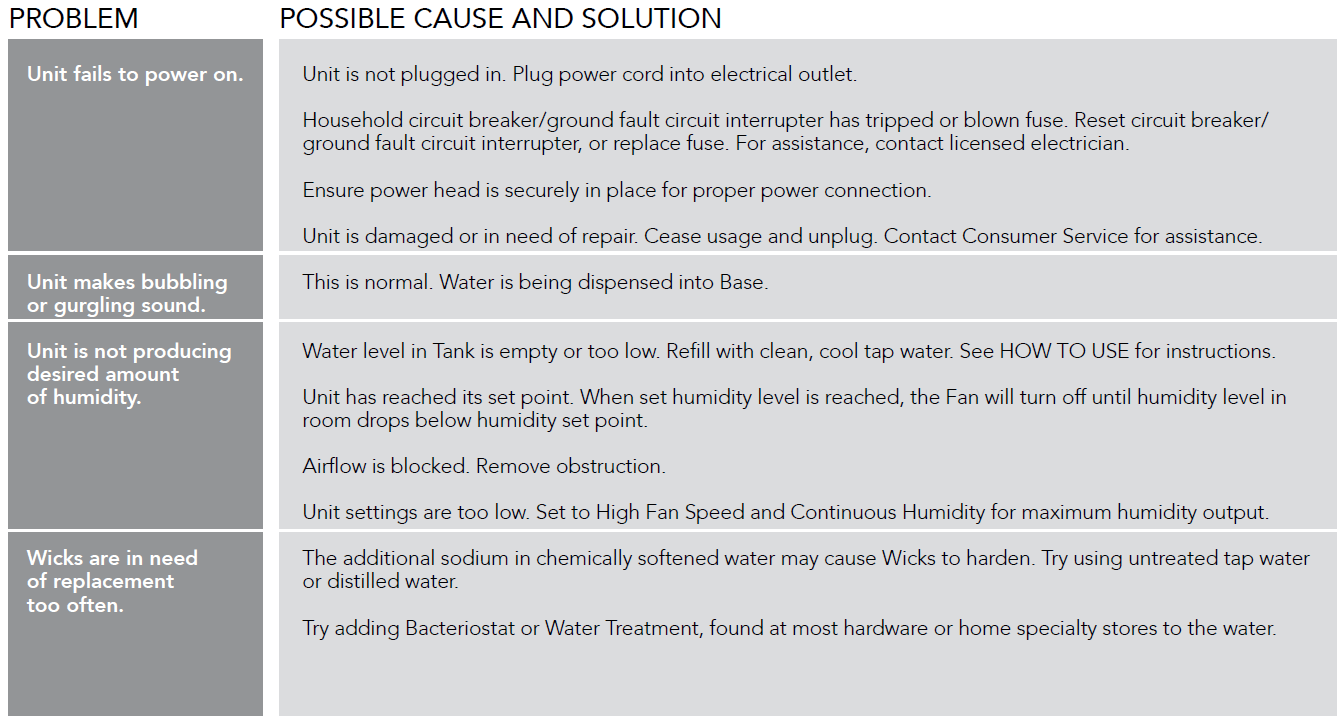

TROUBLESHOOTING

Pros and Cons of the Vornado EVDC500 Humidifier

Advantages:

• Exceptional Energy Efficiency: At just 9 watts, the Vornado EVDC500 uses significantly less electricity than traditional humidifiers, resulting in lower utility bills and reduced environmental impact.
• Large Coverage Area: With capacity for rooms up to 1,000 square feet, this humidifier handles substantial spaces that smaller units cannot effectively treat.
• No White Dust: The evaporative wick technology eliminates mineral deposits and white dust, unlike ultrasonic models that can leave residue on furniture and electronics.
• Vortex Action Technology: Vornado's patented airflow design ensures even humidity distribution throughout the entire room without dead zones.
• Comprehensive Warranty: The combination of a 5-year customer satisfaction guarantee and 10-year motor warranty provides exceptional peace of mind.
• Easy Maintenance: The SimpleTank system with clear, removable 1-gallon tanks simplifies refilling and cleaning compared to complex reservoir designs.
• Quiet Operation: The efficient DC motor operates quietly, making it suitable for bedrooms and offices.

Disadvantages:

• Slower Humidification Speed: Evaporative humidifiers work more gradually than ultrasonic models, requiring longer to achieve target humidity levels in very dry conditions.
• Humidity Dependency: Evaporative technology is less effective in already-humid environments, as the evaporation process slows when ambient humidity is high.
• Tank Refilling Frequency: With a 2-gallon capacity and 4-gallon daily output, the tank requires refilling approximately every 12 hours of continuous operation.
• Limited Size Options: For very small rooms or personal spaces, the EVDC500 may be oversized and less cost-effective than compact alternatives.
• Filter Replacement Costs: The evaporative wick (filter) requires periodic replacement, adding to long-term maintenance expenses.

Customer Reviews and User Feedback

The Vornado EVDC500 humidifier consistently receives positive feedback from users who prioritize energy efficiency and whole-room humidity distribution. Customers frequently praise the unit's quiet operation and the absence of white dust that plagues ultrasonic alternatives. Many users report noticeable improvements in dry skin, respiratory comfort, and overall air quality when maintaining humidity between 40-60%.

Common praise points include the intuitive touch controls, reliable low-water indicator, and the carrying handles that facilitate moving the unit between rooms. Users appreciate the Energy Smart Mode feature, which automatically adjusts operation to maintain desired humidity with minimal energy consumption. The comprehensive warranty coverage gives buyers confidence in the product's durability and manufacturer support.

Frequently mentioned considerations include the need for regular tank refilling during extended operation and the gradual nature of evaporative humidification compared to ultrasonic models. Some users in extremely arid climates note that the EVDC500 may struggle to maintain humidity levels during peak winter months, though most users in standard climates report excellent performance. Overall, customers recommend the Vornado EVDC500 for anyone seeking a reliable, energy-efficient solution for medium to large room humidification, with particular endorsement for those concerned about energy costs and maintenance simplicity.

Key Features and How to Use Your Vornado EVDC500

Getting Started: Begin by filling both 1-gallon tanks with clean water until full. Place the humidifier on a level, stable surface away from electronics and direct sunlight. Plug the unit into a standard 120-volt outlet using the 6-foot power cord.

Setting Your Humidity Level: Use the touch-sensitive control panel to select your desired humidity level between 40-60% relative humidity. The automatic humidistat continuously monitors room humidity and adjusts fan speed accordingly, turning the humidifier on and off to maintain your selected level. For maximum energy savings, use Energy Smart Mode, which optimizes operation for efficiency.

Operating Modes: Select between low-speed (1,700 RPM) for quiet, energy-efficient operation or high-speed (3,000 RPM) for faster humidity delivery. The low-water indicator light alerts you when tanks need refilling, and the unit automatically shuts off when water runs out, preventing damage to the evaporative wick.

```
