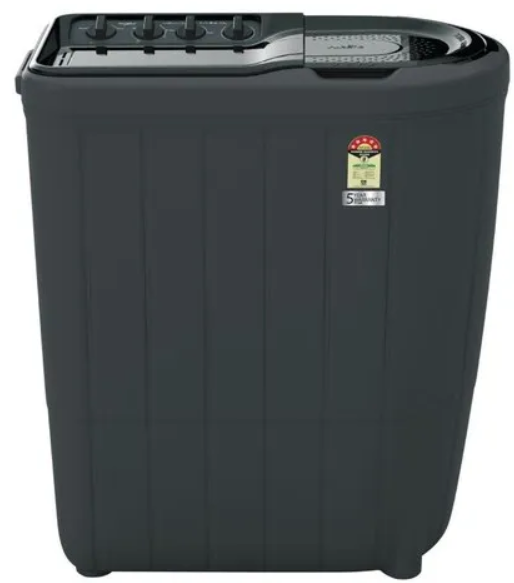

Introduction of Whirlpool W11091013 Washing Machine

The Whirlpool W11091013 washing machine is a top-load washer designed to make laundry day easier than ever. With an estimated price range of $600 to $700 and a launch date of late 2021, this washing machine is a modern and efficient solution for all your laundry needs. Its porcelain-enameled drum and convenient top-load design make it both durable and user-friendly.

Specifications

Due to continuous R&D, the above specifications and features may change without prior notice. Features may vary from model to model.
Capacity of washers with standard test clothes as specified in IS 14155, dry weighed as per the name plate, loaded in wet condition.

Know your Washing Machine

Impeller: It moves the clothes in every direction,  ensuring that the clothes rub against each other, thereby providing a better quality wash

Wash Lid: 11 can handle 1 5 kg al laundry

Scrub Station: Now you can stand and use the flat top surface for your pre wash treatment activities

1. Water Inlet Spouts: Use these holes to insert the fill hose assembly to fill water in Wash tub or Spin Tub.
2. Dirt Level Selector (Deep Wash 66): Use this knob to set the time for wash/soak according to the dirt level of the clothes. (Less Dirty, Dirty and Very Dirty)
   • Select models have soak option to keep clothes in the detergent concentrate for the set duration
   • Select models with soak option have inbuilt memory, which remembers the wash timer position, if power goes off and restarts from the same position after power is restored
3. Fabric Type Selector: Use this knob to select an option according to the fabric type like Delicate, Normal or Heavy.

4. Wash / Drain Selector: Use this knob to drain the water from the Wash tub



   • Note: Do not try to tum the knob beyond 'Wash - Drain' limit.
5. Dryer: Use this knob to set the drying time according to the fabric type
   • Note: Images shown here are only schematic representation of the machines. They do not replicate the exact model

Superb atom 60i (6.0Kg), 62i (6.2Kg) & 65i (6.5Kg)

Superb atom 62s (6.2 kg), 65s (6.5 kg) & 70s (7.0 kg)

Lets Get Started

Get the machine installed by a Whirlpool technician

• Ask for the demonstration of the machine
• Check the Installation Report' to ensure that it is completed and sign it before the technician takes it away
• Read the manual carefully - clarify with the technician d uring installation
• Check the Warranty Card and understand the term of Whirlpool Offers*
• Look for the machine number and model number written on a rectangular plate at the back of the machine and note this down on your Warranty Card . This number must be quoted every time you contact Whirl pool - that speeds up our response

2 yrs Warranty
The following items are included in the package. If something is missing , please contact the retail outlet / service center number.

INSTALLING THE MACHINE

1. Do not place in a slanting position
2. Do not place on uneven ground
3. Do not place in an unstable position
4. Keep the machine level on a Keep the machine at least solid floor to avoid excessive 10 cm away from the vibration during operation wall surface.
5. Keep the drain hose flat on the floor before starting the machine

ELECTRICAL CONNECTIONS

• Ensure that the your household electric supply is properly earthed before connecting the power cord.The socket should be ofstandard and independent 3 pin type of 230V, 5A connection with separate line fuse or circuit breaker of the value 5A.
• The appliance must be earthed properly. Do not use an extension junction box since it may not be properly earthed.*
• If the power code is damaged, If must be replaced by the Whirlpool Authorised Service Person in order to avoid hazard.
• Do not install in an environment where there is a possibility of water splashing onto the machine.

The manufacturer declines any responsibility for damage caused due to non-compliance of this caution. You are, therefore, advised that your household power supply is properly earthed

TYPICAL FABRIC WEIGHT CHART

DAILY USAGE COTTON

DAILY USAGE DELICATE

WEEKLY USAGE HEAVY

Weight shown here are approximate value

Washing Process of Whirlpool W11091013 Washing Machine

1. Preparation before Wash
   Connect one end of the fill hose lo a waler lap and the other end to the Wash water inlet.
   Unhook the drain hose and place ii flat on the floor. , Plug the power cord properly into an electric socket.
   Shirt collars, cuffs, dress hem & pockets have to be pre-treated before washing, by brushing them with a pre-wash product or liquid detergent.
   Scrub Station: Now you can stand and use the flat top surface for your pre wash treatment activities.

2. Selecting the Wash Process
   Fix the Fill Hose Assembly into the 'Wash' Hole.
   Set the Drain Selector knob to 'Wash' position.



3. Loading the clothes into your machine
   Drain Selector , Hang the Wash Lid on the side wall of the Wash Tub as shown in the figure
   Check for coins/pins/sharp foreign objects before D..QJ loading the clothes into the machine.
   Drop the clothes loosely around the Agitator / Impeller, Load the clothes uniformly in the Wash Tub. Do not load the clothes on one side of the machine.

4. Adding detergent
   As per the table below, sprinkle detergent inside the tub before loading the clothes.
   1 typical cup = 35 gms.

   WATER LEVEL	WATER LITRES	DETERGENT QUANTITY (in cups)*	LOAD (in kg)
   L	39	1.0	0.0 - 3.0
   M	46	1.5	3.0 - 4.5
   H	57	2.0	4.5 - 6.0
   H1	66	2.0	6.0 - 7.0

5. Note: Foam overflow may occur if the detergent quantity used is more than recommended, especially with high foaming detergent
6. Filling Water
   Open the water tap and fill water in the tub to a suitable water level for the wash load.
   Ensure to replace the wash lid over the top of the tub before starting the wash.
   Adjust the Tap to reduce the water pressure:
   1. If water splash is observed.
   2. If water filling in wash tub and spin tub is observed at the same time
7. Washing your clothes
   • Before starting the Wash Timer ensure that all clothes are fully submerged in the water

   • Select a suitable Wash Program depending on the 'Fabric Type' like Delicate/ Normal/ Heavy and ‘Dirt Level’ * like Less Dirty/ Dirty/ Very Dirty.



Rinsing Process

A good wash is incomplete without a proper rinse. Not only does a thorough rinsing process help you to clean off minute traces of dirt, it also remove as the detergent water, which could be harmful to your precious clothes and to your skin

Note: If water level selected is 'Low' use either 'Delicate' or 'Normal' wash programs.

Note : For complete detergent removal, please rinse in the Wash Tub only.

Whirlpool W11091013 Washing Machine Rinse in Wash Tub

1. Draining the detergent water
   Set the Drain Selector knob to the Drain position. It will take about three minutes for the detergent water to drain.

2. Selecting the Rinse Process
   Set the Drain Selector knob to the Wash position



3. Filling water into the washing machine
   • Fix the Fill Hose assembly lo 'Wash' Hole.
   • Open the water tap and fill the tub to a suitable water level, for the Rinse load. Ensure that the clothes are fully submerged in water before start of Rinse.
   • Close the water tap
4. Rinsing your clothes
   • For all Superb atom 60i, 62i & 65i models, set 1he ' Fabric Type' knob to 'Delicate' and for all Superb atom 62s, 65s & 70s (6.2 1 6.5 & 7.0 Kg) models, set the ‘ Deep Wash 66’ knob to 5-8 minutes. The machine will start rinsing.
   • Drain the rinsed water using the Drain Selector as mentioned in point 1

LOW TRICK LEVCL

Note: If water level selected is 'Low' use either 'Delicate' or 'Normal' wash programs.

• Soak* can be selected as an option. One can soak clothes up to a maximum of 25 minutes before washing.
• Turn the Wash Timer / Dirt Level Selector clockwise, until you reach the desired wash time position. The Wash action starts as soon as wash time is set
• Dirt Level & Soak options are available only in Superb atom 62s (6.2 kg), 65s (6.5 kg) & 70s (7.0 kg) models

Whirlpool W11091013 Washing Machine Circuit Diagram

Superb atom 60i (6.0Kg), 62i (6.2Kg) & 65i (6.5Kg)

Superb atom 62s (6.2 kg), 65s (6.5 kg) & 70s (7.0 kg)

Rinse in Spin Tub

You have the option of using the following alternate method to ensure removal of detergent

• Move the clothes from the Wash Tub to the Spin Tub
• Fix the Fill Hose assembly to 'Spin' Hole.
• Open water tap for 4 to 5 minutes and then set the spin timer (Max Dryer) ta 5/10 minutes for effective spin shower
• The spin shower ensures a better quality rinsing of your clothes and also makes sure that the detergent is effectively removed.
• We recommend that one round of rinsing is done in the wash tub before loading the clothes into the spin basket.

Note : User Discretion is advised in selecting the Rinsing method. It is recommended to avoid spinning the tub, while water is being filled. This will ensure that the water reaches all fabric , before spinning begins.

Over flow rinse in wash tub

1. Draining the detergent water
   Set the Drain Selector knob to the Drain position. lt will take about three minutes for the detergent water to drain.
2. Selecting the Rinse Process
   Set 1he Drain Selector knob to the Wash position
3. Filling water into the washing machine
   Fix the Fill Hose assembly to 'Wash' Hole.
   Open the water tap and fill the tub to a suitable water level, for the Rinse load. Ensure that the clothes are fully submerged in water before start of Rinse.
4. Rinsing your clothes
   For all Supertiatom 60i, 62i & 65i models, set the ' Fabric Type' knob to 'Delicate' and for all Superb atom 62s, 65s & 70s (6.2 1 6.5 & 7.0 Kg) models, set 1he ‘ Deep Wash 66’ knob to 5-8 minutes. The machine will start rinsing.
5. Continue the water supply through out the cycle for best rinse.
   Drain the rinsed water using the Drain Selector as mentioned in point 1

Note : This method consumes more water than the previous methods.

Spin Drying Process W11091013

• Loading the clothes into the Spin Basket
  • Open the spin tub lids.
  • Transfer the clothes to the spin basket.
  • Distribute the clothes evenly in the basket.
  • Before closing the Spin Lids, press the Spin Cap down onto the clothes
• Closing the Lids
  • First, close the inner lid and then close the spin lid.
  • The machine will not spin if the spin lid is either open or not properly closed.

• Spin Drying
  Set the dryer to the desired spin time



Set spin time according to the table given below

Note

1. Spin drying without spin cap may cause cloth entry between spin basket and tub
2. Hang the clothes to dry immediately after spin to avoid excessive wrinkles on the fabric.
3. Do not run spin continuously for more than 3 cycles, If spin is operated continuously for more than 3 cycles, motor thermal cut out (a safety feature) may happen resulting in non functioning of spin. If this happens, give a time gap of 25 minutes and restart the spin process.

Whirlpool Description

The Whirlpool W11091013 washing machine is a top-load washer designed for convenience and efficiency. Its porcelain-enameled drum is both durable and gentle on clothes, while the deep-fill option makes it easy to tackle even the heaviest loads. The Adaptive Wash technology ensures that water usage is optimized for each load, reducing waste and saving you money. And with a range of wash cycle options, this washing machine is perfect for all your laundry needs.

Safety Precautions

• Do not pull the cord to disconnect the plug. Hold the plug itself
• Do not use an Adaptor or an extension box to plug in your washing machine
• Do Not simply drag the Always lit or move the machine according to the wheel's direction.
• Do Not move the washing machine with load or when it is in operation.
• Do Not attempt to dismantle the washing machine
• Do Not expose the machine to direct sun light or rain
• Do Not install the machine in a damp place or bathroom
• Do Not wash or spray water over the switch or control panel Keep the machine
• Do Not put shoes or away from fire or heat utensils into the machine to wash or spin
• Do Not allow children to play with  the machine To prevent deformation of plastic parts.
• Do Not use water with a temperature greater than 50°C Make sure that the Lids Washing or Spinning
• Do Not put your Spin basket tit stops completely
• Do Not set heavy objects on the power cord
• Do Not use causitc soda or washing machine

Maintenance of your Whirlpool Washing Machine

Simple steps to up-keep your machine
Before cleaning, switch off the power and disconnect the power cord from the electrical outlet.

CLEANING THE BODY

• Wipe the machine with a soft cloth
• If the machine is extremely dirty, wipe it with a cloth soaked in a solution of water and detergent. Then, finally wipe the machine dry with a soft cloth

CLEANING THE LINT FILTER

• Remove the Lint Filter as shown in figure 1.
• Reverse the Bag and keep it under running water
• First locate the top side of the Lint filter to the Water Level Indicator as shown in the Figure 2.

• Then push the bottom of the Lint Filter towards the Water Level Indicator as shown in the Figure 3.



Care for the Environment

HAZARDOUS SUBSTANCES
Components and materials used in the manufacture of this washing machine do not contain any hazardous substances and are fully compliant with provisions of hazardous substances outlined in Chapter V of the e-waste (Management and handling) Rules, 2011. The product, therefore, poses no danger to health and safety, during it's life or to the environment, at the end of it's life

Troubleshooting about W11091013

Common problems with the Whirlpool W11091013 washing machine include: the machine not starting, the drum not spinning, and unusual noises during operation. If the machine does not start, check to ensure that it is properly plugged in and that the door is securely closed. If the drum is not spinning, check for any blockages in the drain hose or pump filter. And if unusual noises are heard during operation, check for any loose items in the drum and ensure that the machine is level.

When you feel that your machine has some problem please run through the following simple tips before you call a Whirlpool Service Technician

• Foreign object entrapment
  Please ensure that you empty all pockets of objects such as coins, pens, toothpicks, matchsticks etc. They may get stuck inside the machine and could even cause damage to your clothes.
• Metallic buckles / zippers
  All metallic buckles/zippers must be closed before putting clothes into the washing machine. Open buckles/zippers could damage/scratch inner plastic parts of the machine
• Lint
  Separate white coloured clothes from the rest of the laundry when washing. Always ensure that ' lint producing ' clothes (e.g. towels, cotton clothes) are separated from ‘ lint attractors’ e.g. Synthetic fibers, black colour garments, woollen clothes). Make sure that you put the recommended amount of detergent for each wash load.
• Tangling
  Do not stuff clothes or wrap them around the agitator. Drop them loosely around the agitator / Impeller.
• Electrical
  Kindly ensure that the household electrical wiring and earthing is proper. Plug point must be intact.
• Prolonged Non-Usage
  After a prolonged non-usage of the machine, please run the machine with plain water (without clothes) for 2 minutes and drain out the used water. This will ensure that residual detergent etc., if any, gets discharged from your machine.
• Rodents
  Protect your machine from Rodents. Rat bites can damage the wiring leading to short circuits or general non-functioning of the machine

Whirlpool Warranty

Whirlpool W11091013 washing machine 2 year warranty will automatically terminate on the expiry of the warranty period of two years from date of purchase as provided in the original invoice, even if the washing machine may not be in use for any time during the warranty period for any reason whatsoever including any technical breakdowns and the time taken for such repairs / replacements of parts and transit, whether under this warranty or otherwise shall not be excluded from the warranty period.
