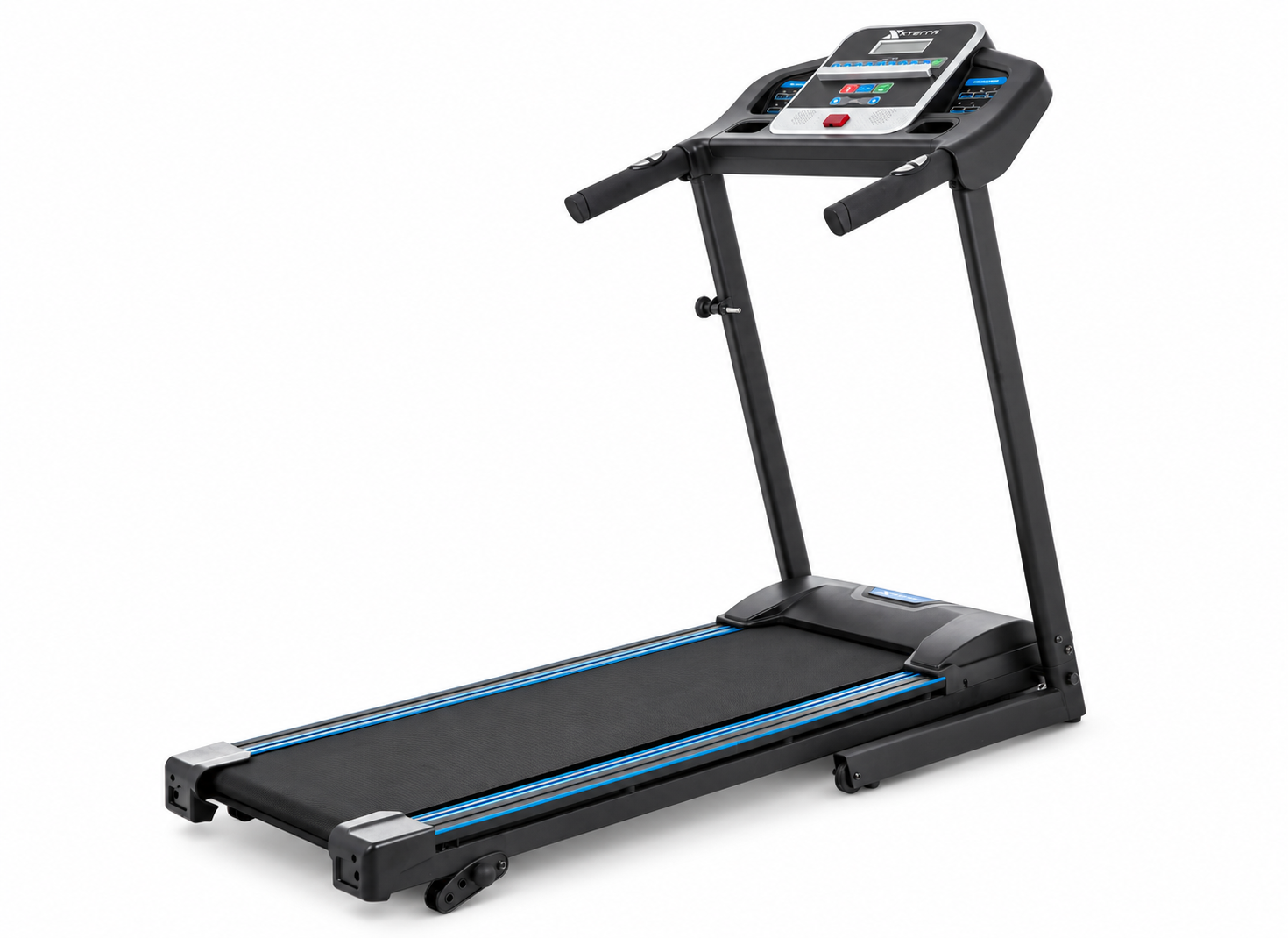

Introducing the Xtrella Fitness Treadmill TR150

The Xtrella Fitness Treadmill TR150 is a powerful and durable home fitness solution designed to help you achieve your fitness goals. This high-quality treadmill boasts a robust motor, spacious running surface, and a variety of features to enhance your workout experience. With an estimated price range of $500 to $600 and a launching date in mid-2023, the TR150 is an affordable and accessible option for fitness enthusiasts of all levels.

Detailed Specifications

• Motor: 2.5 CHP (Continuous Horse Power)
• Speed range: 0.5 to 10 MPH
• Incline range: 0% to 10%
• Running surface: 16 x 50 inches
• Max user weight capacity: 250 lbs
• Foldable design with SoftDrop technology
• Integrated Bluetooth speakers and auxiliary port
• 12 preset workout programs
• Hand grip pulse sensors and telemetry enabled
• Built-in USB charging port

Xtrella Fitness Treadmill TR150 Pack Checklist

• #79. Ø8 x Ø18x 1.5m/m
  Flat Washer(6pcs)

• #87. 5/16″ x 1/2″
  Button Head Socket Bolt (12pcs)

• #88. Ø8 x Ø23 x 1.5T
  Curved Washer (6pcs)

• #105. Lubricant
  ( 1 pc)

• #40. Safety Key
  (1 pc)

Assembly

1. Remove the UNIT from the box and put it on a flat and level floor.



   NOTE: this step may work better with a second person assisting.

2. Connect the COMPUTER CABLE (Middle)(38) with the COMPUTER CABLE (Lower)(39).



   NOTE: this step may work better with a second person assisting.

3. Insert the UPRIGHTS (L, R)(3,4) into the FRAME BASE (2) with the 6 Button Head Socket BOLTS (87), 4 FLAT WASHERS (79) and 2 CURVED WASHERS (88) using the SCREW DRIVER (104). (Please fix the screw without tightening it.)



4. Connect the COMPUTER CABLE (UPPER) (37) with the COMPUTER CABLE (MIDDLE)(38).
   NOTE: this step may work better with a second person assisting.



5. Install the CONSOLE SUPPORT (5) into the UPRIGHTS (L,R)(3,4) with the 6 Button Head Socket BOLTS (87), 2 FLAT WASHERS (79) and 4 CURVED WASHERS (88) using the SCREW DRIVER (104).



CAUTION: Do not attempt to move the unit unless it is in the folded and locked position. Remove the power cord from the front of the unit to avoid possible damage. Use both handrails to maneuver the unit to the desired position.

Instructions of Xtrella Fitness Treadmill TR150

FOLDING INSTRUCTIONS

• TO FOLD THE TREADMILL
  Pull the Lock Pin outward and lift the treadmill running deck until it is secured by the locking mechanism on the left upright tube. You will hear it pop into place when secure.



• TO UNFOLD THE TREADMILL
  Apply slight forward pressure on the treadmill running deck with your right hand. Pull out on the Lock Pin outwards and slowly lower the running deck to the floor.



• TRANSPORTATION INSTRUCTIONS
  The treadmill is equipped with two transport wheels that are engaged when the treadmill is folded.
  After folding simply roll the treadmill away.

INCLINE ADJUSTMENT INSTRUCTIONS

• Lift the deck up, so that the Adjustment Foot Pad leaves the ground.



• Remove the Step-Up Frame Pop Pin.



• Select the Incline setting as desired, then insert the Pop pin. Please make sure to adjust both sides to the same level.



Xtrella Fitness Treadmill TR150 Description

The Xtrella Fitness Treadmill TR150 is designed to provide a comfortable and engaging workout experience. Its powerful 2.5 CHP motor offers smooth and quiet operation, while the spacious 16 x 50 inches running surface allows for a natural and comfortable stride. The treadmill's 0% to 10% incline range adds an extra challenge to your workouts, helping you to burn more calories and build endurance. With a maximum user weight capacity of 250 lbs and a foldable design with SoftDrop technology, the TR150 is suitable for users of all sizes and fitness levels.

The TR150 also features integrated Bluetooth speakers and an auxiliary port, allowing you to listen to your favorite music or podcasts while working out. With 12 preset workout programs, you can easily find a routine that suits your needs and goals. The treadmill's hand grip pulse sensors and telemetry enabled heart rate monitoring provide real-time feedback on your workout intensity, helping you to optimize your training and achieve your fitness goals faster.

Operation of Your Treadmill

Console Getting Started

Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not operate without it. The treadmill will then enter idle mode, which is the starting point for operation.

QUICK-START OPERATION

1. Attach the Safety key to enable the display (if not already on).

2. Press the Start key to begin belt movement. Adjust to the desired speed using the Speed keys. You may also use the SPEED buttons 1 through 9 to adjust the speed.

3. To slow tread-belt press and hold the Speed key to the desired speed. You may also press the SPEED buttons 1 through 9.

4. To stop the tread-belt press the Stop key or pull away Safety key.

PAUSE/STOP/RESET FEATURE

1. When the treadmill is running the pause feature may be utilized by pressing the red Stop key once.V This will slowly decelerate the tread-belt to a stop. The Time, Distance and Calorie readings will hold while the unit is in the pause mode. After five minutes the display will reset and return to the start up screen.

2. To resume your exercise, when in Pause mode, press the Start key. The speed will return to the previous settings.

3. Pause is executed when the Stop key is pressed once. If the Stop key is pressed a second time, the console will reset and return to the idle mode (start up) screen.

CALORIE DISPLAY

Displays the cumulative calories burned at any given time during your workout.
Note: This is only a rough guide used for comparison of different exercise sessions, which cannot be used for medical purposes.
TO TURN TREADMILL OFF

1. Display will automatically turn off (go to sleep) after 30 minutes (no key operations). The treadmill will draw very little current in sleep mode (about as much as your television when it is turned off).

2. Remove tether cord.

3. Turn off the main switch on the front of the treadmill, below the motor cover.

LUBE MESSAGE
When “Lube” appears on the LCD check lubrication under walking deck. See the instructions on page 20 to add lube as needed. After application hold ENTER for 3 seconds to reset the message.

PRESET PROGRAM PROFILES

PROGRAMMABLE FEATURES

The TR150 Treadmill provides 12 programs (P1,P2,P3……P12). Each program has its specific speed variations.
To Select and Start a Preset Program

1. Make sure the machine is in the read mode,. Press Program to choose desired program (P1,P2, …..P12), then press and release Start to begin the program with default values.

2. Each program will continue 30 minutes. This is the preset value. After every minute during the program, the Speed will be adjusted automatically. The Speed setting can also be adjusted manually at any time during the program. 3 Seconds before the ending of a program a buzzer will sound three times, then the running belt will come to a stop

General Maintenance

• Belt and Deck
   Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the area between the frame and 6 – 8” under the belt. This should be done once every other month to extend belt and deck life. Use water only – no cleaners or abrasives. A mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt. Allow the belt to dry before using.

• Belt Dust
  This occurs during normal break-in or until the belt stabilizes. Wiping excess off with a damp cloth will minimize buildup.

• General Cleaning
  Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. On a monthly basis: vacuum underneath your treadmill to prevent buildup. Every other month, you should remove the black motor hood and carefully vacuum out dirt that may accumulate. UNPLUG POWER CORD BEFORE THIS TASK. There is a maintenance schedule/chart included under the Table of Contents for convenient record keeping.

Belt Adjustments

• Tread-belt Tension Adjustment
  Belt tension is not critical for most users. It is very important though for joggers and runners in order to provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 6mm Allen wrench provided in the parts package. The adjustment bolts are located at the end of the step rails as shown in the diagram below.
  Tighten the rear roller only enough to prevent slippage at the front roller. Turn the tread-belt tension adjusting bolts clockwise a 1/4 turn each and inspect for proper  tension by walking on the belt and making sure it is not slipping or hesitating with each step. When an adjustment is made to the belt tension, you must be sure to turn the bolts on both sides evenly or the belt could start tracking to one side instead of running in the middle of the deck.



• DO NOT OVERTIGHTEN
  Over tightening will cause belt damage and premature bearing failure. If you tighten the belt a lot and it still slips, the problem could actually be the drive belt – located under the motor cover – that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person.

TREADBELT TRACKING ADJUSTMENT

The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.

SETTING TREAD-BELT TRACKING

• A 5mm Allen wrench is provided for this adjustment. Make tracking adjustments on the left side bolt. Set belt speed at 3 mph. Be aware that a small adjustment can make a dramatic difference which may not be apparent right away.

• If the belt is too close to the left side, then turn the bolt only a 1/4 turn to the right (clockwise) and wait a few minutes for the belt to adjust itself. Continue to make 1/4 turns until the belt stabilizes in the center of the running deck.

• If the belt is too close to the right side, turn the bolt counter-clockwise. The belt may require periodic tracking adjustment depending on use and walking/ running characteristics.

• Some users may affect tracking differently. Expect to make adjustments as required to center the tread-belt.

• Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills.

ATTENTION: Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the XTERRA warranty.

BELT/DECK LUBRICATION PROCEDURE

First, you want to clean between the belt and deck to remove any debris that may be trapped. Use a clean, non-fraying rag, t-shirt, or light towel. Halfway between the end of the treadmill and motor cover, shove the garment under the belt until you can grasp it on both sides of the belt. Drag the garment the length of the entire belt 1-2 times. Remove the garment.
Keeping the deck lubricated at the recommended intervals ensures the longest life possible for your treadmill. If the lubricant dries out, the friction between the belt and deck rises and places undue stress on the drive motor, drive belt and electronic motor control board, which could result in failure of these components. Failure to lubricate the deck at regular intervals may void the warranty.
The belt & deck come pre-lubricated and subsequent lubrication should be performed every 40 hours of use or if you notice that the deck is dry. It is recommended that you reach between the belt and deck to verify there is lubrication present, every other month. If you check and there isn’t any lubrication present, follow the procedure below. Use the following procedure to apply the silicone lubricant:

1. Turn the power switch off and unplug the power cord from the wall outlet.

2. Measure 18” from the edge of the motor cover; kneel down and reach under the belt. approximately 4- 6” from one edge. Squirt a line of lubricant about 1/8” wide x 15” long in an “S” pattern perpendicular to the motor cover.

3. Repeat the process on the opposite side.

4. Plug the electrical cord back into the outlet and turn the power switch on.

5. Walk on the belt at a moderate speed for five minutes to evenly distribute the silicone lube.

Setup Guide

To set up your Xtrella Fitness Treadmill TR150, follow these simple steps:

1. Unbox the treadmill and remove all packaging materials.
2. Assemble the treadmill according to the instructions provided in the user manual.
3. Connect the treadmill to a power source and turn it on.
4. Pair your device with the treadmill's Bluetooth speakers.
5. Adjust the treadmill's settings to your preferred workout program.
6. Start your workout and enjoy the comfortable and engaging experience of the TR150.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following. Read all instructions before using this appliance.
Danger: To reduce the risk of electric shock. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons:

• An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.

• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.

• This exercise equipment is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

• Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.

• Do not carry this appliance by supply cord or use cord as a handle.

• Keep the cord away from heated surfaces.

• Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.

• Never drop or insert any object into any opening.

• Do not use outdoors.

• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

• Connect this appliance to a properly grounded outlet only.

• The appliance is intended for household use.

• To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet.

Caution: DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY ONE OUTLET ON THE END. THE TREADMILL SHOULD BE THE ONLY APPLIANCE IN THE CIRCUIT IN WHICH IT IS CONNECTED. DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET. A SERIOUS SHOCK OR FIRE HAZARD MAY RESULT ALONG WITH COMPUTER MALFUNCTIONS.

FITNESS EQUIPMENT SAFETY INSTRUCTIONS

• To disconnect, turn all controls to the off position, remove tether cord, then remove the plug from the outlet.

• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may result

• Before beginning this or any exercise program, consult a physician. This is especially important for persons over the age of 35 or persons with pre-existing health conditions.

• Do not block the rear of the equipment. Provide a minimum of 3 1/2 feet clearance between the rear of the equipment and any fixed object.

• Product Weight Limit: 250 lbs.

• Keep hands away from all moving parts.

• Use handrails provided; they are for your safety.

• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.

• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your equipment. Quality athletic shoes are recommended to avoid leg fatigue.
  Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment.

SAVE THESE INSTRUCTIONS
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State of California to cause cancer and birth defects or other reproductive harm.

IMPORTANT ELECTRICAL INFORMATION

1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation mecha-nism and transport wheels.

2. NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the perfor-mance of your treadmill may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.

3. NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in any other high humidity environment. The temperature specification is 40 degrees Celsius, and humidity is 95%, non-con-densing (no water drops forming on surfaces).

Circuit breakers
Some circuit breakers used in homes are not rated for high inrush currents that can occur when a tread-mill is first turned on or even during normal use. If your treadmill is tripping the house circuit breaker (even though it is the proper current rating) but the circuit breaker on the treadmill itself does not trip, you will need to replace the home break-er with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no ability to control. This part is available through most electrical supply stores.

GROUNDING INSTRUCTIONS

This product must be grounded. If the treadmill’s electrical system should malfunction or breakdown grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an equipment-grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated below. A temporary adapter that looks like the adapter illustrated below may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet, (shown below) can be installed by a qualified electrician. The green colored rigid ear-lug, or the like, extending from the adapter, must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

IMPORTANT OPERATION INSTRUCTIONS

• NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the computer.

• Understand that changes in speed do not occur immediately. Set your desired speed on the computer console and release the adjustment key. The computer will obey the command gradually.

• NEVER use your treadmill during an electrical storm. Surges may occur in your household power supply that could damage treadmill components.

• Use caution while participating in other activities while walking on your treadmill; such as watching television, reading, etc. These distractions may cause you to lose balance or stray from walking in the center of the belt, which may result in serious injury.

• NEVER mount or dismount the treadmill while the belt is moving. XTERRA treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.

• ALWAYS hold on to a handrail or hand bar while making control changes (speed, etc.).

SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop tread-belt movement.

Xtrella Fitness Treadmill TR150 Troubleshooting

Before contacting us for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty.

Warranty

XTERRA Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA’s responsibilities include providing new or remanufactured parts, at XTERRA’s option, and technical support to our independent dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA directly to a consumer.

Pros & Cons about Xtrella Fitness Treadmill TR150

Pros

• Powerful and quiet 2.5 CHP motor
• Spacious and comfortable running surface
• 12 preset workout programs
• Integrated Bluetooth speakers and auxiliary port
• Foldable design with SoftDrop technology

Cons

• Limited incline range (0% to 10%)
• No built-in fan or cooling system
