Usage & Setup: Ariete Gran Gelato Ice Cream Maker 693 User Manual

Ariete Gran Gelato Ice Cream Maker 693

Introduction

The ariete Gran Gelato Ice Cream Maker 693 is a premium, self-refrigerating appliance designed for effortless homemade ice cream preparation. Combining an internal compressor with intelligent technology, it eliminates the need to pre-freeze bowls, allowing you to create fresh, creamy ice cream, sorbets, and frozen yogurts in under an hour. This model is perfect for ice cream enthusiasts, families, and anyone who enjoys experimenting with flavors, thanks to its removable basket that facilitates making multiple flavors in quick succession.

Equipped with an intuitive LCD display featuring a temperature readout and adjustable digital timer, the Gran Gelato 693 lets users customize creaminess and consistency effortlessly. After the ice cream is made, the appliance automatically switches to an extended cooling mode, keeping your dessert fresh for up to one hour. Available in most major appliance stores and online, this ice cream maker typically ranges around the mid to upper price bracket for home ice cream machines, reflecting its advanced compressor technology and user-friendly features.

Product Specifications of Ariete Gran Gelato Ice Cream Maker 693

• Power Consumption: 135 Watts, ensuring efficient energy use
• Capacity: 1 Liter, ideal for family-sized servings
• Compressor: Built-in compressor for self-freezing capability—no pre-freezing needed
• Display: LCD interface showing temperature and an adjustable digital timer for precise control
• Design Features: Two baskets included, one removable for easy transfer and flavor switching
• Dimensions: Approximately 38 cm length, 27 cm width, and 30 cm height
• Weight: Around 10.7 kg, providing sturdy build quality
• Additional Accessories: Graduated container and ice-cream scoop included

Compared with other ice cream makers without compressors, the Gran Gelato 693 offers superior convenience and quicker preparation times. Its ability to produce creamy textures without pre-chilling containers sets it apart from many traditional models that require bowls to be frozen for hours.

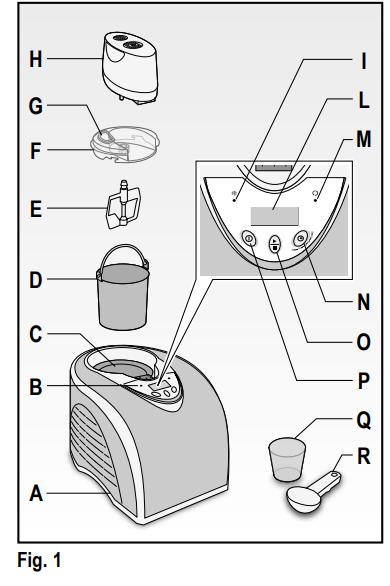

DESCRIPTION OF THE APPLIANCE (FIG. 1)

1. Appliance body
2. Control panel
3. Fixed container
4. Removable container
5. Mixing paddle
6. Lid
7. Cap for ingredient insertion opening
8. Power unit
9. Cooling LED
10. Display
11. Mixing LED
12. Timer button
13. Start / Stop button
14. Power button
15. Graded goblet
16. Ice cream scoop

BEFORE YOU MAKE ICE CREAM
WARNING: ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

• Wash all parts that will be coming into contact with the ice cream thoroughly before: fixed container (C), removable container (D), mixing paddle (E), lid (F), graded goblet (Q) and scoop (R).
• Prepare the ingredients for your recipe or one of the recipes in this booklet, mixing together well in a large container.
• IMPORTANT: To guarantee the correct operation of the appliance, it is necessary to insert two dessert spoons (approx. 25-30 ml) of food-grade alcohol or other high-strength alcoholic drink between the fixed and removable baskets.
• IMPORTANT: It is not necessary to chill the container in a freezer because this ice cream maker has an internal compressor that will chill the ingredients to make the ice cream.

APPLIANCE ASSEMBLY

• WARNING: ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE. IMPORTANT: Always use the ice cream maker upright and on a flat surface to get the best from the compressor.

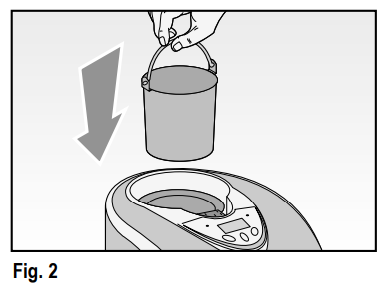

• Insert the removable container (D) into the fixed one (C) inside the machine (Fig. 2).

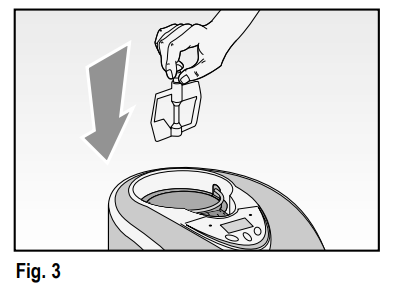

• Place the mixing paddle (E) inside the removable container (D) (Fig. 3).

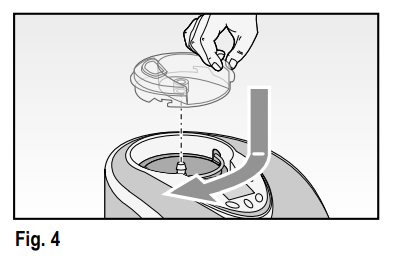

• Fit the lid (F) onto the appliance body, holding the mixing paddle (E) in the upright position in the centre of the lid and locking it in place by turning it clockwise so that the tabs on the power base slot into the openings on the lid (Fig. 4).

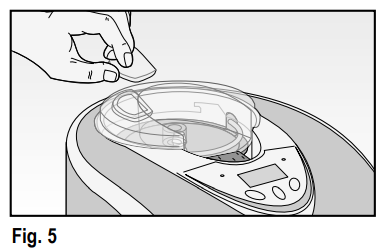

• Close the opening for inserting ingredients with the special cap (G) (Fig. 5).

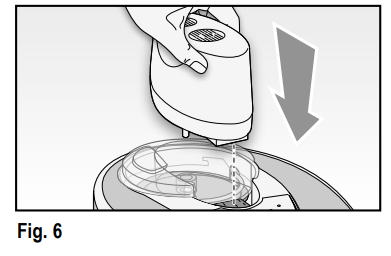

• Fit the power unit (H) onto the lid (F) and make sure that the motor axle has been inserted properly into the hole on the top part of the mixing paddle (Fig. 6).



INSTRUCTIONS FOR USE

• IMPORTANT: Before starting the ice cream maker, make sure that it has been perfectly assembled and the power unit has been firmly attached to the lid.
• Plug the appliance into a mains power socket. Press the power button (P) to supply power to the appliance; the display (L) will show 60.00" meaning that the default operating time is 60 minutes.
• Based on the recipe, press the Timer button (N) to set the operating time: press the button repeat- edly until the required time (10, 20, 30, 40, 50, and 60 minutes) is shown on the display (L).
• Pour the previously prepared mixture in through the opening in the lid (F) (Fig. 6). IMPORTANT: To avoid excessive volumes or waste, make sure that the ingredients never exceed 80% of the capacity of the removable container (D). Remember that ice cream increases in volume while it is being made.
• At this point, press the start button (O) to start up the appliance and it will start to prepare ice cream. At the same time, the mixing process will commence with the mixing paddle (E), together with the chilling process, via the internal compressor and both LEDs (I-M) will switch on.
• When the power button (P) is pressed during the ice cream making process, the appliance will immediately commence a countdown of three minutes, after which the machine will start up again; the chilling and mixing functions will start up together. If, while counting down, the power button (P) is pressed again, the mixing function will commence immediately while the chilling function will onlv commence after the countdown.
• IMPORTANT: If there is a power blackout or the appliance is suddenly disconnected while making ice cream, there will be no automatic countdown function. We recommend starting the machine after 3 minutes, otherwise it will pass into compressor auto-protection mode.
• When the two processes have been completed and the ice cream is ready, the appliance will stop automatically and an acoustic warning will sound 10 times. The display (L) will read "00.00" to show the end of the countdown.
• IMPORTANT: Never remove the power unit (H) while the ice cream is being made.
• Press the stop button (O) and unplug the appliance.

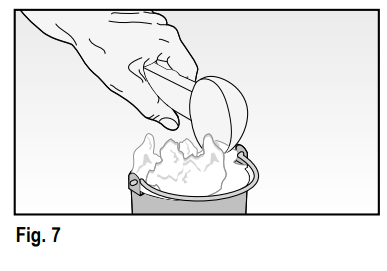

• Remove the power unit (H) and the lid (F), by turning it anticlockwise, and the removable container (D). Place the finished ice cream in another container, using the plastic scoop (R) (Fig. 7);never use a metal utensil, as this could scratch the removable container (D).



• If 10 minutes after the ice cream making process is complete and the acoustic signal has been heard 10 times, the appliance is not switched off using the stop button (O), the "extended chill function" will start automatically so as not to allow the ice cream to melt.

Extended chill function

• The appliance starts this function (no mixing) for 10 minutes every 10 minutes for a total of 1 hour before returning to the initial state (power on but appliance not operating).
• IMPORTANT: always unplug the appliance when serving the ice cream to prevent any risk of electric shock.

Adjustments while operating

•  To stop operation, press the start/stop button (O) for 3 seconds or press the power button (P) onceduring the ice cream making process.- While the appliance is operating, it is possible to extend operating times as required by pressing the Timer button (N) repeatedly; each time the button is pressed adds 10 minutes up to a maxi- mum of 60 minutes.
• Time can only be increased, not decreased.
• How to extend operation (after the ice cream has been made).
• For a thicker ice cream, after the previously set time is over and the machine has stopped and returned to its original state, it is possible to add a time of 10, 20, 30, 40, 50, 60 minutes by pressing the Timer button (N) and then the start/stop button (O). This way, the appliance will start again for the required time and then stop and return to the extended chill function so that the ice cream does not melt.

CLEANING

• WARNING: NEVER PLACE THE POWER BASE OF THE APPLIANCE, THE PLUG OR THE POWER CORD IN WATER OR OTHER LIQUIDS. CLEAN BY WIPING WITH A DAMP CLOTH.
• WARNING: ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE
• FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.
• IMPORTANT: To extend the life of the ice cream maker, never wash any of its parts in the dishwasher.
• Disassemble the appliance as described previously.
• Wash the removable container (D), mixing paddle (E), lid (F), goblet (Q) and scoop (R) in warm soapy water. The dry thoroughly.
• Clean the fixed container (C), power unit (H) and appliance body (A) with a damp sponge or cloth.

Troubleshooting Common Issues with the Gran Gelato Ice Cream Maker 693

• Machine Won't Start: Confirm power supply and that the removable basket is correctly inserted. If unresolved, reset the appliance by unplugging it for 5 minutes.
• Ice Cream Not Freezing Properly: Ensure the mixture is not overfilled and the compressor is not obstructed. Using mixture ingredients at room temperature can also affect freezing time.
• Error Codes: The LCD panel may display error codes for temperature or motor issues—consult the user manual for specific code meanings.
• Extended Cooling Not Working: Verify that the automatic shutdown completed successfully; manual intervention may sometimes be required.
• Preventive Measures: Clean the basket and machine parts promptly after use to avoid residue build-up. Regularly inspect power cords and components for wear.

The product includes a warranty covering manufacturing defects, typically lasting 1-2 years depending on the region. Customer support contact details are provided in the packaging and on official Ariete websites.

Pros & Cons of the ariete Gran Gelato Ice Cream Maker 693

Pros

• Self-refrigerating compressor technology eliminates pre-freezing bowls, saving time.
• Removable basket allows easy transfer and preparation of multiple flavors consecutively.
• Intuitive LCD display with adjustable timer and temperature readings for precise control.
• Compact design with solid build quality suitable for home kitchens.
• Automatic extended cooling keeps ice cream fresh up to one hour post-preparation.

Cons

• Relatively heavy at over 10 kg, less portable than smaller models.
• Price is higher compared to simpler, non-compressor ice cream makers.
• Limited capacity at 1 liter may require multiple batches for larger groups.
• Some users report a learning curve with timer settings to perfect creaminess.

Despite a few drawbacks, the ariete Gran Gelato Ice Cream Maker 693 offers excellent value for money for users seeking convenience, quality, and versatility unmatched by many alternatives.

Customer Reviews and Feedback on the Ariete Gran Gelato 693

Users consistently praise the ariete Gran Gelato Ice Cream Maker 693 for its ease of use and the creamy texture of the ice cream produced. The self-freezing compressor feature is highlighted as a major time saver, eliminating the need for freezer bowls. Many reviews mention the flexibility of making multiple flavors thanks to the removable basket.

Common complaints include the weight of the device and occasional difficulties in setting the exact timer for preferred creaminess. Some users have noted the price is on the higher end but deem it justified by performance. Overall, the product holds an average rating of 4 to 4.5 stars, with recommendations centered on users serious about homemade ice cream without hassle.
