Setup: Ariete Vintage Fan Heater 808 User Manual

Ariete Vintage Fan Heater 808

Introduction

The Ariete Vintage Fan Heater 808 is a stylish and functional compact fan heater that brings retro charm and modern convenience to any room. Designed with a distinctive 1950s aesthetic, this heater is perfect for those who appreciate vintage-inspired decor without sacrificing performance. With its dual heating and cooling capabilities, adjustable thermostat, and compact size, the Ariete Vintage Fan Heater 808 is ideal for homes, offices, and small apartments. Whether you need to warm up during winter or cool down in summer, this versatile appliance delivers reliable comfort year-round.

Key benefits include its elegant design, portability, and safety features such as overheat protection and a tip-over switch. The integrated handle and cord rewinder make it easy to move and store, while the adjustable thermostat ensures precise temperature control. The Ariete Vintage Fan Heater 808 is available in multiple colours, including green and blue, to match your personal style. Priced competitively in the $40–$70 range, it offers excellent value for money and is widely available online and in major retailers.

Specifications of the Ariete Vintage Fan Heater 808

• Model: 0808
• Power: 1000W (cooling) / 2000W (heating)
• Voltage: 220V
• Number of Speeds: 2
• Adjustable Thermostat: Yes
• Overheat Protection: Yes
• Tip-Over Switch: Yes
• Indicator Light: Yes
• Integrated Handle: Yes
• Cord Rewinder: Yes
• Dimensions: 31.5 x 13.5 x 27.5 cm
• Weight: 1.21 kg
• Colour Options: Green, Blue

The Ariete Vintage Fan Heater 808 stands out for its compact design, dual functionality, and safety features. Compared to similar models, it offers a unique blend of style and practicality, making it a top choice for those seeking a reliable and attractive fan heater.

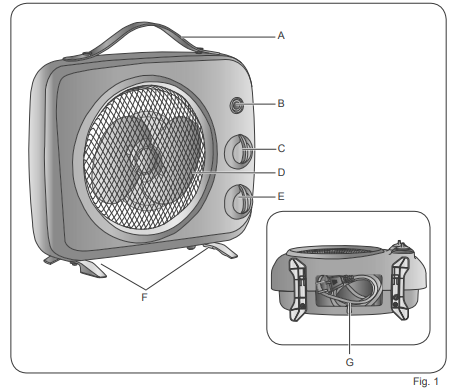

DESCRIPTION OF THE APPLIANCE

1. Handle
2. Indicator light
3. Function selection knob
4. Ventilation grill
5. Thermostat
6. Support feet
7. Cable compartment

Identification data

On the label under the base of the appliance are reported the following identification data of the appliance:

• manufacturer and CE marking
• model (Mod.)
• serial number (SN)
• electrical supply voltage (V) and frequency (Hz)
• electrical power consumption (W)
• assistance toll-free phone number
• When ordering at Authorised Service Centres, indicate the model and serial number.

BEFORE USE

• A Warning! Do not place the appliance or the power cord near or on gas/electric stoves when they are hot, or near a microwave oven.
• The cable must not touch the hot parts of the appliance.
• Position the appliance so that children cannot reach the hot parts.
• A Caution - Risk of material damage
• Keep the appliance at a distance of at least 90 cm from walls, ffurniture plants, and other objects
• Place the appliance on a horizontal and stable surface.
• Use the specially provided handle for moving the appliance.
• Warning - Risk of fire
• Do not place the appliance near surfaces, materials,s or containers of flammable substances.
• Danger - Risk of electric shock
• A Thappliancece must not be placed immediately under a fixed electrical outlet.
• Always connect the appliance to an earthed socket.
  1. Remove the packaging materials from the appliance.
  2. Place the appliance on a flat surface and away from the water. The appliance must be used and rested on a stable andheat-resistantg surface.
  3. Tally unwind the power cord.
• Check that the domestic mains voltage is the same as the voltage indicated on the label of the device.

INSTRUCTIONS FOR USE

• A Caution - Risk of material damage
• Danger of material damage. Do not place any object on top of the appliance during its operation.
• Do not insert any objects through the ventilation grille or the air intake.
• In order to avoid overheating, never under any circumstances cover the appliances during operation, as this would lead to dangerous overheating.
• A Danger - Risk of electric shock
• Do not use the appliance near a bath, shower, basin or swimming pool.
• The power supply cable must not touch the hot parts of the appliance.

Danger - Risk of burns
During operation, some parts of the appliance can become very hot: do not touch during use and for the minutes following shutdown.
Make sure the function selection knob is set to "0" before connecting or disconnecting the appliance from the mains socket.

1. To turn on the appliance, plug it into the mains socket.

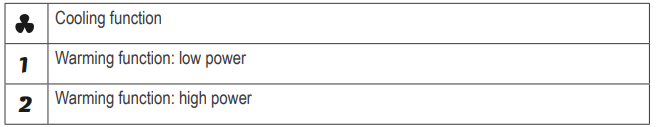

2. Turn the function selection knob (C) to the desired position:



3. Turn the thermostat (E) to the "MAX" position. The indicator light (B) turns on.
4. When the room has reached the desired temperature, slowly turn the thermostat (E) anticlockwise until the indicator light turns off.
5. The set temperature will then be regulated automatically and kept constant by the thermostat.
6. The indicator light (B) turns off and on again periodically, indicating the intervention of the thermostat, which maintains the right temperature.
7. To use the appliance continuously, keep the thermostat in the "MAX" position.
8. To turn off the applianc turnnm the function selection knob (C) to "0". Remove the power cable from the socket-outlet.
9. Caution - Risk of material damage
10. Always unplug the appliance before putting it away. Wait for the hot parts to cool down
11. 6 Put the power cord back inside the cable compartment (G).

CLEANING AND MAINTENANCE

1. Danger - Risk of burns
2. Always unplug the appliance before cleaning it. Each operation must be carried out when the appliance is cold.
3. Danger - Risk of electric shock
4. Never immerse the appliance in water or other liquids.
5. All cleaning operations described below must be carried out with the appliance switched off and with the plug disconnected from the socket.
6. Caution - Risk of material damage
7. Check the state of the power cable of your appliance on a regular basis before using it, and if it is damaged, take it to the service centre closest to you to have it replaced only by specialised personnel.
8. Do not use abrasive detergents or metal utens,ils as they will scratch the coating.
9. Do not use direct water jets to clean the appliance.
10. Doattemptt to open any parts of the acoliance.

Cleaning the appliance

• The appliance does not require special maintenance. Simply wipe it with a soft, dry cloth.
• Never use abrasive powders or solvents.
• If necessary, remove concentrations of dirt using a vacuum cleaner.

SETTING THE MACHINE OUT OF SERVICE
In the case of decommissioning of the appliance, it must be electrically disconnected. Cut the power cord.

In case of scrapping,g you will be required to separate the various materials used in the construction of the appliance and dispose of them according to their composition and to the applicable laws in the country of use.

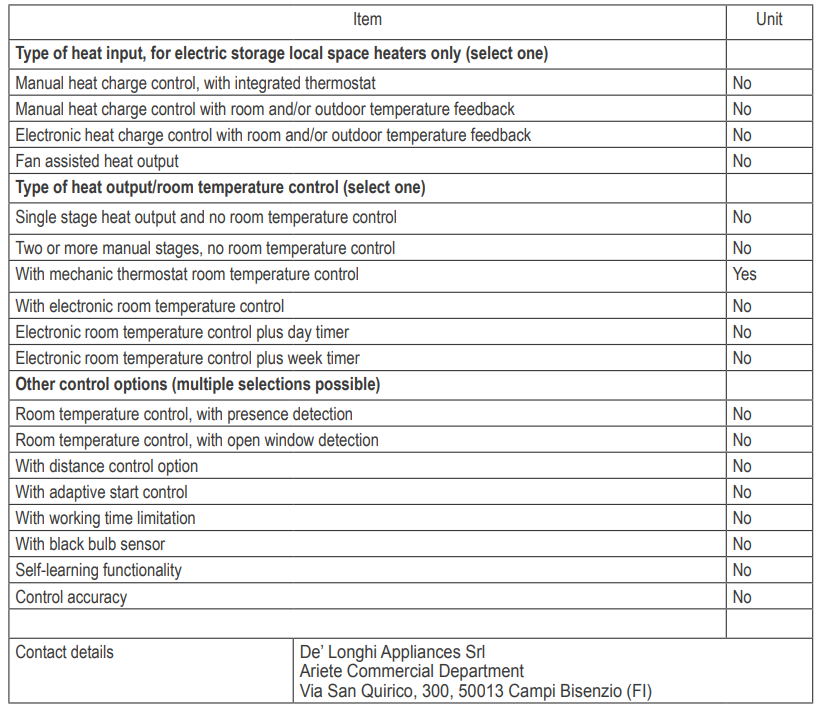

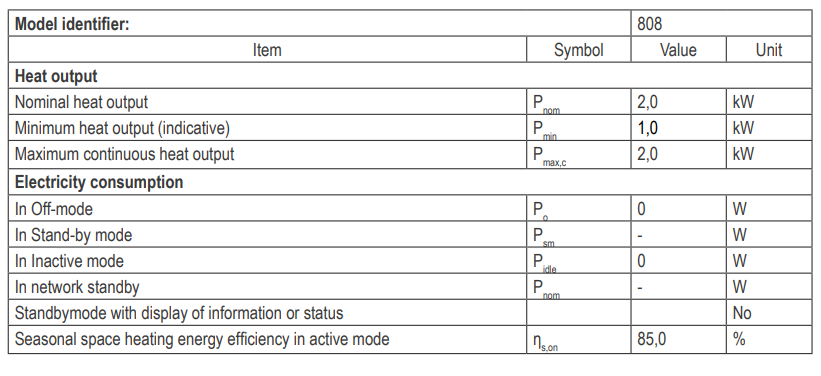

TECHNICAL REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS

Troubleshooting the Ariete Vintage Fan Heater 808

Common issues with the Ariete Vintage Fan Heater 808 include the heater not turning on, unusual noises, or the thermostat not responding. If the heater does not turn on, check the power outlet and ensure the plug is securely connected. Unusual noises may be caused by dust or debris in the fan; clean the unit regularly to prevent this. If the thermostat is not responding, try resetting the heater by unplugging it for a few minutes and then plugging it back in.

Preventive measures include regular cleaning and avoiding use in damp environments. The heater comes with a standard warranty; for further assistance, contact Ariete customer support. Their support team can help with warranty claims, technical issues, and general inquiries.

Pros & Cons of the Ariete Vintage Fan Heater 808

Pros

• Stylish 1950s design
• Dual heating and cooling functions
• Adjustable thermostat for precise temperature control
• Compact and portable with an integrated handle
• Safety features: overheat protection and tip-over switch
• Easy to use and maintain

Cons

• Limited heating capacity for large rooms
• Basic design may not suit all decor styles
• Some users report minor noise during operation

The Ariete Vintage Fan Heater 808 offers excellent value for money, combining style, functionality, and safety in a compact package. While it may not be the best choice for large spaces, it is ideal for small to medium rooms and those who appreciate vintage aesthetics.

Customer Reviews of the Ariete Vintage Fan Heater 808

Customers consistently praise the Ariete Vintage Fan Heater 808 for its attractive design, ease of use, and reliable performance. Many users highlight its effectiveness in both heating and cooling, as well as its compact size and portability. The adjustable thermostat and safety features are frequently mentioned as standout benefits. Some users note minor noise during operation, but overall, the feedback is positive.

Star ratings typically range from 4 to 5 stars, with testimonials emphasising the heater's value for money and stylish appearance. Purchase recommendations often mention its suitability for small apartments, offices, and as a decorative piece. Common issues include the need for regular cleaning and occasional noise, but these are minor compared to the overall satisfaction.
