How to Use: Ariete Ice Cream Maker 630 User Manual

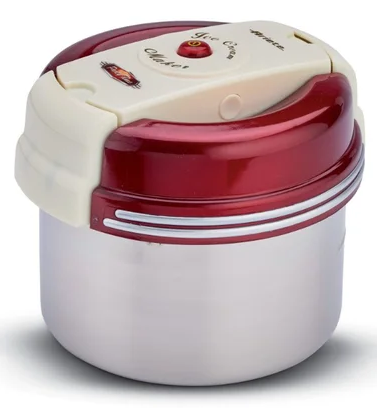

Ariete Ice Cream Maker 630

Introduction to the Ariete Ice Cream Maker 630

The Ariete Ice Cream Maker 630, also known as the Party Time model, represents a breakthrough in cordless frozen dessert preparation technology. This innovative ice cream maker combines portability, ease of use, and consistent results to bring professional-quality homemade ice cream directly to your kitchen. Designed for families, entertaining enthusiasts, and anyone who loves fresh frozen treats, the Ariete Ice Cream Maker 630 eliminates the need for pre-refrigeration while maintaining exceptional taste and texture.

What sets the Ariete Ice Cream Maker 630 apart from traditional ice cream makers is its cordless, rechargeable battery-powered operation. This semi-automatic machine produces up to 1 kg of ice cream in approximately 20-30 minutes, making it perfect for spontaneous dessert preparation or planned entertaining. The device operates directly in your freezer without requiring a pre-chilled bowl, saving valuable preparation time and counter space. With its lightweight design weighing just 570 grams, the Ariete 630 is easy to handle, store, and transport.

The target audience for this ice cream maker includes busy families seeking quick dessert solutions, party planners who want to impress guests with homemade ice cream, and health-conscious consumers who prefer controlling ingredients in their frozen treats. Whether you're making fruit ice cream, yogurt-based creations, or refreshing sorbets, the Ariete Ice Cream Maker 630 delivers consistent, creamy results. The device typically retails between $40-80 USD, depending on retailer and regional availability, making it an affordable investment for home dessert production.

Technical Specifications

Understanding the technical specifications of the Ariete Ice Cream Maker 630 helps you maximize its performance and ensure proper operation:

• Model Number: 630/00
• Type: Semi-automatic cordless ice cream maker
• Capacity: 1 kg (approximately 1.5L)
• Power Source: Rechargeable lithium battery
• Power Rating: 30 watts during operation
• Input: 5V = 600mA
• Rating: 3,7V = 1200mA
• Weight: 570 grams (lightweight and portable)
• Dimensions: 170 x 170 x 135 mm (compact design)
• Material Construction: Stainless steel basket with double insulation
• Operating Mode: Semi-automatic with on/off button control
• Preparation Time: 20-30 minutes for a complete batch
• Battery Life: Up to 5 ice cream batches per single charge
• Cord Storage: Built-in storage compartment for neat organization
• Non-slip Feet: Rubber feet prevent movement during operation
• Color Options: Available in red and white/pink finishes

The Ariete Ice Cream Maker 630 features a removable double-insulated bowl that acts as both mixing vessel and cooling mechanism. The transparent top lid includes a convenient hole for adding ingredients during operation, allowing you to customize flavors and incorporate mix-ins without stopping the machine. The included mixing spatula ensures proper blending and prevents ice crystal formation, resulting in smooth, professional-quality ice cream texture.

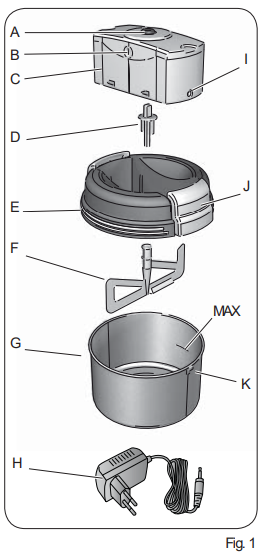

DESCRIPTION OF THE APPLIANCE

• ON/OFF button
• Motor body release button
• Motor body
• Mixing paddle shaft
• Lid
• Mixing paddle
• Bowl
• Charger
• Charger access
• Closing/opening hooks of the lid
• Guides

PRELIMINARY PHASES FOR USE

Starting the appliance
Before connecting the charger to the electric grid,,d check that the voltage reported on the label under the charger corresponds to that of the local grid.

Warning!
Do not put the appliance or the charger near or over hot electric stoves or burn, ers or near a microwave oven.

Avoid that the charger cable sticking out of the table or the working plan. Prevent children from grabbing the cord, in this way tipping over the appliance.

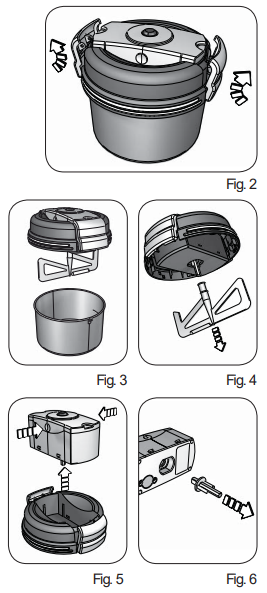

1. Open the opening/closing hooks of the bowl (J) to unlock the lid from the bowl (Fig. 2).
2. Lift the lid with the motor body and the mixing paddle (Fig. 3).
3. Remove the mixing paddle (Fig. 4).
4. To remove the motor body (C), push the release buttons (B) and lift the motor body (Fig. 5).
5. Remove the motor shaft (Fig. 6).

Warning!

• Before using the appliance, wash the bowl, the motor shaft, the mixing paddle, and the lid with water and detergent.
• Make sure that all the parts are completely dry before using the appliance.
• Never immerse the motor body and the charger in water or other liquids.

INSTRUCTIONS FOR USE

Warning!
Before using the appliance for the first time,e charge it completely. Before connecting the appliance to the charger, er check that the starting button is not turned on.

When you connect the appliance to the charger, the ON/OFF button control light flashes to indicate that the appliance is charging. When the ON/OFF button control light is fixed, the appliance is charged. Disconnect the charger from the socket. Disconnect the charger from the motor body.

1. Choose the desired ice cream recipe and prepare the ingredients in another bowl. Mix the ingredients.
2. Open the opening/closing hooks of the bowl (J) to unlock the lid from the bowl (Fig. 2).
3. Lift the lid with the mixing paddle (Fig. 3).
4. Insert the ingredients in the bowl.
   Warning!
   Do not fill the bowl beyond the maximum limit. An excess of ingredients could cause a stop of the mixing paddle to stop and prevent the production of ice cream.
5. Verify that the mixing paddle is correctly hooked to the motor shaft.
   Warning!
   Do not rotate the motor shaft with too much strength. Risk of damaging the motor shaft.

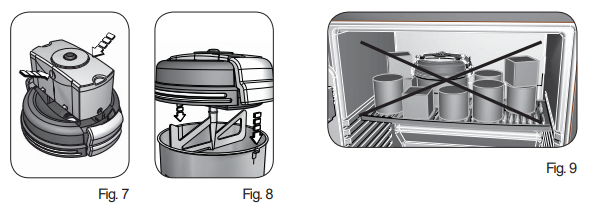

6. Put the lid on the bowl. The opening/closing hooks of the bowl must be aligned to the guides (Fig. 8). Immerse the mixing paddle into the ingredients.
7. Close the opening/closing hooks of the bowl.
8. Push the ON/OFF button. The button control light turns on.
9. Put the ice cream maker in the freezer.

During the preparation of the ice cream, the motor turns for circa 10 seconds, then it stops for circa 5 minutes. The ON/OFF button controls the light is always on.
When the ice cream is ready, the ON/OFF button control light turns off. Remove the ice cream maker from the freezer.

Warning!

• If the ice cream stays in the freezer, it could freeze, and it could be difficult to remove the lid with the mixing paddle. Wait a few minutes before removing the lid or the mixing paddle.
• Never keep the plastic parts in the fridge.
• The freezer must have a temperature of -18°C (0°F).
• A normal freezer could not be suitable for the preparation of the ice cream. A No Frost freezer could lengthen the time of the preparation of the ice cream.
• Do not fill the freezer with many products. In the freezer, keep the appliance far from other food (Fig. 9).

CLEANING THE APPLIANCE

Warning!

• All the cleaning operations specified below must be carried out when the appliance is turned off and when the charger is disconnected from that appliance.
• Regular maintenance and cleaning preserve and maintain the appliance efficiently for a longer period.
• Never immerse the motor body and the charger in water or other liquids. Do not use direct jets of water.
• Every operation must be carried out when the appliance is cold.
• Never use solvents, because they damage the plastic.

The bowl, the mixing paddle,, and the shaft can be washed in the dishwasher, in the upper part.
To clean the motor body (,, C), use a non-abrasive cloth that has been slightly dampened with water to not damage the bodywork. Dry thoroughly with a soft cloth.

SETTING THE MACHINE OUT OF SERVICE

• In the case of decommissioning of the appliance, it must be electrically disconnected. Cut the power cord of the charger.
• The appliance works with rechargeable batteries. At the end of its useful life, it must not be disposed of with the municipal waste. It can be delivered to the appropriate separate waste collection centres set up by municipal administrations or to retailers
• that offer this service.
• To dispose separately an appliance, permits avoiding possible negative consequences for the environment and for the health resulting from an incorrect disposal, and permits to recovery of he materials from which it cismposedtoo to obtain an important saving of energies and resources.
• The crossed mobile waste container symbol is printed on the product to point out the obligation to separately dispose of household appliances.
• The battery must be removed from the appliance. Under the motor body,, there is a compartment.
• Unscrew the screws. Remove the battery.

Getting Started: Setup & Operation Guide

Preparing your Ariete Ice Cream Maker 630 for first use involves several important steps to ensure optimal performance and safety:

• Initial Preparation: Before using the Ariete Ice Cream Maker 630 for the first time, thoroughly wash all removable parts,, including the mixing bowl, basket, and spatula, with warm soapy water. Dry completely before assembly. Charge the lithium battery fully before initial use by connecting the charging cable to the designated port. Allow 4-6 hours for a complete charge, indicated by an LED light or status indicator.
• Pre-Chilling the Bowl: Place the removable double-insulated bowl in your freezer for a minimum of 24 hours before making ice cream. This pre-chilling step is crucial for achieving proper ice cream consistency. After 24 hours, the bowl reaches optimal freezing temperature and is ready for use. Note that the Ariete 630 operates within your freezer compartment, making this pre-chilling step more convenient than traditional countertop models.
• Operating Steps: Insert the pre-chilled bowl into the machine base, securing it properly according to the alignment markers. Add your ice cream mixture or sorbet base to the bowl—do not exceed the maximum fill line. Close the transparent lid and ensure it sits flush with the base. Press the on/off button to begin the mixing cycle. Use the hole in the top lid to add mix-ins like chocolate chips, fruit pieces, or nuts after 10-15 minutes of operation. The machine will automatically stop after 20-30 minutes when the ice cream reaches the proper consistency.
• Safety Precautions: Never operate the Ariete Ice Cream Maker 630 outside of a functioning freezer. Do not insert hands or utensils into the machine while it operates. Keep the device away from water sources and avoid submerging the motor housing. Allow the battery to cool for 15 minutes between consecutive uses to prevent overheating. Check the cord storage area regularly to ensure proper ventilation and prevent damage to internal components.

Troubleshooting Common Issues

The Ariete Ice Cream Maker 630 is designed for reliable operation, but occasional issues may arise. Here are solutions to common problems:

• Ice Cream Not Freezing Properly: If your ice cream remains too soft or slushy after the standard 25-30 minute cycle, the pre-chilled bowl may not have reached adequate temperature. Ensure the bowl remains in the freezer for the full 24-hour pre-chilling period. Verify your freezer maintains a temperature of -18°C (0°F) or lower. If the issue persists, the insulation seal may be compromised—contact Ariete customer support for bowl replacement options.
• Battery Not Charging: If the Ariete Ice Cream Maker 630 battery fails to charge, first inspect the charging port for debris or damage. Clean gently with a dry cloth. Verify the power outlet functions properly by testing another device. Try charging for the full recommended period of 6 hours. If the battery still doesn't charge after these steps, the lithium battery may need replacement—contact customer support for warranty service.
• Machine Stops Mid-Cycle: The Ariete 630 may stop if the battery depletes during operation. Ensure a full charge before starting. If the machine stops despite an adequate battery, remove the bowl and check for ice buildup around the mixing mechanism. Allow the device to warm slightly at room temperature for 10-15 minutes, then resume operation. For persistent stopping issues, contact technical support.
• Warranty & Support: The Ariete Ice Cream Maker 630 includes a standard 6-month manufacturer's warranty covering defects in materials and workmanship. For assistance, contact Ariete customer service through their official website or the retailer where you purchased the device. Keep your proof of purchase and warranty documentation for claim purposes.

Advantages & Disadvantages

Key Advantages of the Ariete Ice Cream Maker 630:

• Cordless Operation: Rechargeable battery eliminates cord clutter and allows operation directly in your freezer
• Quick Preparation: Creates ice cream in 20-30 minutes without pre-refrigeration of the entire machine
• Lightweight Design: At just 570 grams, the Ariete 630 is easy to handle, store, and transport for entertaining
• Extended Battery Life: A Single charge produces up to 5 complete ice cream batches
• Versatile Recipes: Makes ice cream, frozen yogurt, and sorbets with various flavors and mix-ins
• Affordable Price Point: Typically costs $40-80, making it accessible for home users
• Space-Efficient: Compact dimensions (170 x 170 x 135 mm) fit easily in freezers and storage areas
• Easy Maintenance: Removable parts are dishwasher-safe and simple to clean

Potential Disadvantages to Consider:

• Limited Capacity: 1 kg capacity may require multiple batches for large gatherings
• Battery Dependency: Requires regular charging and battery replacement eventually
• 24-Hour Pre-Chilling: Bowl must be pre-frozen, requiring advance planning
• Freezer Space Requirements: Requires dedicated freezer space for operation and bowl storage
• No Compressor: Unlike self-refrigerating models, the Ariete 630 depends on freezer temperature
• Limited Power: A 30-watt motor may produce less consistent results with very thick mixtures
• Warranty Period: Six-month warranty is relatively short compared to some competitors

Customer Reviews & User Feedback

Users consistently praise the Ariete Ice Cream Maker 630 for its convenience and reliability. Customers appreciate the cordless design, noting that it simplifies the ice cream-making process compared to traditional models requiring extensive pre-cooling. Many reviewers highlight the quick 20-30 minute preparation time as ideal for spontaneous entertaining and family desserts.

Common user praise includes satisfaction with ice cream texture quality, ease of cleanup, and the lightweight portability that allows storage in compact kitchens. Parents particularly value the ability to make homemade ice cream without artificial additives or preservatives. The extended battery life of up to 5 batches per charge receives positive feedback from users hosting multiple events.

Some users note that the 24-hour pre-chilling requirement requires advance planning, though most consider this a minor inconvenience for the convenience gained. A few customers mention that very thick ice cream mixtures may require slightly longer processing times. Overall, the Ariete Ice Cream Maker 630 maintains strong user satisfaction ratings, with most purchasers recommending it for families and entertaining enthusiasts seeking affordable, reliable homemade ice cream production.

Recommended For:
Families seeking quick dessert solutions, party planners wanting to impress guests, health-conscious consumers controlling ingredients, and anyone with limited kitchen space seeking portable ice cream-making capability.
