Setup: Ariete Travel Chic Steam Iron 6224 User Manual

Ariete Travel Chic Steam Iron 6224

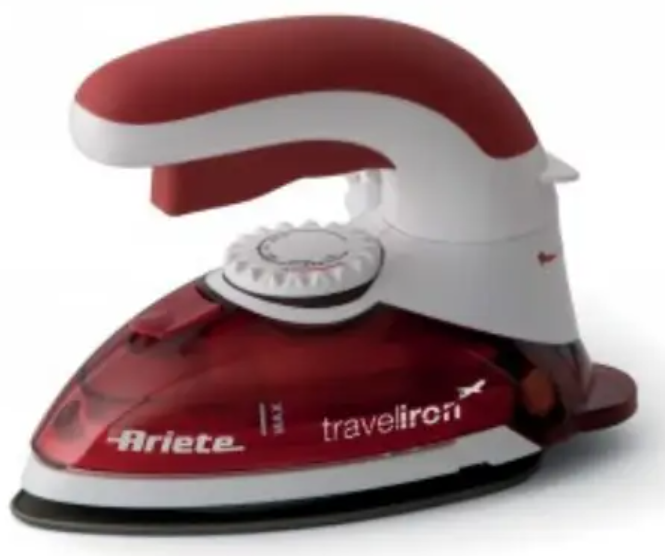

Introduction to the Ariete Travel Chic Steam Iron 6224

The Ariete Travel Chic Steam Iron 6224 is a revolutionary portable ironing solution designed for modern travelers, busy professionals, and anyone seeking convenience without compromising on performance. This lightweight and compact steam iron combines cutting-edge technology with practical design, making it the ideal companion for business trips, vacations, and everyday use. Whether you're ironing delicate fabrics in a hotel room or refreshing your wardrobe at home, the Ariete Travel Chic Steam Iron 6224 delivers professional-grade results with remarkable ease.

What sets the Ariete Travel Chic Steam Iron 6224 apart from traditional irons is its innovative vertical steam system, which allows you to iron garments without needing an ironing board. This feature is particularly valuable for travelers who want to maintain a polished appearance without the hassle of setting up bulky equipment. The iron's compact and lightweight construction makes it easy to handle and store, while its powerful 800-watt motor ensures efficient heat distribution and steam generation for optimal ironing performance.

The Ariete Travel Chic Steam Iron 6224 is specifically engineered for users who prioritize portability without sacrificing quality. Whether you're a frequent business traveler, a student living in a dorm, or someone with limited storage space, this steam iron adapts to your lifestyle. The product typically retails in the mid-range price category, making it an affordable investment for quality ironing technology. Availability is widespread across major retailers and online platforms, ensuring easy access for interested buyers worldwide.

Key Features and Technical Specifications

Understanding the technical capabilities of the Ariete Travel Chic Steam Iron 6224 helps you maximize its potential and make informed decisions about its use.

• Power and Performance: 800 watts of power consumption provides efficient heating and steam generation without excessive energy usage
• Soleplate Technology: Premium stainless steel non-stick soleplate ensures smooth gliding across all fabric types and prevents sticking or damage
• Steam Functionality: Variable steam control allows customization based on fabric requirements, with vertical steam capability for versatile ironing positions
• Design Features: Folding handle design maximizes portability and minimizes storage space requirements
• Cord Configuration: Wired connection ensures consistent power delivery without battery dependency
• Voltage Options: Double voltage capability enables worldwide use across different electrical systems
• Weight and Size: Compact and lightweight construction makes the Ariete Travel Chic Steam Iron 6224 ideal for travel and easy handling
• Safety Features: Auto-shutoff protection and heat-resistant handle design prioritize user safety

The Ariete Travel Chic Steam Iron 6224 excels in its category by combining practical features with reliable performance. The stainless steel soleplate resists corrosion and maintains its non-stick properties through extended use, while the variable steam control ensures appropriate moisture levels for different fabric weights and types. The folding handle mechanism is particularly innovative for travel applications, allowing the iron to fit into luggage and bags without taking up excessive space.

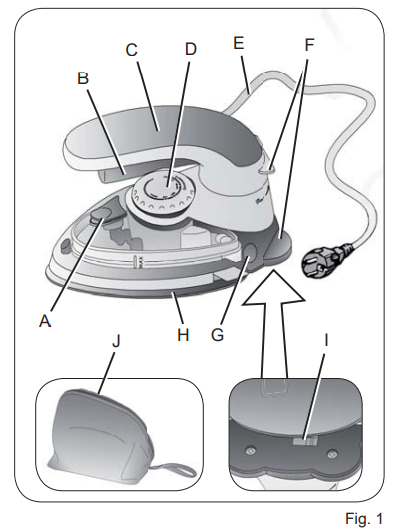

DESCRIPTION OF THE APPLIANCE

• A - Water tank cap
• B - Steam button
• C - Revolving handle
• D - Thermostat knob
• E - Power cord
• F - Iron stand
• G - Iron temperature control indicator light
• H - Soleplate
• I - Power supply voltage commutator
• J - Bag of the iron

INSTRUCTIONS FOR USE

Positioning the revolving handle

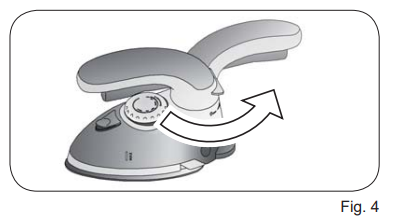

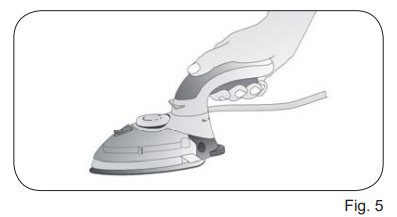

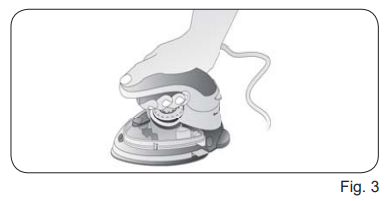

The iron has a revolving handle. You may iron with the handle forward (Fig. 3) or backward (Fig. 5). To turn the handle, rotate it 180° counter-clockwise (Fig. 4).

• Warning
  Risk of scalding. Do not touch the hot soleplate of the iron when you rotate the handle.

Refilling the reservoir

• Make sure the iron is unplugged from the supply mains before fi lling the tank with water.

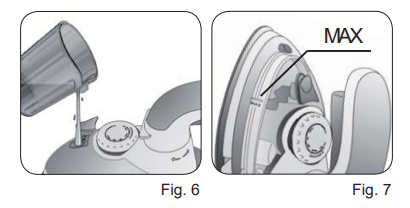

• Remove the rubber cap (A). Rotate the handle backward as explained in the previous paragraph. Fill the tank with cool tap water (Fig. 6). Put the cap back on. Rotate the handle forward. Put the iron in a vertical position and check the water level (Fig. 7).
• NEVER fill the tank beyond the MAX level.
• If it proves necessary to add water while ironing, always turn off the iron and unplug the power cord before fi lling the tank with water.
• Empty the tank after use, when the iron has returned to room temperature.

Connection to the electric network

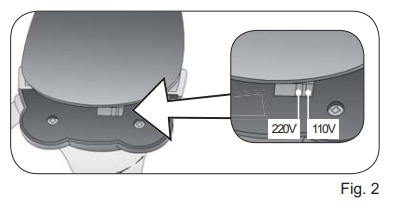

• The iron can be used with 220V or 110V electricity networks. The appliance is equipped with a power voltage switch (I) found underneath the iron (Fig. 2). Position the switch to the left or right depending on whether the electricity network voltage is 220V or 110V.
• Before putting the appliance into operation, make sure that the electric network volt-age value corresponds to the one shown on the operating data plate.
• The Travel Chic iron is a class 1 appliance and must be used only by plugging it into a socket-outlet with earthing. If a travel adaptor is used for the plug, it must be able to provide earthing connection. For this reason it will be necessary to use a tri-polar plug.

Switching on the appliance

• Always make sure that the power supply voltage commutator (I) is set on the same voltage value as that of the local electric network (Fig. 2).
• Connect the iron plug adaptors, if any, and plug it in.
• Adjust the thermostat (D) to the desired temperature. When the indicator light (G) turns off, this means that the soleplate has reached the selected temperature, so the iron is ready for use.The Travel Chic iron is equipped with a soleplate having a button protection profi le that lets you iron around and underneath buttons; it is also covered with an anti-adherent coating so that the iron glides easier. To prevent the coating from becoming damaged, do not iron on top ofbuttons or zippers, and do not let it come into contact with metallic objects that could cause abrasions.

Shot of steam
If there is water in the tank and the temperature is set on (•••) or on a higher level,  all you have to do is press the steam button (B).

SUGGESTIONS

• Divide the articles to be ironed according to the types of material: wool with wool, cotton with cotton, etc
• Because the iron heats up much more quickly than it cools down, it is advisable to start with those fabrics which require lower temperatures and move on to those which require progressively higher temperatures.

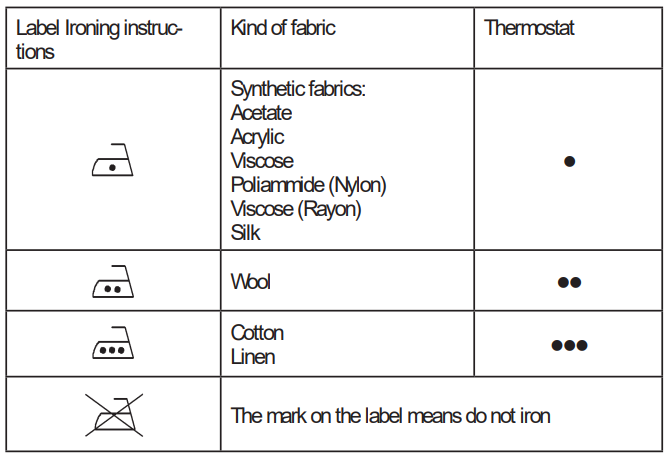

• If the material is made up of more than one type of fi bre, always set the temperature to the fi bre which requires less heat. For example, if the material is made up of 70% synthetics and 30% cotton, set the temperature control to position (•) (see table) without steam, that is, the temperature for synthetic fabrics.

• If you do not know the composition of the article to be ironed, choose a part of the article which will not be seen. Do a test ironing on this part to establish the appropriate temperature (always start with a relatively low temperature and work up until the ideal temperature is reached). Pure (100%) wool articles can be ironed with the iron set to one of the steam positions. To avoid pure wool, silk and synthetic materials becoming shiny, it makes good sense to iron them on the reverse side. For other materials, especially velvet, which can become shiny very easily, cover them with a cloth and iron in one direction only, using light pressure. The iron must be kept constantly moving over the fabric.



DRY IRONING

• Connect the plug into the socket.
• Set the thermostat (D) according to the type of fabric to be ironed. Wait a few minutes for the soleplate to reach the set temperature.

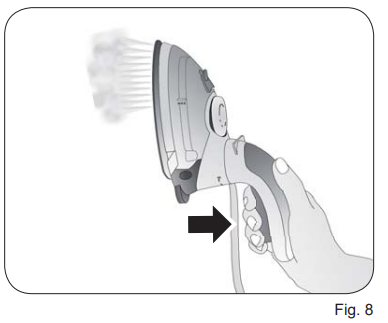

VERTICAL IRONING

• This special ironing procedure serves to remove creases from curtains, fabrics, etc. Set the ironing temperature by turning the adjustment knob (D) past the symbol  (•••). Put the curtain or fabric in the position you want to iron it vertically and press the steam button (Fig. 8). If the temperature lamp is on, do not press the steam but- ton more than three times in a row.
• Warning
  Do not iron fabrics held by other people.

AFTER IRONING

Warning
Let the iron cool down before emptying the tank: danger of burns.

• Put the thermostat (D) on “min”.

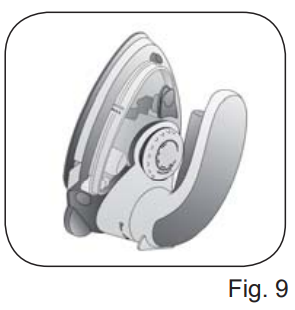

• Unplug it from the electric outlet. Put the iron in a vertical position and let it cool down (Fig. 9). Bring the iron over a basin. Open the tank cap. Turn the iron upside-down and completely empty the water tank.

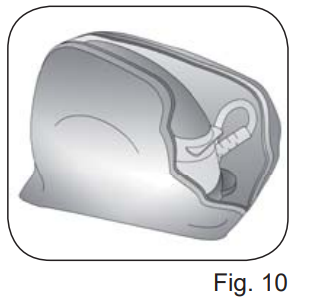

• The Travel Chic steam iron has a revolving handle to reduce the space and it can be brought and kept in the provided bag (Fig. 10).

CLEANING THE APPLIANCE

Make sure the iron is unplugged from the supply mains and has completely cooled down before cleaning it.

• Warning
  Do not use abrasives for cleaning the soleplate. Try and keep the soleplate smooth: avoid contact with metal objects.
• Warning
  Never immerse the appliance in water or other liquids.
• Warning
  Check the state of the power cable of your iron on a regular basis before using it, and if it is damaged, take it to the service centre closest to you to have it replaced only by specialised personnel.
• Any deposits and other residue on the soleplate can be removed using a cloth soaked in a water and vinegar solution.
• Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth.
• The warranty does not cover damage caused by clogging due to lime.

Troubleshooting Common Issues

The Ariete Travel Chic Steam Iron 6224 is designed for reliability, but understanding common issues helps you maintain optimal performance and resolve problems quickly.

Insufficient Steam Production: If the Ariete Travel Chic Steam Iron 6224 produces weak steam, first check the water reservoir level and refill if necessary. Mineral buildup in the steam vents may reduce steam output. Address this by running distilled water through the steam function into a sink or cloth. If problems persist, descale the iron using a commercial descaling solution designed for steam irons, following the product instructions carefully.

Leaking Water: Water leakage typically indicates an overfilled reservoir or improper seating of the water cap. Empty the reservoir, ensure the cap is properly sealed, and refill to the correct level. If leaking continues, the internal seal may require replacement, and professional service is recommended.

Uneven Heating: If certain areas of the soleplate feel hotter than others, ensure the iron has completed its full preheating cycle. Check that the power cord is fully inserted into the outlet and not damaged. If the problem persists, internal heating element issues may require professional repair.

Non-Stick Soleplate Damage: Avoid using abrasive cleaning materials on the stainless steel soleplate. Use only soft cloths and appropriate cleaning solutions. Never iron over zippers, buttons, or rough surfaces that could scratch the coating.

Warranty and Support: The Ariete Travel Chic Steam Iron 6224 typically includes a manufacturer's warranty covering defects in materials and workmanship. Contact the manufacturer's customer service for warranty claims, repair services, or replacement options. Keep your purchase receipt and warranty documentation for reference.

Advantages and Disadvantages Analysis

Advantages of the Ariete Travel Chic Steam Iron 6224:

• Exceptional Portability: The compact size and lightweight design make it ideal for travel, dorm living, and small apartments where space is limited
• Vertical Steam Capability: The innovative vertical steam system allows ironing without an ironing board, providing unprecedented flexibility in usage scenarios
• Affordable Price Point: Offers premium features at a reasonable cost, making it accessible to budget-conscious consumers without sacrificing quality
• Dual Voltage Functionality: International travelers appreciate the double voltage capability that eliminates the need for expensive converters
• Energy Efficient: The 800-watt power consumption is lower than many traditional irons, reducing electricity costs without compromising performance
• Non-Stick Stainless Steel Soleplate: Ensures smooth gliding across fabrics and resists sticking, extending the iron's useful life
• Folding Handle Design: Maximizes space efficiency and makes the iron easier to store in luggage or small closets

Disadvantages of the Ariete Travel Chic Steam Iron 6224:

• Corded Design: Unlike cordless alternatives, the power cord requires proximity to electrical outlets, limiting mobility within a room
• Limited Water Capacity: The compact design means smaller water reservoir, requiring more frequent refilling during extended ironing sessions
• Lower Steam Output: While functional, the steam performance may not match professional-grade or larger household irons for heavy-duty applications
• Basic Feature Set: Lacks advanced features found in premium models, such as digital temperature displays or programmable settings
• Soleplate Size: The smaller soleplate requires more passes over larger garments compared to standard irons, taking slightly longer for full garments
• Durability Concerns: The folding handle mechanism, while convenient, may experience wear with frequent use and travel

Customer Reviews and User Feedback

Users consistently praise the Ariete Travel Chic Steam Iron 6224 for delivering excellent value and practical performance. Travel-focused customers highlight the game-changing vertical steam feature, noting that the ability to iron without an ironing board revolutionizes how they maintain their clothing while away from home. Business travelers particularly appreciate the compact design that fits easily into luggage without adding significant weight or bulk.

Common positive feedback emphasizes the iron's reliability, consistent heating, and effective steam generation despite its compact size. Users report that the stainless steel soleplate performs well across various fabric types, from delicate silks to heavier cottons. The dual voltage capability receives particular praise from international travelers who value the convenience of using the iron across different countries without additional equipment.

Some users mention that the water reservoir requires frequent refilling during extended use, though most consider this a minor inconvenience given the overall portability benefits. A few customers note that the steam output is less powerful than full-sized household irons, but generally consider this an acceptable trade-off for the Ariete Travel Chic Steam Iron 6224's travel-friendly design. Overall, customer ratings typically range from 4 to 4.5 stars out of 5, with the majority of purchasers recommending the product to others seeking portable ironing solutions.

The Ariete Travel Chic Steam Iron 6224 is most highly recommended for frequent travelers, students, apartment dwellers with limited space, and professionals who need portable garment care solutions. It represents an excellent investment for anyone prioritizing convenience and practicality without requiring professional-grade ironing capabilities.

```
