Ariete Duetto Garment Steamer and Iron 6246

Introduction

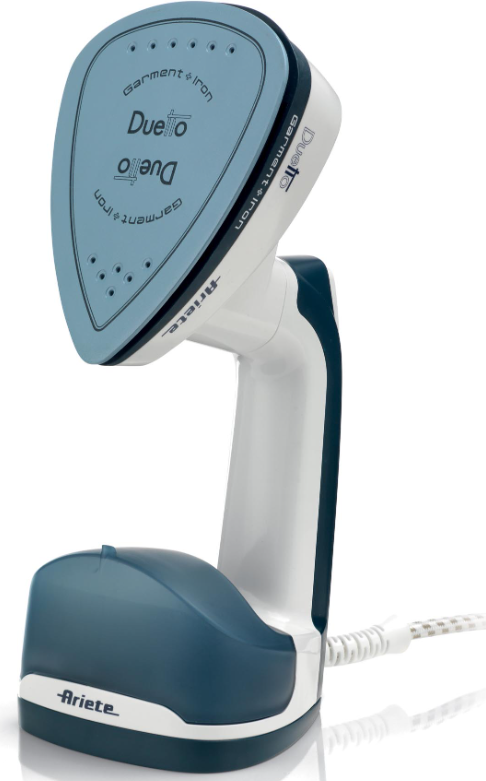

The Ariete Duetto Garment Steamer and Iron 6246 is a revolutionary dual-function appliance designed for modern households and frequent travelers. Combining the power of a vertical garment steamer with the precision of a traditional iron, this compact device offers unmatched versatility for wrinkle removal and fabric care. Its patented 180° rotary plate system allows users to effortlessly switch between vertical steaming and horizontal ironing, making it ideal for delicate fabrics, suits, shirts, and trousers.

Key benefits include a non-stick ceramic soleplate for smooth gliding, a removable 180 ml water tank for continuous steam, and a lint remover brush for refreshing clothes in seconds. The Ariete Duetto Garment Steamer and Iron 6246 is perfect for busy professionals, travelers, and anyone seeking a quick, efficient solution for maintaining impeccably pressed garments. With a compact design and travel-friendly features, it’s suitable for home use, hotels, and weekend getaways.

Available at major retailers and online stores, the Ariete Duetto Garment Steamer and Iron 6246 typically retails between $60 and $90, depending on region and promotions. Its combination of performance, portability, and innovative design makes it a top choice for those seeking a reliable, all-in-one garment care solution.

Specifications of the Ariete Duetto Garment Steamer and Iron 6246

• Power: 1000W for fast heating and consistent steam output
• Steam Rate: 18 g/min for effective wrinkle removal
• Tank Capacity: 180 ml removable water tank for continuous use
• Soleplate: Non-stick ceramic for gentle fabric care
• Rotary Plate: 180° rotation for vertical and horizontal ironing
• Cable Length: 2.5 meters for flexible operation
• Dimensions: 22 x 11.5 x 13 cm (L x W x H)
• Weight: 1.18 kg (lightweight and portable)
• Accessories: Lint remover brush, trouser folder
• Temperature Ready Indicator: LED light for safety and convenience

Compared to similar handheld steamers, the Ariete Duetto Garment Steamer and Iron 6246 stands out with its dual-function design, higher steam output, and travel-friendly features. It outperforms basic steamers in versatility and delivers results comparable to full-size irons.

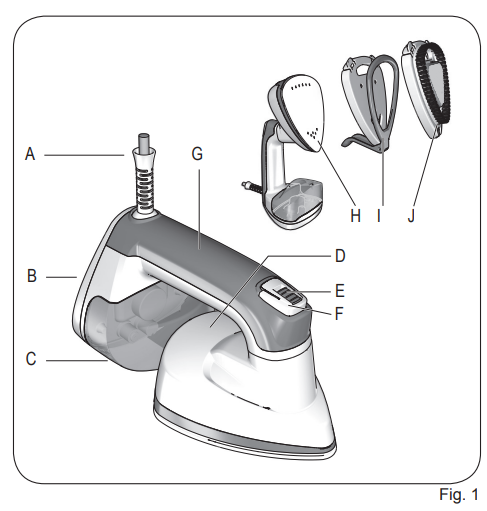

DESCRIPTION OF THE APPLIANCE

1. Power cord
2. Support base
3. Water tank
4. Operation indicator
5. Continuous steam lock slider
6. Steam button
7. Handle
8. Plate with nozzles
9. Wrinkles accessory
10. Brush

INSTRUCTIONS FOR USE

Filling the tank before use
Danger. Risk of electric shock

1. Remove the plug from the electrical outlet before filling the tank with water.
   Do not put the tank in its seat if it is wet. Clean the tank with a dry cloth.
   1. Remove the components from the box.
   2. Place the appliance on a horizontal and stable surface.
   3. Totally unwind the power cord.

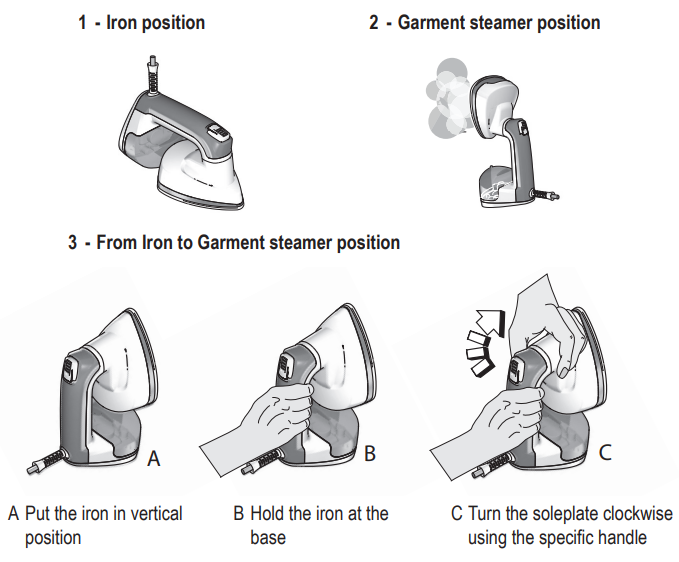

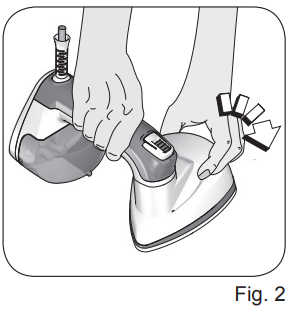

   4. Turn the soleplate clockwise using the specific handle. Place the soleplate in Garment mode (Fig. 2).

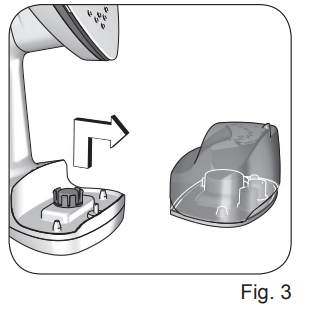

   5. Remove the tank from its seat (Fig. 3).

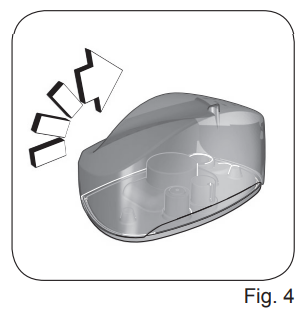

   6. Turn the tank upside down (Fig. 4).

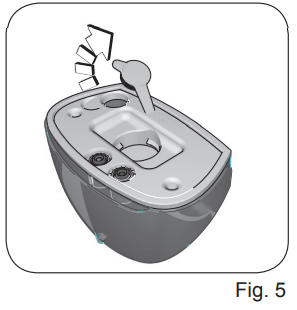

   7. Open the tank cap (Fig. 5)

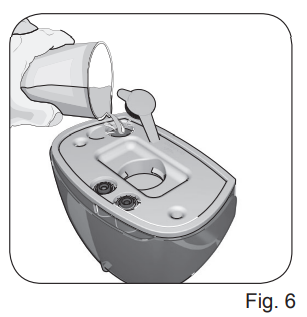

   8. Fill the tank with fresh natural water up to the MAX level (Fig. 6).
      In the case of particularly calcareous waters (with hardness greater than 20°f) use a mixture composed of 50% of tap water and 50% of demineralised water.
   9. Close the tank cap.

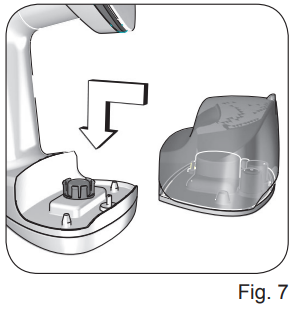

   10. Fit the tank into its seat. The correct insertion is done with a "click" (Fig. 7).
   11. Turn the soleplate counterclockwise using the specific handle (Fig. 9). Position the soleplate in steam iron mode.

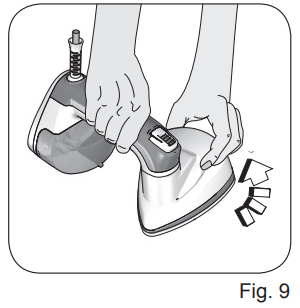

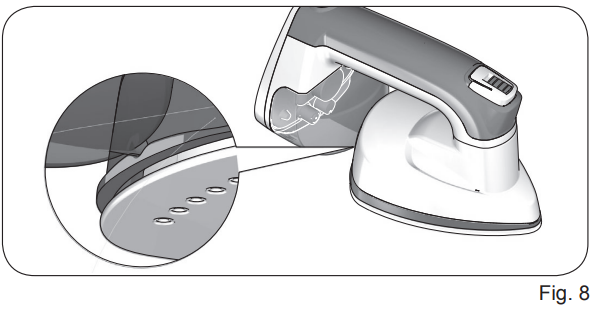

   12. Block the soleplate with the tank. On the tank there is a plastic pivot that has to be blocked in the seat on the soleplate (Fig. 8).
   13. NEVER fill the tank beyond the MAX level. The product functions with normal tap water.
   14. Never use pure demineralised water.
   15. Do not add any additives or chemicals (such as for example, amides, starches, perfume or other):
   16. Otherwise, the warranty may be revoked.

Switching on the appliance
The first time the appliance is switched on, it is possible to see a light emission of smoke:

This transitory effect is perfectly normal and will disappear very soon.

1. Insert the plug into a power outlet. The operation indicator (D) starts flashing. The plate starts to warm up. When the on/off switch light remains on, the appliance has reached the temperature and is ready for use.
   Before using the appliance, clean the soleplate on an old cloth to make sure that the soleplate and tank are clean and to allow residual test water that has remained inside the pipes to vaporize.

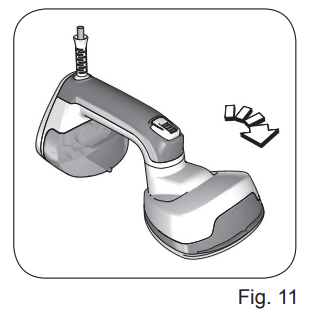

2. Press the steam button (F) and keep it pressed several times until you see the steam. Steam does not come out immediately after pressing the steam button, because the water has to pass from the tank to the steam generator.
3. Pass the appliance on the cloth.

4. Place the fabric on an ironing board. Pass the appliance on the garment. Press the steam button (F) and keep it pressed.

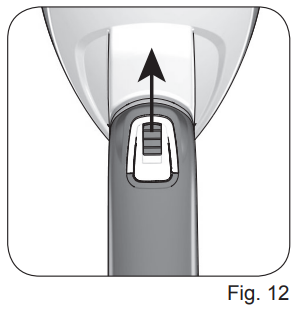

   To emit a continuous and constant jet of steam, press the steam button. Move the continuous steam lock slider upwards (Fig. 10).



   Warning. Risk of burns. Risk of fire

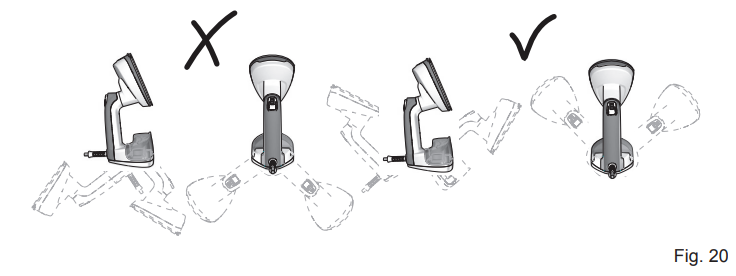

   A Use the appliance only with horizontal or vertical movements from the bottom upwards and vice versa. Do not use the appliance upside down, with the nozzles upwards (Fig. 20). Danger of hot water leakage from the nozzles. Danger of fire.
   Warning. Risk of burns
   Do not use the appliance on fabrics that are held by other people.



Filling the boiler during use
Always check the level of water in the tank while you are ironing.

1. Unplug the appliance from the electric outlet. Let the appliance to cool down for a few minutes.
2. Turn the soleplate clockwise using the specifc handle. Place the soleplate in Garment mode (Fig. 2).
3. Remove the tank.
4. Turn the tank upside down (Fig. 4).
5. Open the tank cap (Fig. 5)
6. Fill the tank with fresh natural water up to the MAX level (Fig. 6).
7. Close the tank cap.
8. Fit the tank into its seat. The correct insertion is done with a "click" (Fig. 7).

9. Turn the soleplate counterclockwise using the specific handle (Fig. 9). Position the soleplate in steam iron mode.



10. Insert the plug into a power outlet.

Steam ironing as a steam iron
Garments ironing is possible only for those fabrics that have the three-point mark (**-) label.

Warning. Risk of burns.
Do not touch the appliance soleplate. Before turning the soleplate to move it in steam iron position turn off the appliance. Wait until the appliance has completely cooled.

1. Fill the tank with water
2. Place the fabric on an ironing board.
3. Turn the soleplate counterclockwise using the specific handle (Fig. 9). Reposition the soleplate in steam iron mode.
4. Block the soleplate with the tank. On the tank there is a plastic pivot that has to be blocked in the seat on the soleplate (Fig. 8).
5. Use the iron as a normal steam iron.
   Warning. Risk of burns.

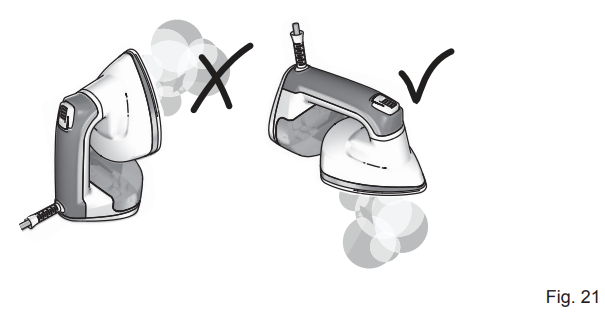

   Do not use the steam with the iron in vertical position (Fig. 21).

Dry ironing as steam iron
Garments ironing is possible only for those fabrics that have the three-point mark (***) label.
Warning. Risk of burns.
Do not touch the appliance soleplate. Before turning the soleplate to move it in steam iron position turn off the appliance. Wait until the appliance has completely cooled.

1. Place the fabric on an ironing board.
2. Turn the soleplate counterclockwise using the specific handle (Fig. 9). Position the soleplate in steam iron mode.
3. Block the soleplate with the tank. On the tank there is a plastic pivot that has to be blocked in the seat on the soleplate (Fig. 8).
4. Use the iron as a normal steam iron.

Ironing as Garment steamer
Garments ironing is possible only for those fabrics that have the three-point mark (***) label.

Warning. Risk of burns.
Do not touch the appliance soleplate. Before turning the soleplate to move it in steam iron position turn off the appliance. Wait until the appliance has completely cooled.

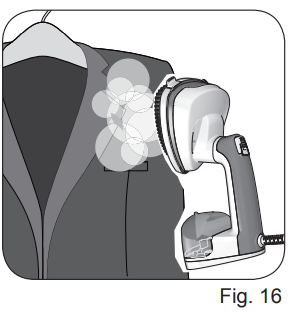

1. Place the garment on a folding rack.

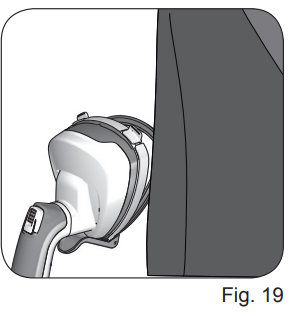

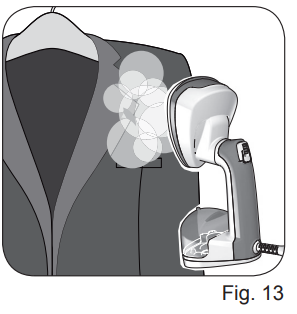

2. Pull the garment with your free hand. Place the appliance on the garment folds. Press the steam button (F) and then release it. Move the appliance from right to left. Move the appliance from the bottom upwards. Press the steam button (F) several times.

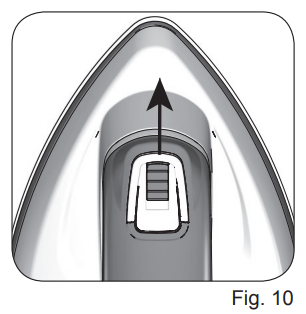

3. To emit a continuous and constant jet of steam, move the continuous steam lock slider upwards (Fig. 12).
4. When you finish ironing let the clothes dry on the hanger.
   Freshen the clothes with the brush and remove the lint

Warning. Risk of burns
Do not touch the appliance soleplate. Before proceeding with the accessories installation or removal, turn off the appliance. Wait until the appliance has completely cooled.

1. NEVER use the brush when the appliance is in steam iron mode.

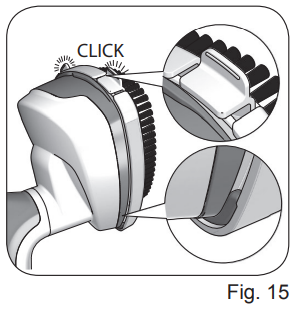

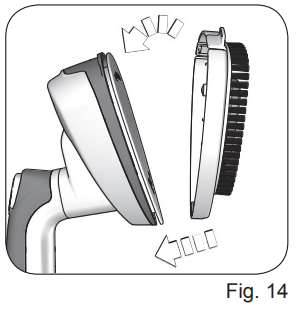

2. Attach the brush. First insert the brush tip (Fig. 14). The correct insertion is done with a "dick' (Fig. 15).
3. Place the garment on a folding rack. Pull the garment with your free hand. Place the appliance on the garment folds. Press the steam button (F) and then release it. Move the appliance from right to left. Move the appliance from the bottom upwards and brush. Press the steam button (F)several times.
4. To emit a continuous and constant jet of steam, move the continuous steam lock slider upwards (Fig. 12).
5. At the end of the work, allow to dry clothes on the folding rack.
6. Remove the brush after the appliance has completely cooled.
7. Remove the wrinkles from the clothes with the wrinkles accessory
8. Warning. Risk of burns.
   Before proceeding with the accessories installation or removal, turn off the appliance. Wait until the appliance has completely cooled.
   NEVER use the wrinkles accessory when the appliance is in steam iron mode.

Remove the brush.

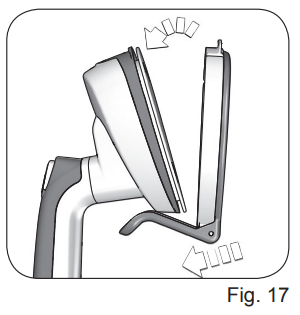

1. Assemble the wrinkles accessory. The correct insertion is done with a "click" (Fig. 17).
2. Place the garment on a folding rack. Pull the garment with your free hand. Push the accessory levier. Insert the cloth in the slit. Press the steam button (F) and then release it. Move the appliance from the top to bottom until you remove the wrinkle (Fig. 14). Press the steam button (F) several times.
3. To emit a continuous and constant jet of steam, move the continuous steam lock slider upwards (Fig. 12).
4. Remove the wrinkles accessory after the appliance has completely cooled.

Upholstery, curtains and fabrics
The tents and garments can be treated when they are hanging. Tablecloths and upholstery fabrics must be hung on a rod, like a curtain rod. Before you start ironing delicate fabrics, it is recommended to test it in a hidden part of the garment, such as a flap.

AFTER USING THE DEVICE
After using the appliance without steam

1. Unplug it from the electric outlet. Let the appliance to cool down for a few minutes.
2. Put the appliance in a dry place and away from the reach of children.

After using the appliance with steam

1. Let out all the residual steam without pressing the steam button (F).
2. Unplug it from the electric outlet. Let the appliance to cool down for a few minutes.
3. Empty the water tank completely so as to prevent the water from stagnating, which may form lime deposit.
4. Put the appliance in a dry place and away from the reach of children.

CLEANING AND MAINTENANCE

Warning. Risk of burns.

• Before cleaning or maintenance, always disconnect the plug from the mains supply. Let the appliance to cool down for a few minutes.
• Caution. Risk of material damage
• Do not wind the power cord around the appliance
• Do not store the appliance resting on the brush bristles.

Cleaning the appliance

• Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth. Do not use abrasive products to clean the device.

Descaling cleaning

• To prolong the life of your iron, we recommend that this procedure be carried out at regular intervals (once or twice a month). This is an activity that allows you to remove the limescale deposits and the impurities from inside the soleplate thanks to the steam and hot water, we suggest you to carry out this operation over a basin.
• Carry out the operations described in the paragraph "Filling the tank during use".
• Keep the appliance in horizontal position over a basin. Insert the plug into a power outlet. Make sure that the operation indicator light (D) is not blinking.
• Press quickly the steam button (F) for 5 times. The "SELF CLEAN" function will be activated and steam and hot water will come out from the soleplate holes removing limescale and deposits from within the soleplate.
• Gently move the iron back and forth until the tank is completely emptied.
• Unplug from the electric outlet. Let the appliance to cool down for a few minutes and repeat the operation.
• Make sure that the soleplate is completely dry before storing the iron.
• Before using the appliance, clean the soleplate on an old cloth to make sure that the soleplate and tank are clean and to allow residual test water that has remained inside the pipes to vaporize.

Tank cleaning

• To clean the tank, insert fresh water, rinse and drain.
• Caution. Risk of material damage
• Do not pour vinegar, descales or other scented substances into the tank. Penalty the end o warranty.
• The warranty does not cover damage caused by clogging due to lime.
• Cleaning the soleplate and shell
• Any deposits and other residue on the soleplate can be removed using a cloth soaked in a water and vinegar solution.
• Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth.

Cleaning the accessories

1. Remove accessories from the appliance.
2. To clean the brush, remove the dust with your hands.
3. To clean the wrinkles accessory, move it from right to left on a dry towel.

Troubleshooting Common Issues with the Ariete Duetto Garment Steamer and Iron 6246

• No Steam: Check water level, ensure tank is properly attached, and verify power connection.
• Leaking Water: Do not overfill the tank; ensure the cap is tightly closed.
• Device Not Heating: Check the power outlet and ensure the device is switched on.
• Steam Button Not Working: Clean the button area and ensure the device is not overheated.

Preventive measures include regular cleaning of the water tank and soleplate, using distilled water to avoid mineral buildup, and storing the device in a dry place. The Ariete Duetto Garment Steamer and Iron 6246 comes with a 2-year warranty. For support, contact Ariete customer service or visit their official website.

Pros and Cons of the Ariete Duetto Garment Steamer and Iron 6246

Pros

• Dual-function design for vertical steaming and horizontal ironing
• Compact and lightweight for travel and storage
• Non-stick ceramic soleplate protects delicate fabrics
• Removable water tank for easy refilling
• Includes useful accessories like lint remover brush and trouser folder

Cons

• Smaller water tank may require frequent refills for large loads
• Not suitable for heavy-duty ironing tasks
• Some users report minor steam leakage if tank is overfilled

The Ariete Duetto Garment Steamer and Iron 6246 offers excellent value for money, especially for those who prioritize versatility and portability over heavy-duty ironing power.
